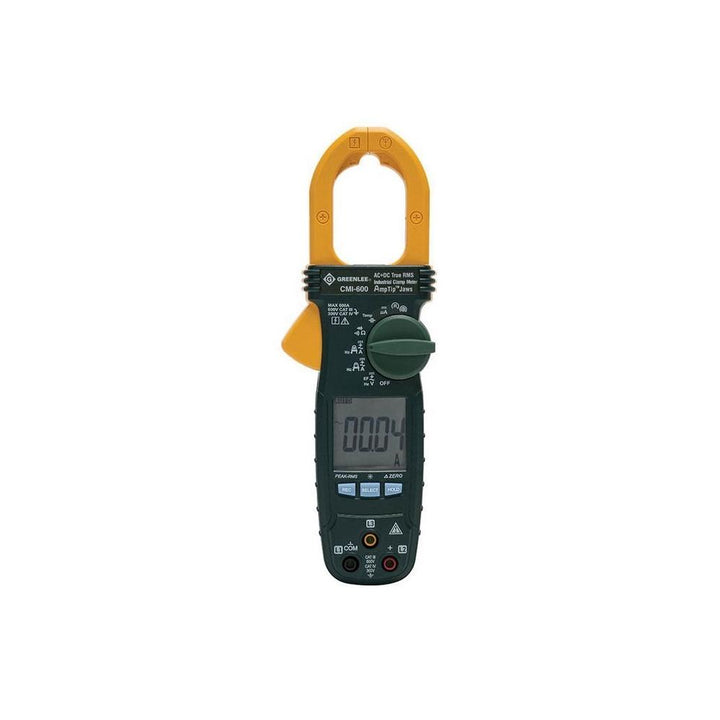

Greenlee CMI-600-C Industrial AC/DC True RMS Clamp Meter, Calibrated, 600 Amp
Greenlee CMI-600-C Industrial AC/DC True RMS Clamp Meter, Calibrated, 600 Amp
Greenlee CMI-600-C Industrial AC/DC True RMS Clamp Meter, Calibrated, 600 Amp

Greenlee CMI-600-C Industrial AC/DC True RMS Clamp Meter, Calibrated, 600 Amp

Regular price
/

$348.67 USD & FREE Shipping.
  • CMI-600 with Certificate of Calibration
  • Measures AC+DC current and DC microamps
  • AC and AC+DC voltage measurements with digital filter low pass for accurate readings on variable frequency drives
  • Also measures DC voltage, resistance, capacitance, temperature and frequency
  • Tests continuity and diodes
Overview
The Greenlee CMI-600-C AC/DC Clamp Meter Calibrated is a hand-held testing device equipped with the following measurement capabilities: AC and DC voltage, AC current, AC current AmpTip, frequency, non-contact electric field (EF) detection, and resistance. It also checks diodes and verifies continuity. The meter is designed to be placed on or removed from insulated or uninsulated conductors.

Greenlee CMI-600-C Industrial AC/DC True RMS Clamp Meter, Calibrated, 600 Amp

Specifications
General Information
Brand
Greenlee
Part Number
CMI-600-C
Product Type
Clamp Meter
What's Included
(2) 1.5V AAA batteries, 02714 test leads and clips, TC-10 carrying case
Packaging
Retail
Country of Origin
Taiwan
UPC
783310022299
California Residents
Proposition 65 Warning
Physical Characteristics
Weight
0.05 kg
0.12 lb
Details
Measurement Standard
CAT III, C/US UL Listed, CE
Features
CMI-600 with Certificate of Calibration
Measures AC+DC current and DC microamps
AC and AC+DC voltage measurements with digital filter low pass for accurate readings on variable frequency drives
Also measures DC voltage, resistance, capacitance, temperature and frequency
Tests continuity and diodes
Phase Sequence & Motor Rotation tests
Peak-RMS measures motor in rush current
Backlight & relative mode for added versatility
AmpTipâ„¢ increases accuracy on small wires and low current
Two voltage detection modes - non-contact or using a single test lead
Data hold
Recording of Maximum, Minimum, and Average readings

Amperage Measurement: 60, 600 Amps AC+DC
Measurement Category: CAT III 600V, CAT IV 300V
True Power: AC+DC True RMS
Jaw Size
1.18'' (30 mm)
Resistance (Ohms)
600, 6k, 60k Ohms
Frequency
Voltage and AmpTipâ„¢ current: 50/60 Hz. High current: 50 to 400 Hz
Batteries
(2) 1.5V AAA batteries
Display Type
LCD, 6000 Count
Why would you use this tool for ?
About manufacturer
Greenlee

Founded in 1862, Greenlee Tools got its start as a toolmaker when two brothers needed to manufacture their invention (a special drill surrounded by chisels). With the success of this effort, the Greenlee brothers quickly took on making other woodworking tools and other machinery including a machine that laid track for the railroad. In the mid-80s and beyond, Greenlee added on other toolmakers and diversified the kinds of tools they make and now Greenlee manufactures tools used by tradesmen in all vocations from communications to hydraulic pumps, plumbing, telecom, test equipment and many more. Greenlee is widely recognized as an industry leader for quality hand and industrial tools.
