Greenlee CS-8000 Circuit Seeker
Greenlee CS-8000 Circuit Seeker
Greenlee CS-8000 Circuit Seeker
Greenlee CS-8000 Circuit Seeker
Greenlee logo

Greenlee CS-8000 Circuit Seeker

$1,171.10 USD & FREE Shipping.
/
%3Cp%3EEarn%20[points_amount]%20when%20you%20buy%20this%20item.%3C/p%3E
  • Advanced patented non-directional sensing technology
  • Superior sensitivity and functionality providing for accurate tracing & locating
  • Ergonomic receiver with information-rich full-color graphical LCD
  • Graphics and audible signal provide quick and easy way to understand tracing feedback

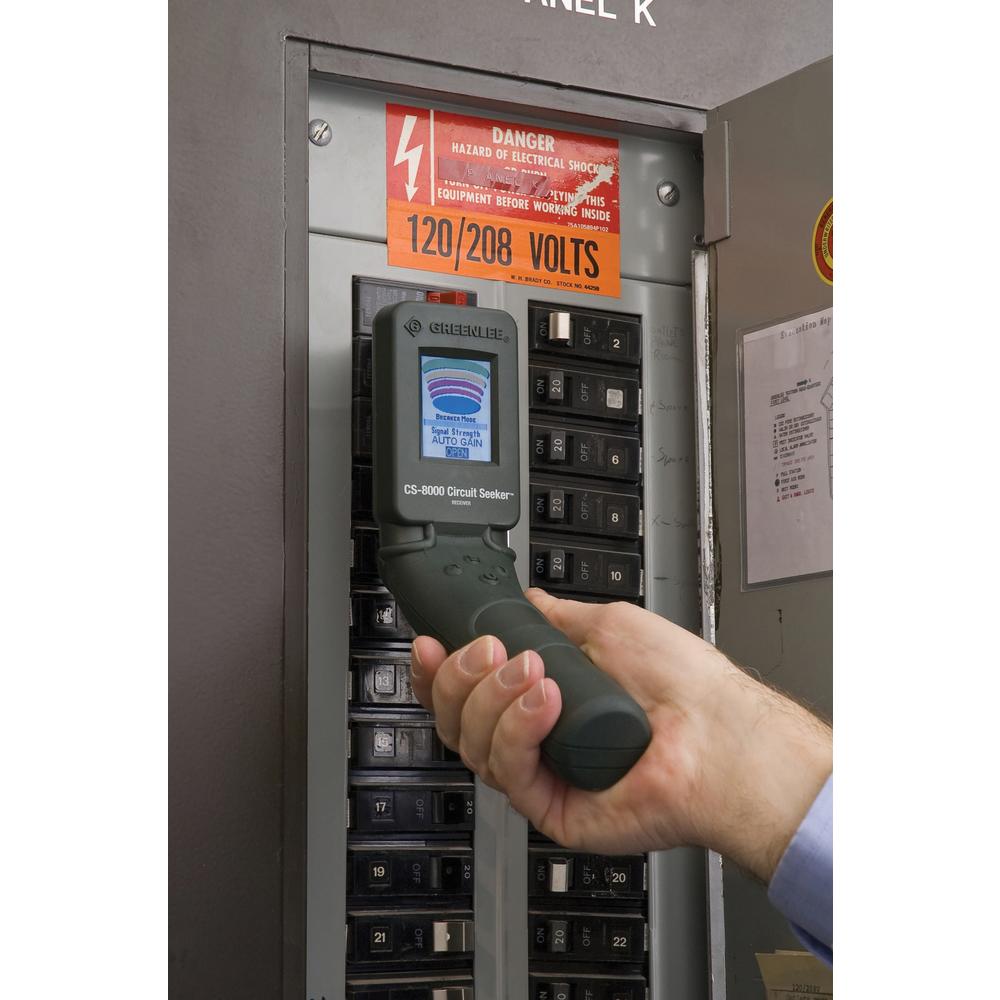

  • Traces concealed wiring, locates junction boxes, and finds breakers for live or open circuits
Overview

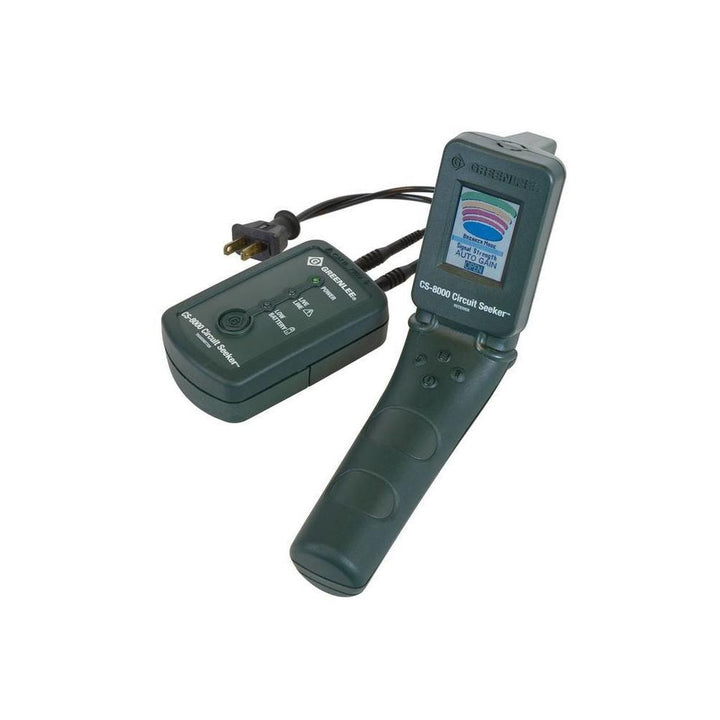

The Greenlee CS-8000 Circuit Seeker Circuit Tracer identifies and traces either live or  unenergized circuits. It also locates faults or opens in a circuit, identifies specific circuit breakers, and traces circuits including those shorted to ground. The CS-8000 consists of a receiver, a transmitter, and accessories for connecting the transmitter to the circuit being traced or identified.


The CS-8000 receiver incorporates patented, non-directional signal detection circuitry. It is not  necessary to rotate the receiver when following the path of the traced object.

Brand img

Greenlee CS-8000 Circuit Seeker

You may also like
Specifications
General Information
Brand
Greenlee
Part Number
CS-8000
Product Type
Circuit Seeker
Application
For Use On GFCI Protected Circuits
What's Included
12849 Transmitter, 12850 Receiver, 10057 Alligator Clips (2), 10054 AC Blade, 12852 AC Plug Adapter, 12853 Extension Leads (2), 12851 Carrying Case
Packaging
Retail
Country of Origin
United States
UPC
783310121268
California Residents
Proposition 65 Warning
Physical Characteristics
Weight
2.03 kg
4.47 lb
Details
Features
Advanced patented non-directional sensing technology
Superior sensitivity and functionality providing for accurate tracing & locating
Ergonomic receiver with information-rich full-color graphical LCD
Graphics and audible signal provide quick and easy way to understand tracing feedback
Traces concealed wiring, locates junction boxes, and finds breakers for live or open circuits
Locates and identifies blown fuses
Finds shorts and breaks in conductors
Low pitch, high volume audible indicator
User-selectable automatic or manual gain capability for fast, convenient use
Can be used on GFCI protected circuits
Automatic backlight on receiver maximizes battery life
Supports transmitter-to-receiver distances up to 4 miles for closed circuit tracing

Receiver Range: Up To 20.000 FT (6.000 M) Live Line Mode
Receiver Range: Up To 10.000 IN (3.000 M) Open Line With Metallic Connection To Ground
Receiver Range: 1.000 - 3.000 FT (0.300 - 0.900 M) With Capacitive Ground Reference
Receiver To Transmitter Distance: Up To 4 Miles For Closed Circuit Tracing
Capacitance
0 - 750V AC/DC
Frequency
15.15 kHz
Display Type
Full-Color Graphical LCD
