Greenlee CT-300 ClearTest® Transformer Tester

$1,020.30 USD & FREE Shipping.
/
%3Cp%3EEarn%20[points_amount]%20when%20you%20buy%20this%20item.%3C/p%3E
Extended Handling May Be Required
  • Quickly tests deenergized power distribution transformers
  • Briefly energizes the transformer and takes a snapshot of the condition by measuring the voltage, current and power factor of the test signal
  • Tests overhead, pad-mount and distribution transformers
  • Audible alarm confirms successful test
  • Improve SAIDI statistics by quickly testing and getting the transformer back in service
Overview
The ClearTest Transformer Tester provides quick and easy tests  of de-energized power distribution system transformers. It is a handheld device with a single pushbutton that provides a clear indication of open circuits, short circuits, including shorted turns or shorted windings and confirmation that the test results are OK.

The ClearTest is a completely new design that briefly energizes  the transformer and takes a snapshot of the transformer condition by measuring the voltage, current and power factor of the test signal. The ClearTest finds transformer defects that include:
     • A single shorted turn in the primary or secondary side of a transformer
     • Open coils or blown internal fuses or breakers
     • Partial shorts including shorted turns, shorted turn layers, coil to core shorts and primary to secondary shorts
     • Bad transformer ratios resulting from shorted turns
Brand img

Greenlee CT-300 ClearTest® Transformer Tester

You may also like
Specifications
General Information
Brand
Greenlee
Part Number
CT-300
Product Type
Transformer Tester
What's Included

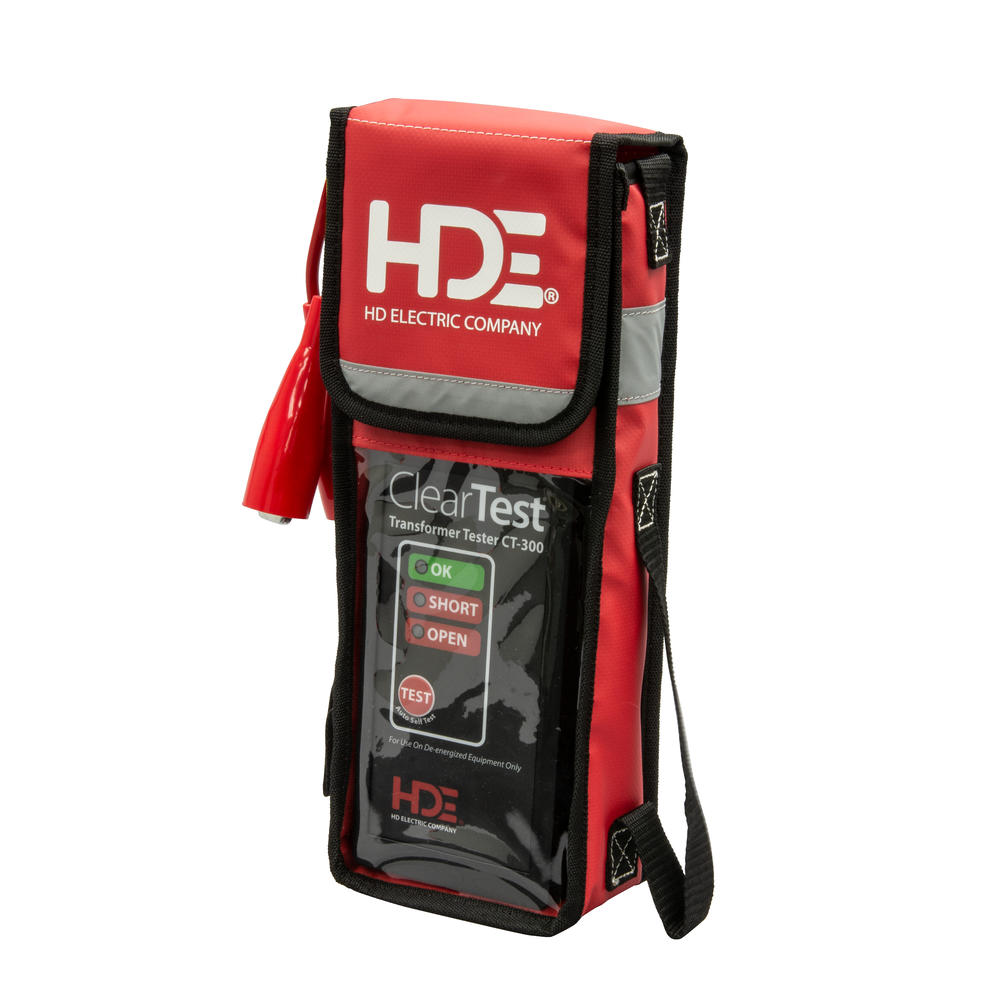

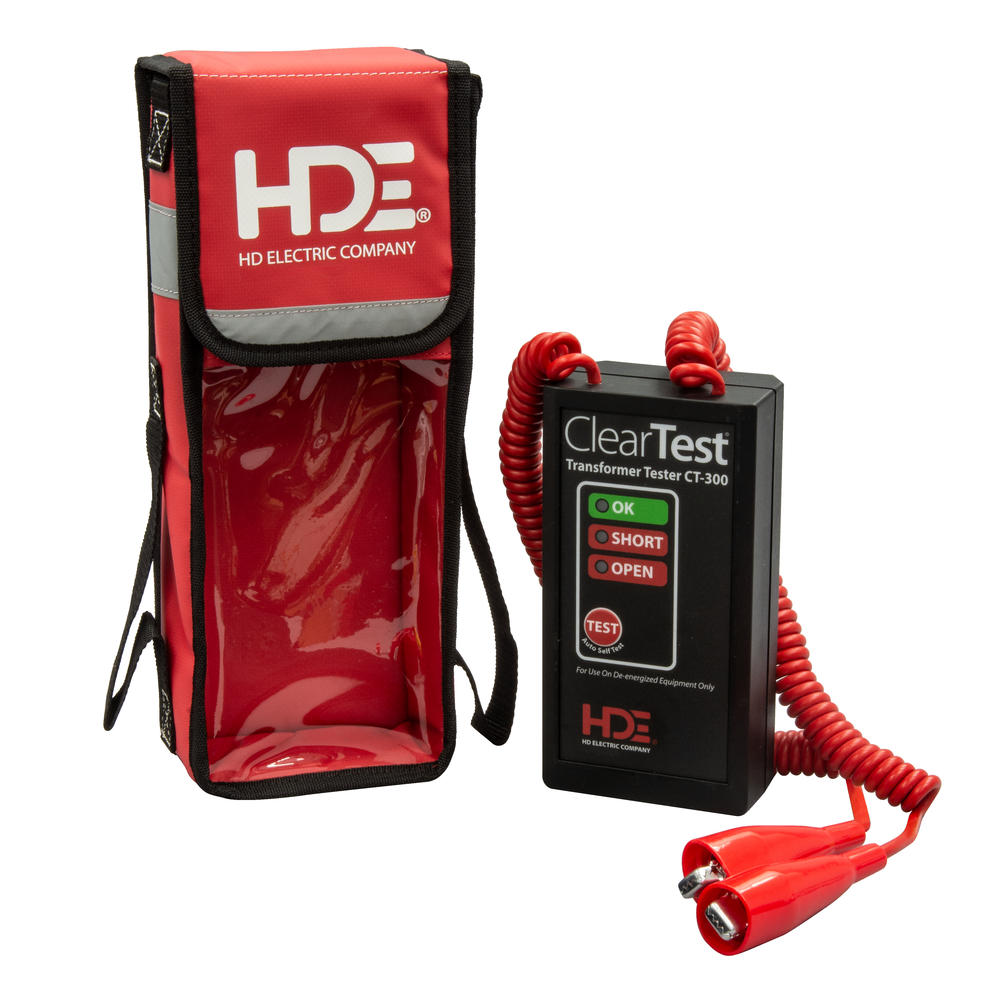

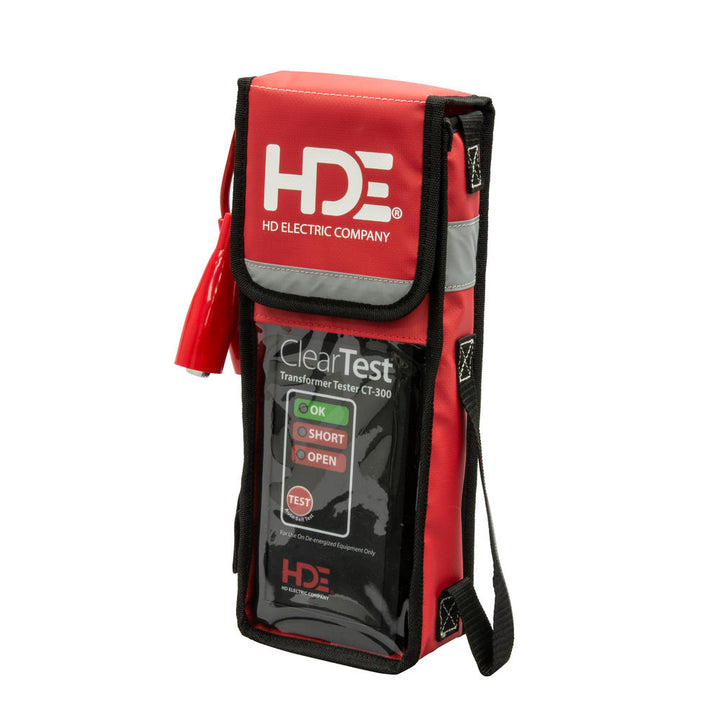

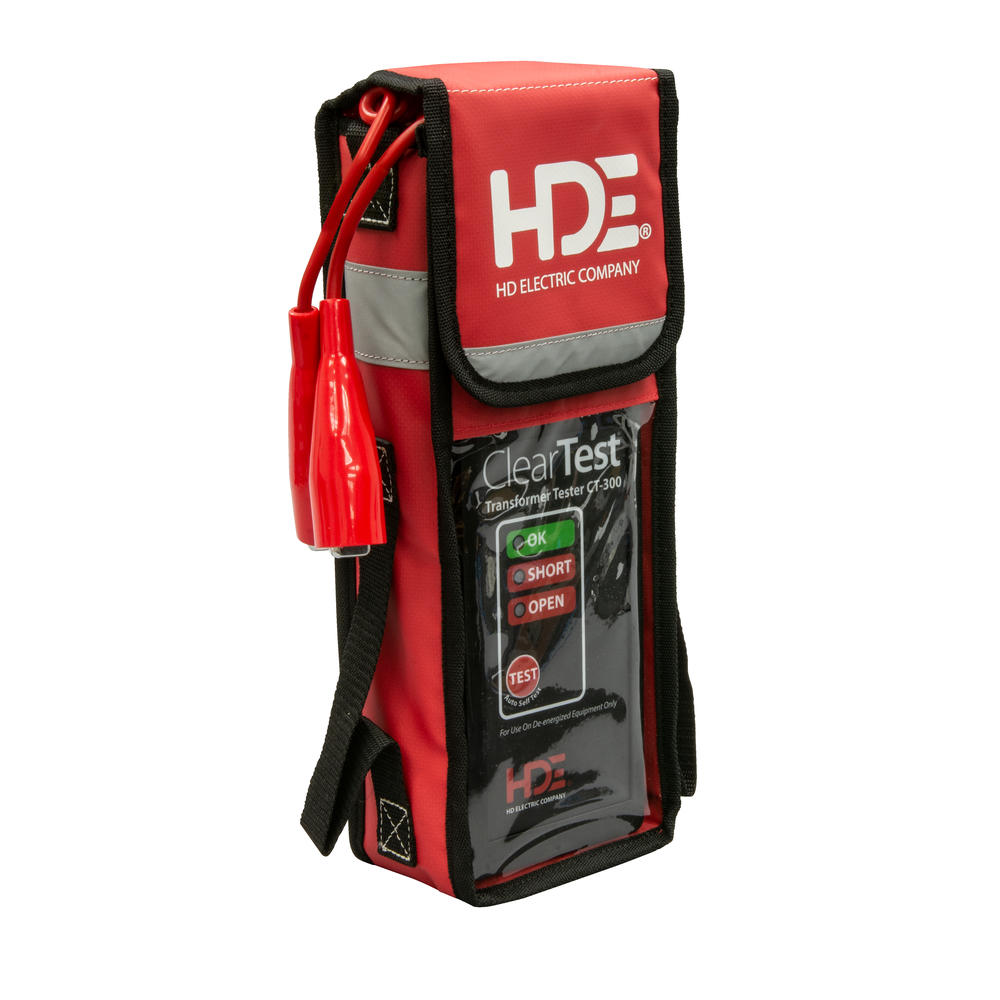

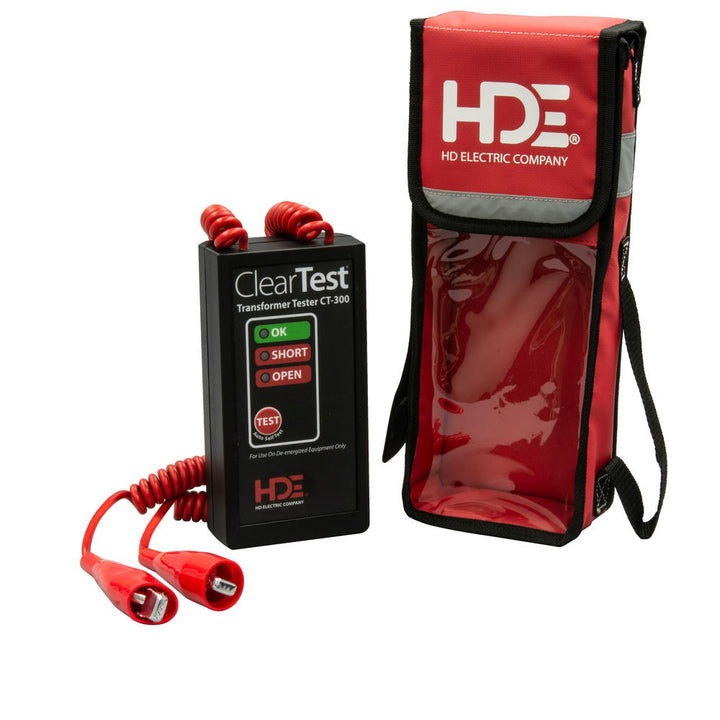

CT-300 Tester, B-9 Carrying Bag
Packaging
Retail
Country of Origin
United States
UPC
783310556961
California Residents
Proposition 65 Warning
Physical Characteristics
Length
7.8" (19.5 cm)
Width
4" (10.1 cm)
Height
2.3" (5.9 cm)
Weight
0.05 kg
0.12 lb
Details
Features
Quickly tests deenergized power distribution transformers
Briefly energizes the transformer and takes a snapshot of the condition by measuring the voltage, current and power factor of the test signal
Tests overhead, pad-mount and distribution transformers
Audible alarm confirms successful test
Improve SAIDI statistics by quickly testing and getting the transformer back in service
Auto self-test performed with every test
Compact, lightweight and easy-to-use

Output: 500VDC or 5,000VDC nominal
Enclosure: ABS UL 94-HB
Mounting: Magnet
Current
1,000µA on 500VDC range; 100µA on 5,000VDC range; 2,000µA max
Temperature Range
-20°F to +140°F (-29°C to +60°C)
