Greenlee DM-210A Digital Multimeter, Cap, Temp
Greenlee DM-210A Digital Multimeter, Cap, Temp
Greenlee DM-210A Digital Multimeter, Cap, Temp
Greenlee DM-210A Digital Multimeter, Cap, Temp
Greenlee DM-210A Digital Multimeter, Cap, Temp

Greenlee DM-210A Digital Multimeter, Cap, Temp

Regular price
/

$122.82 USD & FREE Shipping.
  • Measures voltage, current, resistance, frequency, capacitance, and temperature
  • Tests continuity and diodes
  • Backlit LCD with 6,000 count display
  • Two voltage detection modes - non-contact or using a single test lead
  • BeepJack warns when test leads are incorrectly inserted in current measurement terminals
Overview
Greenlee DM-210A Digital Multimeter, Cap, Temp

Greenlee DM-210A Digital Multimeter, Cap, Temp

Specifications
General Information
Brand
Greenlee
Part Number
DM-210A
Product Type
Digital Multimeter
What's Included
(2) 1.5V AAA Batteries, Bead Temperature Probe (DM-210A, DM-510A Only, 400 DEG F/204 DEG C max), Test leads, ProtectiveBoot
Packaging
Retail
Country of Origin
Taiwan
UPC
783310087410
California Residents
Proposition 65 Warning
Physical Characteristics
Weight
0.61 kg
1.35 lb
Details
Measurement Standard
CAT IV, CAT II, C/UL US Listed, CAT III, CE Listed
Features
Measures voltage, current, resistance and frequency
Tests continuity and diodes
Backlit LCD with 6,000 count display
Two voltage detection modes - non-contact or using a single test lead
BeepJack warns when test leads are incorrectly inserted in current measurement terminals
Automatic and manual rangeselection
Relative offset mode to see changes in measurements
Data hold
Use optional USB / RS-232 interface DMSC-2U for direct-to-PC logging
Lifetime Limited Warranty

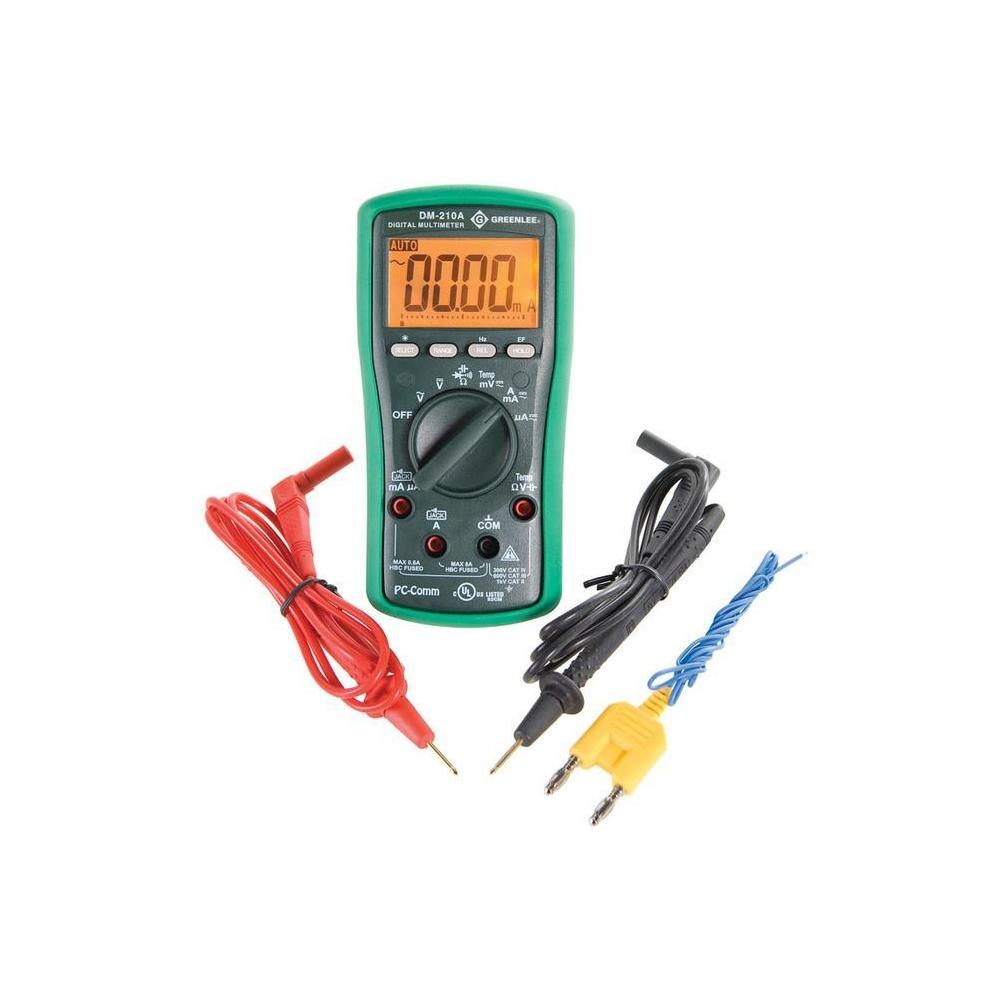

Accessories included: (2)1.5V AAA batteries, bead temperature probe (DM-210A, DM-510A only, 400°F/204°C max), test leads, protective boot
Measures capacitance
Measures temperature using a type K thermocouple

Amperage Measurement: 600, 6000 MICAMP, 60, 600 MILAMP, 6, 8 AMP
Measurement Category: CAT IV 300 V, CAT III 600 V, CAT II 1000 V
Voltage
60, 600 MILV, 6, 60, 600, 1000 V
Capacitance
60, 600 NFD, 6, 60, 600, 3000MFD
Resistance (Ohms)
600 OHM, 6, 60, 600 KOHM, 6, 60 MOHM
Frequency
10 HZ - 50 KHZ Sine Wave, 5 HZ - 999.9 KHZ Logic Level Square Wave
Batteries
(2) 1.5 V AAA
Display Type
Backlit LCD With 6,000 Count
Temperature Range
K Type, -58 To 1832 DEG F (-50 To 1000 DEG C)
Why would you use this tool for ?
About manufacturer
Greenlee

Founded in 1862, Greenlee Tools got its start as a toolmaker when two brothers needed to manufacture their invention (a special drill surrounded by chisels). With the success of this effort, the Greenlee brothers quickly took on making other woodworking tools and other machinery including a machine that laid track for the railroad. In the mid-80s and beyond, Greenlee added on other toolmakers and diversified the kinds of tools they make and now Greenlee manufactures tools used by tradesmen in all vocations from communications to hydraulic pumps, plumbing, telecom, test equipment and many more. Greenlee is widely recognized as an industry leader for quality hand and industrial tools.
