Features
The Greenlee DM-510A Digital Multimeters is a hand-held testing devices with the following measurement capabilities: AC and DC voltage, AC and DC current, frequency, resistance, temperature(K-type thermocouples only) and capacitance. They also check diodes and verify continuity. An optional optically isolated computer interface with software facilitates the recording of readings from the meter to a computer.
The DM-510A multimeter has an AutoCheck™ function for automatic selection of AC voltage, DC voltage, and resistance with low input impedance to mask “ghost” voltages. The DM-510A also has a crest function, which captures voltage or current signal peaks, as well as a recording function, which stores the maximum and minimum input readings. The DM-510A is a true RMS meter.

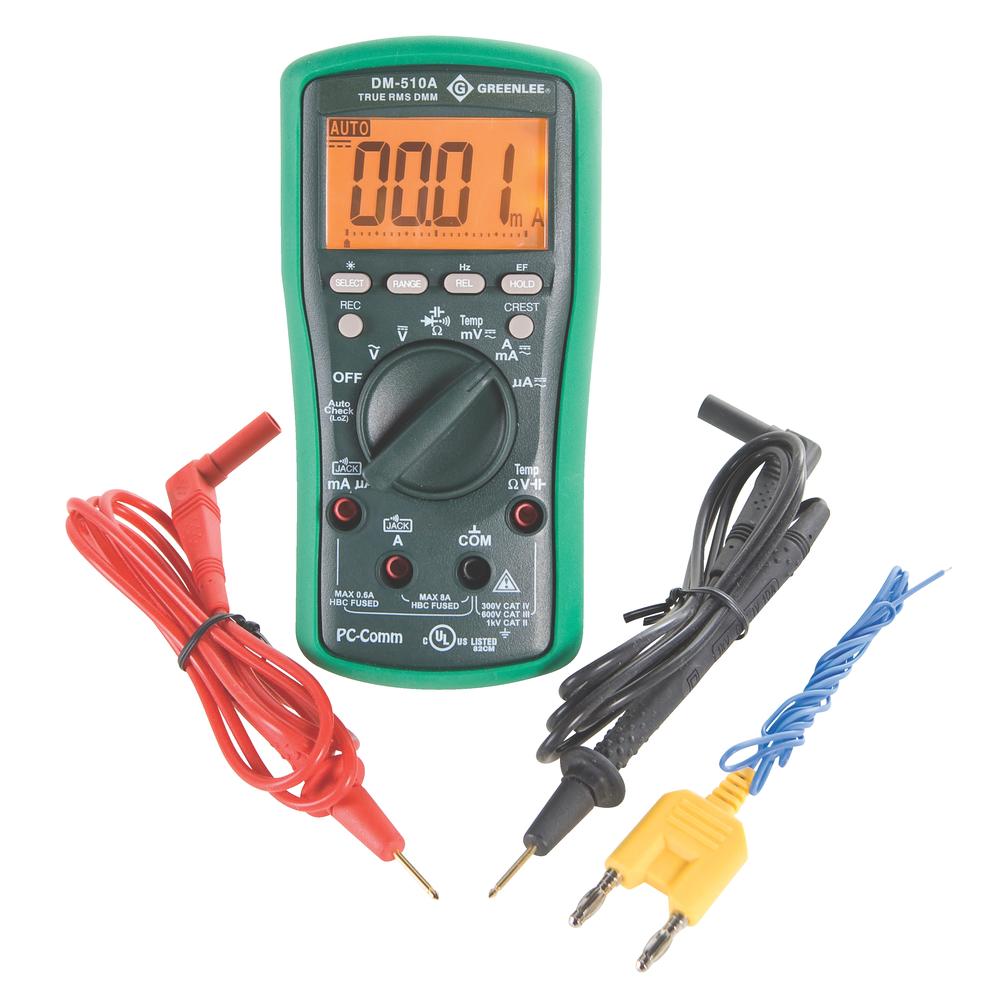

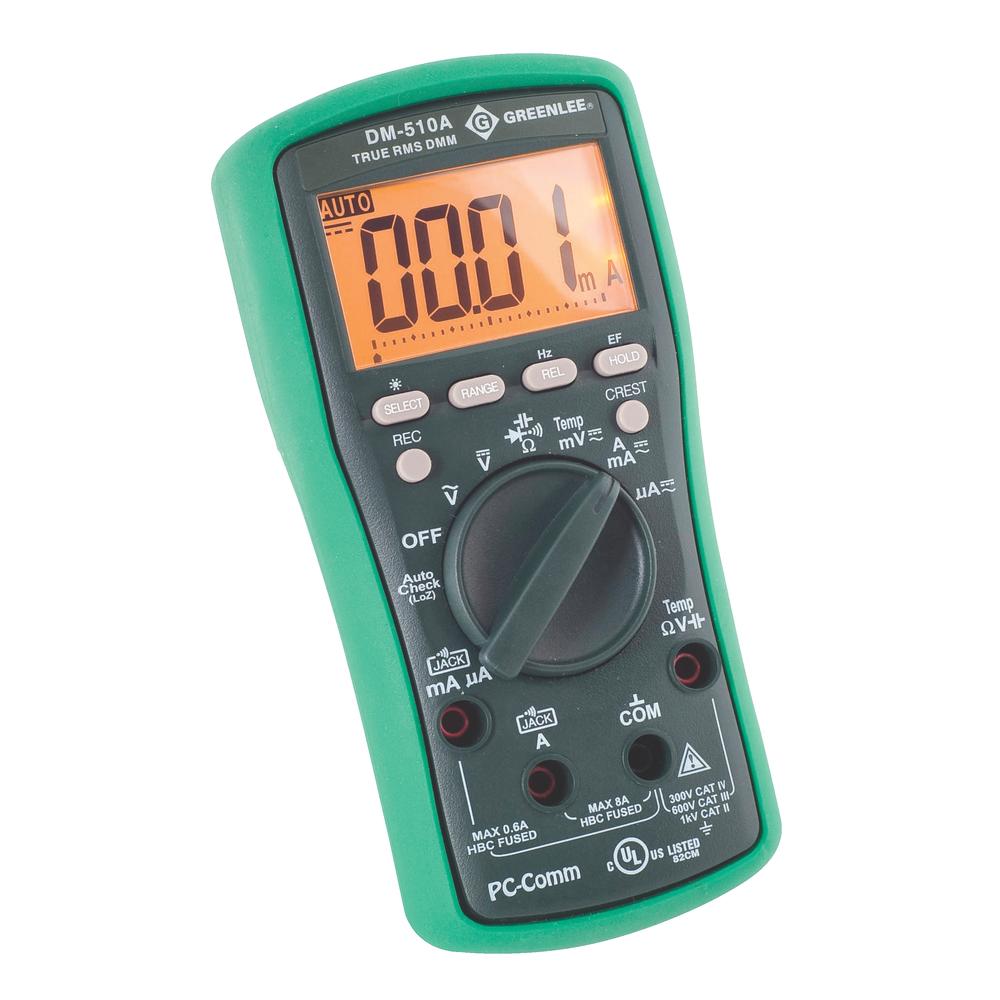

Greenlee DM-510A-C Digital Multimeter with Calibration, TRMS, AC/DC, CAP, TEMP
- Multimeters
- Greenlee
- DM-510A-C
Tests continuity and diodes
Backlit LCD with 6,000 count display
Two voltage detection modes - non-contact or using a single test lead
BeepJack warns when test leads are incorrectly inserted in current measurement terminals
Automatic and manual rangeselection
Relative offset mode to see changes in measurements
Data hold
Use optional USB / RS-232 interface DMSC-2U for direct-to-PC logging
Lifetime Limited Warranty
Accessories included: (2)1.5V AAA batteries, bead temperature probe (DM-210A, DM-510A only, 400°F/204°C max), test leads, protective boot
True RMS for no-compromise accuracy
Crest capture (peak hold)plus recording of max, min, max-min and average
Low impedance AutoCheck mode - automatically selects AC or DC volts, resistance or continuity, Low impedance masks ghost voltage pickup
Measures capacitance
Measures temperature using a type K thermocouple
Includes Certificate of Calibration
Amperage Measurement: 600, 6000μA; 60, 600mA; 6, 8A
Measurement Category: CAT IV 300 V, CAT III 600 V, CAT II 1000 V
Type: Professional Plant Digital
