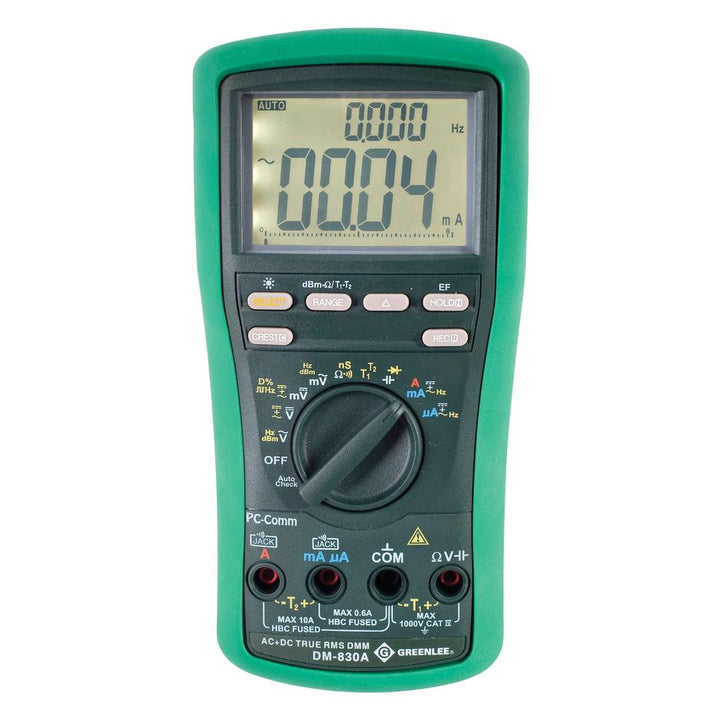

Greenlee DM-830A-C with Calibration, TRMS, AC+DC, DUALTEMP

/
$376.04 USD & FREE Shipping.
Extended Handling May Be Required
  • True RMS for no-compromise accuracy
  • Measures voltage, current, resistance, capacitance and frequency
  • Tests continuity and diodes
  • Two voltage detection modes - non-contact or using a single test lead
  • Two temperature measurements using type K thermocouples
Overview
The Greenlee DM-830A-C Digital Multimeters is a hand-held testing devices with the following measurement capabilities: AC and DC voltage, AC and DC current, frequency, resistance, capacitance, and duty cycle of logic level signals. They also check diodes and verify continuity. All meters feature true RMS AC measurements, a relative zero mode, data hold mode, and an intelligent automatic power off. An optional optically isolated computer interface with software facilitates the recording of readings from the meter to a computer.

The DM-830A-C multimeters have the following additional capabilities: temperature (K-type thermocouples only); conductance; a crest function, which captures voltage or current signal peaks; and a recording function, which stores the maximum, minimum, and difference (maximum-minimum) input readings. The DM-830A-C record function can also calculate the average reading. These two models also have non-contact and single-probe voltage detection.


The DM-830A-C multimeters have an AutoCheck™ function for automatic selection of AC voltage, DC voltage, and resistance with low input impedance to mask “ghost” voltages. The multimeter features a T1-T2 function, which can measure and display two temperatures and calculate the difference. They also feature AC + DC true RMS measurement capability. The DM-830A has a dBm function with selectable reference impedances.
Brand img

Greenlee DM-830A-C with Calibration, TRMS, AC+DC, DUALTEMP

Specifications
General Information
Brand
Greenlee
Part Number
DM-830A-C
Product Type
Digital Multimeter
What's Included
(1) 9V Battery, Bead Temperature Probe (DM-820A, DM-830A Only, 400°F/204°C Max), Test Leads, Protective Boot, Carrying Case
Packaging
Retail
Country of Origin
Taiwan
UPC
783310357704
California Residents
Proposition 65 Warning
Physical Characteristics
Weight
1.09 kg
2.41 lb
Details
Measurement Standard
CAT IV, C/UL US Listed, TRUE RMS, CE Listed
Features
True RMS for no-compromise accuracy
Measures voltage, current, resistance, capacitance and frequency
Tests continuity and diodes
Backlit LCD With Dual 10,000 Count Displays
BeepJack warns when test leads are incorrectly inserted in current measurement terminals
Automatic and manual range selection
Relative offset mode to see changes in measurements
Data hold
Use optional USB interface DMSC-9U for direct-to-PC logging
Lifetime Limited Warranty
AC+DC True RMS gives accurate readings on complex waveforms
Low impedance AutoCheck mode - automatically selects AC or DC volts, resistance or continuity. Low impedance masks ghost voltage pickup
dBm function with 20 selectable reference impedance values
Crest capture (peak hold)plus recording of max, min, max-min and average
Two voltage detection modes - non-contact or using a single test lead
Two temperature measurements using type K thermocouples
Conductance measurement
Includes Certificate of Calibration

Amperage Measurement: 600, 6000μA; 60, 600mA; 6, 10A
Conductance: 99.99 nS
Measurement Category: CAT IV, 1000 V
Voltage
60, 600 mV; 9.999, 99.99, 999.9 V
Capacitance
60, 600nF; 6, 60, 600μF; 6, 25 mF
Resistance (Ohms)
600Ω; 6, 60, 600 kΩ; 6, 60 MΩ
Frequency
15Hz- 50kHz Sine Wave, 5Hz - 1MHz Logic Level Square Wave
Batteries
(1) 9 V
Display Type
Backlit LCD With Dual 10,000 Count
Temperature Range
K Type, -58 To 1832°F (-50 To 1000°C)
