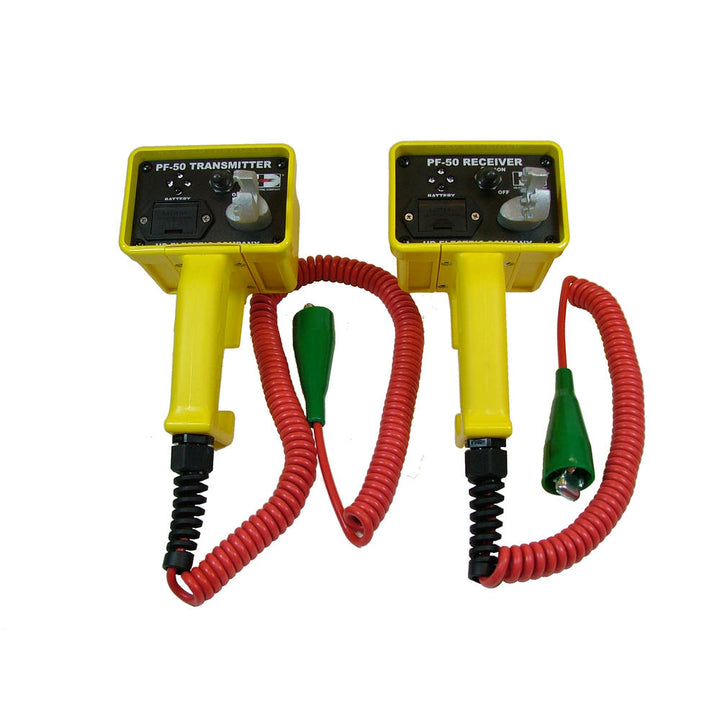

The PF-50 Cable Identifier identifies the correct phases of de-energized and discharged overhead and underground cables. It consists of a transmitter and receiver that are designed to be hand held with or without gloves or with optional accessory hotsticks. Red LED’s on both units indicate that the PF-50 units are connected to the same cable. Maximum cable length is 5,000 feet. Because of its higher test voltage, the PF-50 can test a mile of cable.
You may also like
Specifications
General Information
Brand
Greenlee
Part Number
PF-50
Product Type
Cable Identifier
Application
Phase Identification
Packaging
Retail
Country of Origin
United States
UPC
783310557159
California Residents
Proposition 65 Warning
Physical Characteristics
Weight
0.45 kg
1.00 lb
Details
Features
Identifies matching phase on long deenergized and discharged conductors
50VDC test voltage enables identification of up to 5,000 foot-long conductors
Compact, lightweight and easy-to-use solution
Versatile for overhead and underground applications
Indication Three Phases: Visual
Phase Rotation: No
50VDC test voltage enables identification of up to 5,000 foot-long conductors
Compact, lightweight and easy-to-use solution
Versatile for overhead and underground applications
Indication Three Phases: Visual
Phase Rotation: No
Frequency
50/60Hz
Why would you use this tool for ?
About manufacturer
Founded in 1862, Greenlee Tools got its start as a toolmaker when two brothers needed to manufacture their invention (a special drill surrounded by chisels). With the success of this effort, the Greenlee brothers quickly took on making other woodworking tools and other machinery including a machine that laid track for the railroad. In the mid-80s and beyond, Greenlee added on other toolmakers and diversified the kinds of tools they make and now Greenlee manufactures tools used by tradesmen in all vocations from communications to hydraulic pumps, plumbing, telecom, test equipment and many more. Greenlee is widely recognized as an industry leader for quality hand and industrial tools.
