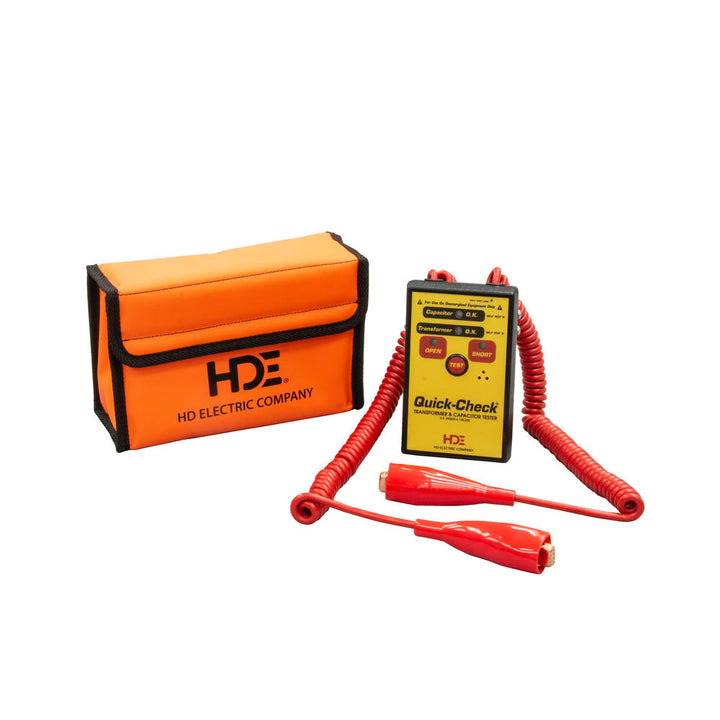

Greenlee QC-MAN-N Quick-Check® Transformer and Capacitor Tester, Manual Self-Test
Greenlee QC-MAN-N Quick-Check® Transformer and Capacitor Tester, Manual Self-Test
Greenlee QC-MAN-N Quick-Check® Transformer and Capacitor Tester, Manual Self-Test
Greenlee QC-MAN-N Quick-Check® Transformer and Capacitor Tester, Manual Self-Test
Greenlee logo

Greenlee QC-MAN-N Quick-Check® Transformer and Capacitor Tester, Manual Self-Test

/
$628.79 USD & FREE Shipping.
  • Quick and easy check for opens or shorts on transformers or capacitors before energizing
  • Provides clear indications of open circuits, short connections and confirmation that the test results are OK
  • Tests overhead, pad-mount and other distribution transformers as well as capacitors and capacitor banks
  • Tests the primary and secondary sides of de-energized transformers and capacitors without disconnecting
  • Helps prevent line workers from installing a fuse on a shorted transformer or capacitor
Overview

The Quick-Check Transformer and Capacitor Testers are versatile tools for quick and easy checks of transformers and the connections made to them. The Quick-Check Transformer and Capacitor Tester also tests power capacitors and capacitor banks. The transformer connections can include bundled secondaries or a cable run from the transformer to the meter.

In the field, the testers are used to test the primary and secondary sides of new or reworked, single or three phase transformer installations. The Quick-Check Transformer and Capacitor Tester also tests capacitor banks for short or open circuits prior to energizing.

In the shop the testers are used for quick screening of incoming and outgoing transformers (including their internal fuses and breakers). The Quick-Check Transformer and Capacitor Tester also tests capacitors for both shorts or opens. Both testers test 1Ø and 3Ø transformers including PT’s and other instrument transformers, and the Quick-Check Transformer and Capacitor Tester tests power capacitors in almost any size.

Brand img

Greenlee QC-MAN-N Quick-Check® Transformer and Capacitor Tester, Manual Self-Test

Specifications
General Information
Brand
Greenlee
Part Number
QC-MAN-N
Product Type
Transformer and Capacitor Tester
What's Included
Quick-Check Transformer, Capacitor Tester with Manual Self-Test, B-8 Bag
Packaging
Retail
Country of Origin
United States
UPC
783310081050
California Residents
Proposition 65 Warning
Physical Characteristics
Length
5.7" (14.5 cm)
Width
3.6" (9.1 cm)
Height
1.2" (3.0 cm)
Weight
0.83 kg
1.82 lb
Details
Features
Quick and easy check for opens or shorts on transformers or capacitors before energizing
Provides clear indications of open circuits, short connections and confirmation that the test results are OK
Tests overhead, pad-mount and other distribution transformers as well as capacitors and capacitor banks
Tests the primary and secondary sides of de-energized transformers and capacitors without disconnecting
Helps prevent line workers from installing a fuse on a shorted transformer or capacitor

Output: 6VDC
Enclosure: ABS UL 94-HB
Temperature Range
-20°F to +140°F (-29°C to +60°C)
