TREND Networks R151010 NaviTEK IE Industrial Ethernet Tester Kit
TREND Networks R151010 NaviTEK IE Industrial Ethernet Tester Kit
TREND Networks R151010 NaviTEK IE Industrial Ethernet Tester Kit

TREND Networks R151010 NaviTEK IE Industrial Ethernet Tester Kit

Regular price
/

$2,188.05 USD & FREE Shipping.
  • Pinpoint PROFINET cable faults (RJ45, M12, Fibre)
  • Easily configure nodes
  • Prevent network failures with the health check, and find rogue devices using the 48 hour event log
  • Locate hard to find devices using the device blink
  • Find mis-configured devices using the NetMAP too
Overview
The NaviTEK IE is a tester for commissioning, preventative maintenance and troubleshooting of PROFINET Industrial Ethernet networks as well as standard Ethernet IP networks.

Designed to simplify the process, the NaviTEK IE identifies network nodes and configuration without requiring a PC and speciality software. An easy to understand system health check pinpoints potential issues before they become network failures. Automatically discover cable, network or device configuration/faults with the touch of a button.

This kit performs all the functions of the NaviTEK NT PRO, plus additional features unique to it, as followed:

Every feature in the NaviTEK NT PRO Kit (R151006):

Display network configuration – IPv4 / IPv6 compatible
Wiremap for miswires, split pairs, opens and shorts
Distance to opens and shorts (TDR)
PoE/PoE+ detection and load test
Tone generator for cable tracing
Autotest button performs Ping and Traceroute test (network mode)
Hub blink for port identification
DHCP client
Switch speed detection -10/100/1000 Mb/s
User-exchangeable RJ45 inserts
Support for up to 12 wiremap remotes
Backlit colour screen
Autotest button performs a suite of network tests: Internet connectivity (Ping, DNS, Gateway, Traceroute) and NetScan
Network Probe (NET TEST) provides detailed network information of each device
Port identification using EDP/ CDP/ LLDP protocols
VLAN detection
Traffic utilisation bar graph
Generate test reports (PDF or CSV)
Send test reports from your mobile device using the free TREND AnyWARE App
Logon using the 802.1x protocol
Optical interface with power level and pass/fail indication with supported SFP
Loopback mode for transmission testing on both copper and fibre interfaces
Touchscreen
Custom wiremap

Every additional feature in the NaviTEK IE Kit (R151010):

M12 PROFINET Cable Testing
PROFINET Fibre Cable Testing
Traffic light network health check
Device LED flash to locate devices faster
NETMAP compare – identify changes in the network

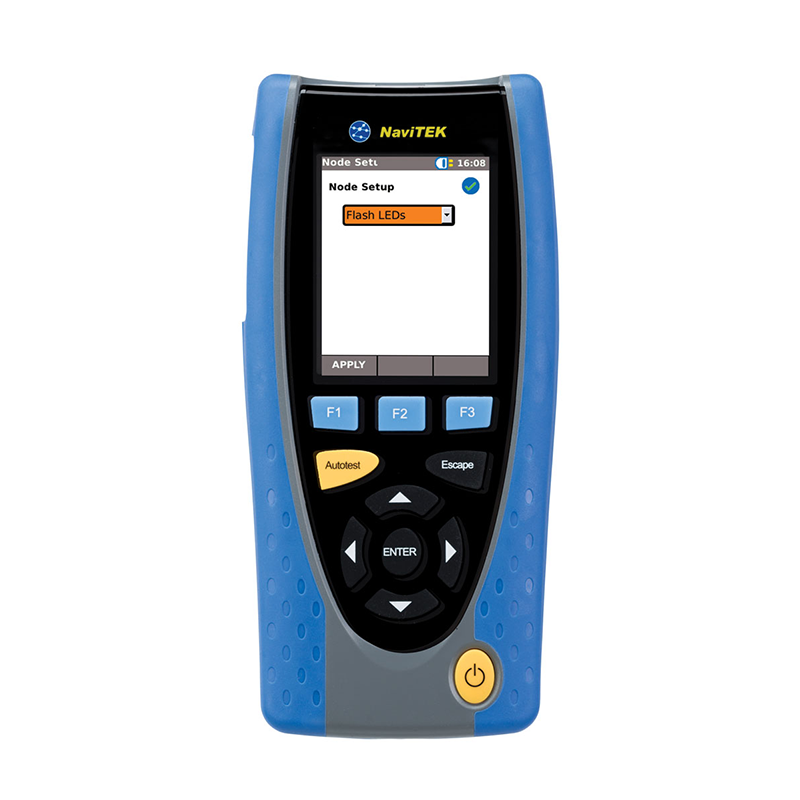

Configure node settings without the need for a laptop

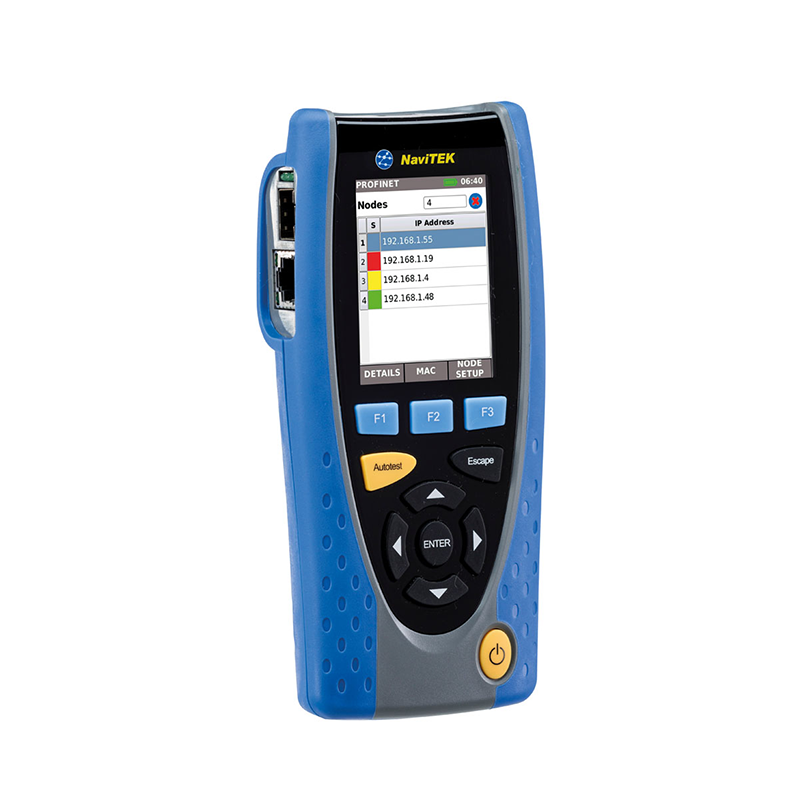

List all network node details ie IP Address, Vendor details, Software version etc
Ability to reset device to factory defaults
Device alarm/error detection
Professional Industrial Ethernet PDF Reports





Brand img

TREND Networks R151010 NaviTEK IE Industrial Ethernet Tester Kit

Specifications
General Information
Brand
TREND Networks
Part Number
R151010
Product Type
Ethernet Network Data Tester

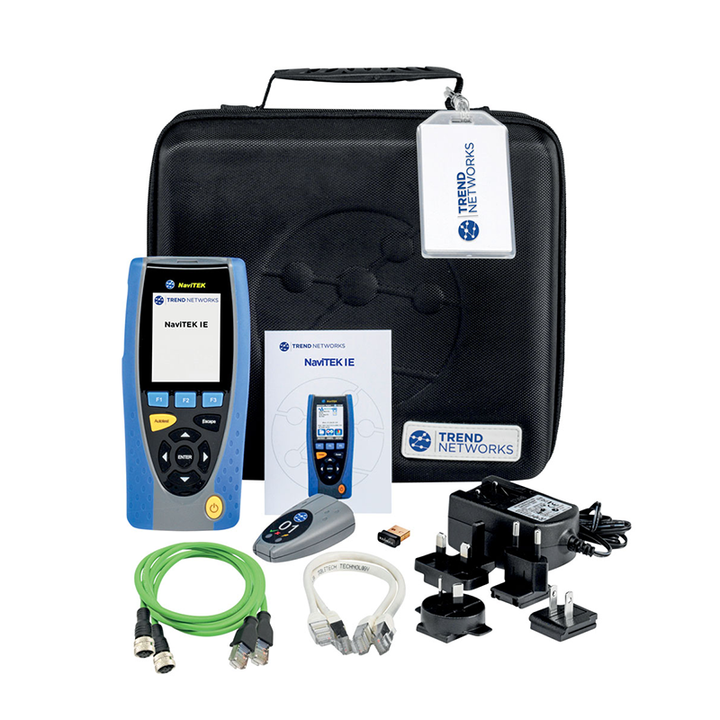

What's Included
1 x NaviTEK IE Test Unit
1 x Remote Unit No. 1
1 x Rechargeable Power Module
1 x PSU EU/UK/US Adapters
2 x Patch Cables, 30cm CAT5E STP
1 x USB Wi-Fi Adapter
1 x Quick Reference Guide
1 x Carry Case
2 x PROFINET RJ45 (m) - M12 (f) Coded 1 m Adapter Cable (R151058)
Packaging
Retail
Country of Origin
Malaysia
UPC
783250779918
California Residents
Proposition 65 Warning
Physical Characteristics
Weight
1.81 kg
4.00 lb
Video
The NaviTEK IE is a tester for commissioning, preventative
maintenance and troubleshooting of PROFINET Industrial
Ethernet networks as well standard Ethernet IP networks.

Designed to simplify the process, the NaviTEK IE identifies network
nodes and configuration without requiring a PC and speciality software.
An easy to understand system health check pinpoints potential issues
before they become network failures. Automatically discover cable,
network or device configuration/faults with the touch of a button.

To prove the network has been commissioned successfully, NaviTEK IE
provides professional PDF reports that can be shared with colleagues
and clients using the free AnyWARE mobile app
Why would you use this tool for ?
About manufacturer
Brand img

Trend Networks (formerly Ideal Networks) employs a team of experts who understand and appreciate the challenges facing data cable installers, network techs and more. That's why they're continually innovating data cable and network equipment to provide fast and accurate results with ease. Trend's "Depend On Us" philosophy is a part of everything they do and make.
