Overview
Features
- 6 flat and 1 high drawer
- Large ball-bearing wheels (⌀ 100 mm), easy maneuverability, even with high dynamic load
- 2 swivel castors (⌀ 100 mm), 1 x lockable
- Thread guard – protects the bearings against dirt and threads
- Grey non-marking elastic tires enable smooth movement
- Two-stage locking concept:

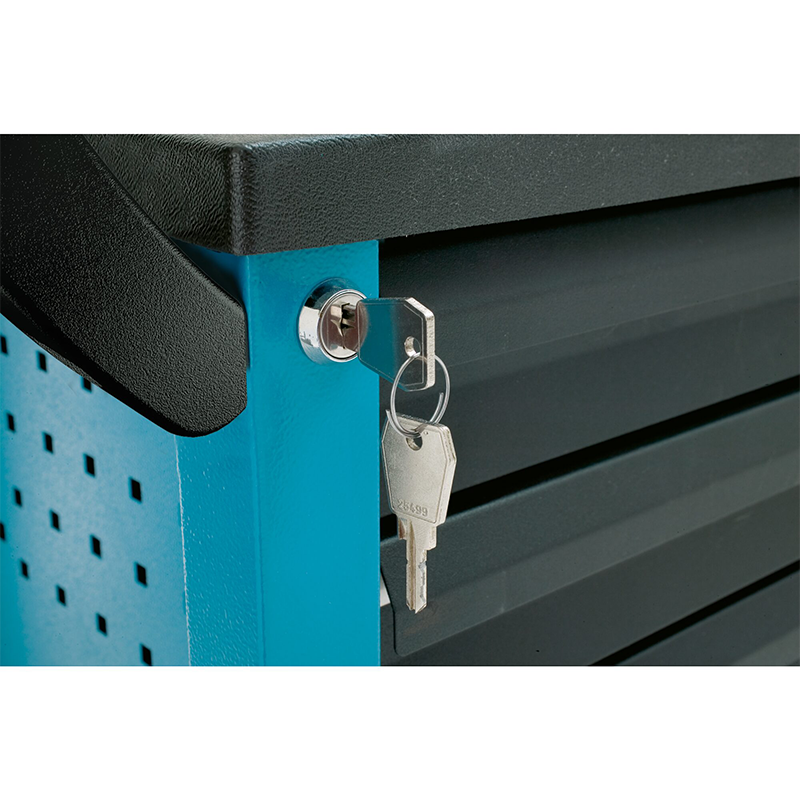

- Central locking, lockable with cylinder lock and 2 keys

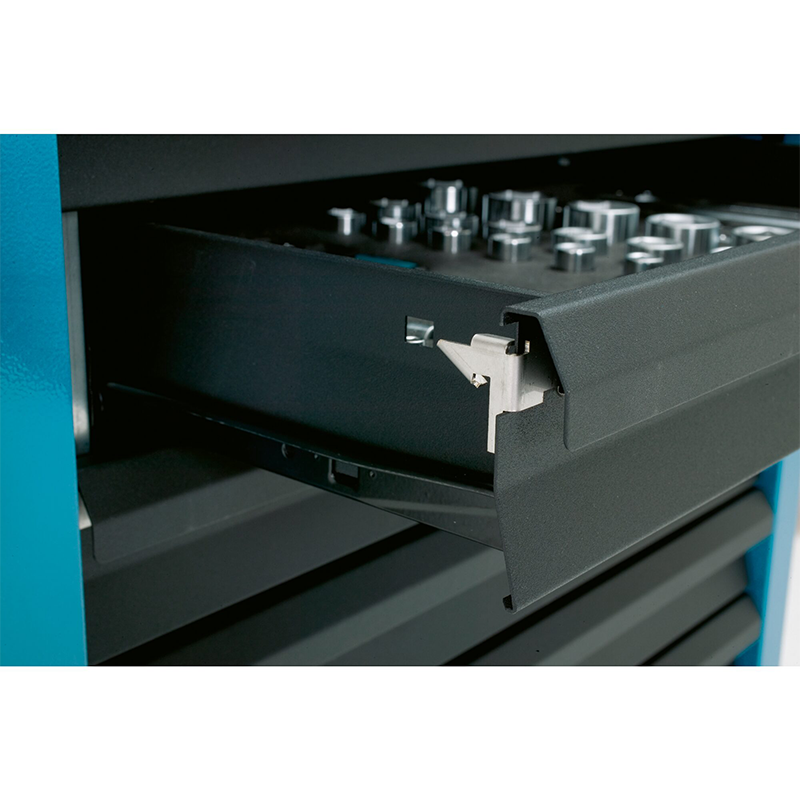

- Individual drawer locking prevents unwanted drawer opening
- 100% sliding-out with roller guides
- Total loading capacity (dynamic): 300 kg
- Loading capacity (static): 300 kg

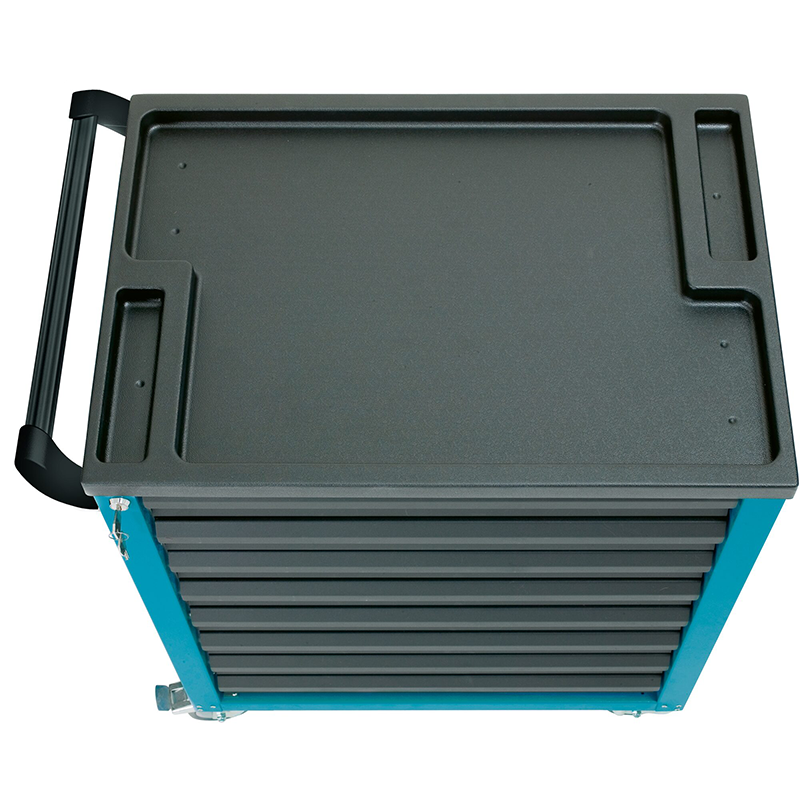

- Worktop: Plastic, resistant to solvent, with integrated storage wells
- Loading capacity per drawer: 20 kg
- Drawer size for order system: 3/3
- Number of separation sheets: 7
- Worktop height: 881
- Number of fixed castors: 2 (∅ 100 mm)
- Number of swivel castors: 2 (∅ 100 mm)
- Rectangular perforation of the side panels provides various fastening options for accessories such as paper bin, cable drum etc.
- Side fastening panels, e.g. for HAZET tool hooks, article group 112
- The drawers are equipped with one separation sheet each as standard
- Suitable for HAZET Safety-Insert-System and plastic drawer inserts
- Recessed side panels protect accessories from damage, being fastened within the trolley's outer dimensions
- Handle firmly attached to the trolley
Product Series
You may also like
Specifications
General Information
Brand
Hazet
Part Number
177-7
Product Type
Tool Trolley
Packaging
Retail
Country of Origin
Germany
UPC
4000896148592
California Residents
Proposition 65 Warning

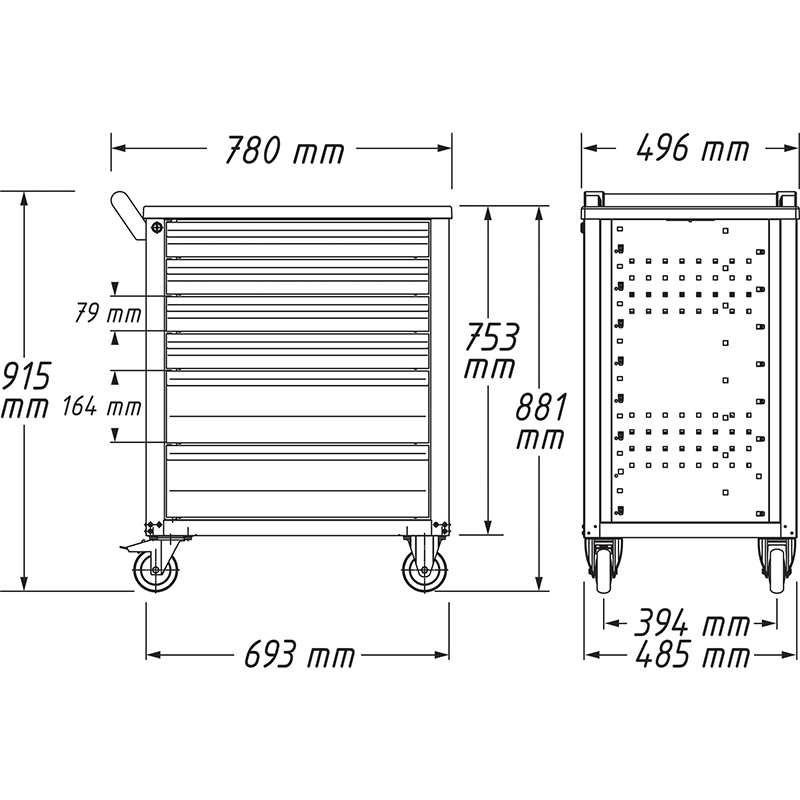

Physical Characteristics
Length
780 mm
Width
498 mm
Height
915 mm
Weight
64.80 kg
142.86 lb
Color
HAZET blue
Details
Size
Drawers, flat: 79 x 527 x 348 mm
Drawers, high: 164 x 527 x 348 mm
Drawers, high: 164 x 527 x 348 mm
Features
6 flat and 1 high drawer
Large ball-bearing wheels (⌀ 100 mm), easy maneuverability, even with high dynamic load
2 swivel castors (⌀ 100 mm), 1 x lockable
Thread guard – protects the bearings against dirt and threads
Grey non-marking elastic tires enable smooth movement
Two-stage locking concept:
Central locking, lockable with cylinder lock and 2 keys
Individual drawer locking prevents unwanted drawer opening
100% sliding-out with roller guides
Total loading capacity (dynamic): 300 kg
Loading capacity (static): 300 kg
Worktop: Plastic, resistant to solvent, with integrated storage wells
Loading capacity per drawer: 20 kg
Drawer size for order system: 3/3
Number of separation sheets: 7
Worktop height: 881
Number of fixed castors: 2 (∅ 100 mm)
Number of swivel castors: 2 (∅ 100 mm)
Rectangular perforation of the side panels provides various fastening options for accessories such as paper bin, cable drum etc.
Side fastening panels, e.g. for HAZET tool hooks, article group 112
The drawers are equipped with one separation sheet each as standard
Suitable for HAZET Safety-Insert-System and plastic drawer inserts
Recessed side panels protect accessories from damage, being fastened within the trolley's outer dimensions
Handle firmly attached to the trolley
Large ball-bearing wheels (⌀ 100 mm), easy maneuverability, even with high dynamic load
2 swivel castors (⌀ 100 mm), 1 x lockable
Thread guard – protects the bearings against dirt and threads
Grey non-marking elastic tires enable smooth movement
Two-stage locking concept:
Central locking, lockable with cylinder lock and 2 keys
Individual drawer locking prevents unwanted drawer opening
100% sliding-out with roller guides
Total loading capacity (dynamic): 300 kg
Loading capacity (static): 300 kg
Worktop: Plastic, resistant to solvent, with integrated storage wells
Loading capacity per drawer: 20 kg
Drawer size for order system: 3/3
Number of separation sheets: 7
Worktop height: 881
Number of fixed castors: 2 (∅ 100 mm)
Number of swivel castors: 2 (∅ 100 mm)
Rectangular perforation of the side panels provides various fastening options for accessories such as paper bin, cable drum etc.
Side fastening panels, e.g. for HAZET tool hooks, article group 112
The drawers are equipped with one separation sheet each as standard
Suitable for HAZET Safety-Insert-System and plastic drawer inserts
Recessed side panels protect accessories from damage, being fastened within the trolley's outer dimensions
Handle firmly attached to the trolley
Why would you use this tool for ?
About manufacturer
Hazet Tools are indeed some of the best tools made today, and they have a long tradition of excellence to back them up. Hazet got started in 1868 in Remscheid, Germany making parts for construction, lawnmowers and locks. Hazet has since grown and earned their reputation as the leader in manufacturing automotive tools, pioneering tools specifically made for cars as early as 1913. They further solidified their reputation in automotive tools by developing and making the tool for the iconic Volkswagen Beetles and Porsche 356. Hazet Tools and automotive work are the perfect match!
