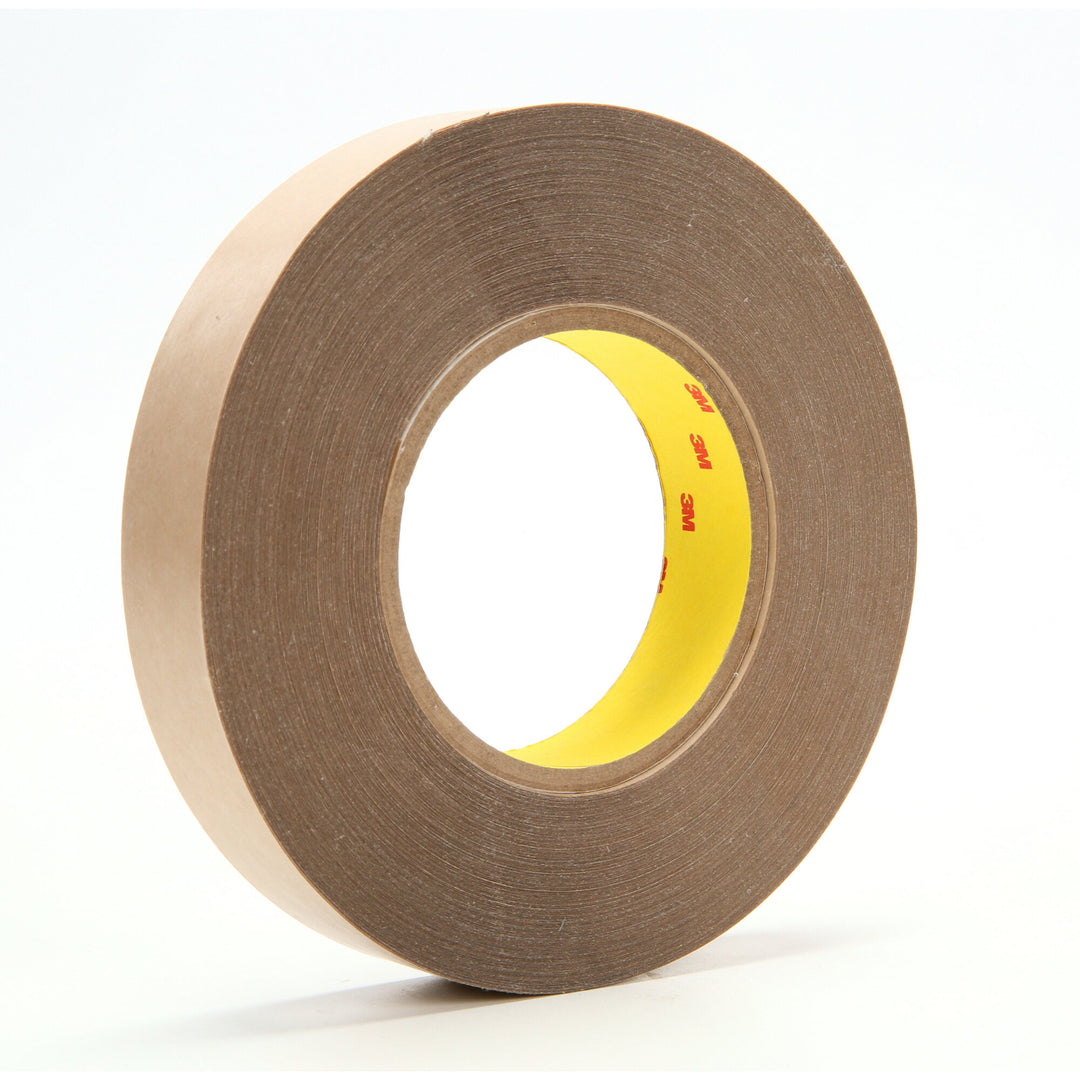

3M Adhesive Transfer Tape 9485PC, Clear, 1 in x 60 yd, 5 mil
3M Adhesive Transfer Tape 9485PC, Clear, 1 in x 60 yd, 5 mil

3M Adhesive Transfer Tape 9485PC, Clear, 1 in x 60 yd, 5 mil

Regular price
/

$53.99 USD & FREE Shipping.
  • 5.0 mils (.127 mm) thick tape provides high bond to low surface energy substrates and powder coated paints
  • 58 lb. PCK (polycoated kraft) paper liner provides moisture resistance and minimizes wrinkles
  • Excellent chemical resistance and shear and peel strength even at elevated temperatures
  • Designed for short term temperature exposure up to 450°F (232°C) and long term 300°F (149°C)
  • Adhesive is fiber reinforced for roll stability in narrow widths and to resist oozing
  • Low odor for improved working environment
Overview
3M Adhesive Transfer Tape 9485PC leverages the power of 3M High Performance Acrylic Adhesive 350 and is mounted on a tan, 58 lb. PCK (polycoated kraft) paper liner for moisture resistance. This transfer tape is an excellent solution bonding high and low surface energy materials. It can also be used for joining materials that have rougher surfaces.

Join High and Low Surface Energy Materials
3M™ Adhesive Transfer Tape 9485PC is a 5.0 mils (.127 mm) thick transfer tape consisting of our 3M™ Adhesive 350, a modified high performance acrylic adhesive designed for applications requiring high shear strength. The adhesive is a mounted on a tan colored, 58 lb. PCK (polycoated kraft) liner. This liner is moisture resistance and helps to minimize wrinkles. This tape is a high performance, high temperature, solvent-free industry standard tape with excellent chemical (such as gasoline, oil, sodium chloride, mild acids, alkaloids and more) and moisture resistance. It is a fiber reinforced adhesive, a feature that is important for roll stability in narrow widths. This tape is ideal for joining materials that have rougher surfaces.

Recommended Applications

  • Bonding high and low surface energy materials and powder coated paints
  • Narrow width automated dispensing
  • Bonding foams to low surface energy materials (LSE) while offering elevated temperature performance
  • Gasketing
  • Labeling

High Temperature Adhesion
3M™Adhesive 350 is a high-tack, high performance acrylic adhesive system featuring high initial adhesion to metals and high surface energy plastics. It offers excellent humidity, water, solvent, chemical and short term heat resistance. The adhesive is designed to provide exceptional shear strength, even at elevated temperatures. Shear strength is a measure of resistance to a sliding force along a plane that is parallel to the direction of the force. Adhesive 350 is formulated for temperate exposure up to 450°F/232°C for short periods of time and up to 300°F/149°C for extended time frames.

What are Adhesive Transfer Tapes?
In general, 3M adhesive transfer tapes are rolls of pressure sensitive adhesive pre-applied to a special release liner. The tape consists of adhesive only, and does not have any type of backing material. For application the tape is positioned adhesive side down to a surface and the liner is removed, exposing the backside of the adhesive to receive the secondary substrate.

3M Adhesive Transfer Tape 9485PC, Clear, 1 in x 60 yd, 5 mil

  • 3M
  • 7000123367
Specifications
General Information
Brand
3M™
Adhesive Type
Acrylic
Country Of Origin
United States
Sold As
Roll
Lead Time
2 days
California Residents
Dimensions and Specifications
Maximum Operating Temperature (Celsius)
232 Degree Celsius
Maximum Operating Temperature (Fahrenheit)
450 Degree Fahrenheit
Minimum Operating Temperature (Celsius)
-40 Degree Celsius
Minimum Operating Temperature (Fahrenheit)
-40 Degree Fahrenheit
Overall Length (Imperial)
60 yd
Overall Length (Metric)
54.86 m
Overall Width (Imperial)
1 in
Overall Width (Metric)
25.4 mm
Primary Liner Thickness (Imperial)
4.2 mil
Primary Liner Thickness (Metric)
0.11 mm
Total Tape Thickness Without Liner (Imperial)
5 mil
Total Tape Thickness Without Liner (Metric)
0.127 mm
Overall Length Imperial
60.0
Volume
49.77 cubic inch
815.62 cm3
Weight
12.55 oz
355.92 g
Other Details
Indoor/Outdoor
Indoor/Outdoor
Industries
Specialty Vehicle
Primary Liner
58# Polycoated Kraft Paper
Units Per Case
36.0 Roll
Indoor Outdoor
Indoor/Outdoor
Usage Information
Application
Mounting & Trim Attachment
Material and Composition
Shelf Life
730
Color and Appearance
Primary Liner Color
Tan
Packaging and Shipping
Case Quantity
36.0 Bags per Case
Resources
Datasheet
