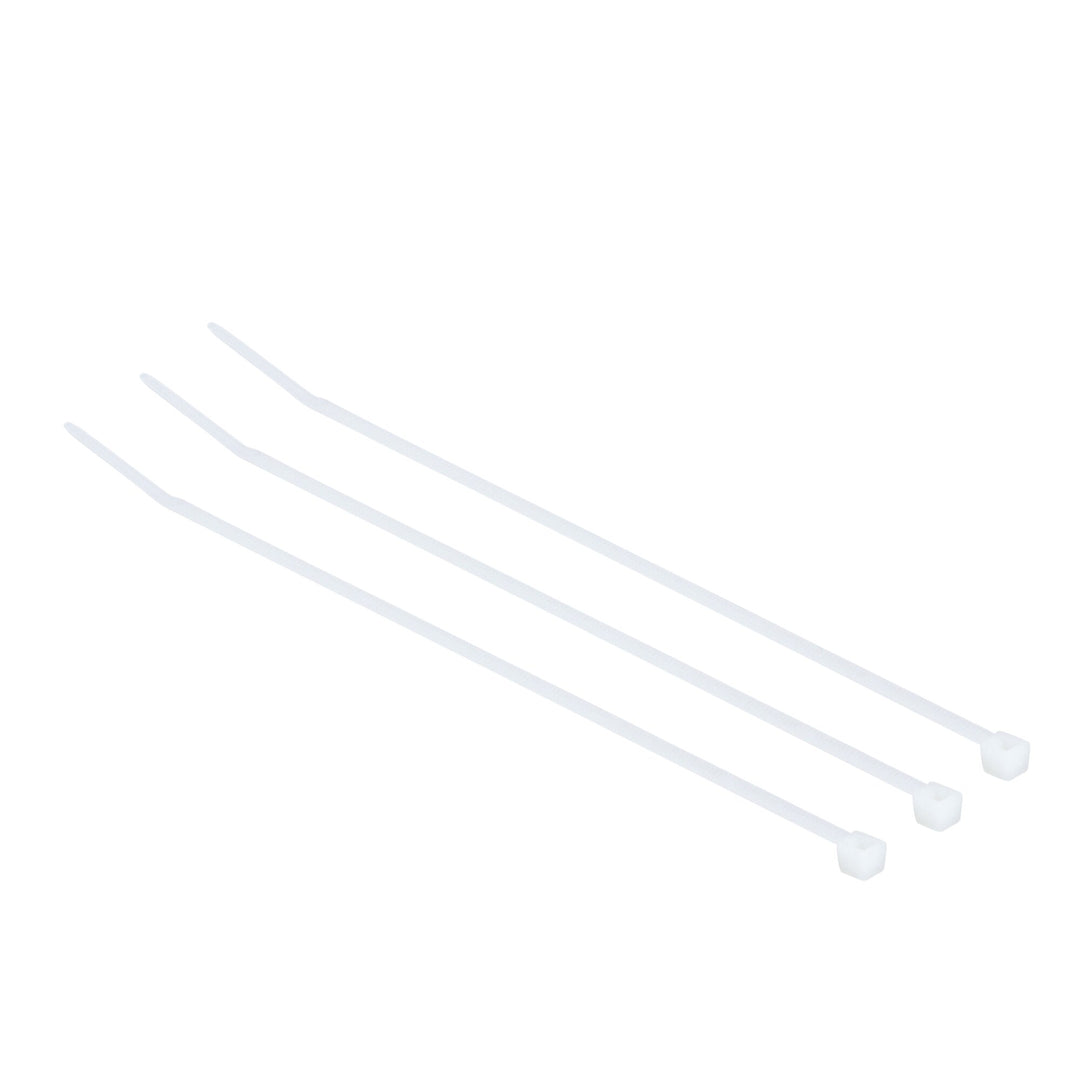

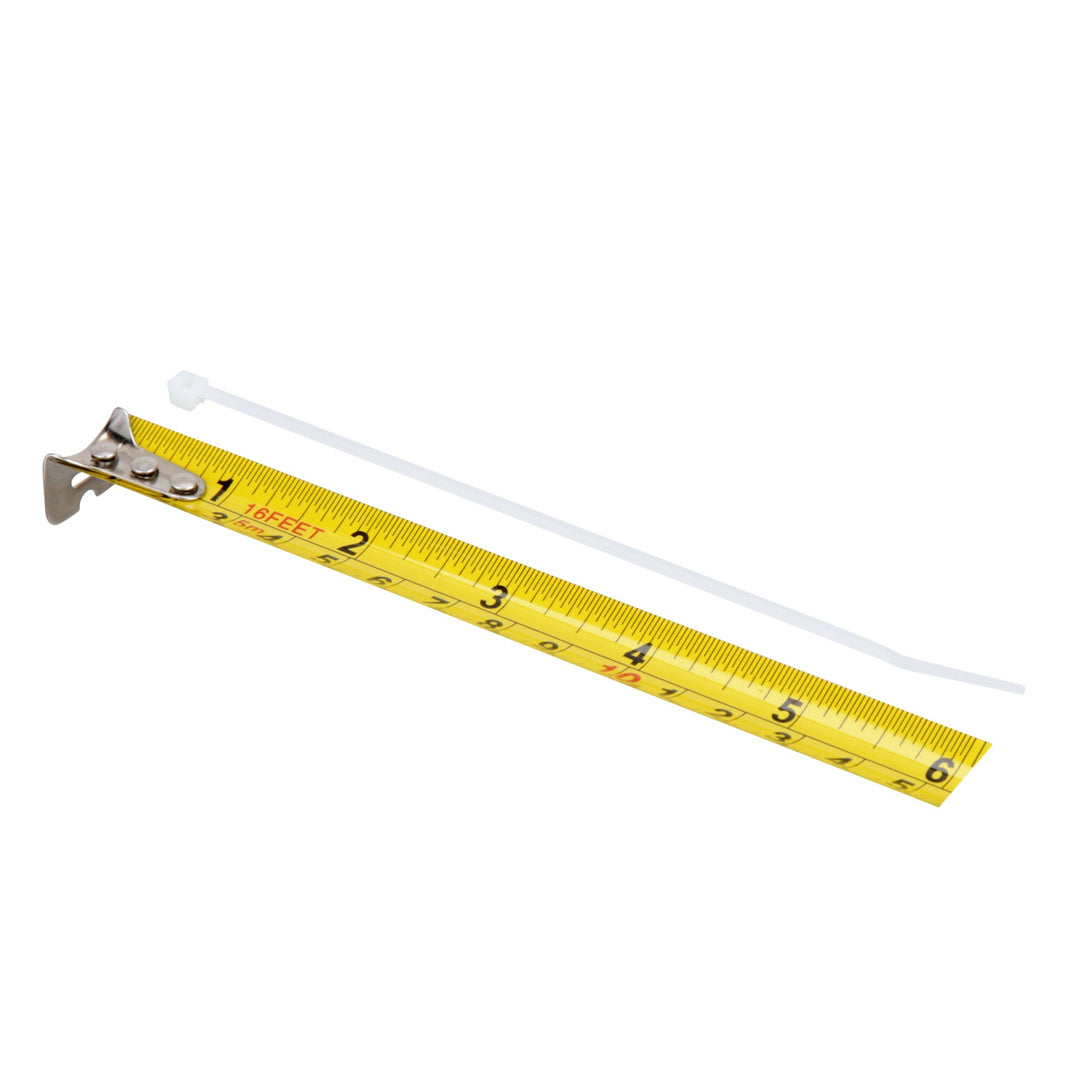

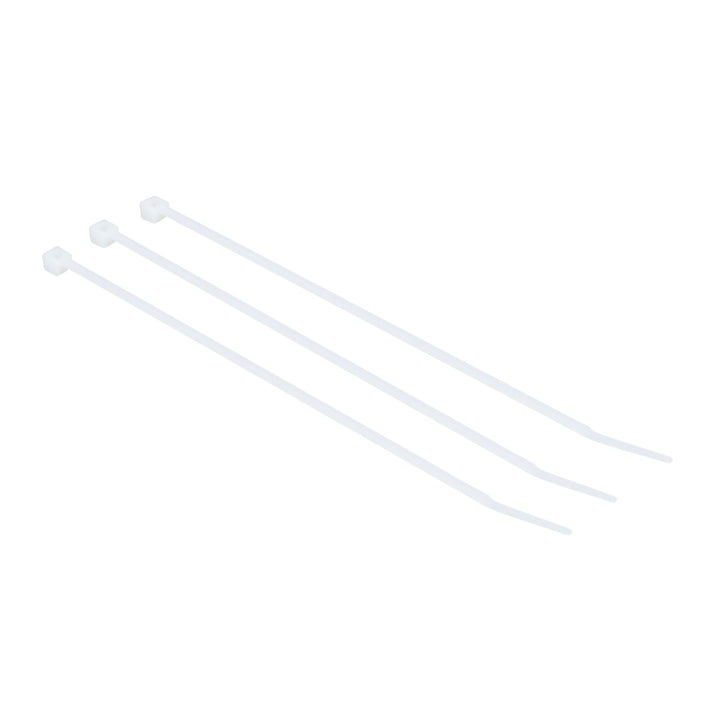

3M Cable Tie CT6NT18-M
3M Cable Tie CT6NT18-M
3M Cable Tie CT6NT18-M

3M Cable Tie CT6NT18-M

Regular price
/

$50.99 USD & FREE Shipping.
  • Secure wire bundles and harness components quickly, without slipping
  • Curved tip allows for faster threading and installation
  • Made in the USA
  • UL Listed 62275 Type 21 or 21S and Plenum Rated AH-2 for use in air handling spaces
Overview
Keep wire bundles and harness components tidy and in place with these 3M Miniature Cable Ties. Their tough construction and nylon 6/6 composition ensure they hold up under strain, and their tapered ends make installation trouble-free. These cable ties have self-locking heads for secure fastening and work well under temperatures ranging from -40 to 185 degrees F (-40 to 85 degrees C).3Mâ„¢ Standard Nylon Cable Ties are available in several tensile strengths ranging from 18 lb. to 175 lb. and multiple lengths ranging from 4 inches to 48 inches to cover your needs. They are offered in natural and red for indoor use and UV weather-resistant black for indoor and outdoor use. UL Listed 62275 Type 21 or 21S and Plenum Rated AH-2 for use in air handling spaces. Made in the USA.

3M Cable Tie CT6NT18-M

Specifications
General Information
Brand
3Mâ„¢
Cable Tie Type
Miniature
Product Type
Cable Ties
Type
Standard
Country Of Origin
United States
Lead Time
2 days
California Residents
Dimensions and Specifications
Approximate Length
6
Cable Diameter Range
8,1 - 39,4 mm
Cable Length (Imperial)
6 in
Cable Length (Metric)
154.94 mm
Cable Tie Base Height
6 in
Cable Tie Length
152 mm
Maximum Bundle Diameter
1.25 Inch
Maximum Bundle Diameter (Metric)
31.8 mm
Maximum Insulation Outer Diameter (Metric)
3.7 mm
Maximum Insulation Outside Diameter
0.145 in
Maximum Operating Temperature
85 Degree Celsius
Maximum Operating Temperature (Celsius)
85 Degree Celsius
Maximum Operating Temperature (Fahrenheit)
185 Degree Fahrenheit
Maximum Recommended Voltage Rating
600 V
Minimum Bundle Diameter
0.0625 Inch
Minimum Bundle Diameter (Metric)
1.6 mm
Minimum Installation Temperature (Celsius)
0 Degree Celsius
Minimum Installation Temperature (Fahrenheit)
32 Degree Fahrenheit
Minimum Operating Temperature (Celsius)
-40 Degree Celsius
Minimum Operating Temperature (Fahrenheit)
-40 Degree Fahrenheit
Operating Temperature (Celsius)
85 Degree Celsius
Operating Temperature (Fahrenheit)
185 Degree Fahrenheit
Operating Temperature Range (Celsius)
-40 °C to 85 °C
Operating Temperature Range (Fahrenheit)
-40 °F to 185 °F
Overall Length (Imperial)
6.1 in
Overall Length (Metric)
155 mm
Overall Width (Imperial)
0.096 in
Overall Width (Metric)
2.4 mm
Tensile Strength (Imperial)
18 lbs
Tensile Strength (Metric)
8.17 kg
Maximum Insulation Outer Diameter Metric
3.7
Operating Temperature Celsius
85 Degree Celsius
Other Details
Cable Management Products
Cable Ties
Package Quantity
1000
Plenum Rated
Yes
Solution For
Wireless Network: Infrastructure Accessories
UV Resistant
No
Units Per Case
10000.0
Tensile Strength Imperial
18 lbs
Material and Composition
Material
Nylon 6/6
Certifications and Standards
Flammability Rating
UL 94 V-2
UL Approval
Yes
Packaging and Shipping
Case Quantity
10,000
Resources
Datasheet
