Overview
Features

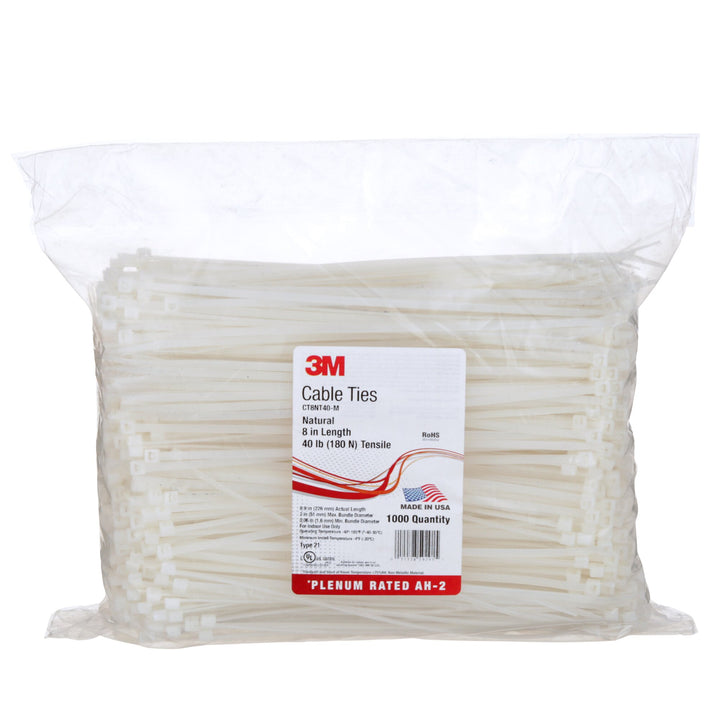

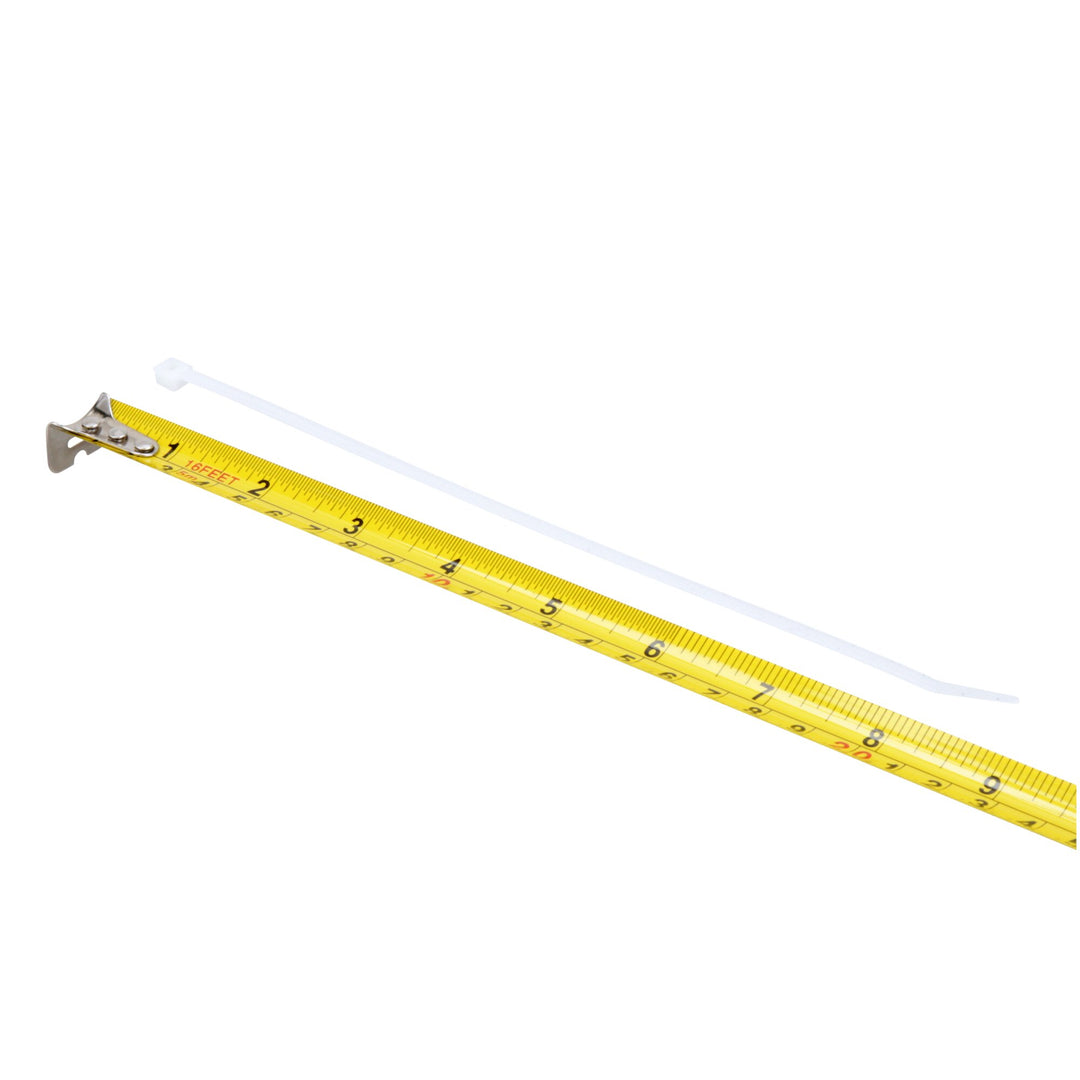

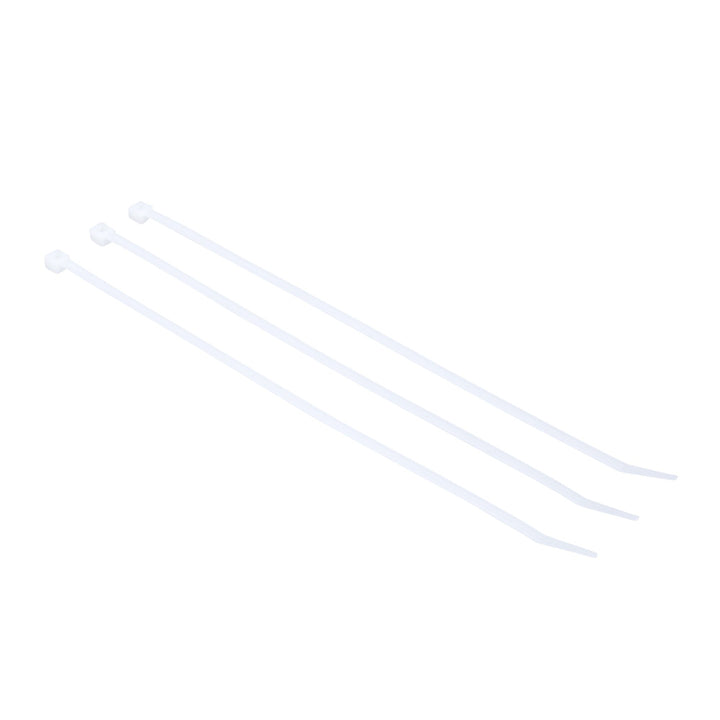

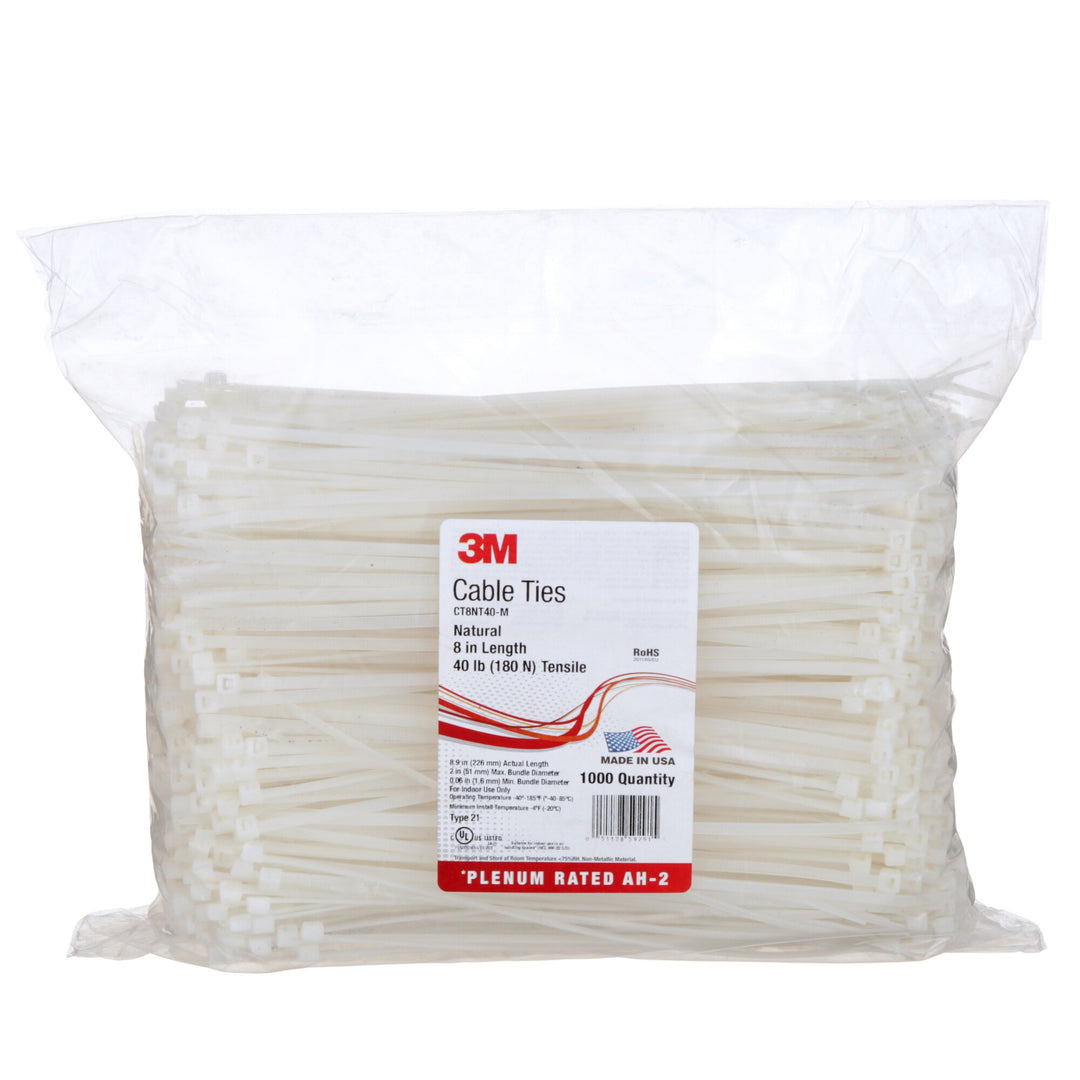

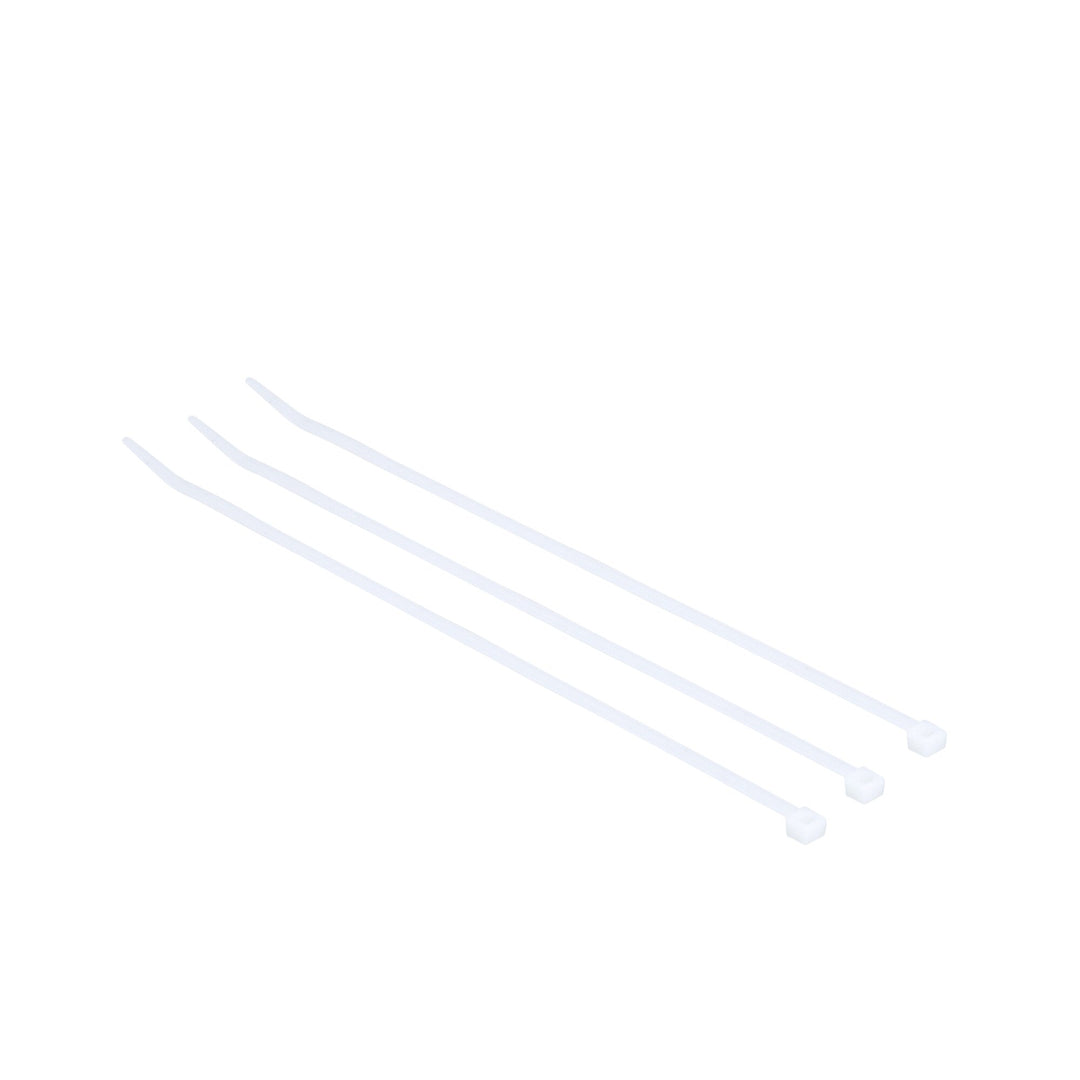

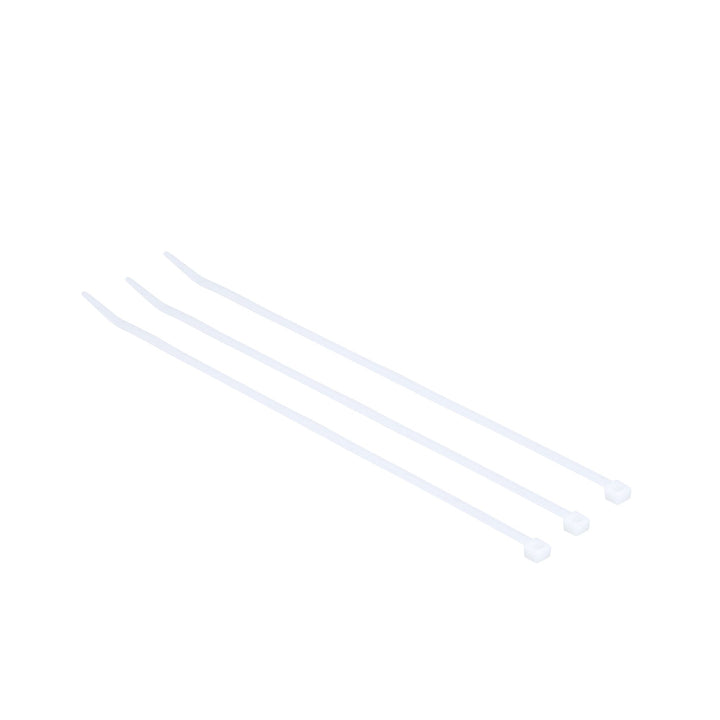

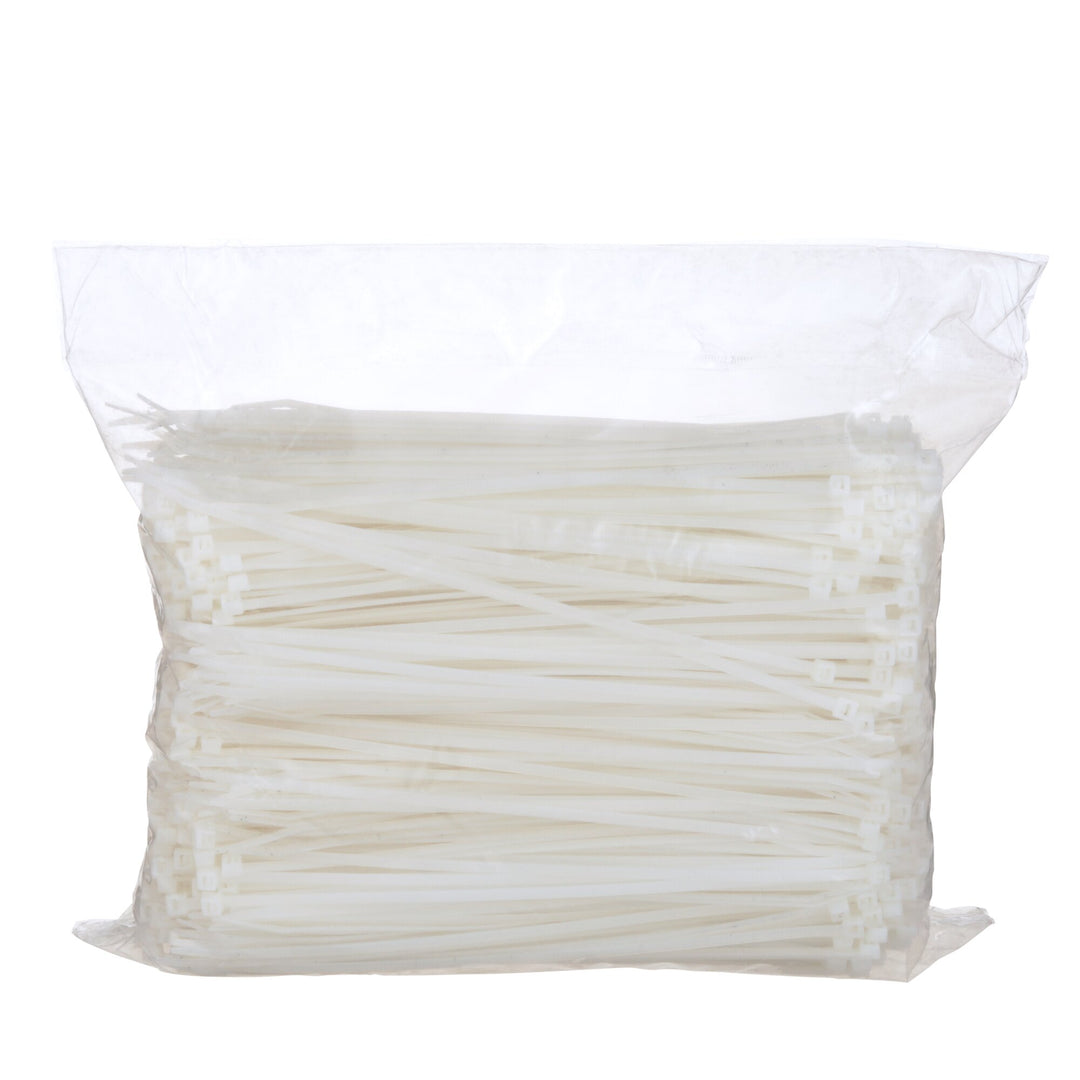

Hold wire bundles and harness components securely with these 3M Intermediate Cable Ties. They prevail against harsh environments thanks to powerful weather resistance and operating temperature range of -40 to 185 degrees F (-40 to 85 degrees C), and nylon 6/6 ensures they simply last. Curved tips at the end allow faster threading and installation, letting you finish jobs quicker.3Mâ„¢ Standard Nylon Cable Ties are available in several tensile strengths ranging from 18 lb. to 175 lb. and multiple lengths ranging from 4 inches to 48 inches to cover your needs. They are offered in natural and red for indoor use and UV weather-resistant black for indoor and outdoor use. UL Listed 62275 Type 21 or 21S and Plenum Rated AH-2 for use in air handling spaces. Made in the USA.
You may also like
Specifications
General Information
Brand
3Mâ„¢
Product Type
Cable Ties
Type
Standard
Country Of Origin
United States
Lead Time
2 days
California Residents
Dimensions and Specifications
Approximate Length
8
Cable Diameter Range
8,1 - 39,4 mm
Cable Length (Imperial)
8 in
Cable Length (Metric)
226.06 mm
Maximum Bundle Diameter
2 Inch
Maximum Bundle Diameter (Metric)
51 mm
Maximum Insulation Outer Diameter (Metric)
3.7 mm
Maximum Insulation Outside Diameter
0.145 in
Maximum Operating Temperature
85 Degree Celsius
Maximum Operating Temperature (Celsius)
85 Degree Celsius
Maximum Operating Temperature (Fahrenheit)
185 Degree Fahrenheit
Maximum Recommended Voltage Rating
600 V
Minimum Bundle Diameter
0.0625 Inch
Minimum Bundle Diameter (Metric)
1.6 mm
Minimum Installation Temperature (Celsius)
-20 Degree Celsius
Minimum Installation Temperature (Fahrenheit)
-4 Degree Fahrenheit
Minimum Operating Temperature (Celsius)
-40 Degree Celsius
Minimum Operating Temperature (Fahrenheit)
-40 Degree Fahrenheit
Operating Temperature (Celsius)
85 Degree Celsius
Operating Temperature (Fahrenheit)
185 Degree Fahrenheit
Operating Temperature Range (Celsius)
-40 °C to 85 °C
Operating Temperature Range (Fahrenheit)
-40 °F to 185 °F
Overall Length (Imperial)
8.9 in
Overall Length (Metric)
226 mm
Overall Width (Imperial)
0.142 in
Overall Width (Metric)
3.6 mm
Tensile Strength (Imperial)
40 lbs
Tensile Strength (Metric)
18.14 kg
Maximum Insulation Outer Diameter Metric
3.7
Operating Temperature Celsius
85 Degree Celsius
Other Details
Cable Management Products
Cable Ties
Package Quantity
1000
Plenum Rated
Yes
Solution For
Wireless Network: Infrastructure Accessories
UV Resistant
No
Units Per Case
10000.0
Tensile Strength Imperial
40 lbs
Material and Composition
Material
Nylon 6/6
Certifications and Standards
Flammability Rating
UL 94 V-2
UL Approval
Yes
Packaging and Shipping
Case Quantity
10,000
