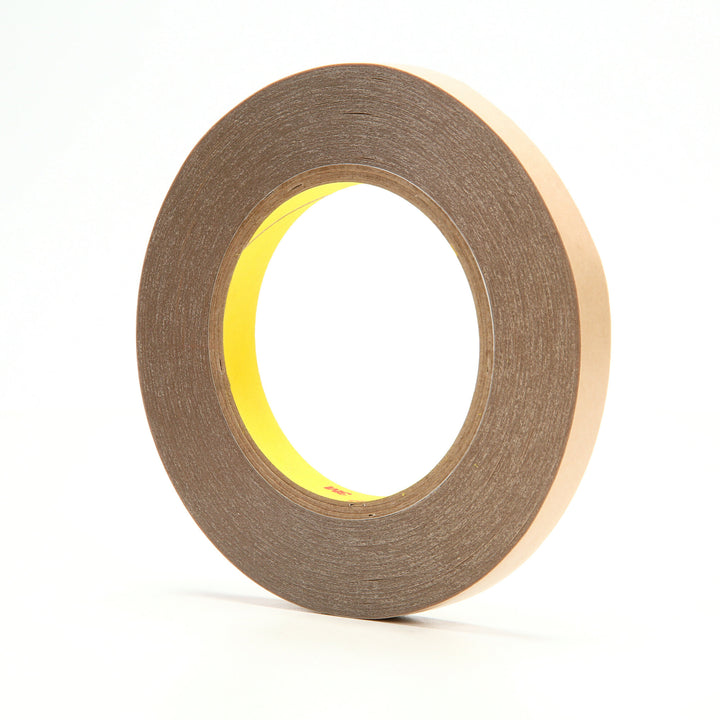

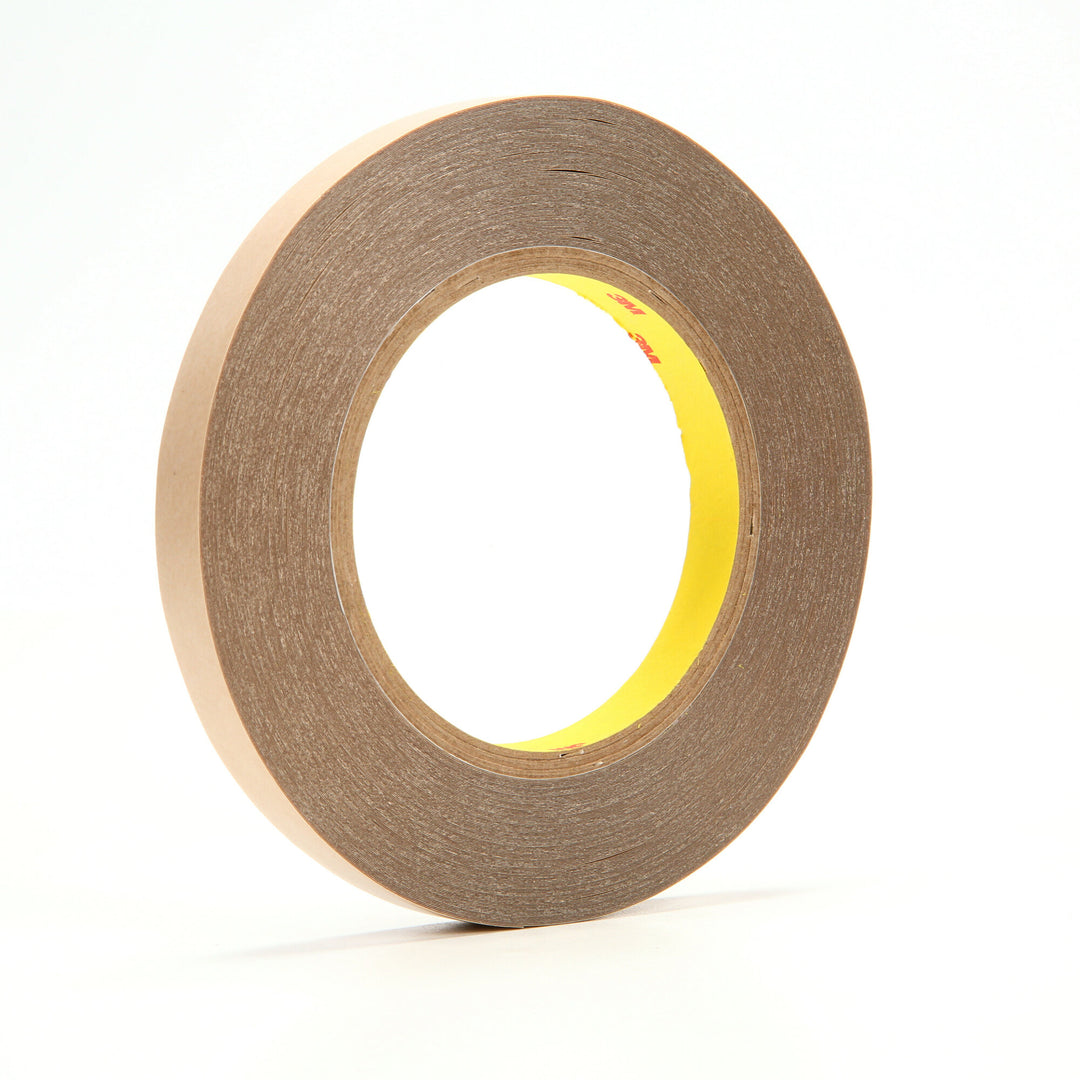

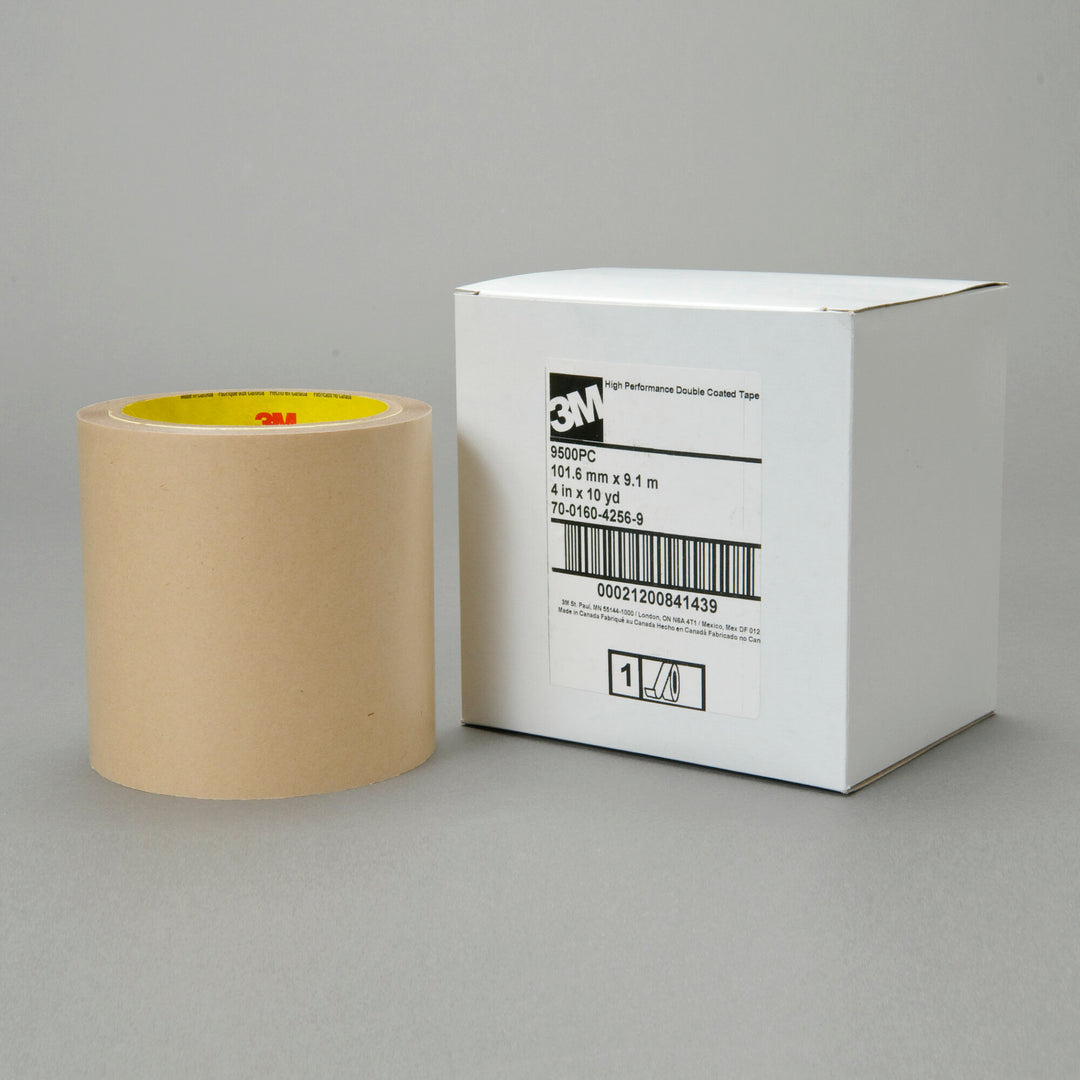

3M Double Coated Tape 9500PC, Clear, 1/2 in x 36 yd, 5.6 mil
3M Double Coated Tape 9500PC, Clear, 1/2 in x 36 yd, 5.6 mil
3M Double Coated Tape 9500PC, Clear, 1/2 in x 36 yd, 5.6 mil

3M Double Coated Tape 9500PC, Clear, 1/2 in x 36 yd, 5.6 mil

Regular price
/

$21.99 USD & FREE Shipping.
  • Clear, 5 mil (0.14 mm) double coated tape with high performance acrylic
  • 1.0 mil, clear PET carrier film for dimensional stability and ease of die cutting
  • Adheres to powder coated surfaces, most plastics and difficult surfaces
  • High-holding strength and short-term heat resistance up to 350°F (177°C)
  • 58# unprinted polycoated kraft liner reduces edge burr during hard tool die cutting
Overview
3M Double Coated Tape 9500PC is a 5 mil (0.14 mm) 350 high performance acrylic adhesive double coat with a thin polyester carrier film on a 58#, 4.5 mil unprinted, polycoated kraft paper liner. The adhesive excels on low surface energy (LSE) substrates and at high temps.

Our 3M™ Double Coated Tape 9500PC has a 1.0 mil polyester carrier for improved dimensional stability and handling – especially in die cutting and laminating applications. This tape can be used to laminate high performance plastics and difficult substrates, while delivering broad temperature resistance. Toward that end, this tape can be used in temperatures ranging from -40°F (-40°C) to 350°F (177°C). Additionally, users enjoy medium UV resistance, helping to expand the durability and longevity of this product.

Recommended Applications

  • Bonding low surface energy (LSE) plastics such as polypropylene and polyethylene
  • High temperature applications
  • Die cutting
  • Laminating

The 350 Advantage
3M™ Adhesive 350 family is a medium-firm acrylic adhesive that provides excellent shear holding power and initial adhesion; as well as high wet grab, temperature and UV resistance. The liner reduces edge burr during hard tool die cutting, improving accuracy and potentially improving throughput. Collectively, these features make this tape suitable for use in various applications across different industries, including: converter solutions, transportation, specialty vehicle, metalworking, automotive, oil and gas, medical, signage, military and government, general industrial, appliance and electronics.

3M Double Coated Tape 9500PC, Clear, 1/2 in x 36 yd, 5.6 mil

  • 3M
  • 7000123416
Specifications
General Information
Brand
3Mâ„¢
Back Side Adhesive Type
High Performance Acrylic Adhesive 350
Face Side Adhesive Type
High Performance Acrylic Adhesive 350
Country Of Origin
United States
Sold As
Roll
California Residents
Dimensions and Specifications
Back Side Adhesive Thickness (Imperial)
2.3 mil
Back Side Adhesive Thickness (Metric)
0.058 mm
Backing (Carrier) Thickness (Imperial)
1 mil
Backing (Carrier) Thickness (Metric)
0.025 mm
Face Side Adhesive Thickness (Imperial)
2.3 mil
Face Side Adhesive Thickness (Metric)
0.058 mm
Maximum Operating Temperature (Celsius)
177 Degree Celsius
Maximum Operating Temperature (Fahrenheit)
350 Degree Fahrenheit
Minimum Operating Temperature (Celsius)
-40 Degree Celsius
Minimum Operating Temperature (Fahrenheit)
-40 Degree Fahrenheit
Overall Length (Imperial)
36 yd
Overall Length (Metric)
32.91 m
Overall Width (Imperial)
0.5 in
Overall Width (Metric)
12.7 mm
Primary Liner Thickness (Imperial)
4.5 mil
Primary Liner Thickness (Metric)
0.11 mm
Total Tape Thickness Without Liner (Imperial)
5.6 mil
Total Tape Thickness Without Liner (Metric)
0.14 mm
Overall Length Imperial
36.0
Volume
18.4 cubic inch
301.6 cm3
Weight
4.6 oz
130.33 g
Other Details
Indoor/Outdoor
Indoor/Outdoor
Industries
Converter Solutions
Primary Liner
62# Polycoated Kraft Paper
Units Per Case
72.0
Indoor Outdoor
Both
Material and Composition
Backing (Carrier) Material
Polyester
Backing Carrier Material
Polyester Film
Shelf Life
730
Color and Appearance
Primary Liner Color
Tan
Product Color
Transparent
Packaging and Shipping
Case Quantity
72.0 Bags per Case
