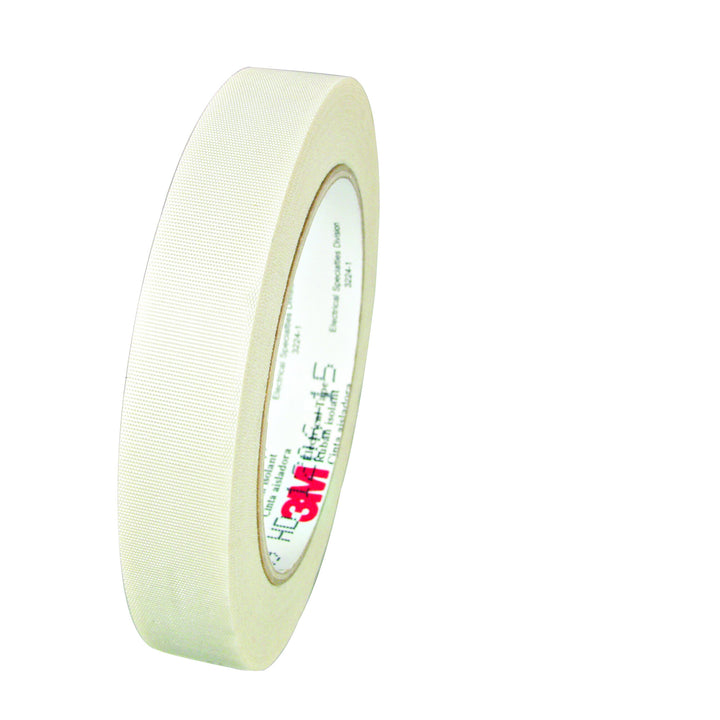

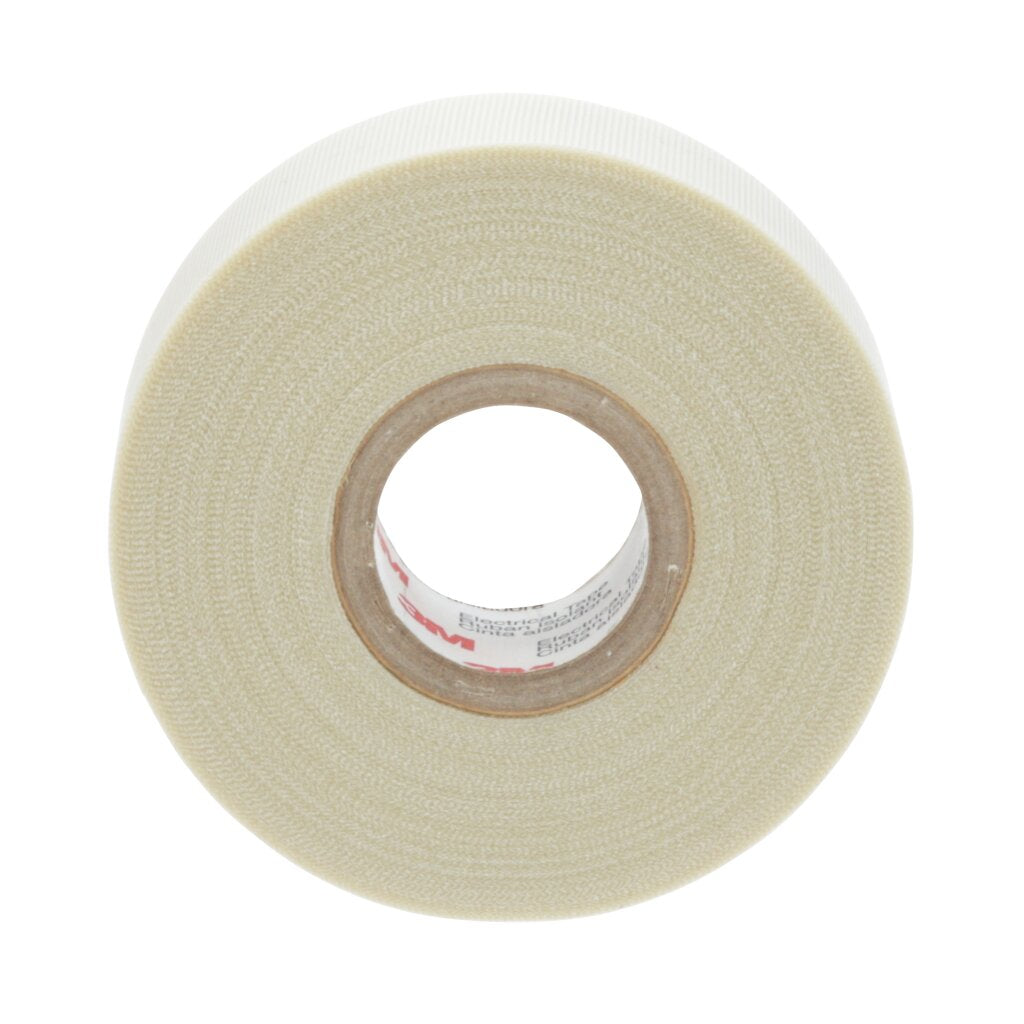

3M Glass Cloth Electrical Tape 69, 3/4 in x 66 ft, White
3M Glass Cloth Electrical Tape 69, 3/4 in x 66 ft, White
3M Glass Cloth Electrical Tape 69, 3/4 in x 66 ft, White
3M Glass Cloth Electrical Tape 69, 3/4 in x 66 ft, White
3M Glass Cloth Electrical Tape 69, 3/4 in x 66 ft, White
3M Glass Cloth Electrical Tape 69, 3/4 in x 66 ft, White

3M Glass Cloth Electrical Tape 69, 3/4 in x 66 ft, White

Regular price
/

$29.99 USD & FREE Shipping.

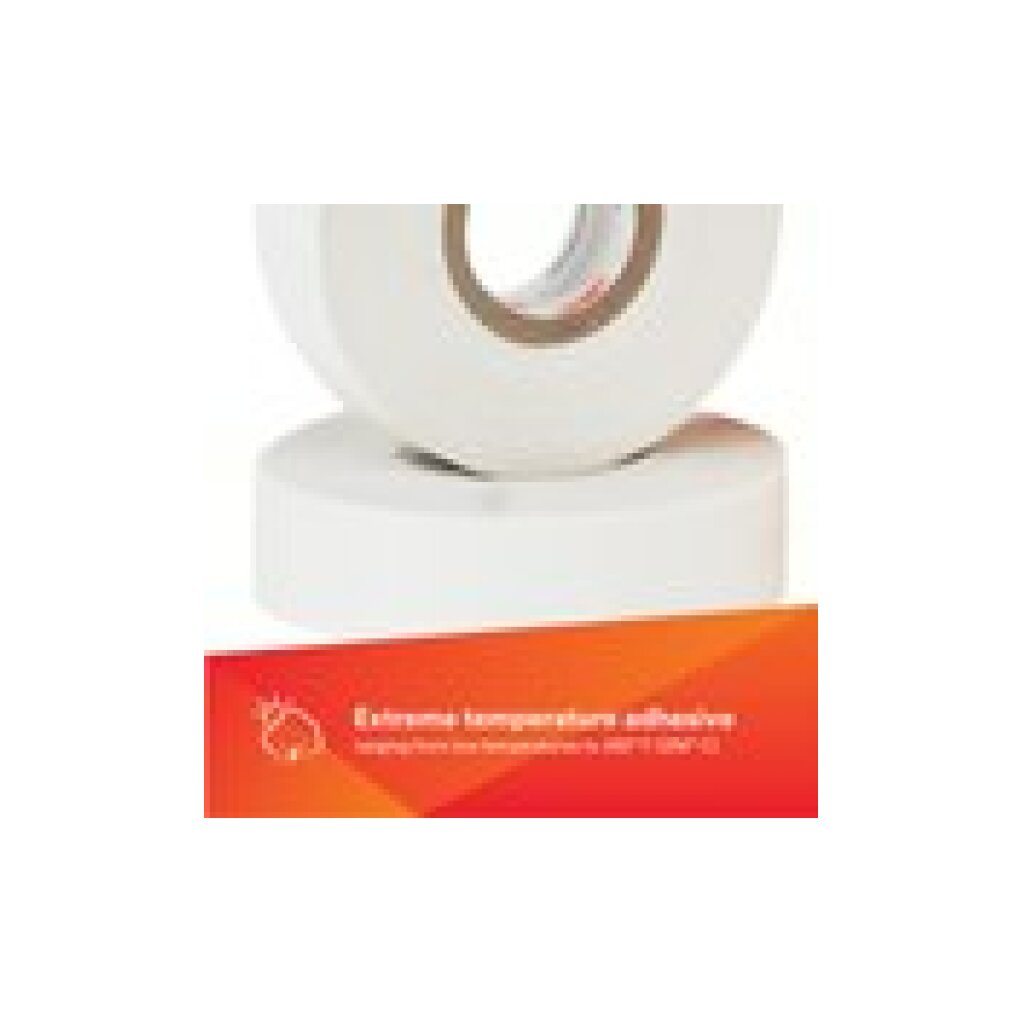

  • PROVIDES A STRONG BOND: At extreme temperatures ranging from low temperatures to 392 ºF (200 ºC)
  • GLASS CLOTH BACKING: Optimally insulates with no shrinking or burning
  • INSULATES A VARIETY OF WAYS: Use as coil cover, anchor, banding, core layer and crossover insulation
  • PRESSURE SENSITIVE ADHESIVE: Non–corrosive, solvent resistant, thermosetting silicone adhesive
  • RELIABLE AND RESISTANT: Resists rotting and shrinking after extended use in a variety of environments

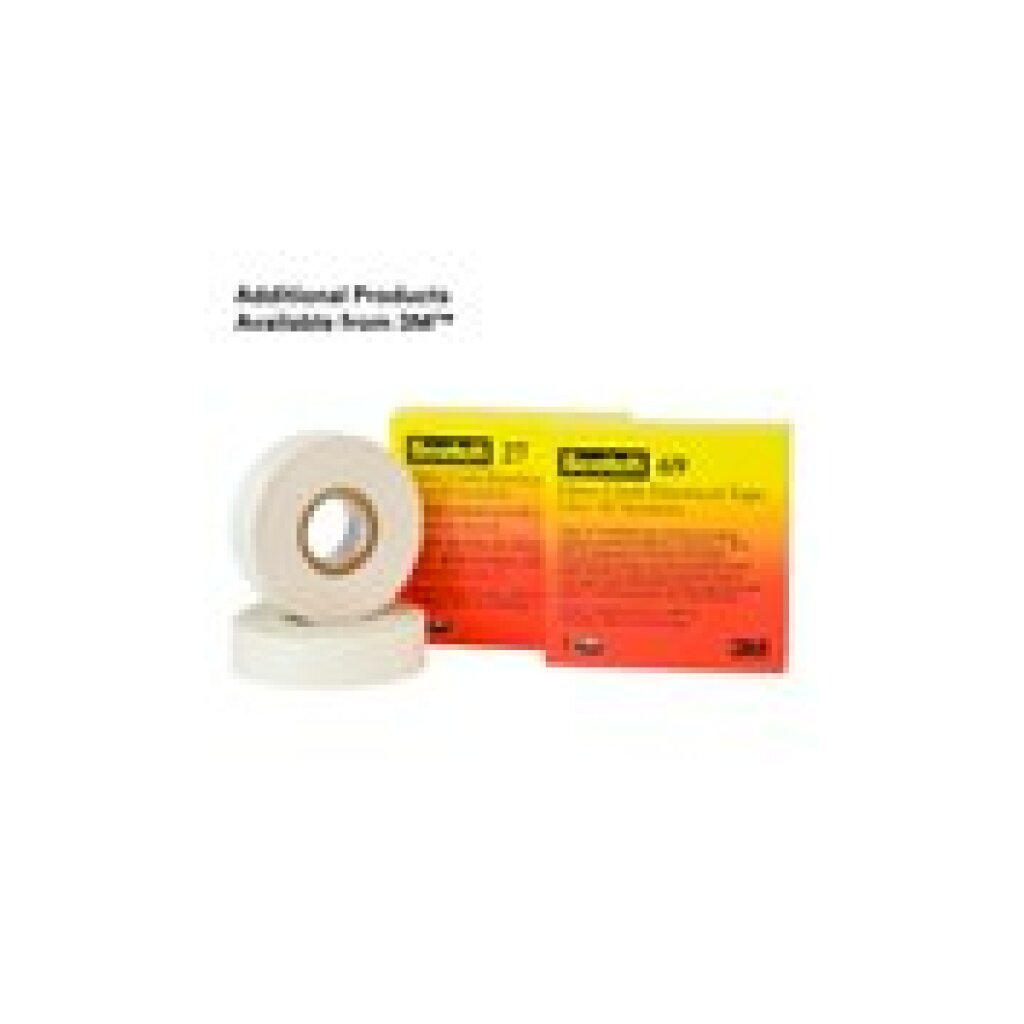

  • USE WITH SCOTCH 77 ARC AND FIRE PROOFING TAPE: Holds in place on cables and can be written on as marking tape
  • LONG SHELF LIFE: Long lasting 5 year shelf life for continued use and performance
  • UL RECOGNIZED: UL Listed, Mil-I-19166C, CSA Certified. For RoHS and REACH information, please visit www.3m.com/regs
Overview
3M Tape 69 is a premium grade, edge tear resistant, electrical tape. This printable tape has a non corrosive adhesive and offers solvent resistant protection. It is used as a coil cover, an anchor, a banding, a core, a layer and a crossover insulator. The flame retardant tape is suitable for 600V rated, dry location application motors and transformers.3M™ Glass Cloth Electrical Tape 69 features a pressure sensitive, high temperature, thermosetting, silicone adhesive that offers excellent bonding once adhered. This conformable tape has a glass cloth backing that resists rotting and shrinking while providing excellent stability. It withstands a temperature range of 32 to 392 °F (0 to 200 °C). UL Listed, Mil I 19166C, CSA Certified and ‎RoHS 2011/65/EU Compliant.

3M Glass Cloth Electrical Tape 69, 3/4 in x 66 ft, White

Specifications
General Information
Brand
3Mâ„¢
Adhesive Type
Silicone
Country Of Origin
United States
Sold As
Roll
California Residents
Dimensions and Specifications
Backing (Carrier) Thickness (Metric)
0.125 mm
Maximum Operating Temperature (Celsius)
200 Degree Celsius
Maximum Operating Temperature (Fahrenheit)
392 Degree Fahrenheit
Overall Length (Imperial)
66 ft
Overall Length (Metric)
20.1 m
Overall Width (Imperial)
0.75 in
Overall Width (Metric)
19.05 mm
Total Tape Thickness Without Liner (Imperial)
7 mil
Total Tape Thickness Without Liner (Metric)
0.178 mm
Overall Length Imperial
66.0
Volume
15.49 cubic inch
253.79 cm3
Weight
4.1 oz
116.1 g
Other Details
Dielectric Strength
3000 V
Electrolytic Corrosion Factor
0.9
Elongation At Break
5.0 %
Insulation Resistance
4.8 x 10^4 megohms
Material and Composition
Backing (Carrier) Material
Glass Cloth
Shelf Life
5 Year
Backing Carrier Material
Glass Cloth
Color and Appearance
Product Color
White
Certifications and Standards
Specifications Met
UL 510
Resources
Datasheet
