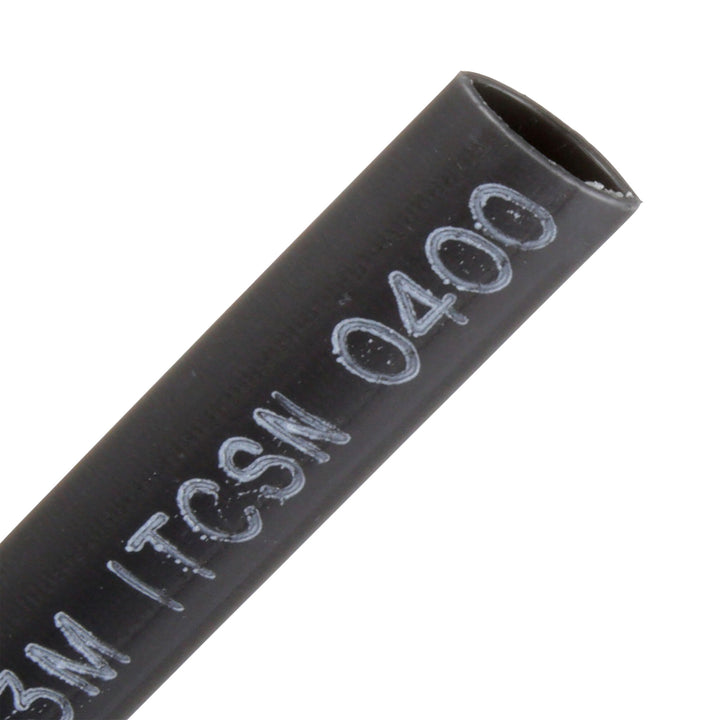

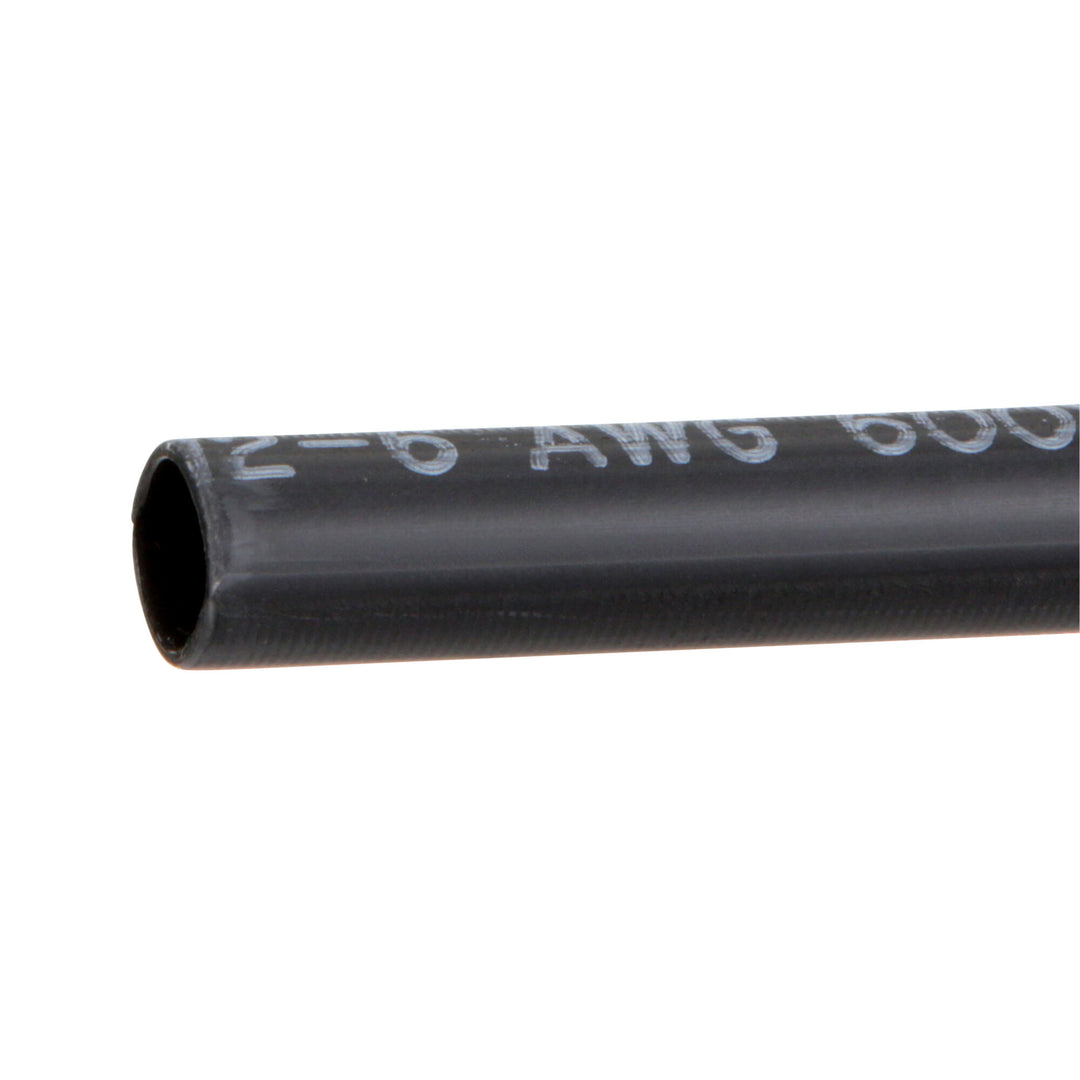

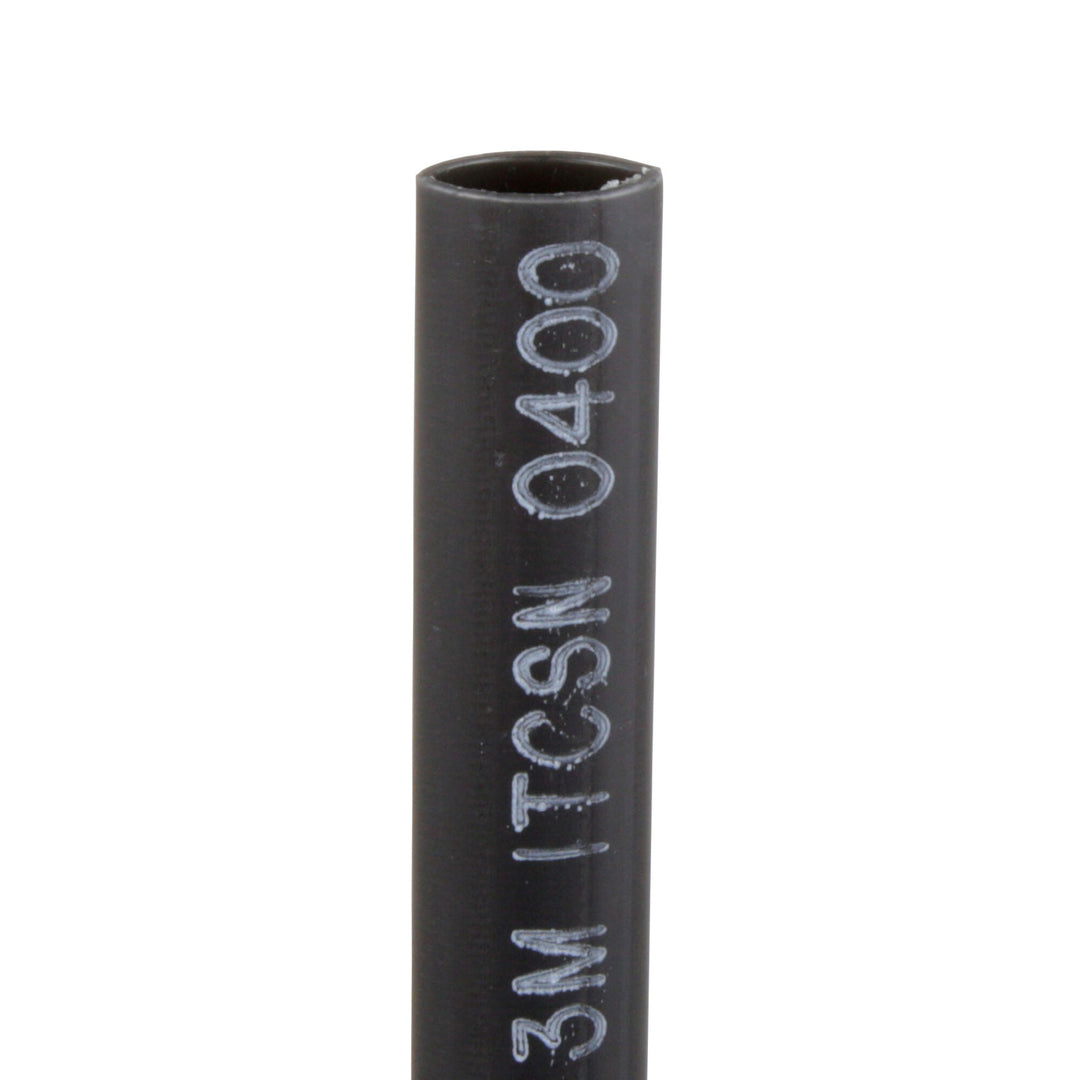

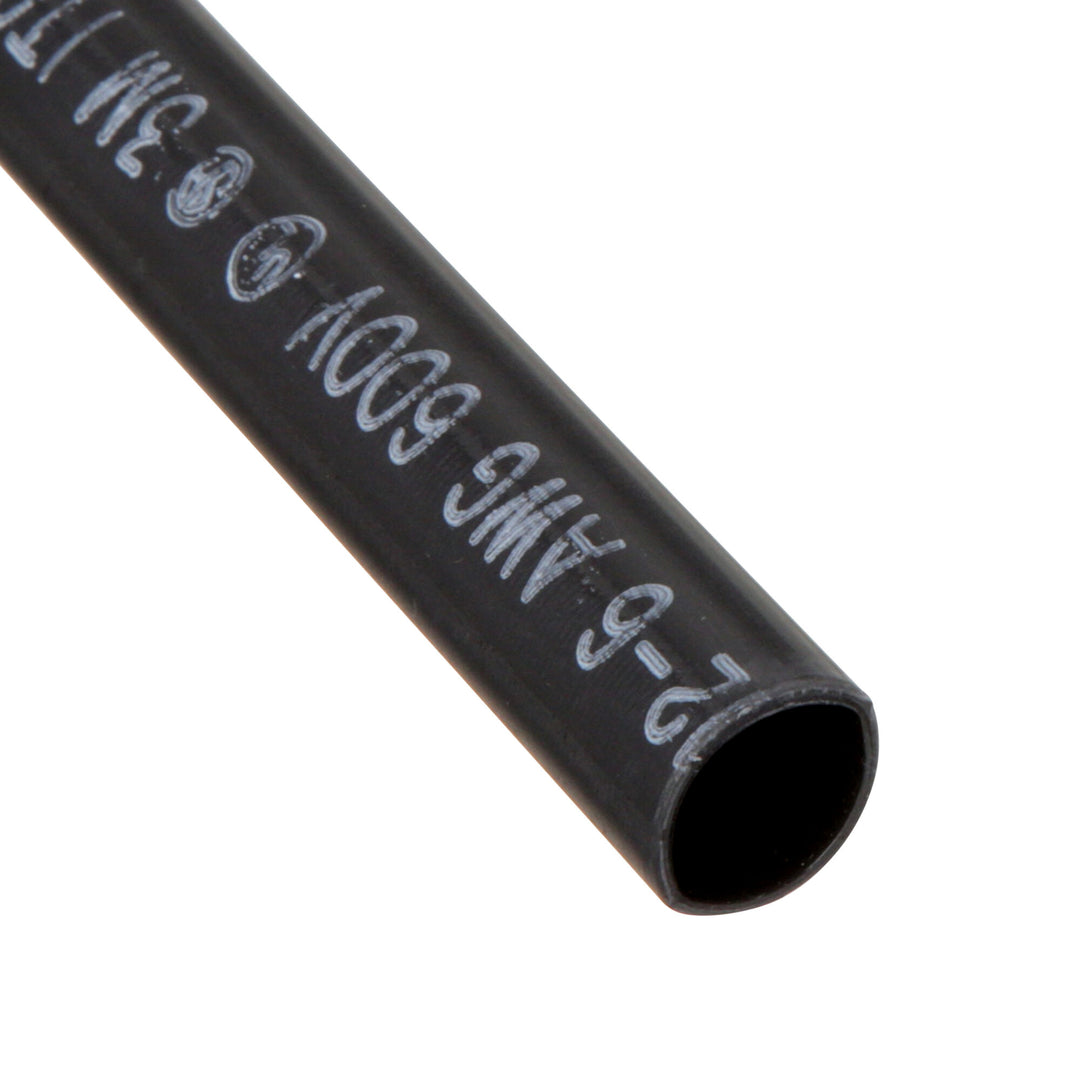

3M Heat Shrink Heavy-Wall Cable Sleeve ITCSN-0400, 12-6 AWG

/
$515.99 USD & FREE Shipping.
Extended Handling May Be Required
  • Superior resistance to abrasion, corrosion and chemicals
  • Offers reliable performance for electrical splices, connections and terminations
  • Suitable for insulating secondary splices, as well as direct buried, submersible and dig-in repairs
  • Made of black cross-linked polyolefin
  • Withstands temperatures of -67 to 230 degrees F (-55 to 110 degrees C)
  • UL Listed, CSA Certified and RoHS 2011/65/EU Compliant
Overview
Help protect wires from abrasion, chemical resistance and corrosion with 3M ITCSN Heat Shrink Cable Sleeves. Featuring a cross-linked polyolefin construction, these sleeves seal out moisture and provide electrical insulation for 1 kV-rated applications. They have a 3:1 shrink ratio, ensuring that theyll fit over connectors while shrinking down enough to seal to the cable.3Mâ„¢ Heat Shrink Cable Sleeve ITCSN is a split resistant sleeve with a factory applied adhesive/sealant that offers reliable performance for electrical splices, connections and terminations. It is perfect for insulating secondary splices, direct buried, submersible or dig in repairs, as well as physical protection of high voltage, air insulated connectors or lugs. It withstands temperatures of 67 to 230 degrees F ( 55 to 110 degrees C). UL Listed, CSA Certified and RoHS 2011/65/EU Compliant.
Brand img

3M Heat Shrink Heavy-Wall Cable Sleeve ITCSN-0400, 12-6 AWG

Specifications
General Information
Brand
3Mâ„¢
Heat Shrink Type
Adhesive-Lined Polyolefin Heat Shrink Tubing
Product Type
Sleeve
Splice Type
Heat Shrink
Tubing Type
Heavy Wall
Country Of Origin
United States
Sold As
Case
California Residents
Proposition 65 Warning
Dimensions and Specifications
Cable Size Range
12-6 AWG
Expanded Inner Diameter
0.4 in
Expanded Inner Diameter (Metric)
10.2 mm
Inner Diameter After Shrink (Imperial)
0.15 in
Inner Diameter After Shrink (Metric)
0.381 cm²
Inner Diameter Before Shrink (Imperial)
0.4 in
Inner Diameter Before Shrink (Metric)
1.016 cm²
Maximum Conductor Size (Imperial)
6 AWG
Maximum Conductor Size (Metric)
16 mm²
Maximum Operating Temperature (Celsius)
100 Degree Celsius
Maximum Operating Temperature (Fahrenheit)
230 Degree Fahrenheit
Maximum Voltage Rating
1 kV
Minimum Conductor Size (Imperial)
12 AWG
Minimum Conductor Size (Metric)
4 mm²
Minimum Shrink Temperature (Celsius)
121 Degree Celsius
Minimum Shrink Temperature (Fahrenheit)
250 °F
Operating Temperature (Celsius)
-55 to 100 Degrees Celsius
Operating Temperature (Fahrenheit)
-67 °F to 230 °F
Operating Temperature Range (Celsius)
-55 °C to -100 °C
Operating Temperature Range (Fahrenheit)
-67 °F to 230 °F
Overall Length (Imperial)
48 in
Overall Length (Metric)
1219 mm
Recovered Inner Diameter
0.15 in
Recovered Inner Diameter (Metric)
3.8 mm
Tensile Strength (Imperial)
2400 Pound-Force Per Square Inch
Voltage
1 kV
Voltage Rating
UL Rated to 600 V (Shall not exceed 1 kV)
Maximum Conductor Size Imperial
6 AWG
Maximum Conductor Size Metric
16 mm²
Minimum Conductor Size Imperial
12 AWG
Minimum Conductor Size Metric
4 mm²
Minimum Shrink Temperature Fahrenheit
250 °F
Operating Temperature Celsius
-55 to 100 Degrees Celsius
Overall Length Imperial
48.0
Width
3.38 in
8.57 cm
Height
3.38 in
8.57 cm
Length
51.13 in
129.86 cm
Volume
582.42 cubic inch
9544.09 cm3
Weight
60 oz
1700.97 g
Other Details
Adhesive Lined
Yes
Dielectric Strength (V/mil)
500 V/mil
Direct Bury
Yes
Elongation
4.75 %
Flame Retardant
No
Mil Spec
AMS-DTL-23053/15,Class 1
Minimum Expanded Tubing I. D.
0.4 in
Non-Corrosive
Yes
Shrink Ratio
3:1
Solution For
Access Network: FTTH/FTTB/CATV
Splice Configuration
Heat Shrink Heavy-Wall Cable Sleeve (ITCSN)
UL File Number
E-102356
Units Per Case
20.0
Tensile Strength Imperial
2400 Pound-Force Per Square Inch
Usage Information
Application Specifications
UL Listed 486 D for 600V, File Number E102356; CSA Certified File LR86335
Material and Composition
Adhesive Material
Hot melt adhesive layer
Material
Polyolefin
Product Form
Sleeve-roll
Shelf Life
3600
Color and Appearance
Product Color
Black
Certifications and Standards
Agency Approvals
CSA, UL 486D
Flammability Rating
Non-Flame Retardant
Specifications Met
UL 486D*
Packaging and Shipping
Case Quantity
20
