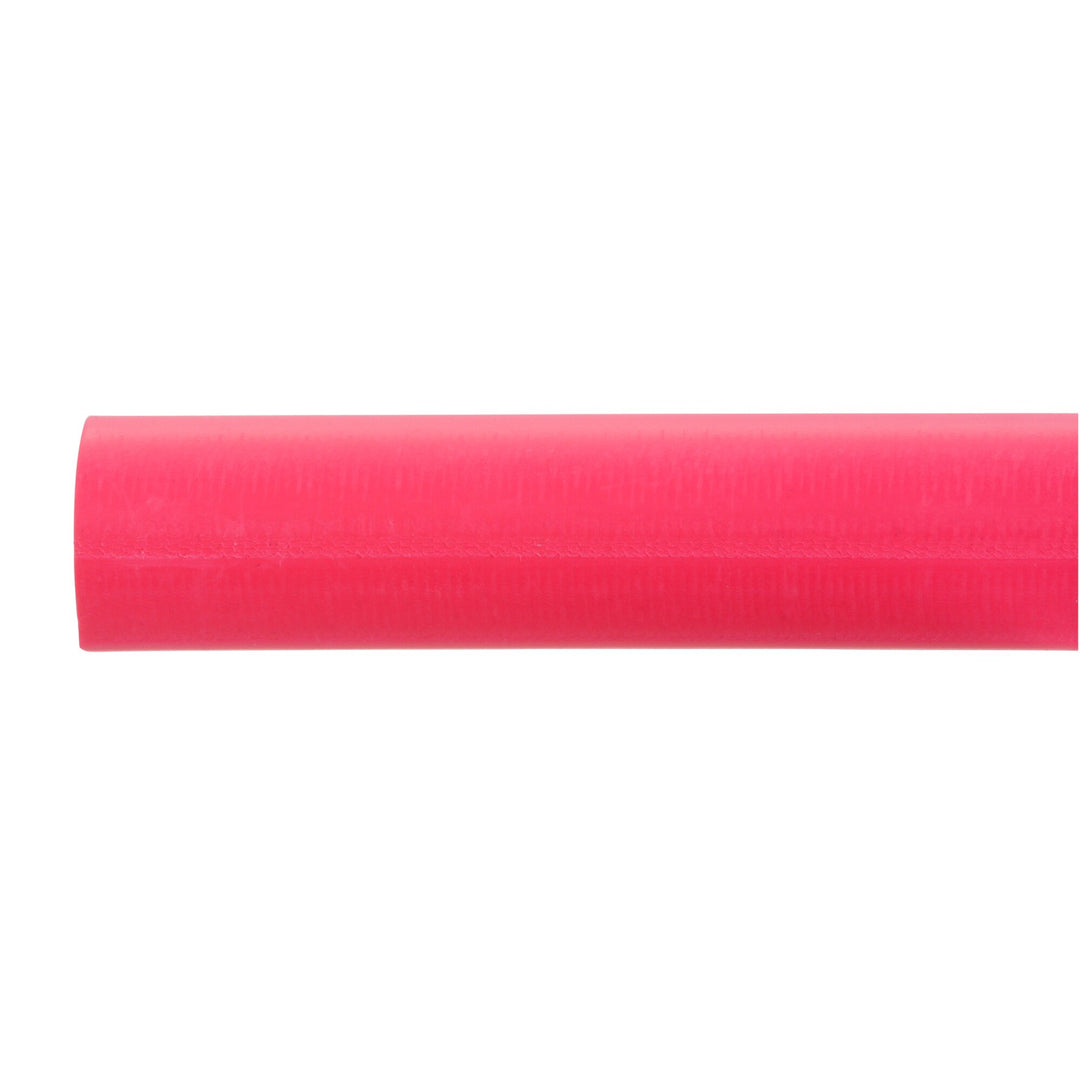

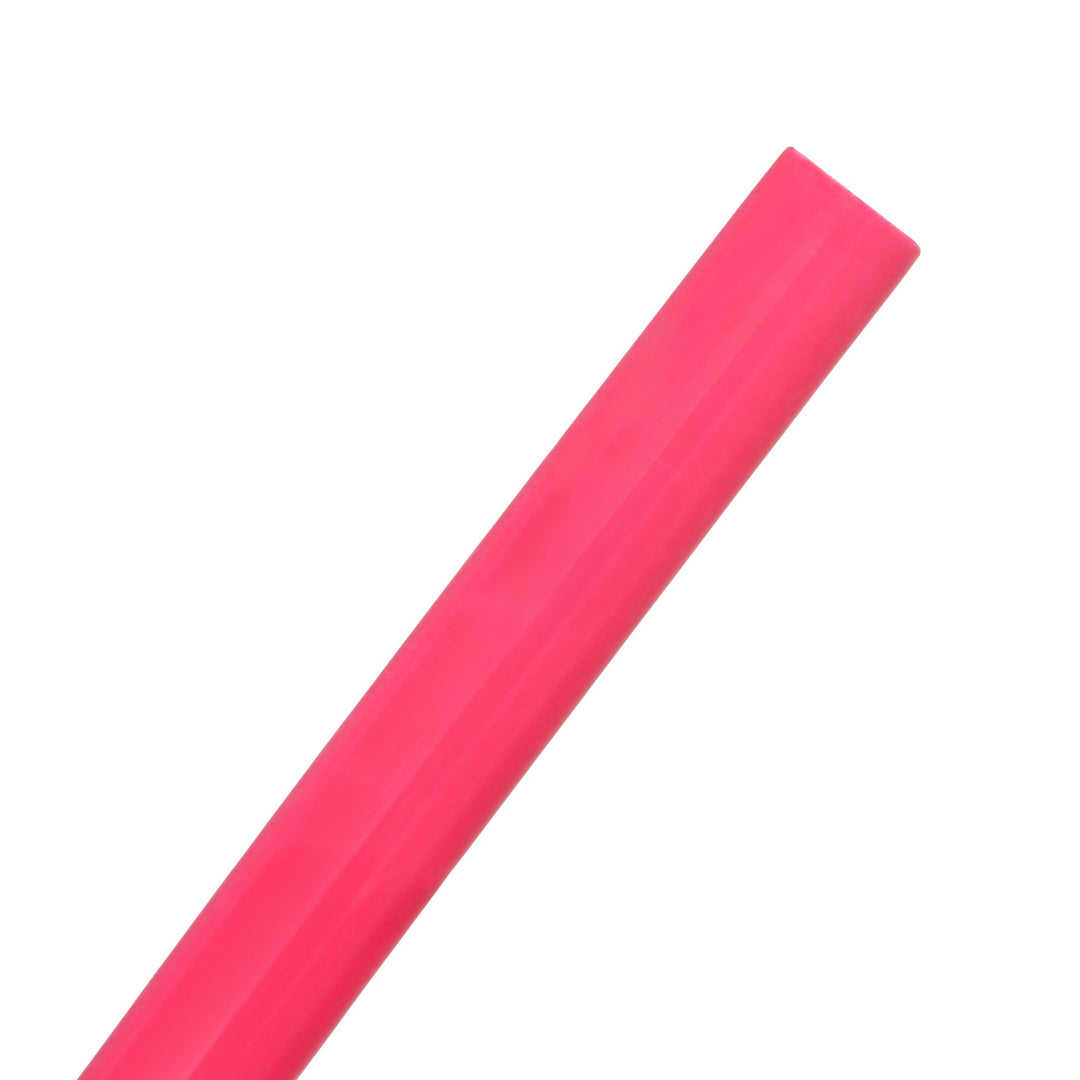

3M Heat Shrink Heavy-Wall Cable Sleeve ITCSN-0400, Red, 3 pieces/pack
3M Heat Shrink Heavy-Wall Cable Sleeve ITCSN-0400, Red, 3 pieces/pack
3M Heat Shrink Heavy-Wall Cable Sleeve ITCSN-0400, Red, 3 pieces/pack
3M Heat Shrink Heavy-Wall Cable Sleeve ITCSN-0400, Red, 3 pieces/pack
3M Heat Shrink Heavy-Wall Cable Sleeve ITCSN-0400, Red, 3 pieces/pack
3M Heat Shrink Heavy-Wall Cable Sleeve ITCSN-0400, Red, 3 pieces/pack
3M Heat Shrink Heavy-Wall Cable Sleeve ITCSN-0400, Red, 3 pieces/pack
3M Heat Shrink Heavy-Wall Cable Sleeve ITCSN-0400, Red, 3 pieces/pack
3M Heat Shrink Heavy-Wall Cable Sleeve ITCSN-0400, Red, 3 pieces/pack
3M Heat Shrink Heavy-Wall Cable Sleeve ITCSN-0400, Red, 3 pieces/pack

3M Heat Shrink Heavy-Wall Cable Sleeve ITCSN-0400, Red, 3 pieces/pack

Regular price
/

$190.99 USD & FREE Shipping.
  • Superior resistance to abrasion, corrosion and chemicals
  • Offers reliable performance for electrical splices, connections and terminations
  • Suitable for insulating secondary splices, as well as direct buried, submersible and dig-in repairs
  • Made of black cross-linked polyolefin
  • Withstands temperatures of -67 to 230 degrees F (-55 to 110 degrees C)
  • UL Listed, CSA Certified and RoHS 2011/65/EU Compliant
Overview

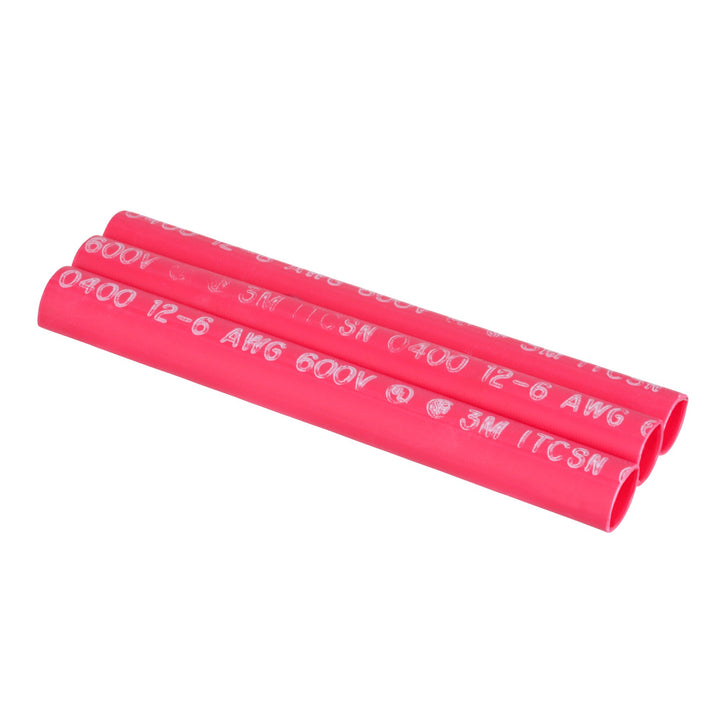

3M Heat Shrink Cable Sleeve ITCSN is a heavy wall sleeve that provides abrasion, corrosion and chemical resistance. This sleeve has a 3:1 shrink ratio to offer electrical insulation for 1 kV rated applications. It features a cross linked polyolefin construction that provides moisture seal protection.3M™ Heat Shrink Cable Sleeve ITCSN is a split resistant sleeve with a factory applied adhesive/sealant that offers reliable performance for electrical splices, connections and terminations. It is perfect for insulating secondary splices, direct buried, submersible or dig in repairs, as well as physical protection of high voltage, air insulated connectors or lugs. It withstands temperatures of 67 to 230 degrees F ( 55 to 110 degrees C). UL Listed, CSA Certified and RoHS 2011/65/EU Compliant.

3M Heat Shrink Heavy-Wall Cable Sleeve ITCSN-0400, Red, 3 pieces/pack

Specifications
General Information
Brand
3M™
Heat Shrink Type
Adhesive-Lined Polyolefin Heat Shrink Tubing
Splice Type
Heat Shrink
Tubing Type
Heavy Wall
Country Of Origin
United States
Sold As
Case
Lead Time
2 days
California Residents
Dimensions and Specifications
Cable Size Range
12-6 AWG
Expanded Inner Diameter
0.4 in
Expanded Inner Diameter (Metric)
10.2 mm
Inner Diameter After Shrink (Imperial)
0.15 in
Inner Diameter After Shrink (Metric)
3.8 mm
Inner Diameter Before Shrink (Imperial)
0.4 in
Inner Diameter Before Shrink (Metric)
10.2 mm
Maximum Operating Temperature (Celsius)
100 Degree Celsius
Maximum Operating Temperature (Fahrenheit)
230 Degree Fahrenheit
Maximum Voltage Rating
1 kV
Minimum Shrink Temperature (Celsius)
121 Degree Celsius
Minimum Shrink Temperature (Fahrenheit)
250 °F
Operating Temperature (Celsius)
-55 to 100 Degrees Celsius
Operating Temperature (Fahrenheit)
-67 °F to 230 °F
Operating Temperature Range (Celsius)
-55 °C to -100 °C
Operating Temperature Range (Fahrenheit)
-67 °F to 230 °F
Overall Length (Imperial)
6 in
Overall Length (Metric)
152.4 mm
Recovered Inner Diameter
0.15 in
Recovered Inner Diameter (Metric)
3.8 mm
Tensile Strength (Imperial)
2400 Pound-Force Per Square Inch
Voltage
1 kV
Voltage Rating
UL Rated to 600 V (Shall not exceed 1 kV)
Operating Temperature Celsius
-55 to 100 Degrees Celsius
Overall Length Imperial
6.0
Width
10.87 in
27.6 cm
Height
6.26 in
15.9 cm
Length
10.87 in
27.6 cm
Volume
739.12 cubic inch
12111.98 cm3
Weight
16 oz
453.59 g
Other Details
Adhesive Lined
Yes
Dielectric Strength (V/mil)
500 V/mil
Direct Bury
No
Elongation
4.75 %
Flame Retardant
No
Minimum Expanded Tubing I. D.
0.4 in
Non-Corrosive
Yes
Shrink Ratio
3:1
Solution For
Access Network: xDSL
Units Per Case
3.0
Material and Composition
Adhesive Material
Hot melt adhesive layer
Material
Polyolefin
Shelf Life
3600
Color and Appearance
Product Color
Red
Certifications and Standards
Agency Approvals
CSA, UL 486D
Flammability Rating
Non-Flame Retardant
Specifications Met
UL 486D*
Packaging and Shipping
Case Quantity
3 pieces/pack, 12 packs
