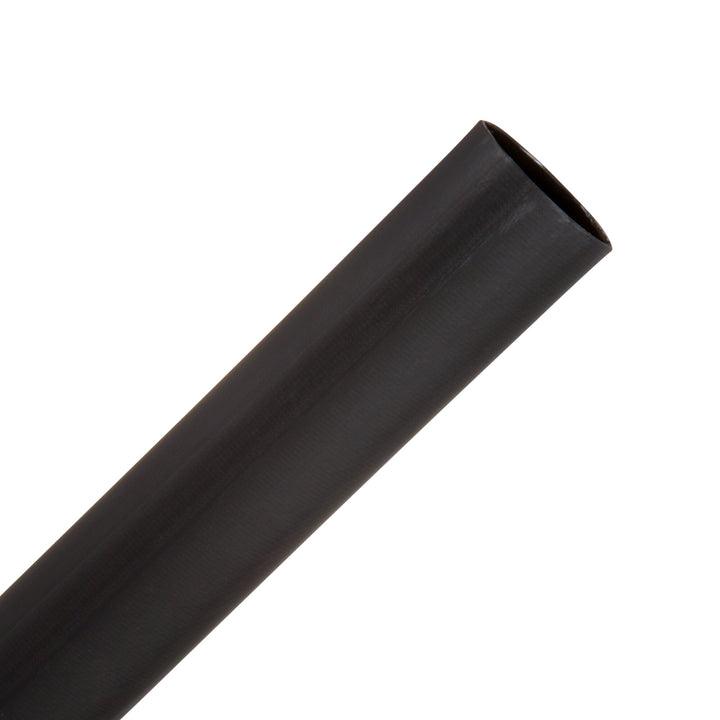

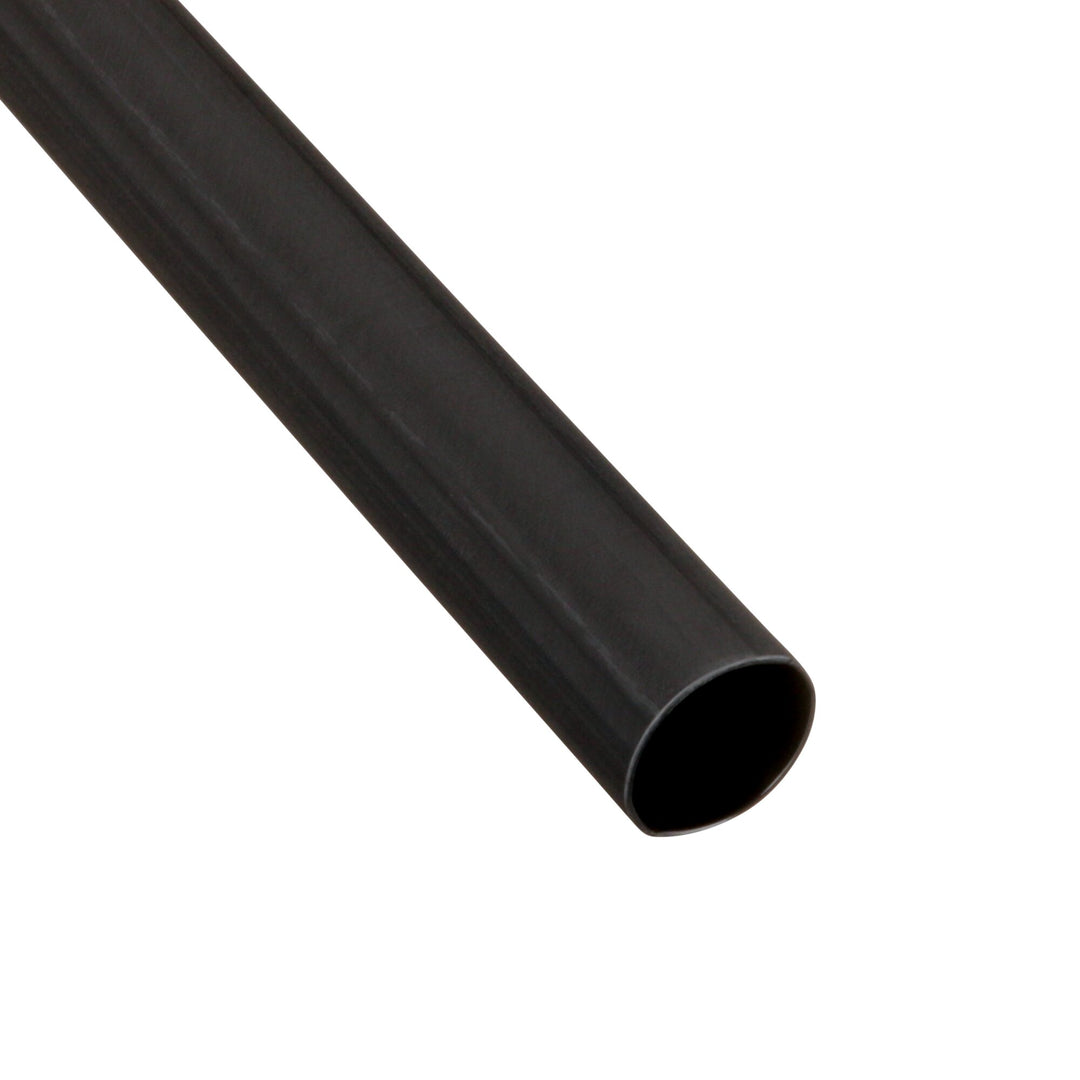

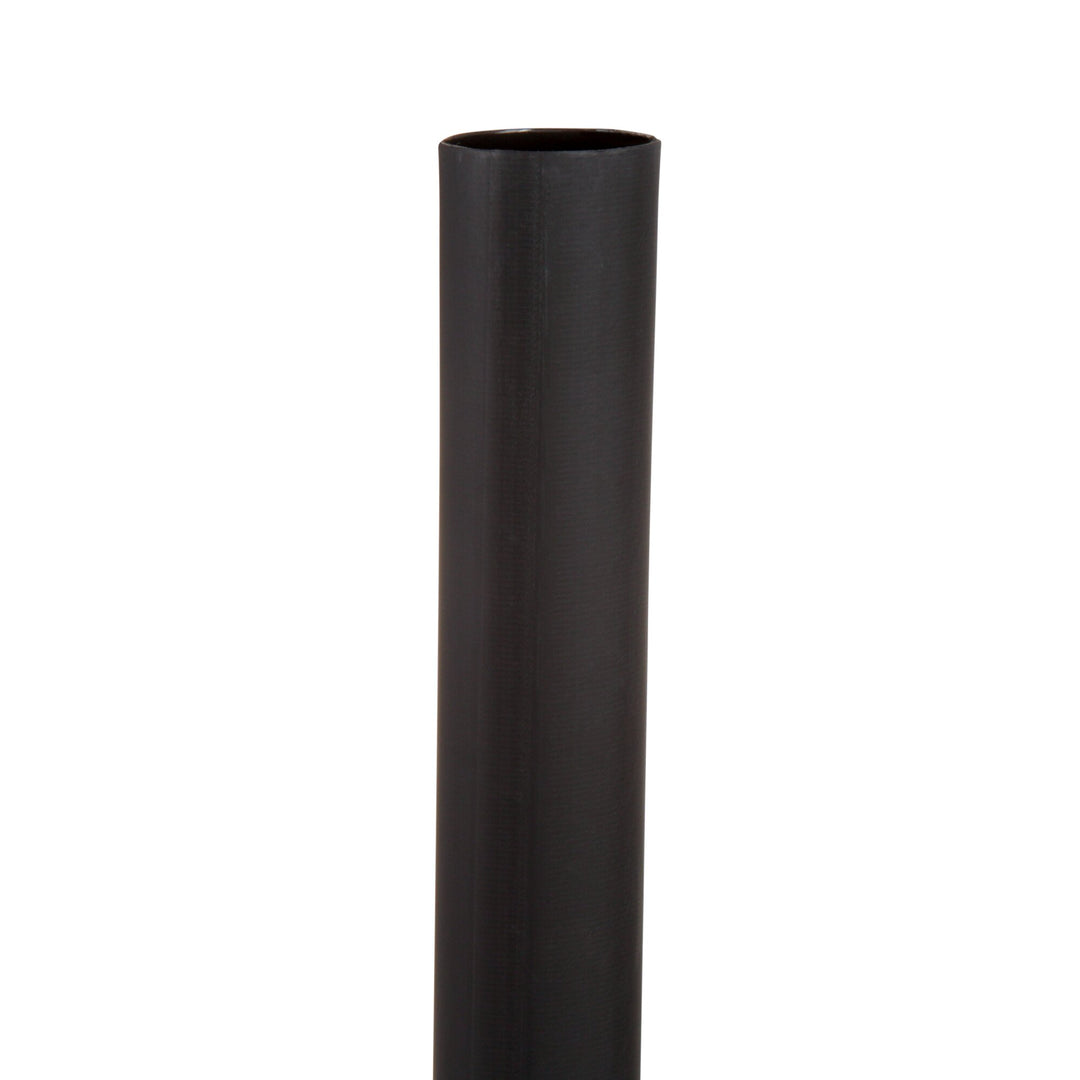

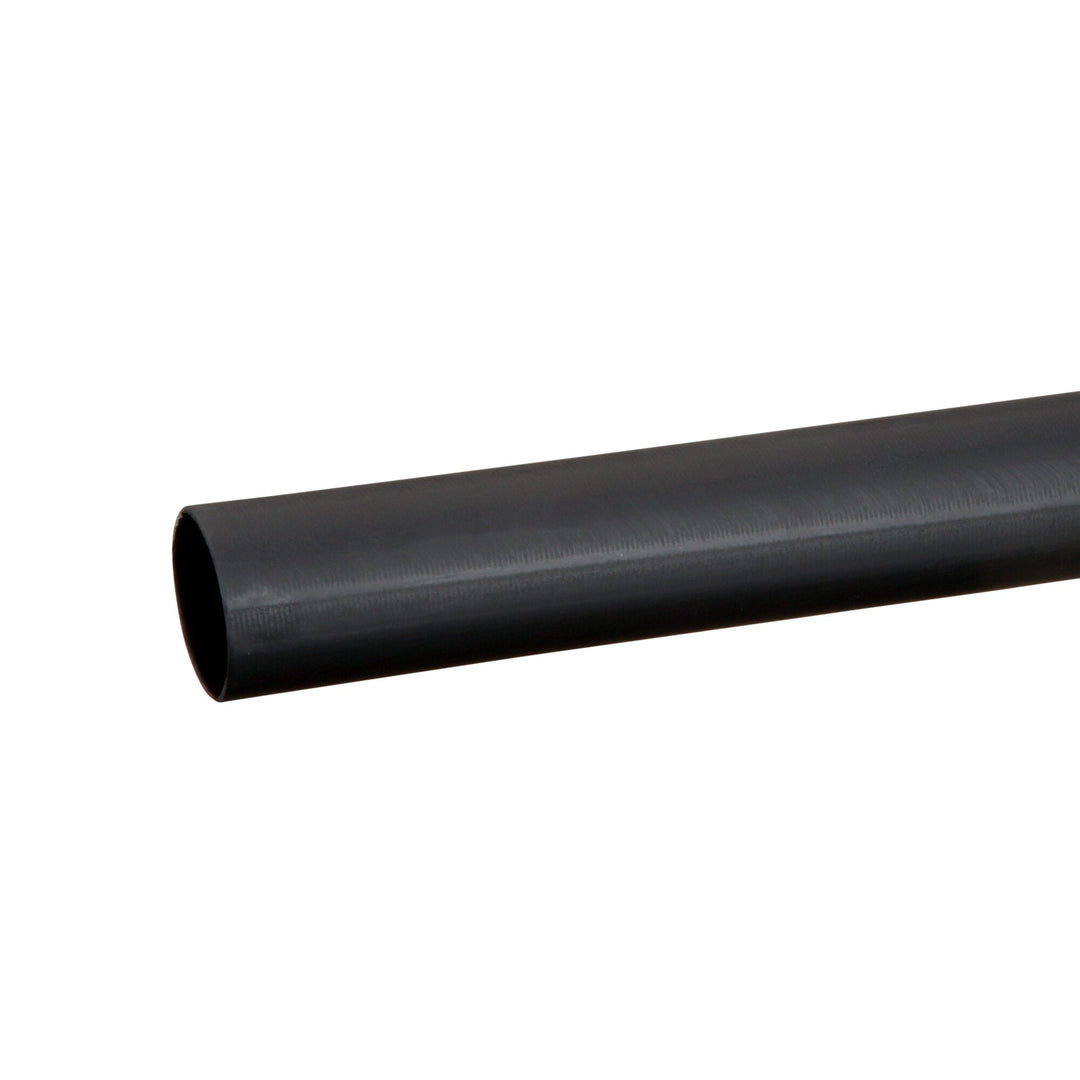

3M Heat Shrink Heavy-Wall Cable Sleeve ITCSN-0800, 8-1/0 AWG
3M Heat Shrink Heavy-Wall Cable Sleeve ITCSN-0800, 8-1/0 AWG
3M Heat Shrink Heavy-Wall Cable Sleeve ITCSN-0800, 8-1/0 AWG
3M Heat Shrink Heavy-Wall Cable Sleeve ITCSN-0800, 8-1/0 AWG

3M Heat Shrink Heavy-Wall Cable Sleeve ITCSN-0800, 8-1/0 AWG

Regular price
/

$144.99 USD & FREE Shipping.
  • Superior resistance to abrasion, corrosion and chemicals
  • Offers reliable performance for electrical splices, connections and terminations
  • Suitable for insulating secondary splices, as well as direct buried, submersible and dig-in repairs
  • Made of black cross-linked polyolefin
  • Withstands temperatures of -67 to 230 degrees F (-55 to 110 degrees C)
  • UL Listed, CSA Certified and RoHS 2011/65/EU Compliant
Overview
This 3M ITCSN Heat Shrink Cable Sleeve is a great choice for resistance against chemicals, corrosion and abrasion. This heavy-wall sleeve has a cross-linked polyolefin construction to protect against moisture while supporting electrical connections, splices and terminations. The 3:1 shrink ratio is ideal for insulating 1 kV-rated applications.3Mâ„¢ Heat Shrink Cable Sleeve ITCSN is a split resistant sleeve with a factory applied adhesive/sealant that offers reliable performance for electrical splices, connections and terminations. It is perfect for insulating secondary splices, direct buried, submersible or dig in repairs, as well as physical protection of high voltage, air insulated connectors or lugs. It withstands temperatures of 67 to 230 degrees F ( 55 to 110 degrees C). UL Listed, CSA Certified and RoHS 2011/65/EU Compliant.

3M Heat Shrink Heavy-Wall Cable Sleeve ITCSN-0800, 8-1/0 AWG

Specifications
General Information
Brand
3Mâ„¢
Heat Shrink Type
Adhesive-Lined Polyolefin Heat Shrink Tubing
Product Type
Splice
Splice Type
Heat Shrink
Tubing Type
Heavy Wall
Country Of Origin
United States
Lead Time
2 days
California Residents
Dimensions and Specifications
Cable Size Range
8-1/0 AWG
Expanded Inner Diameter
0.8 in
Expanded Inner Diameter (Metric)
20.3 mm
Inner Diameter After Shrink (Imperial)
0.2 in
Inner Diameter After Shrink (Metric)
0.508 cm²
Inner Diameter Before Shrink (Imperial)
0.8 in
Inner Diameter Before Shrink (Metric)
2.032 cm²
Maximum Conductor Size (Imperial)
1/0 AWG
Maximum Conductor Size (Metric)
50 mm²
Maximum Operating Temperature (Celsius)
100 Degree Celsius
Maximum Operating Temperature (Fahrenheit)
230 Degree Fahrenheit
Maximum Voltage Rating
1 kV
Minimum Conductor Size (Imperial)
8 AWG
Minimum Conductor Size (Metric)
10 mm²
Minimum Shrink Temperature (Celsius)
121 Degree Celsius
Minimum Shrink Temperature (Fahrenheit)
250 °F
Operating Temperature (Celsius)
-55 to 100 Degrees Celsius
Operating Temperature (Fahrenheit)
-67 °F to 230 °F
Operating Temperature Range (Celsius)
-55 °C to -100 °C
Operating Temperature Range (Fahrenheit)
-67 °F to 230 °F
Overall Length (Imperial)
25 ft
Overall Length (Metric)
7.62 mm
Recovered Inner Diameter
0.2 in
Recovered Inner Diameter (Metric)
5.1 mm
Tensile Strength (Imperial)
2400 Pound-Force Per Square Inch
Voltage
1 kV
Voltage Rating
UL Rated to 600 V (Shall not exceed 1 kV)
Maximum Conductor Size Imperial
1/0 AWG
Maximum Conductor Size Metric
50 mm²
Minimum Conductor Size Imperial
8 AWG
Minimum Conductor Size Metric
10 mm²
Minimum Shrink Temperature Fahrenheit
250 °F
Operating Temperature Celsius
-55 to 100 Degrees Celsius
Overall Length Imperial
25.0
Other Details
Adhesive Lined
No
Dielectric Strength (V/mil)
500 V/mil
Direct Bury
No
Elongation
4.75 %
Flame Retardant
No
Mil Spec
AMS-DTL-23053/15,Class 1
Minimum Expanded Tubing I. D.
0.8 in
Non-Corrosive
Yes
Shrink Ratio
4:1
Solution For
Access Network: FTTH/FTTB/CATV
Splice Configuration
Heat Shrink Heavy-Wall Cable Sleeve (ITCSN)
UL File Number
E-102356
Units Per Case
1.0
Tensile Strength Imperial
2400 Pound-Force Per Square Inch
Usage Information
Application Specifications
UL Listed 486 D for 600V, File Number E102356; CSA Certified File LR86335
Material and Composition
Adhesive Material
Hot melt adhesive layer
Material
Polyolefin
Product Form
Sleeve-roll
Shelf Life
3600
Color and Appearance
Product Color
Black
Certifications and Standards
Flammability Rating
Non-Flame Retardant
Specifications Met
UL 486D*
Packaging and Shipping
Case Quantity
1 Reel
Resources
Datasheet
