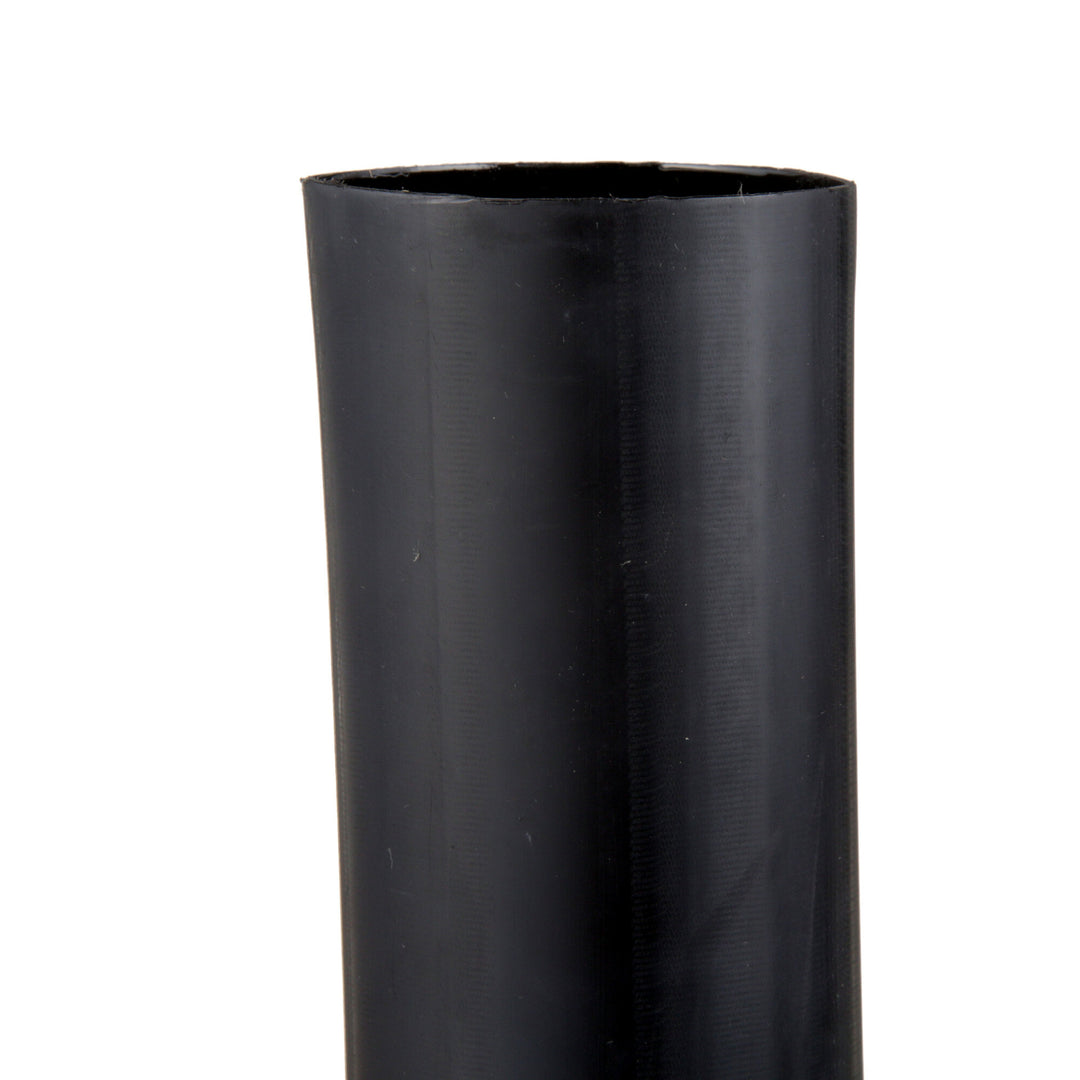

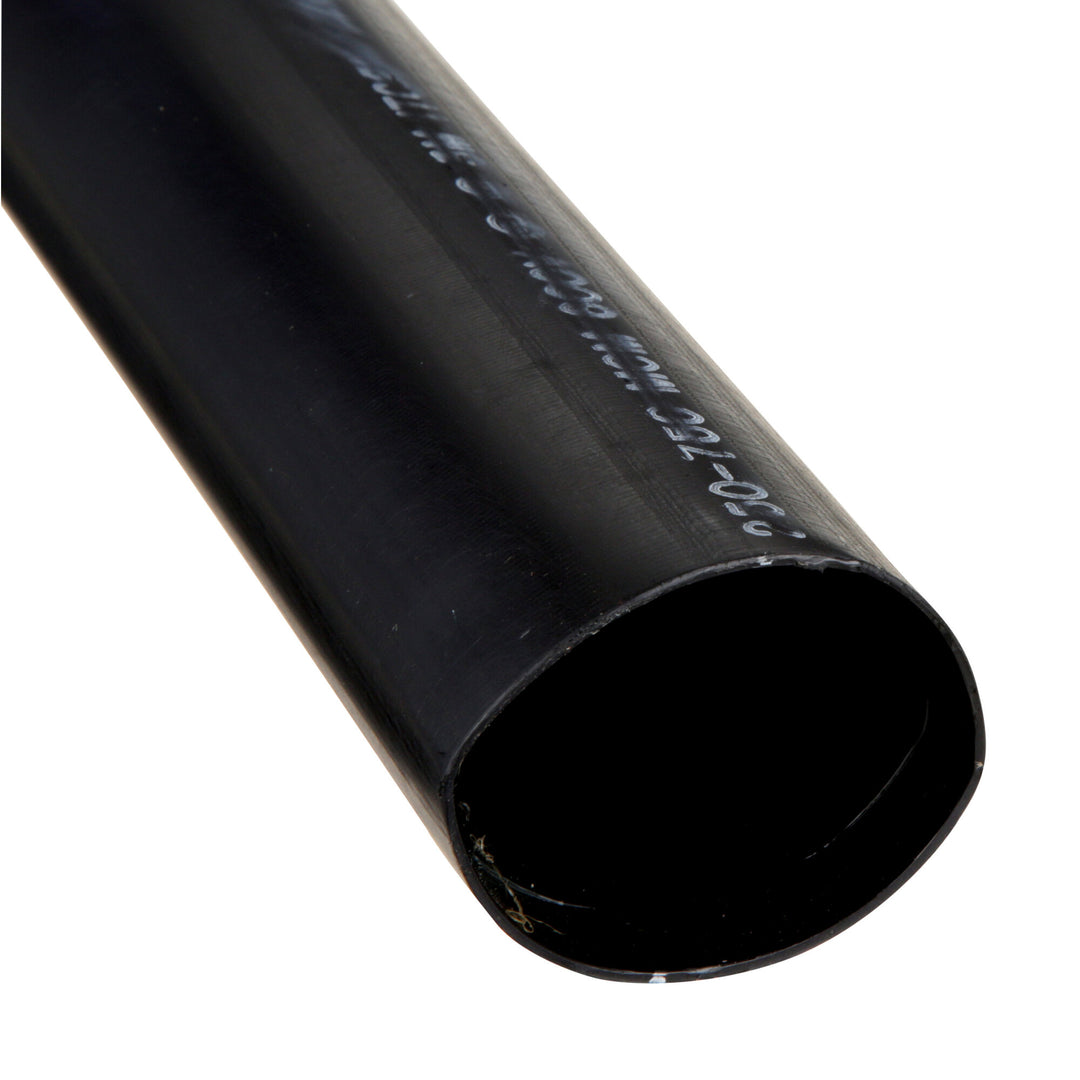

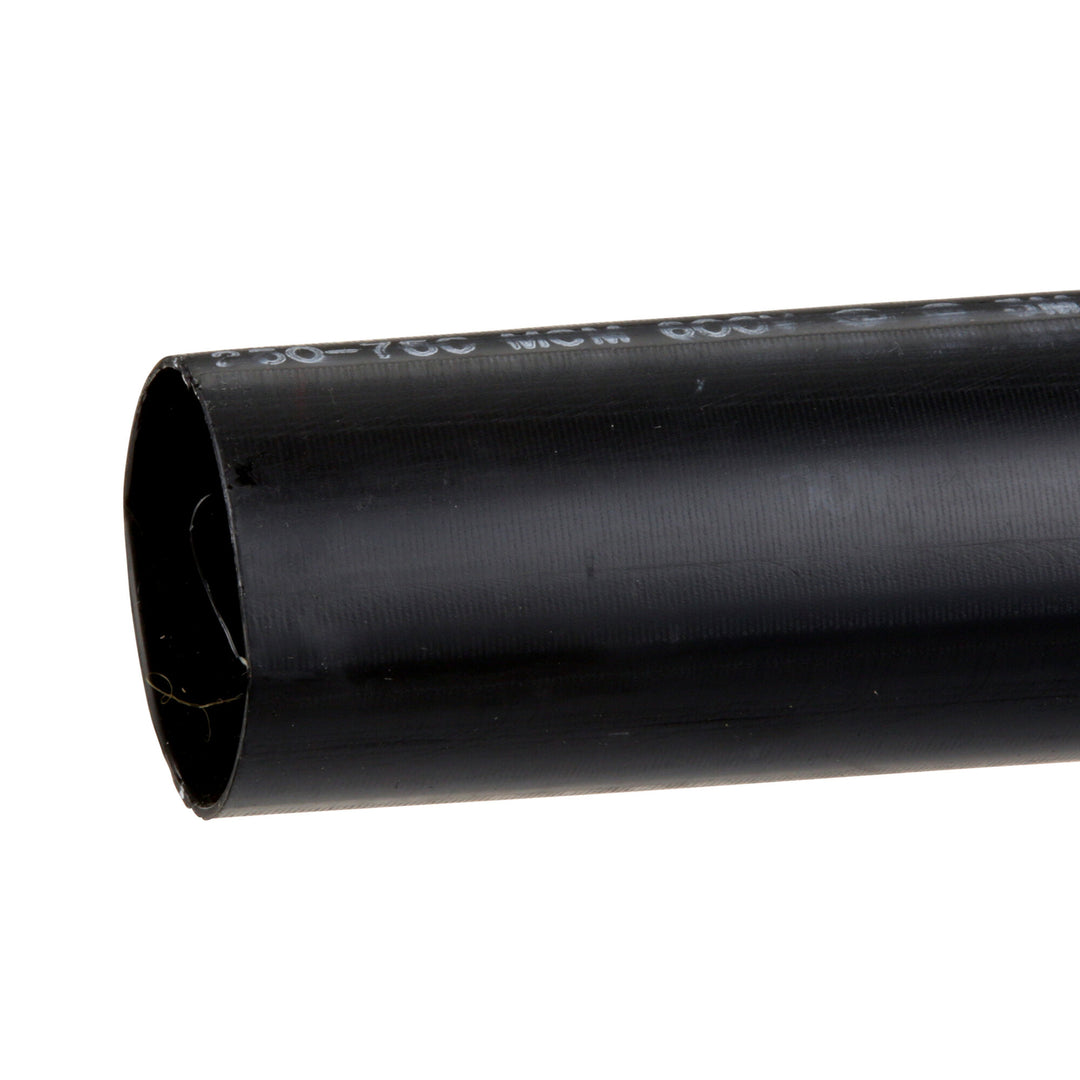

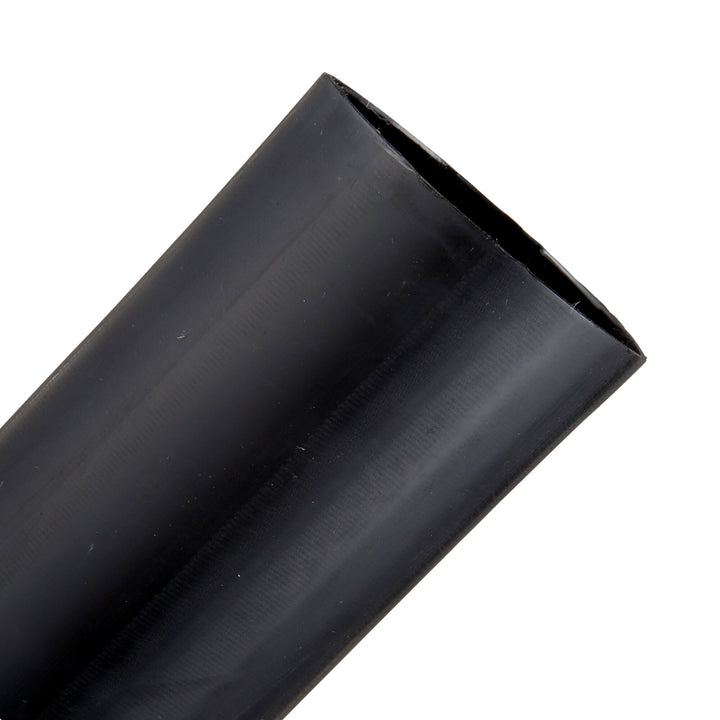

3M Heat Shrink Heavy-Wall Cable Sleeve ITCSN-2000, 250-750 kcmil
3M Heat Shrink Heavy-Wall Cable Sleeve ITCSN-2000, 250-750 kcmil
3M Heat Shrink Heavy-Wall Cable Sleeve ITCSN-2000, 250-750 kcmil
3M Heat Shrink Heavy-Wall Cable Sleeve ITCSN-2000, 250-750 kcmil

3M Heat Shrink Heavy-Wall Cable Sleeve ITCSN-2000, 250-750 kcmil

Regular price
/

$1,150.99 USD & FREE Shipping.
  • Superior resistance to abrasion, corrosion and chemicals
  • Offers reliable performance for electrical splices, connections and terminations
  • Suitable for insulating secondary splices, as well as direct buried, submersible and dig-in repairs
  • Made of black cross-linked polyolefin
  • Withstands temperatures of -67 to 230 degrees F (-55 to 110 degrees C)
  • UL Listed, CSA Certified and RoHS 2011/65/EU Compliant
Overview
For a product that stands up under a long list of conditions, choose 3M ITCSN Heat Shrink Cable Sleeves. Made to resist abrasion, corrosion and chemicals, its cross-linked polyolefin construction also seals out moisture. This heavy-wall sleeve has a 3:1 shrink ratio when heated to provide electrical insulation for 1 kV-rated applications, and its color-coding makes wire identification simple.3M™ Heat Shrink Cable Sleeve ITCSN is a split resistant sleeve with a factory applied adhesive/sealant that offers reliable performance for electrical splices, connections and terminations. It is perfect for insulating secondary splices, direct buried, submersible or dig in repairs, as well as physical protection of high voltage, air insulated connectors or lugs. It withstands temperatures of 67 to 230 degrees F ( 55 to 110 degrees C). UL Listed, CSA Certified and RoHS 2011/65/EU Compliant.

3M Heat Shrink Heavy-Wall Cable Sleeve ITCSN-2000, 250-750 kcmil

Specifications
General Information
Brand
3M™
Heat Shrink Type
Adhesive-Lined Polyolefin Heat Shrink Tubing
Product Type
Sleeve
Splice Type
Heat Shrink
Tubing Type
Heavy Wall
Country Of Origin
United States
Sold As
Case
Lead Time
2 days
California Residents
Dimensions and Specifications
Cable Size Range
250-750 kcmil
Expanded Inner Diameter
2 in
Expanded Inner Diameter (Metric)
50.8 mm
Inner Diameter After Shrink (Imperial)
0.65 in
Inner Diameter After Shrink (Metric)
1.651 cm²
Inner Diameter Before Shrink (Imperial)
2 in
Inner Diameter Before Shrink (Metric)
5.08 cm²
Maximum Conductor Size (Imperial)
750 kcmil
Maximum Conductor Size (Metric)
400 mm²
Maximum Operating Temperature (Celsius)
100 Degree Celsius
Maximum Operating Temperature (Fahrenheit)
230 Degree Fahrenheit
Maximum Voltage Rating
1 kV
Minimum Conductor Size (Imperial)
250 kcmil
Minimum Conductor Size (Metric)
120 mm²
Minimum Shrink Temperature (Celsius)
121 Degree Celsius
Minimum Shrink Temperature (Fahrenheit)
250 °F
Operating Temperature (Celsius)
-55 to 100 Degrees Celsius
Operating Temperature (Fahrenheit)
-67 °F to 230 °F
Operating Temperature Range (Celsius)
-55 °C to -100 °C
Operating Temperature Range (Fahrenheit)
-67 °F to 230 °F
Overall Length (Imperial)
48 in
Overall Length (Metric)
1219 mm
Recovered Inner Diameter
0.65 in
Recovered Inner Diameter (Metric)
16.5 mm
Tensile Strength (Imperial)
2400 Pound-Force Per Square Inch
Voltage
1 kV
Voltage Rating
UL Rated to 600 V (Shall not exceed 1 kV)
Maximum Conductor Size Imperial
750 kcmil
Maximum Conductor Size Metric
400 mm²
Minimum Conductor Size Imperial
250 kcmil
Minimum Conductor Size Metric
120 mm²
Minimum Shrink Temperature Fahrenheit
250 °F
Operating Temperature Celsius
-55 to 100 Degrees Celsius
Overall Length Imperial
48.0
Width
14.38 in
36.51 cm
Height
11.38 in
28.89 cm
Length
50.75 in
128.91 cm
Volume
8298.67 cubic inch
135990.92 cm3
Weight
386.4 oz
10954.26 g
Other Details
Adhesive Lined
Yes
Dielectric Strength (V/mil)
500 V/mil
Direct Bury
Yes
Elongation
4.75 %
Flame Retardant
No
Mil Spec
AMS-DTL-23053/15,Class 1
Minimum Expanded Tubing I. D.
2 in
Non-Corrosive
Yes
Shrink Ratio
3:1
Solution For
Access Network: xDSL
Splice Configuration
Heat Shrink Heavy-Wall Cable Sleeve (ITCSN)
UL File Number
E-102356
Units Per Case
20.0
Tensile Strength Imperial
2400 Pound-Force Per Square Inch
Usage Information
Application Specifications
UL Listed 486 D for 600V, File Number E102356; CSA Certified File LR86335
Material and Composition
Adhesive Material
Hot melt adhesive layer
Material
Polyolefin
Product Form
Sleeve-roll
Shelf Life
3600
Color and Appearance
Product Color
Black
Certifications and Standards
Agency Approvals
CSA, UL 486D
Flammability Rating
Non-Flame Retardant
Specifications Met
UL 486D*
Packaging and Shipping
Case Quantity
20
