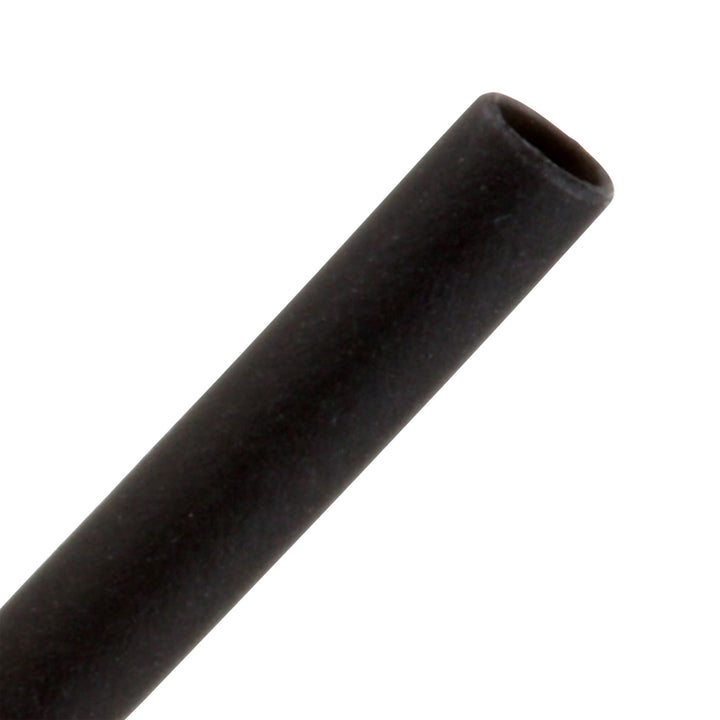

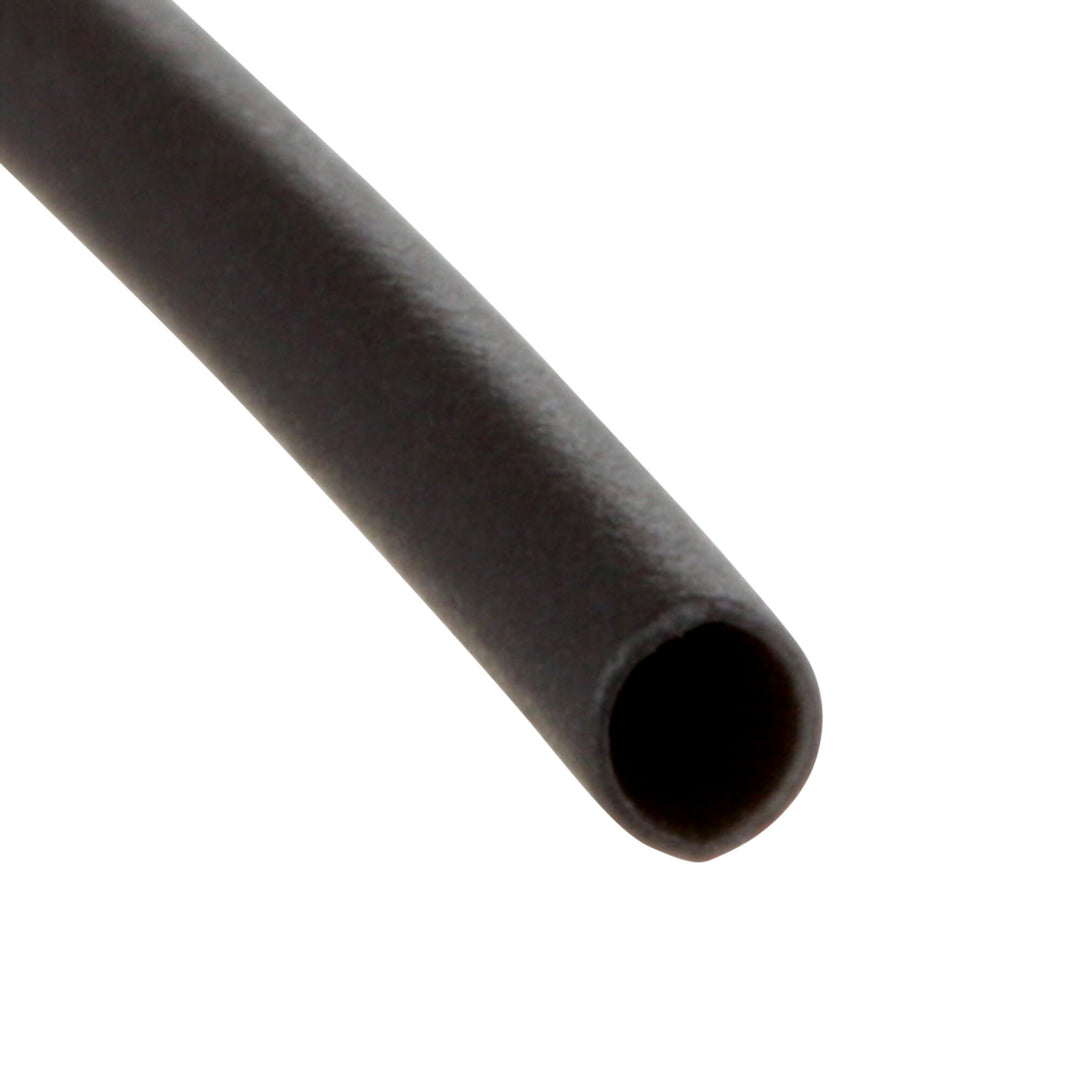

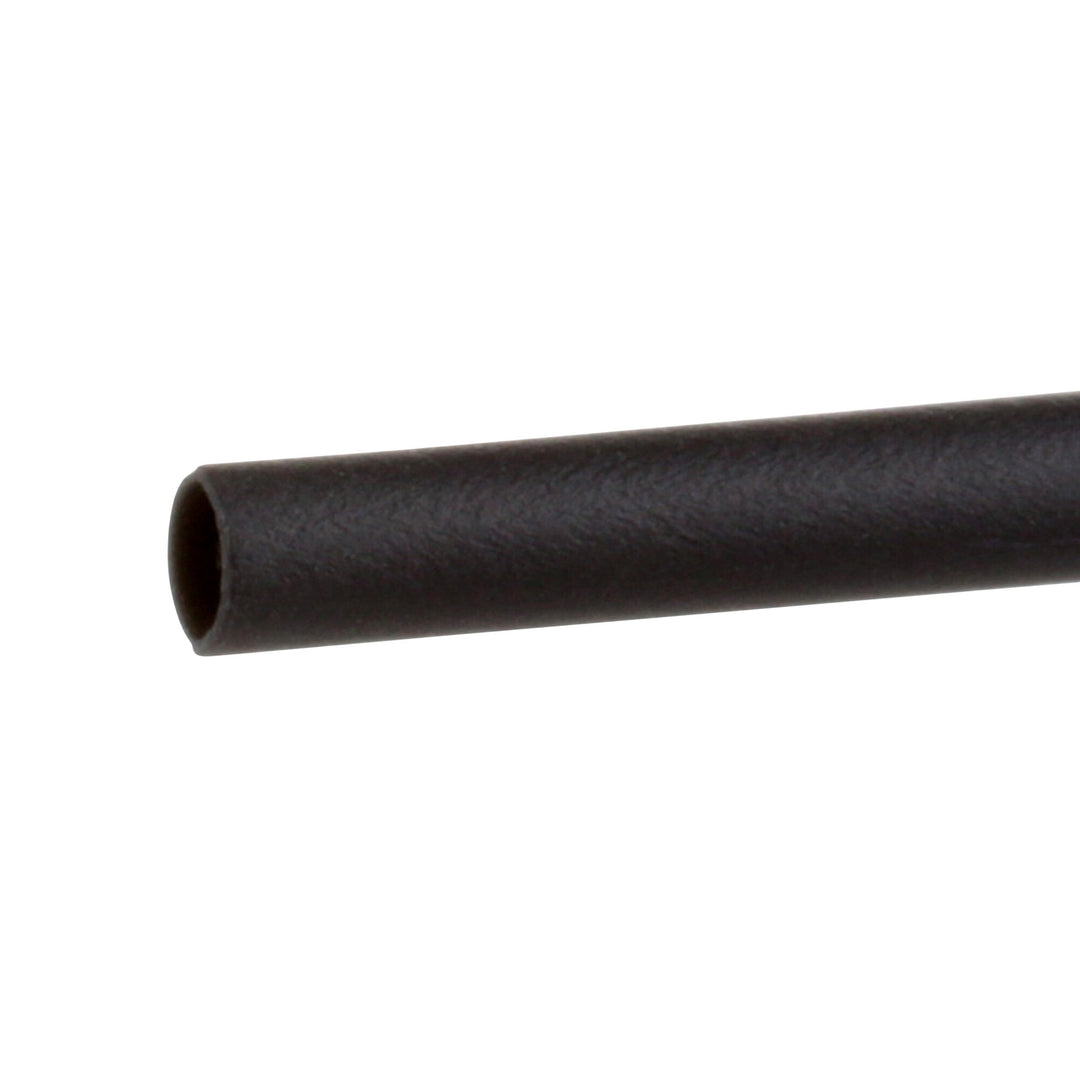

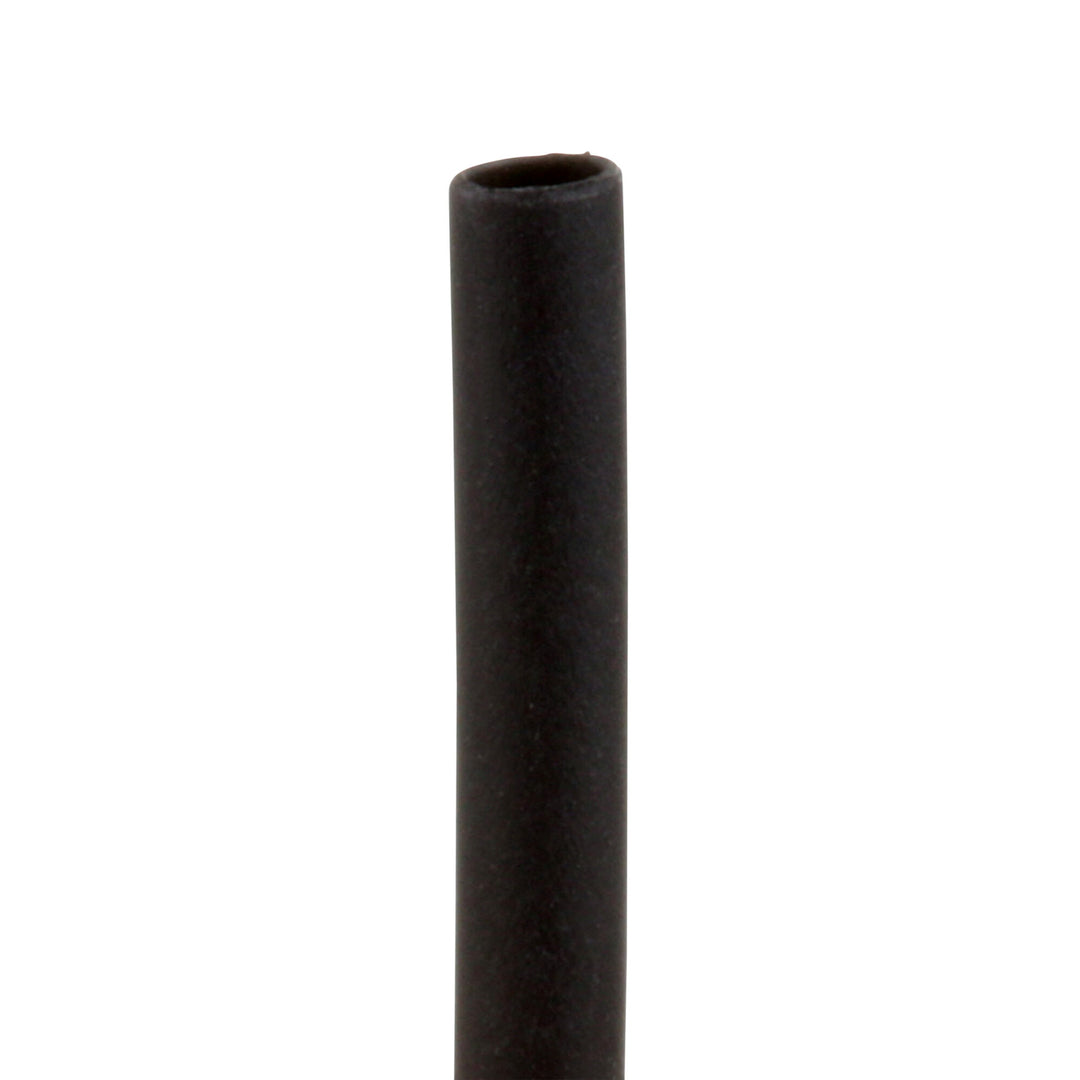

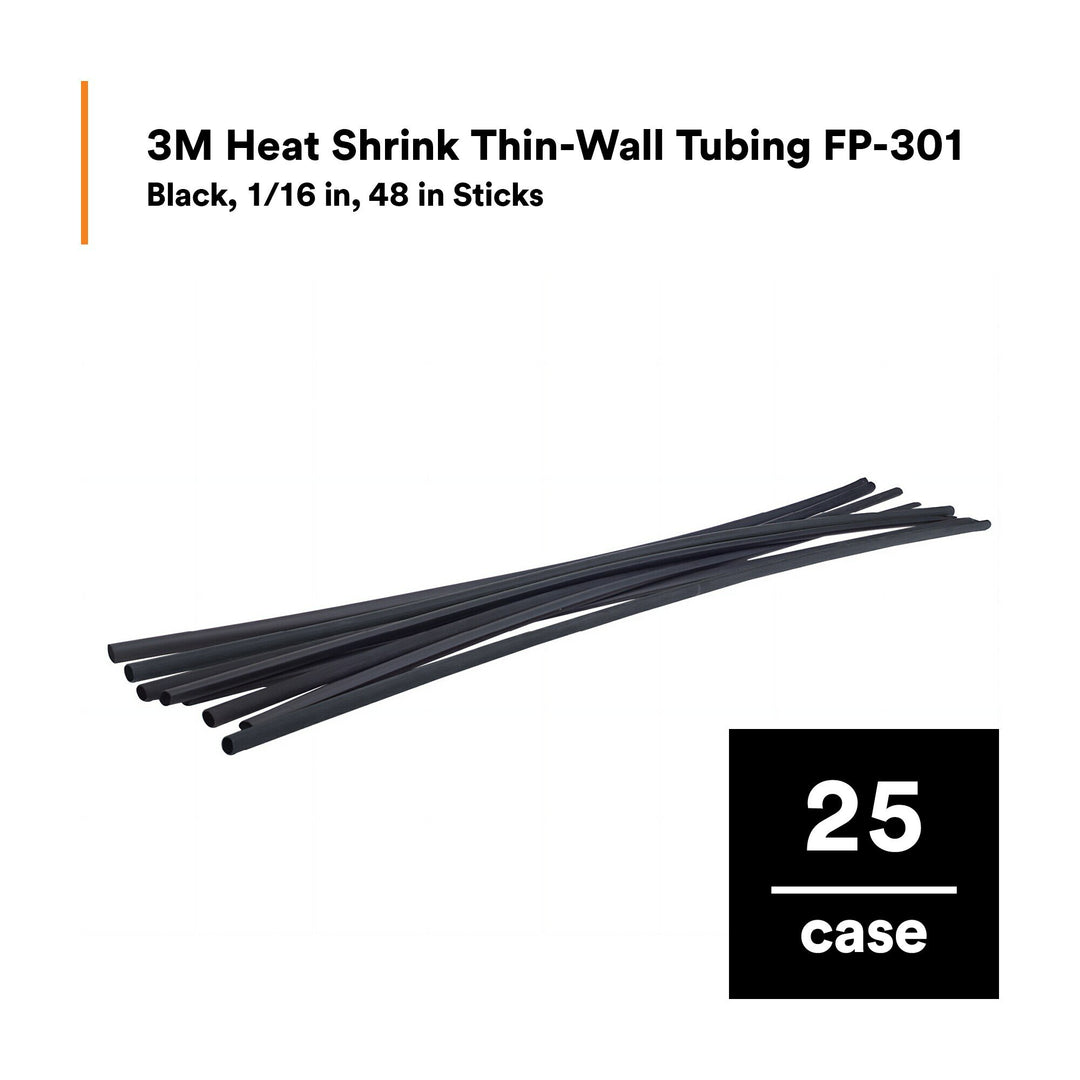

3M Heat Shrink Thin-Wall Tubing FP-301-1/16-48"-Black-25 Pcs, 48 inLength sticks

/
$50.99 USD & FREE Shipping.
Extended Handling May Be Required

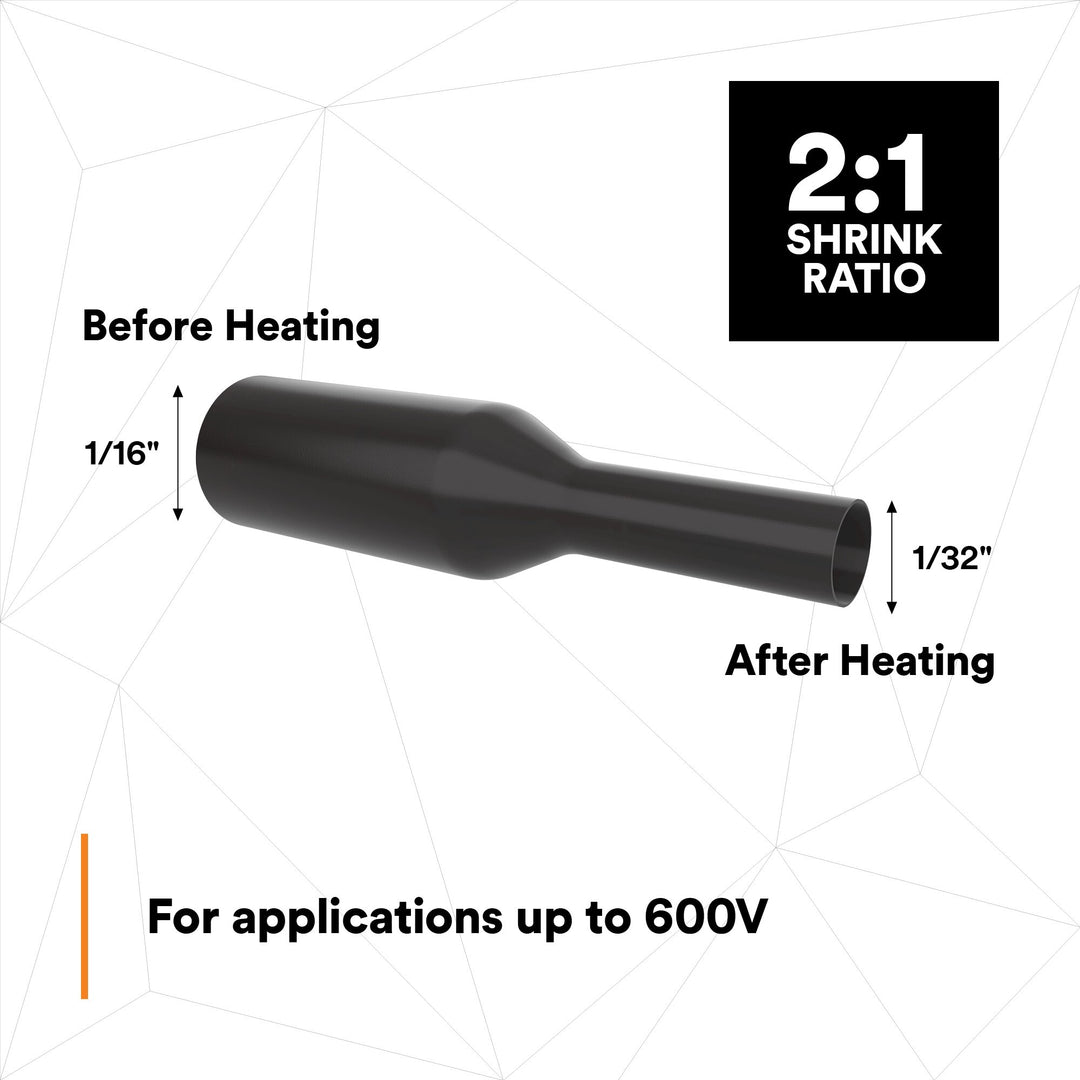

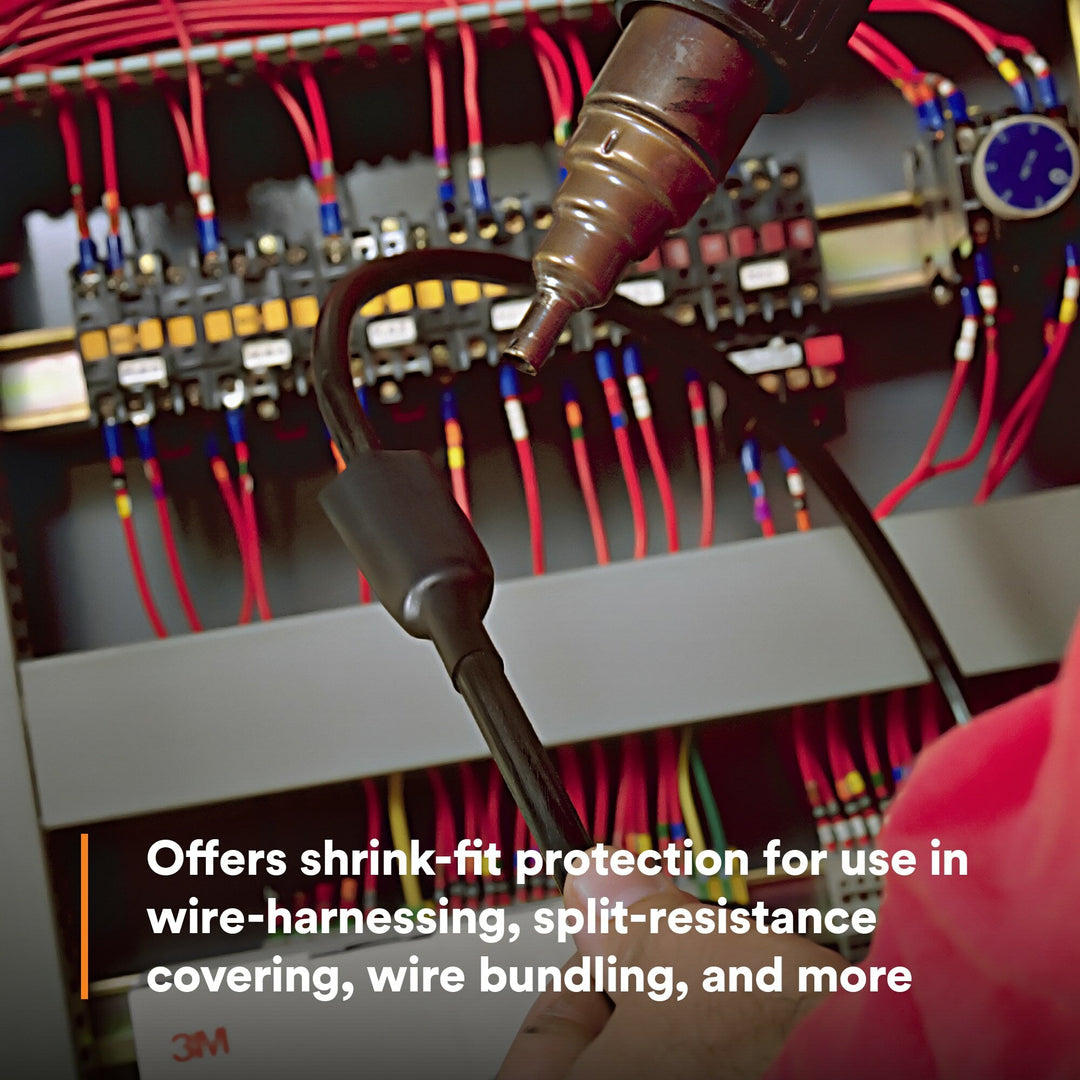

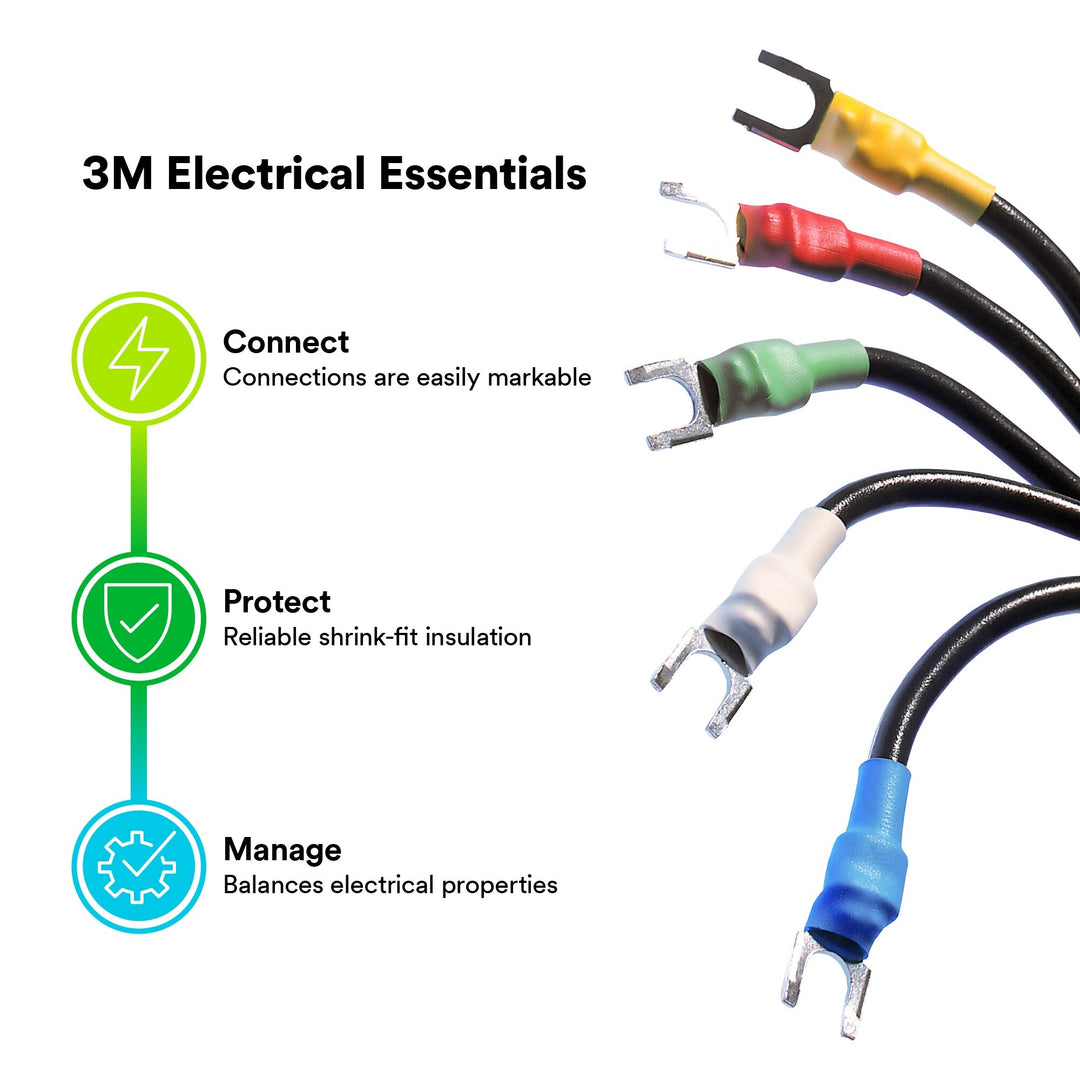

  • A VARIETY OF APPLICATIONS: Offers a 2:1 shrink-fit ratio and serves as protection in wire-harnessing, split-resistance covering, wire marking, wire bundling, and component packaging

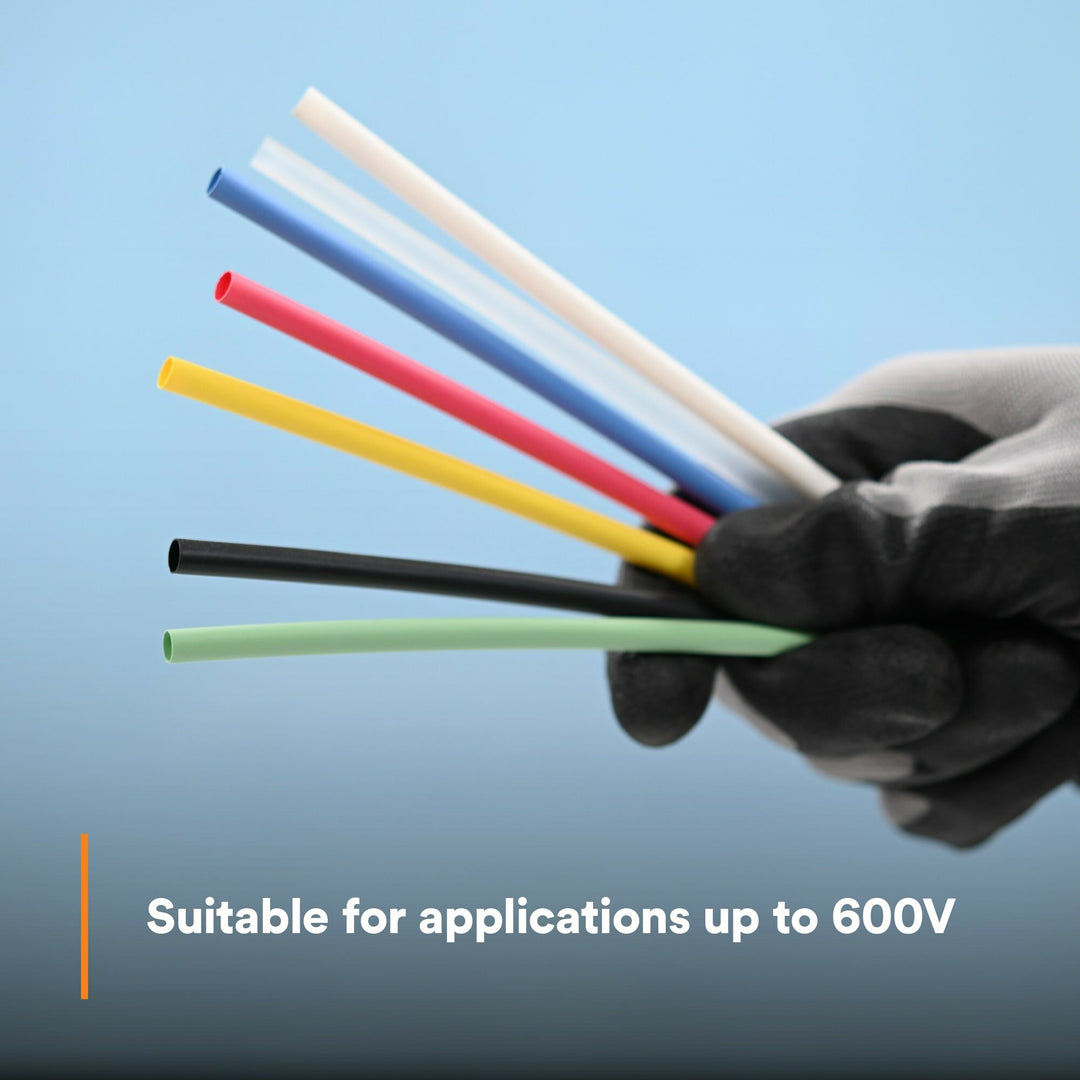

  • FLAME-RETARDANT TUBING: For applications up to 600V (clear is not flame retardant)
  • HIGH-STRENGTH PROTECTION: Balances electrical, physical, and chemical properties for various industrial and military applications
  • FOR DEMANDING CONDITIONS: Performs at an operating temperature up to 275 °F (135 °C)
  • KEY SPECIFICATIONS: UL Listed, File E-39100, SAE AS23053/5, Class 1 (all colors), Class 2 (clear), CSA Certified, and RoHS 2011/65/EU Compliant
Overview
For great shrink-fit protection, try 3M Heat Shrink Tubing FP-301. This general-purpose, thin-wall tubing has a 2:1 shrink ratio and a balance of electrical, physical and chemical properties. Constructed of pliable polyolefin, it works well in industrial and military applications and offers flame-retardant insulation for 600V-rated applications.3Mâ„¢ Heat Shrink Tubing FP-301 is color coded for quick and easy identification of the wire. This split resistant, flame retardant tubing is used as shrink fit, electrical insulation over cable splices or terminations. The high expansion ratio tubing is mechanically tough, easily markable and resists cold flow. It is ideal for lightweight wire harness covering, fire resistant covering, wire marking, wire bundling and component packaging. It withstands temperatures of 67 to 275 degrees F ( 55 to 135 degrees C). UL Listed, SAE AS23053/5, Class 1, CSA Certified and RoHS 2011/65/EU Compliant.
Brand img

3M Heat Shrink Thin-Wall Tubing FP-301-1/16-48"-Black-25 Pcs, 48 inLength sticks

Specifications
General Information
Brand
3Mâ„¢
Heat Shrink Type
Single-Wall Polyolefin Heat Shrink Tubing
Tubing Type
Single Wall (Thin)
Country Of Origin
United States
Sold As
Case
Lead Time
2 days
California Residents
Proposition 65 Warning
Dimensions and Specifications
Expanded Inner Diameter
0.063 in
Expanded Inner Diameter (Metric)
1.6 mm
Inner Diameter After Shrink (Imperial)
0.031 in
Inner Diameter After Shrink (Metric)
0.787 mm
Inner Diameter Before Shrink (Imperial)
0.063 in
Inner Diameter Before Shrink (Metric)
1.6 mm
Maximum Operating Temperature (Celsius)
135 Degree Celsius
Maximum Operating Temperature (Fahrenheit)
275 Degree Fahrenheit
Minimum Shrink Temperature (Celsius)
100 Degree Celsius
Operating Temperature (Celsius)
-55 to 135 Degrees Celsius
Operating Temperature (Fahrenheit)
-67 °F to 275 °F
Operating Temperature Range (Celsius)
-55 °C to +135 °C
Operating Temperature Range (Fahrenheit)
-67 °F to 275 °F
Overall Length (Imperial)
48 in
Overall Length (Metric)
1.219 m
Recovered Inner Diameter
0.031 in
Recovered Inner Diameter (Metric)
0.8 mm
Size (Metric)
1.59 mm
Tensile Strength (Imperial)
2400 Pound-Force Per Square Inch
UL Bug Temperature (Celsius)
125 Degrees Celsius
UL Bug Temperature (Fahrenheit)
257 Degrees Fahrenheit
UL Bug Voltage
600 Volt
Operating Temperature Celsius
-55 to 135 Degrees Celsius
Overall Length Imperial
48.0
Size Metric
1.59
Width
3.38 in
8.57 cm
Height
3.38 in
8.57 cm
Length
51.13 in
129.86 cm
Volume
582.42 cubic inch
9544.09 cm3
Weight
10.88 oz
308.44 g
Other Details
Elongation
400 %
Flame Retardant
Yes
Mil Spec
SAE-AMS-DTL-23053/5, Class 1
Minimum Expanded Tubing I. D.
0.063 in
Non-Corrosive
Yes
Shrink Ratio
2:1
Solution For
Access Network: FTTH/FTTB/CATV
UL File Number
E-39100
Units Per Case
25.0
Tensile Strength Imperial
2400 Pound-Force Per Square Inch
Material and Composition
Material
Polyolefin
Product Form
48 in (1.22 m) sticks
Shelf Life
3600
Color and Appearance
Product Color
Black
Certifications and Standards
Agency Approvals
CSA, UL Recognized
Flammability Rating
UL 224 All Tubing Flame Test
UL Approval
Yes
Resources
Datasheet
