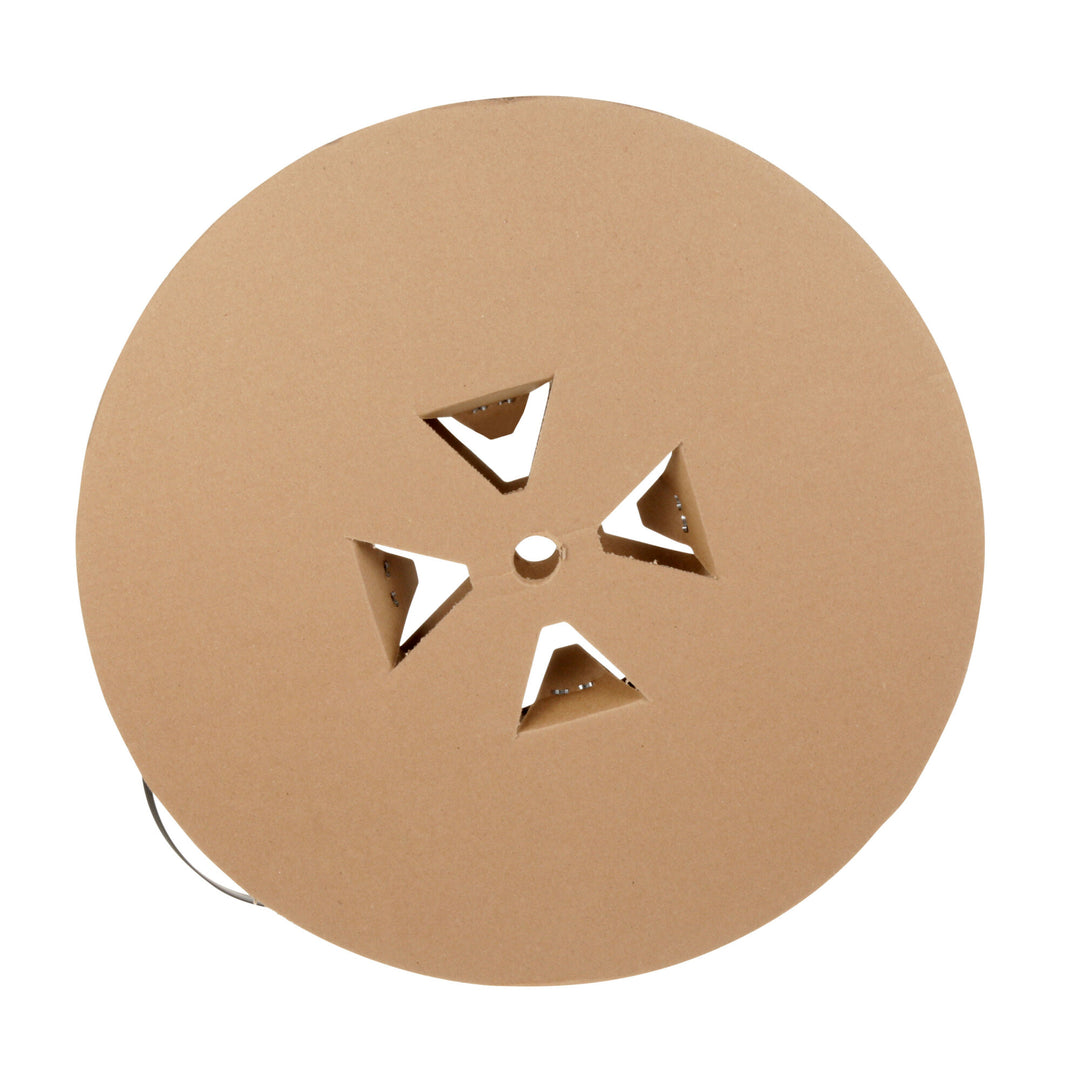

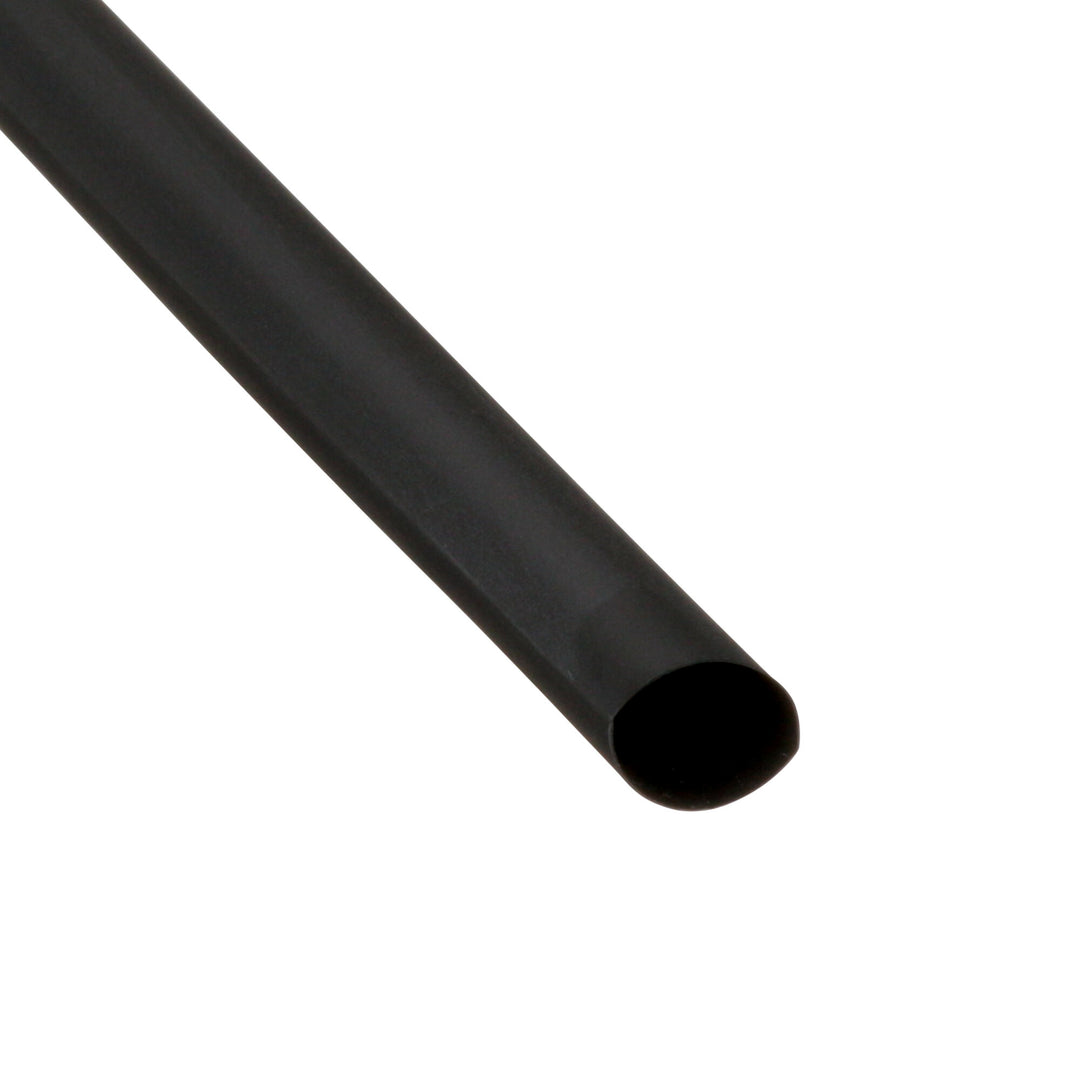

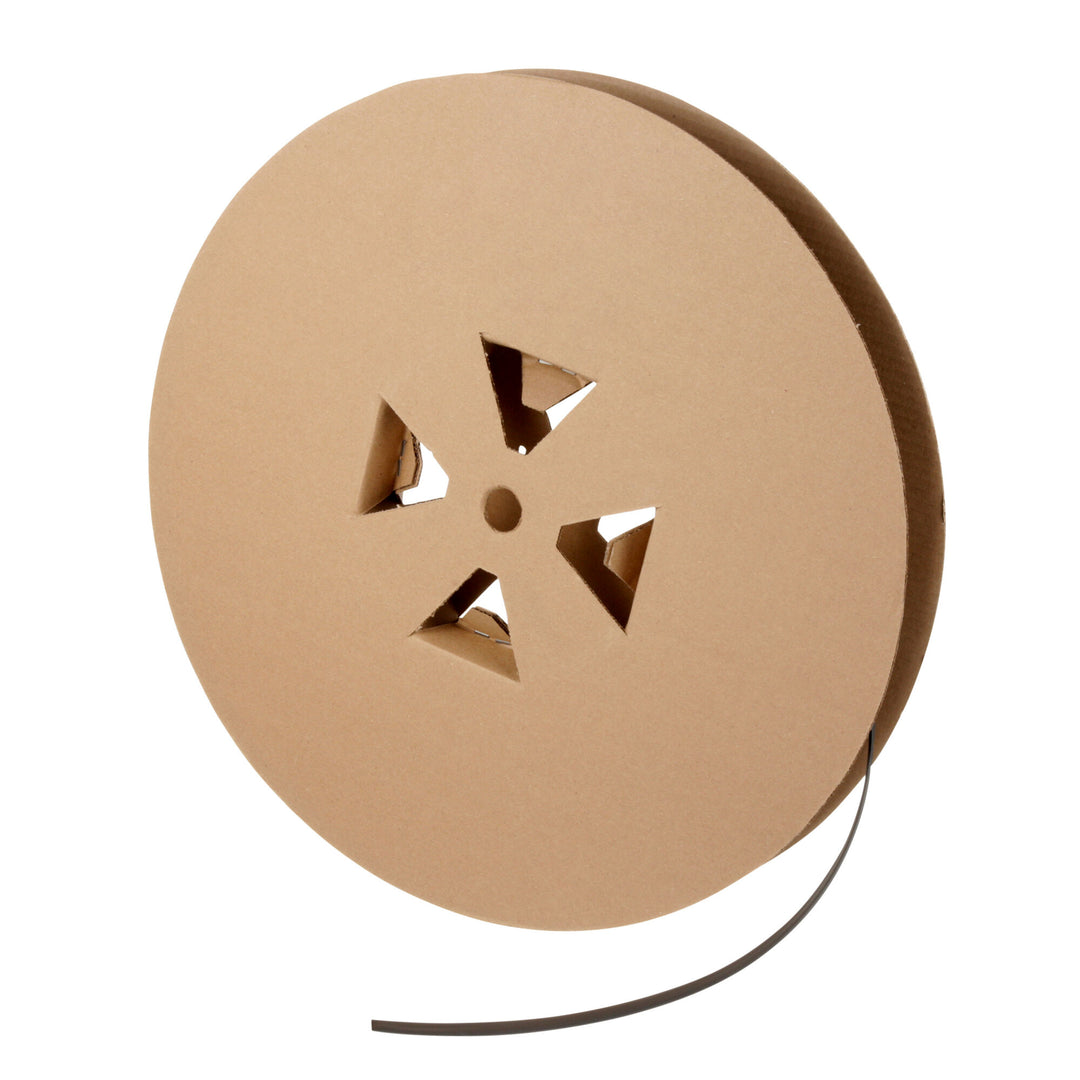

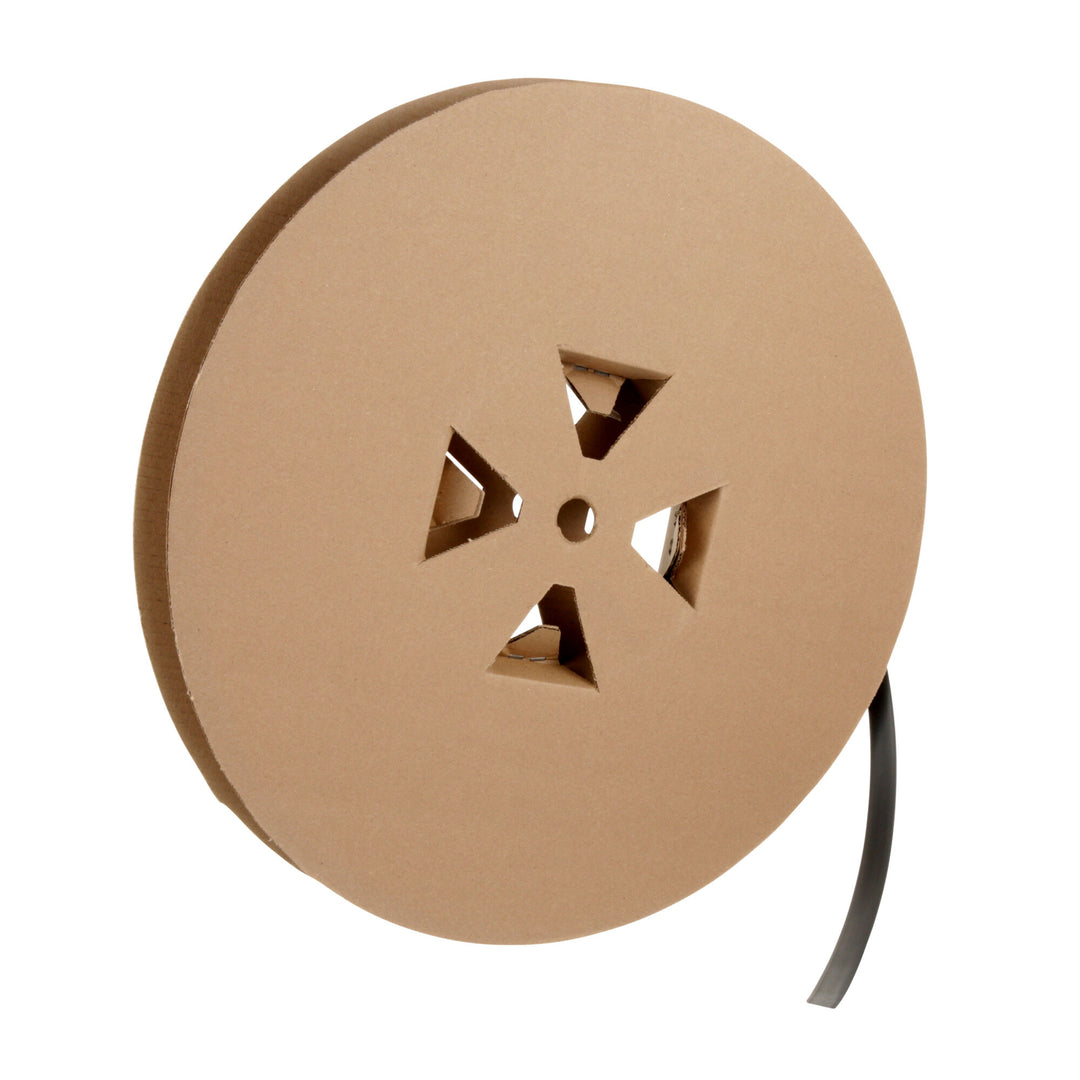

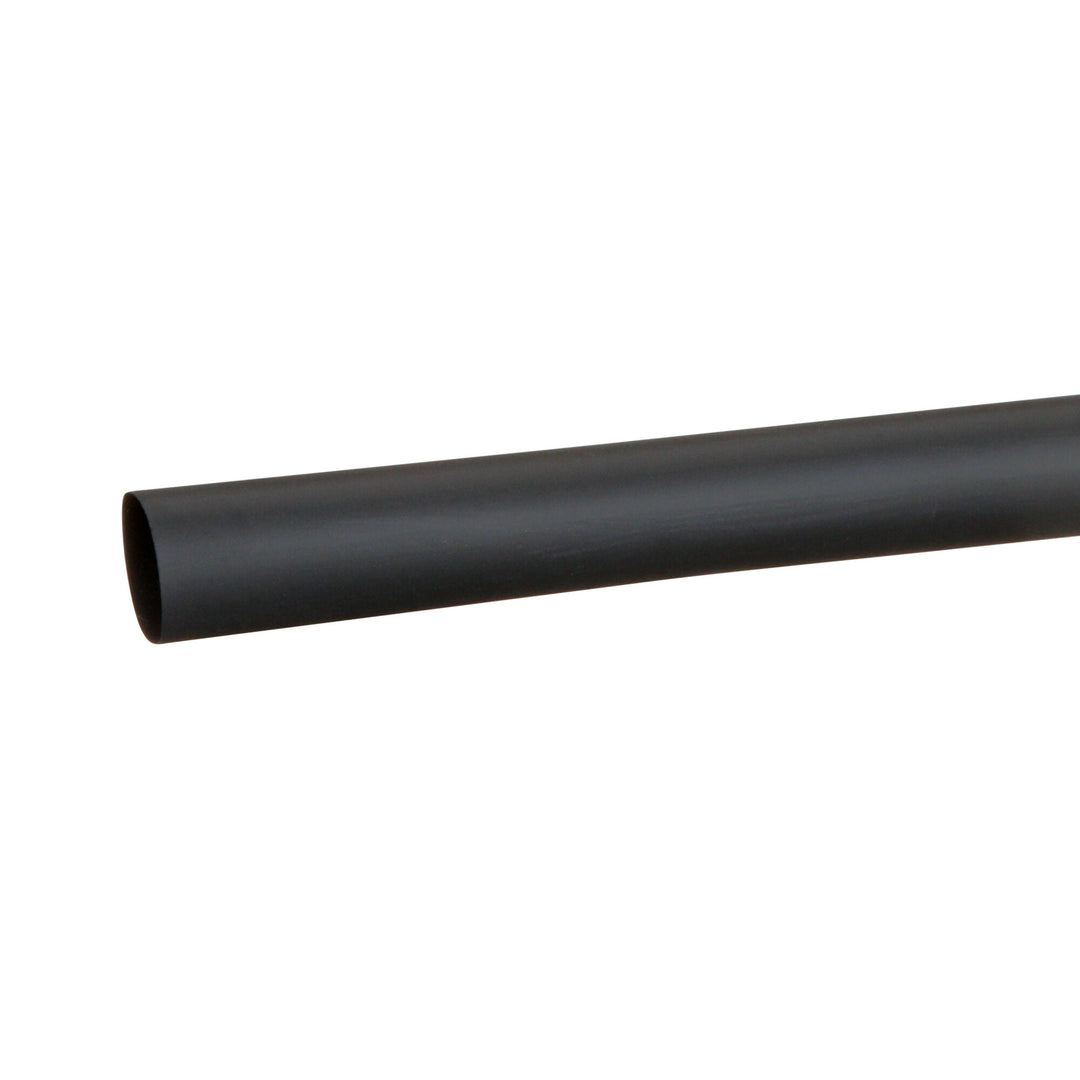

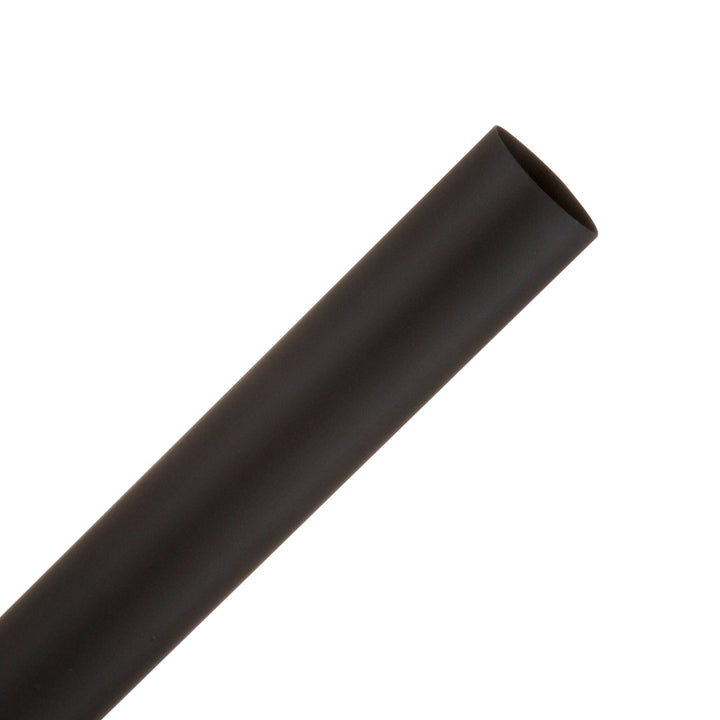

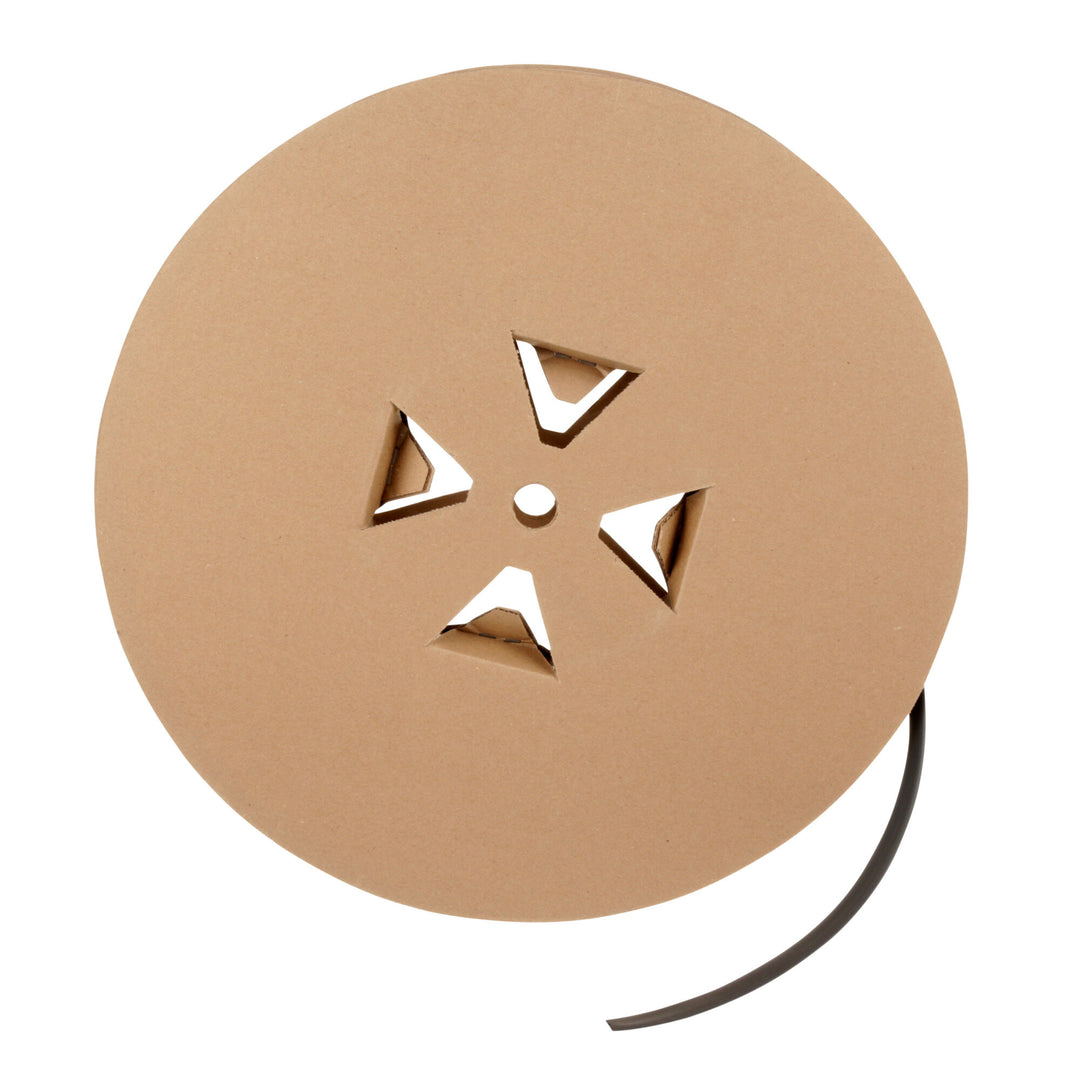

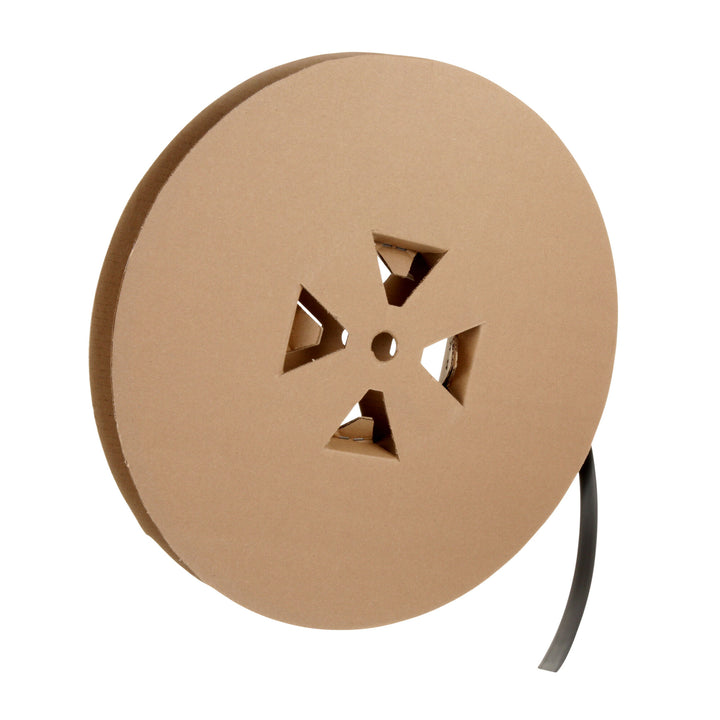

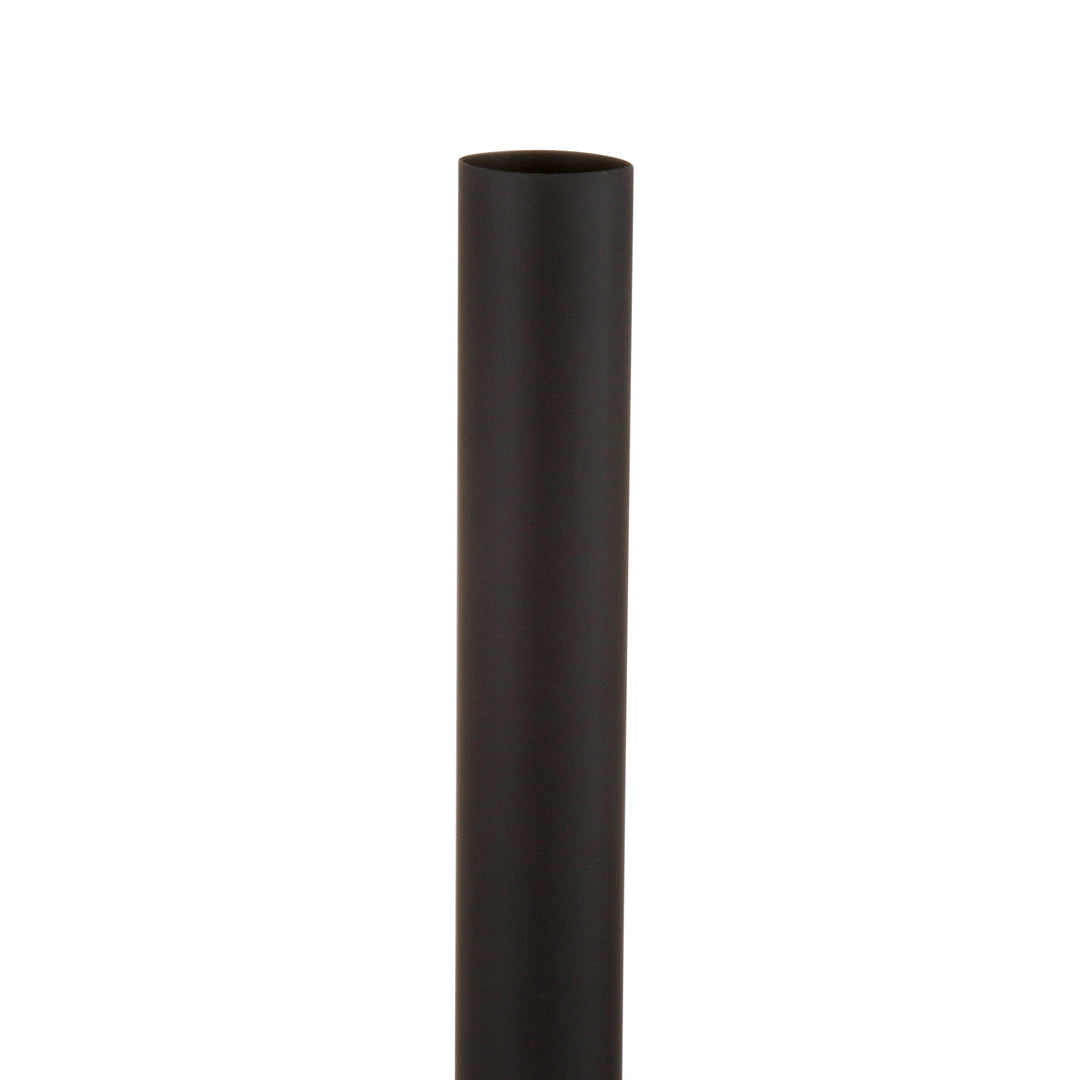

3M Heat Shrink Thin-Wall Tubing FP-301-1/2-Black-200', 200 ft Lengthper spool

/
$310.99 USD & FREE Shipping.
Extended Handling May Be Required
  • A VARIETY OF APPLICATIONS: Offers a 2:1 shrink-fit ratio and serves as protection in wire-harnessing, split-resistance covering, wire marking, wire bundling, and component packaging
  • FLAME-RETARDANT TUBING: For applications up to 600V (clear is not flame retardant)
  • HIGH-STRENGTH PROTECTION: Balances electrical, physical, and chemical properties for various industrial and military applications
  • FOR DEMANDING CONDITIONS: Performs at an operating temperature up to 275 °F (135 °C)
  • KEY SPECIFICATIONS: UL Listed, File E-39100, SAE AS23053/5, Class 1 (all colors), Class 2 (clear), CSA Certified, and RoHS 2011/65/EU Compliant
Overview
This general-purpose 3M FP-301 Heat Shrink Tubing is ideal for numerous military and industrial electrical insulation needs. This is a great choice when you need something thin and flexible that is sturdy. This heat shrink tubing has a 2:1 shrink ratio and is made of moisture-sealed polyolefin. It's also flame-retardant and noncorrosive for excellent protection in 600V-rated uses.3Mâ„¢ Heat Shrink Tubing FP-301 is color coded for quick and easy identification of the wire. This split resistant, flame retardant tubing is used as shrink fit, electrical insulation over cable splices or terminations. The high expansion ratio tubing is mechanically tough, easily markable and resists cold flow. It is ideal for lightweight wire harness covering, fire resistant covering, wire marking, wire bundling and component packaging. It withstands temperatures of 67 to 275 degrees F ( 55 to 135 degrees C). UL Listed, SAE AS23053/5, Class 1, CSA Certified and RoHS 2011/65/EU Compliant.
Brand img

3M Heat Shrink Thin-Wall Tubing FP-301-1/2-Black-200', 200 ft Lengthper spool

Specifications
General Information
Brand
3Mâ„¢
Heat Shrink Type
Single-Wall Polyolefin Heat Shrink Tubing
Tubing Type
Single Wall (Thin)
Country Of Origin
United States
Sold As
Case
Lead Time
2 days
California Residents
Proposition 65 Warning
Dimensions and Specifications
Expanded Inner Diameter
0.5 in
Expanded Inner Diameter (Metric)
12.70 mm
Inner Diameter After Shrink (Imperial)
0.25 in
Inner Diameter After Shrink (Metric)
6.35 mm
Inner Diameter Before Shrink (Imperial)
0.5 in
Inner Diameter Before Shrink (Metric)
12.7 mm
Maximum Operating Temperature (Celsius)
135 Degree Celsius
Maximum Operating Temperature (Fahrenheit)
275 Degree Fahrenheit
Minimum Shrink Temperature (Celsius)
100 Degree Celsius
Operating Temperature (Celsius)
-55 to 135 Degrees Celsius
Operating Temperature Range (Celsius)
-55 °C to +135 °C
Operating Temperature Range (Fahrenheit)
-67 °F to 275 °F
Overall Length (Imperial)
200 ft
Recovered Inner Diameter
0.25 in
Recovered Inner Diameter (Metric)
6.35 mm
Tensile Strength (Imperial)
2400 Pound-Force Per Square Inch
Operating Temperature Celsius
-55 to 135 Degrees Celsius
Overall Length Imperial
200.0
Width
0.6 yd
0.55 m
Height
0.22 yd
0.2 m
Length
0.61 yd
0.56 m
Volume
3758.77 cubic inch
61595.2 cm3
Weight
11.3 lb
5.13 kg
Other Details
Elongation
400 %
Flame Retardant
Yes
Mil Spec
AMS-DTL-23053/5, Class 1
Minimum Expanded Tubing I. D.
1 in
Non-Corrosive
Yes
Shrink Ratio
2:1
Solution For
Wireless Network: Infrastructure Accessories
UL File Number
E-39100
Units Per Case
3.0
Tensile Strength Imperial
2400 Pound-Force Per Square Inch
Material and Composition
Material
Flexible Polyolefin
Shelf Life
3600
Color and Appearance
Product Color
Black
Certifications and Standards
Agency Approvals
CSA, UL Recognized
Flammability Rating
UL 224 All Tubing Flame Test
UL Approval
Yes
