3M Heat Shrink Tubing Assortment Pack FP-301-3/8-Assort: 6 in lengthpieces
3M Heat Shrink Tubing Assortment Pack FP-301-3/8-Assort: 6 in lengthpieces
3M Heat Shrink Tubing Assortment Pack FP-301-3/8-Assort: 6 in lengthpieces
3M Heat Shrink Tubing Assortment Pack FP-301-3/8-Assort: 6 in lengthpieces
3M Heat Shrink Tubing Assortment Pack FP-301-3/8-Assort: 6 in lengthpieces
3M Heat Shrink Tubing Assortment Pack FP-301-3/8-Assort: 6 in lengthpieces
3M Heat Shrink Tubing Assortment Pack FP-301-3/8-Assort: 6 in lengthpieces
3M Heat Shrink Tubing Assortment Pack FP-301-3/8-Assort: 6 in lengthpieces

3M Heat Shrink Tubing Assortment Pack FP-301-3/8-Assort: 6 in lengthpieces

Regular price
/

$17.70 USD & FREE Shipping.

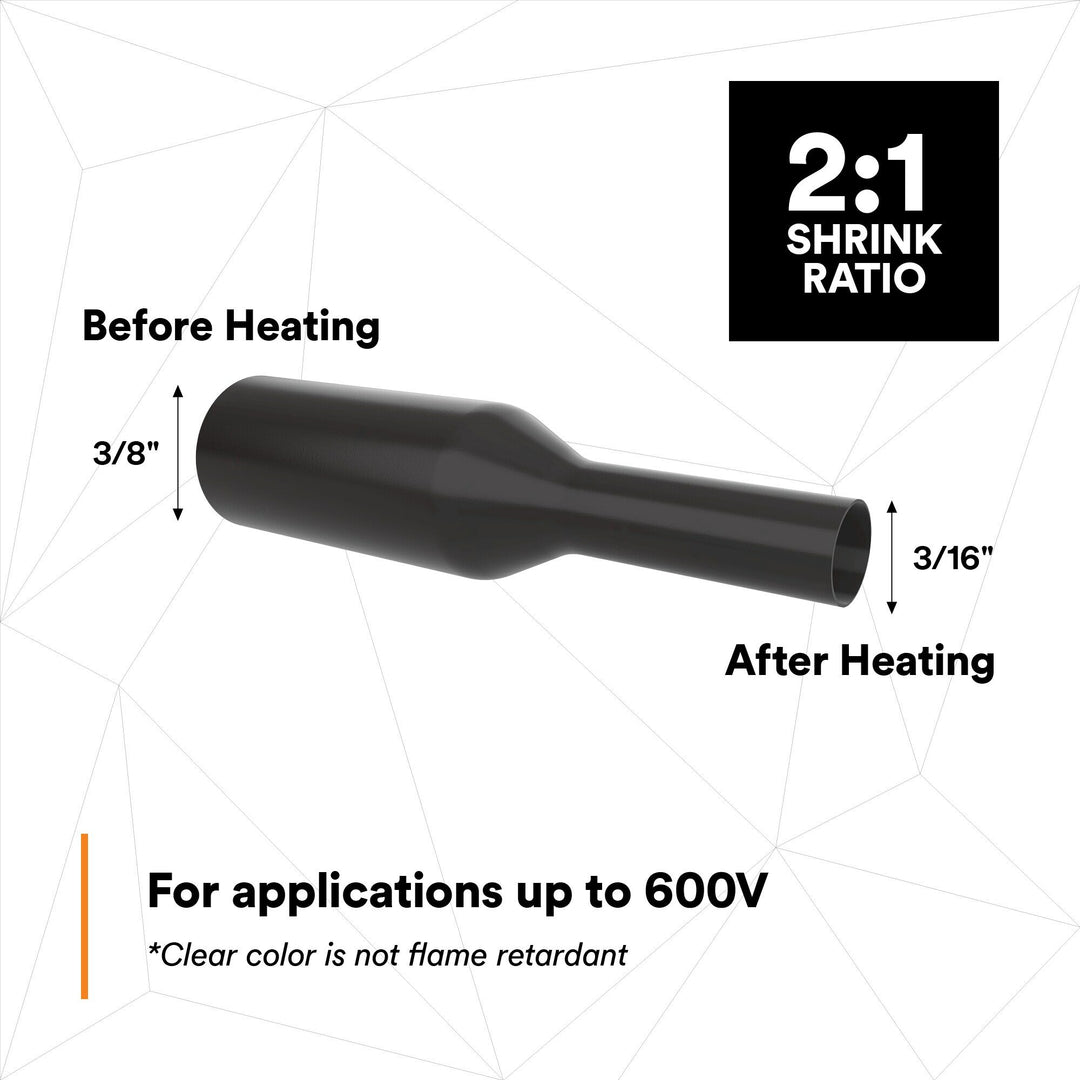

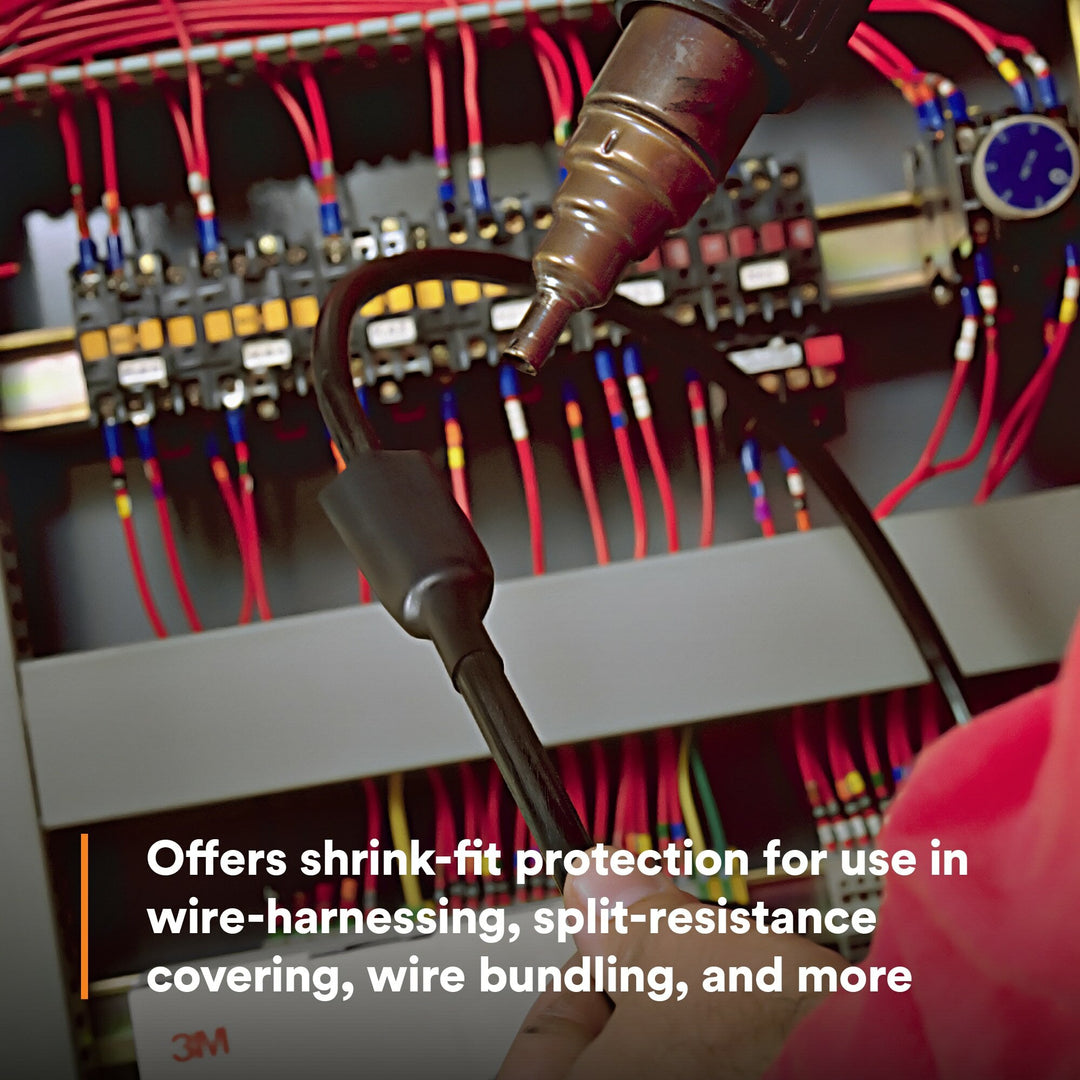

  • A VARIETY OF APPLICATIONS: Offers a 2:1 shrink-fit ratio and serves as protection in wire-harnessing, split-resistance covering, wire marking, wire bundling, and component packaging

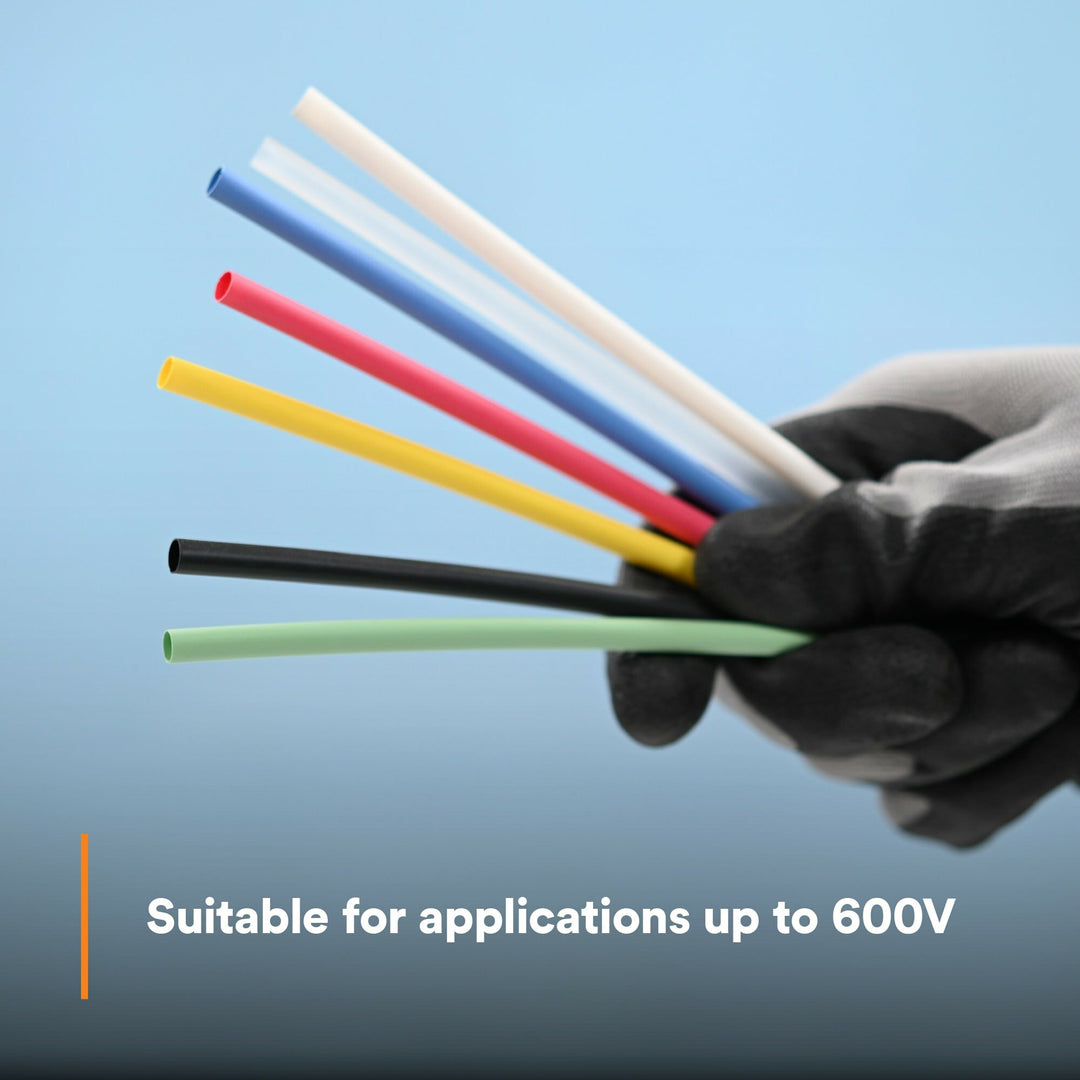

  • FLAME-RETARDANT TUBING: For applications up to 600V (clear is not flame retardant)
  • HIGH-STRENGTH PROTECTION: Balances electrical, physical, and chemical properties for various industrial and military applications
  • FOR DEMANDING CONDITIONS: Performs at an operating temperature up to 275 °F (135 °C)
  • KEY SPECIFICATIONS: UL Listed, File E-39100, SAE AS23053/5, Class 1 (all colors), Class 2 (clear), CSA Certified, and RoHS 2011/65/EU Compliant
Overview

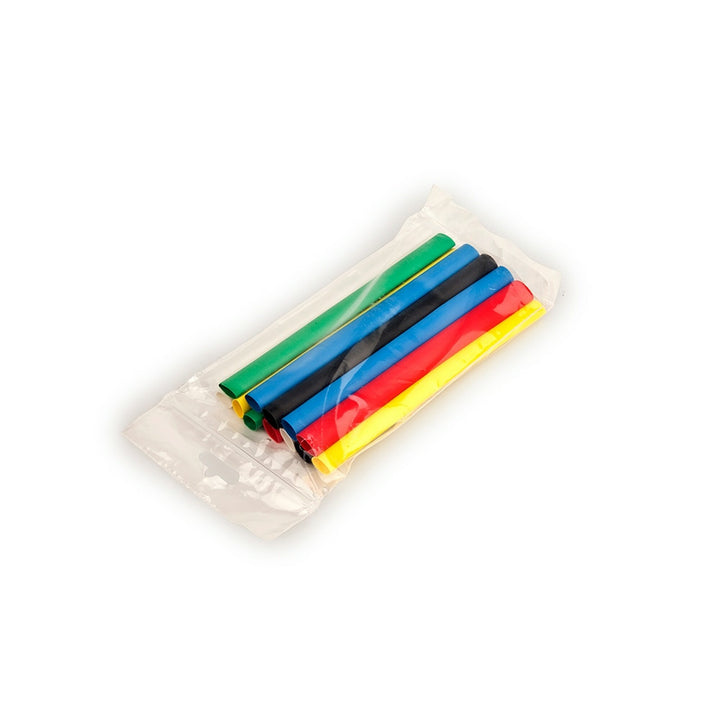

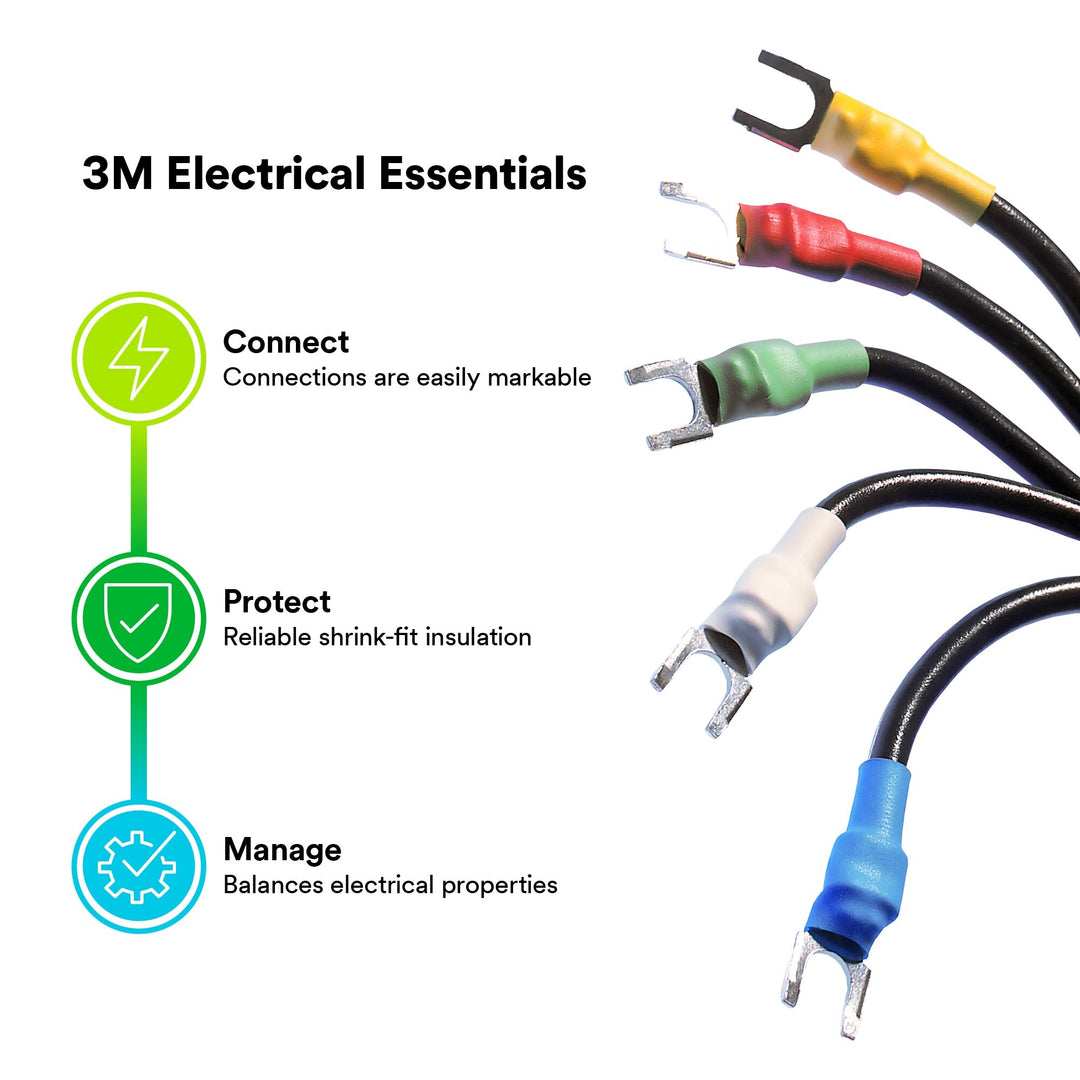

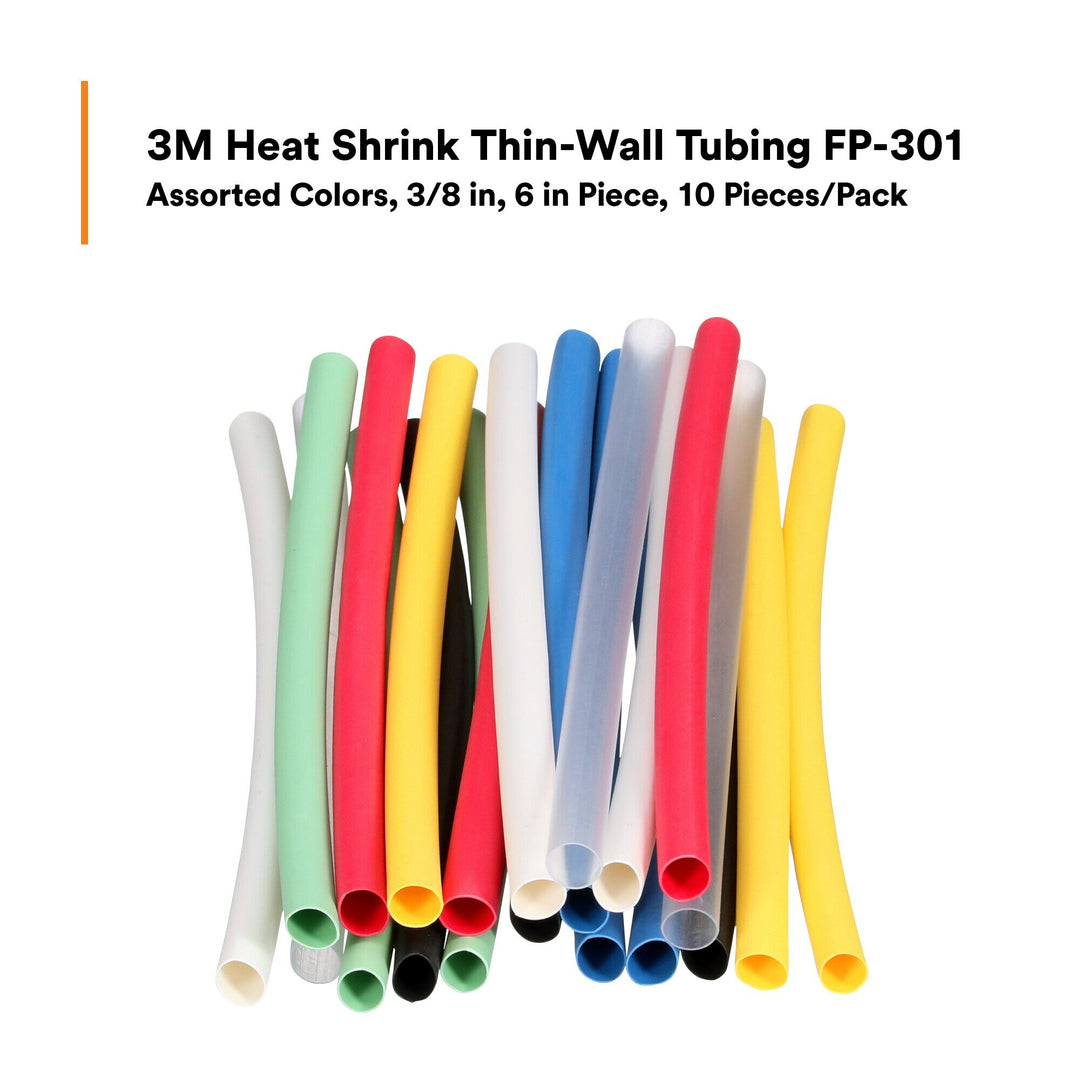

Insulate your wires with confidence when you use the versatile 3M Heat Shrink Tubing Kit FP-301. The flexible polyolefin tubing in this kit is flame-retardant making it a great insulator for 600V-rated industrial and military applications. This kit includes an assortment of thin-wall tubing with a 2:1 shrink ratio to balance electrical, physical and chemical properties.3Mâ„¢ Heat Shrink Tubing FP-301 is color coded for quick and easy identification of the wire. This split resistant, flame retardant tubing is used as shrink fit, electrical insulation over cable splices or terminations. The high expansion ratio tubing is mechanically tough, easily markable and resists cold flow. It is ideal for lightweight wire harness covering, fire resistant covering, wire marking, wire bundling and component packaging. It withstands temperatures of 67 to 275 degrees F ( 55 to 135 degrees C). UL Listed, SAE AS23053/5, Class 1, CSA Certified and RoHS 2011/65/EU Compliant.

3M Heat Shrink Tubing Assortment Pack FP-301-3/8-Assort: 6 in lengthpieces

Specifications
General Information
Brand
3Mâ„¢
Heat Shrink Type
Heat Shrink Tubing Kits
Tubing Type
Single Wall (Thin)
Country Of Origin
United States
Sold As
Pack
Lead Time
2 days
California Residents
Dimensions and Specifications
Expanded Inner Diameter
0.375 in
Expanded Inner Diameter (Metric)
9.5 mm
Inner Diameter After Shrink (Imperial)
0.187 in
Inner Diameter After Shrink (Metric)
4.75 mm
Inner Diameter Before Shrink (Imperial)
0.375 in
Inner Diameter Before Shrink (Metric)
9.53 mm
Maximum Operating Temperature (Celsius)
135 Degree Celsius
Maximum Operating Temperature (Fahrenheit)
275 Degree Fahrenheit
Minimum Shrink Temperature (Celsius)
100 Degree Celsius
Operating Temperature (Celsius)
-55 to 135 Degrees Celsius
Operating Temperature Range (Celsius)
-55 °C to +135 °C
Operating Temperature Range (Fahrenheit)
-67 °F to 275 °F
Overall Length (Imperial)
6 in
Overall Length (Metric)
152 mm
Recovered Inner Diameter
0.19 in
Recovered Inner Diameter (Metric)
4.75 mm
Tensile Strength (Imperial)
2400 Pound-Force Per Square Inch
Operating Temperature Celsius
-55 to 135 Degrees Celsius
Overall Length Imperial
6.0
Volume
32.05 cubic inch
525.15 cm3
Weight
1.53 oz
43.27 g
Other Details
Applicable SAE-AMS-DTL-23053 Specifications
23053/5 class 1
Assortment Kits
Yes
Dielectric Strength
900 V/mil
Elongation
400 %
Flame Retardant
Yes (except clear)
Mil Spec
AMS-DTL-23053/5, Class 1
Non-Corrosive
Yes
Shrink Ratio
2:1
Units Per Case
14.0
Tensile Strength Imperial
2400 Pound-Force Per Square Inch
Material and Composition
Material
Flexible Polyolefin
Product Form
6 in (15.24 cm) pieces
Shelf Life
3600
Certifications and Standards
Additional Flammability Rating
23053/5 class1
Agency Approvals
UL Recognized, CSA Certified, ABS, and AMS 3636 & 3637
Flammability Rating
UL 224 All Tubing Flame Test
UL Approval
Yes
