GMP 86070 J2 Cable Lasher

$8,999.99 USD & FREE Shipping.
/
Extended Handling May Be Required
  • Will lash any single or multiple aerial cables up to 3 in. (76mm) diameter across on any suspension strand from 1/4 in. (6mm) to 7/16 in. (11mm).

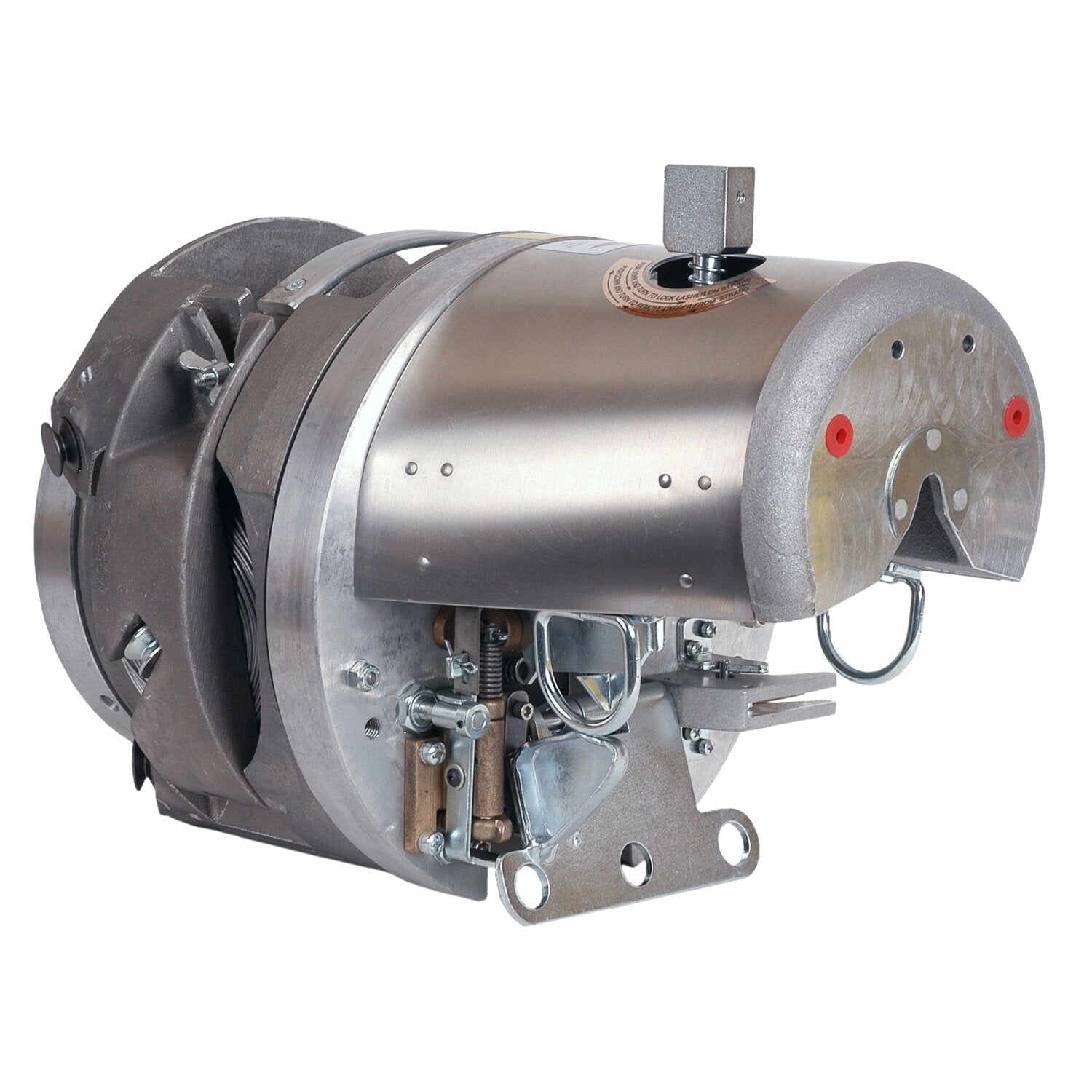

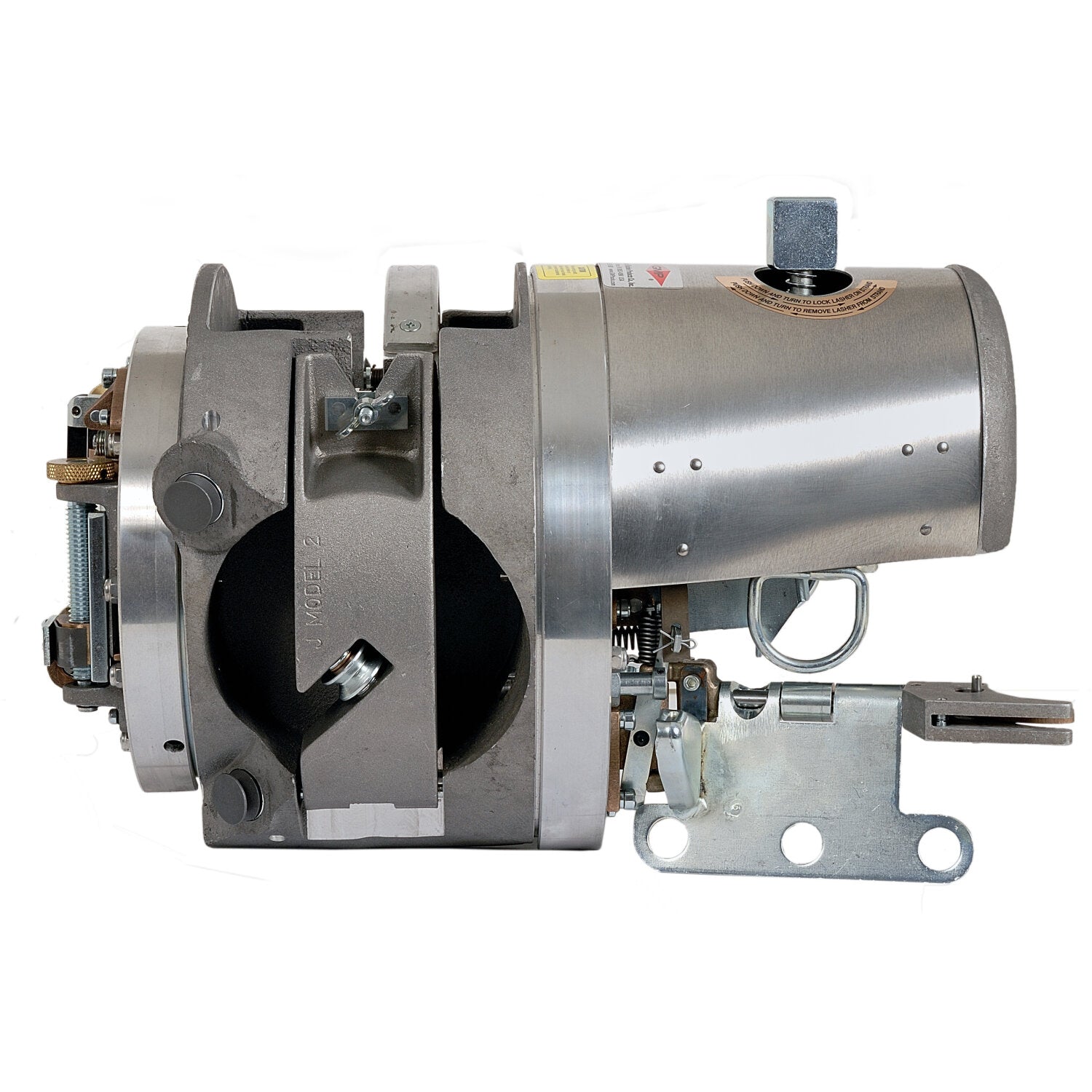

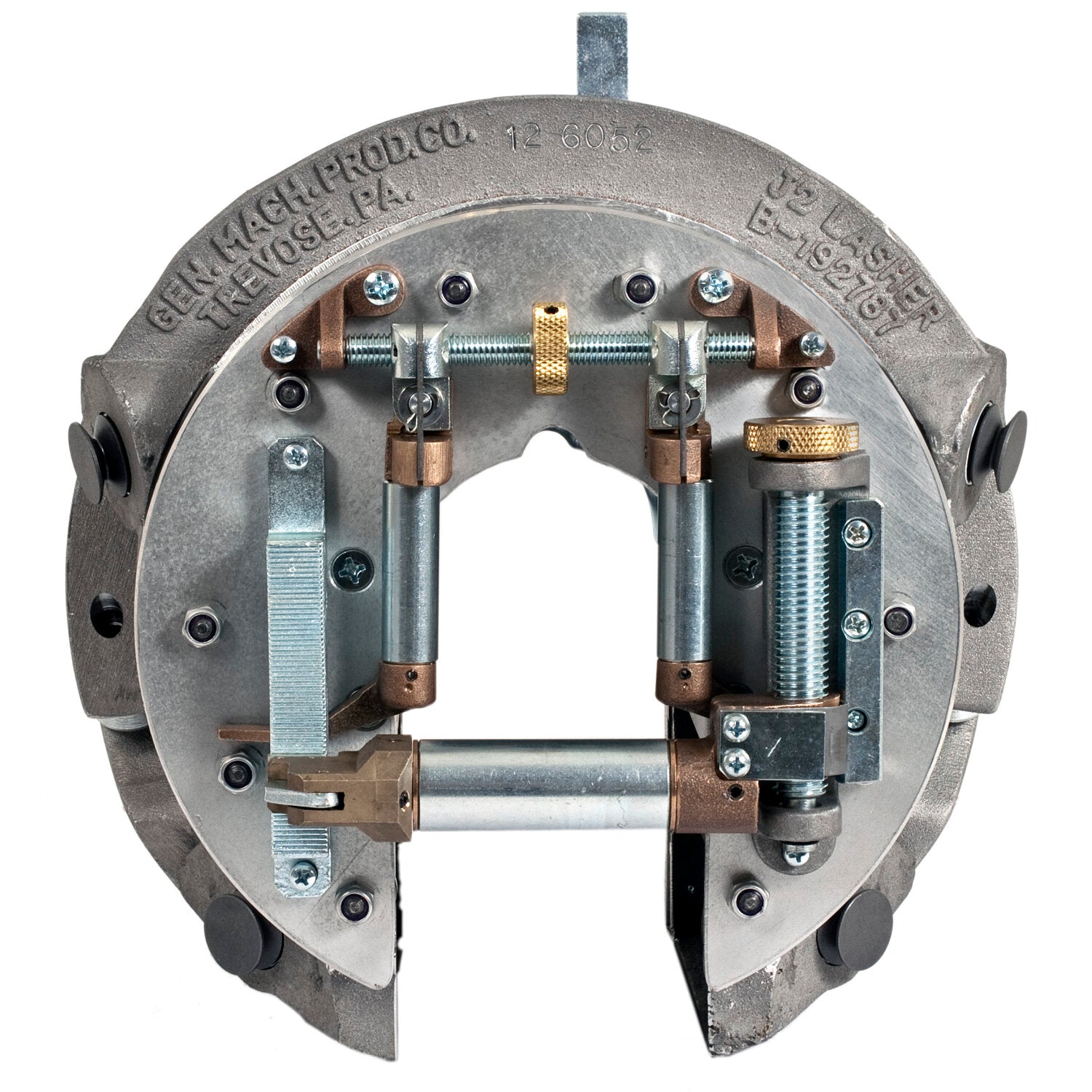

  • Consists of a rotating drum supported on a carriage that provides the mounting for a driving mechanism, cable Lifters, cable and strand rollers
  • Each of the two recessed magazines will hold a 1200 ft. coil of .045 in. (365m of 1.1mm wire) lashing wire. The lashing wire is fully recessed and covered by a gate.
  • Features a fast setup procedure, quick coil loading, and automatic drum lock for easy span transfers and smooth forward travel
  • J2 Lashers make overLashing easy. Just push down on the strand roller knob, rotate it a quarter turn and you can lash additional cables together on previously lashed cable
Overview

The model J2 Cable Lasher is used to lash a single aerial cable or numerous cables to a supporting strand or to an existing lashed cable with stainless steel lashing wire.

Brand img

GMP 86070 J2 Cable Lasher

You may also like
Specifications
General Information
Brand
General Machine Products
Country of Origin
United States
California Residents
Proposition 65 Warning
Return Policy
NCNR - Non-Cancellable / Non-Returnable
Part Number
86070
Product Type
Cable Lasher
Physical Characteristics
Length
23"
Width
15"
Height
15"
Weight
28.58 kg
63.00 lb
Details
Features
Will lash any single or multiple aerial cables up to 3 in. (76mm) diameter across on any suspension strand from 1/4 in. (6mm) to 7/16 in. (11mm).
Consists of a rotating drum supported on a carriage that provides the mounting for a driving mechanism, cable Lifters, cable and strand rollers
Each of the two recessed magazines will hold a 1200 ft. coil of .045 in. (365m of 1.1mm wire) lashing wire. The lashing wire is fully recessed and covered by a gate.
Features a fast setup procedure, quick coil loading, and automatic drum lock for easy span transfers and smooth forward travel
J2 Lashers make overLashing easy. Just push down on the strand roller knob, rotate it a quarter turn and you can lash additional cables together on previously lashed cable
Positive internal gear to gear mechanism has no chains or belts to stretch, slip or break
Constructed with heat-treated, plated Steel, stainless Steel, brass and aluminum components. Contains sealed and oiless bearings to minimize maintenance and assure durability.

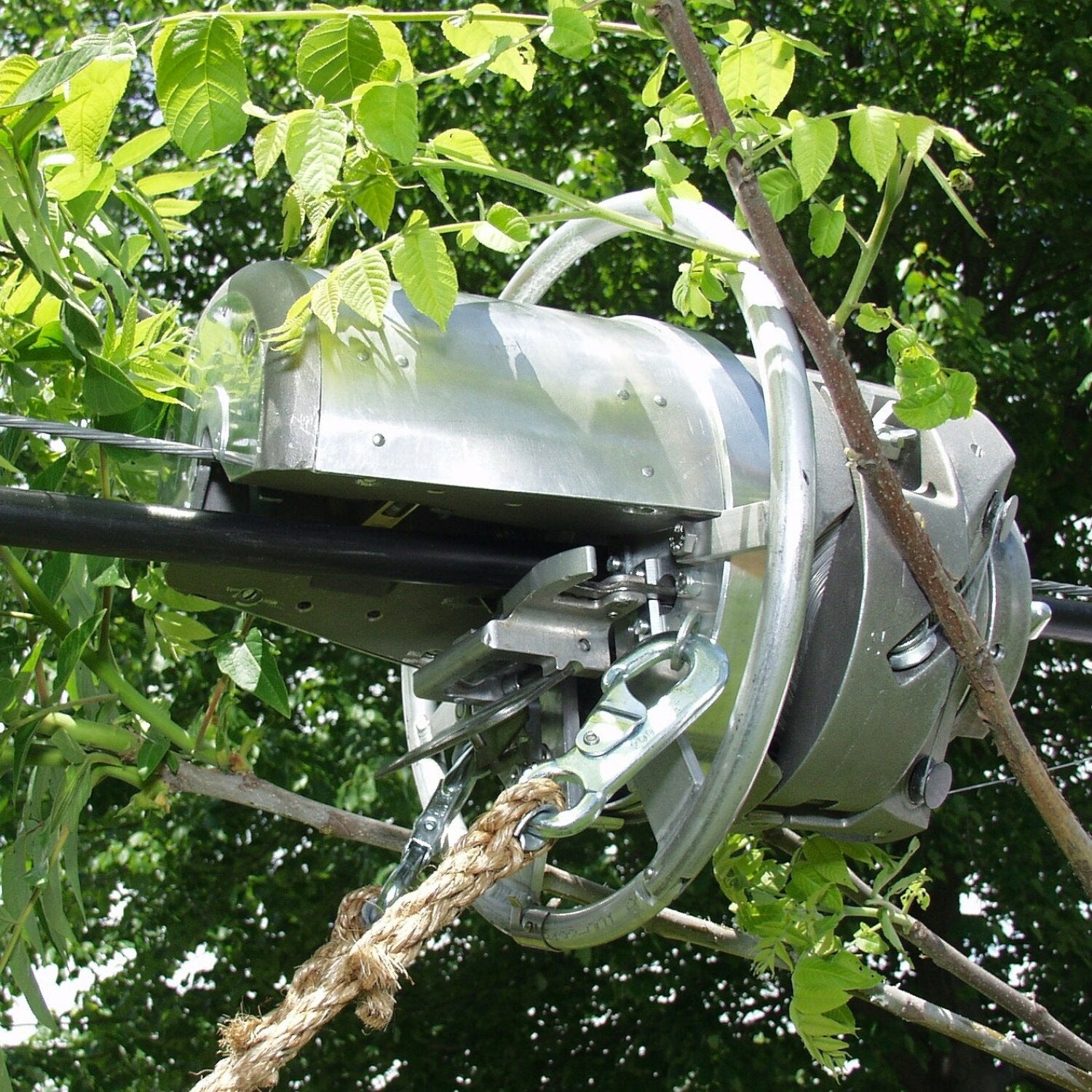

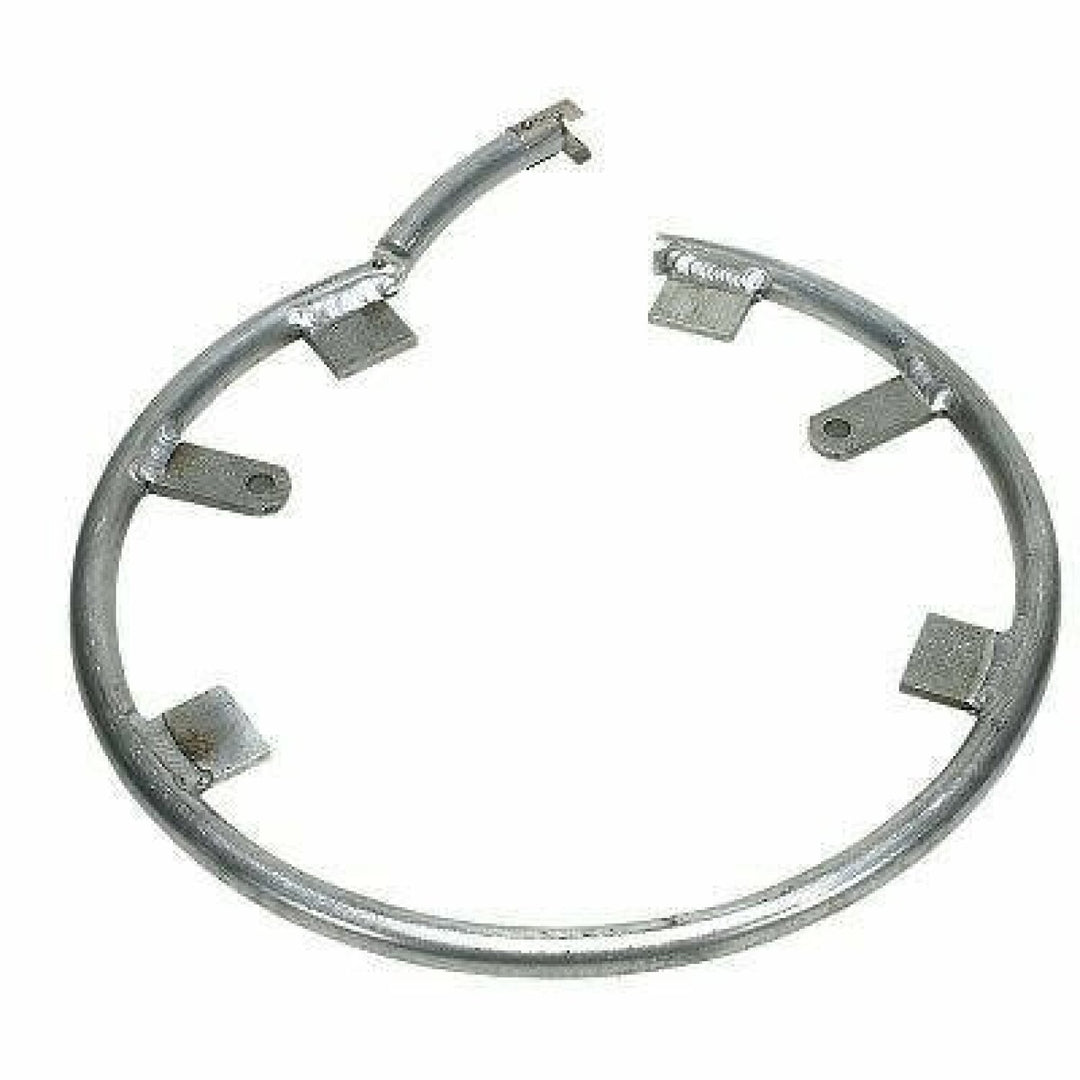

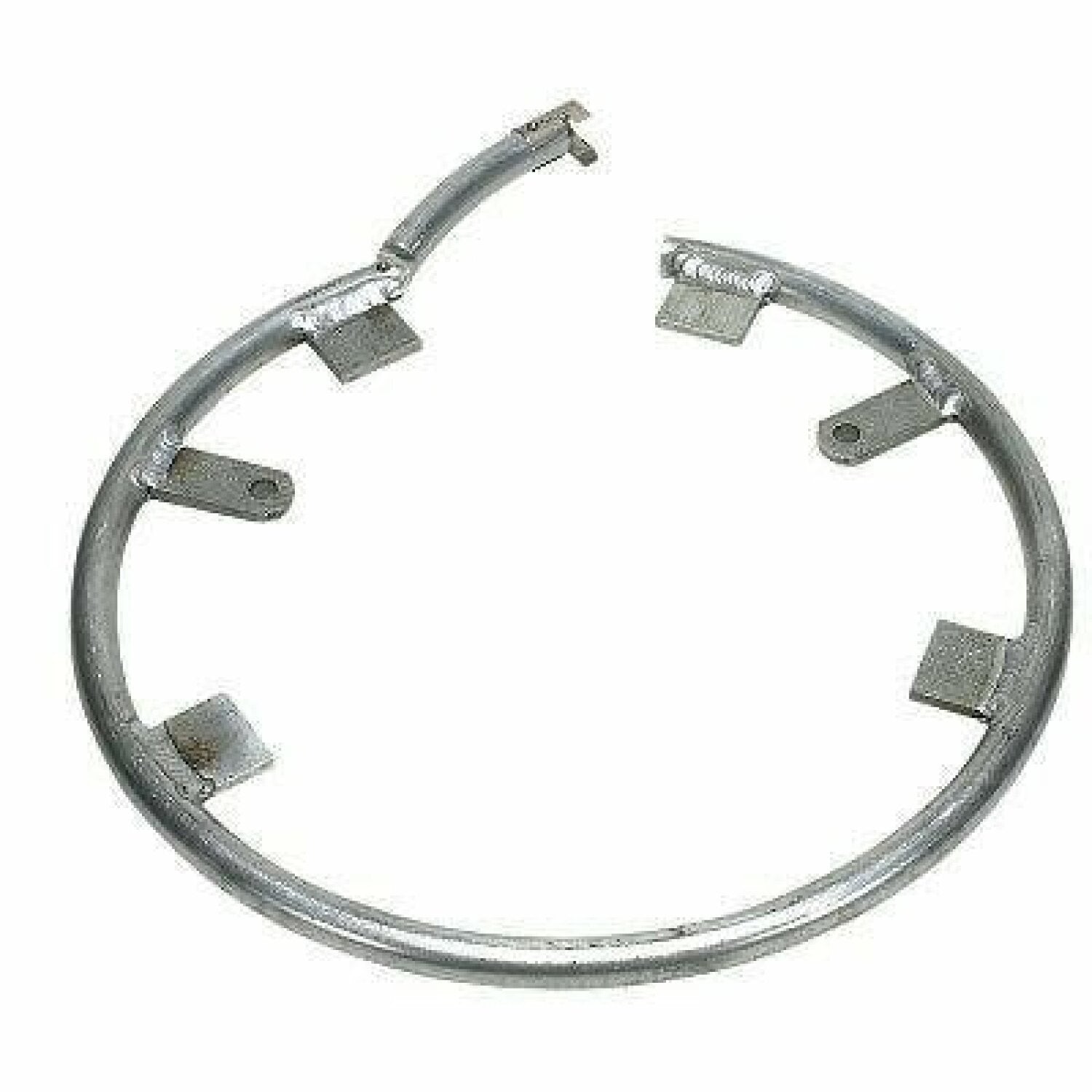

Pre-drilled and tapped at the factory for Mounting of the Lasher Guard or “halo”. For use when Lashing in overgrown areas.
The J2 and every GMP lasher is fully serviceable to “good-as-new” specifications at our factory and at factory-trained service locations around the globe.

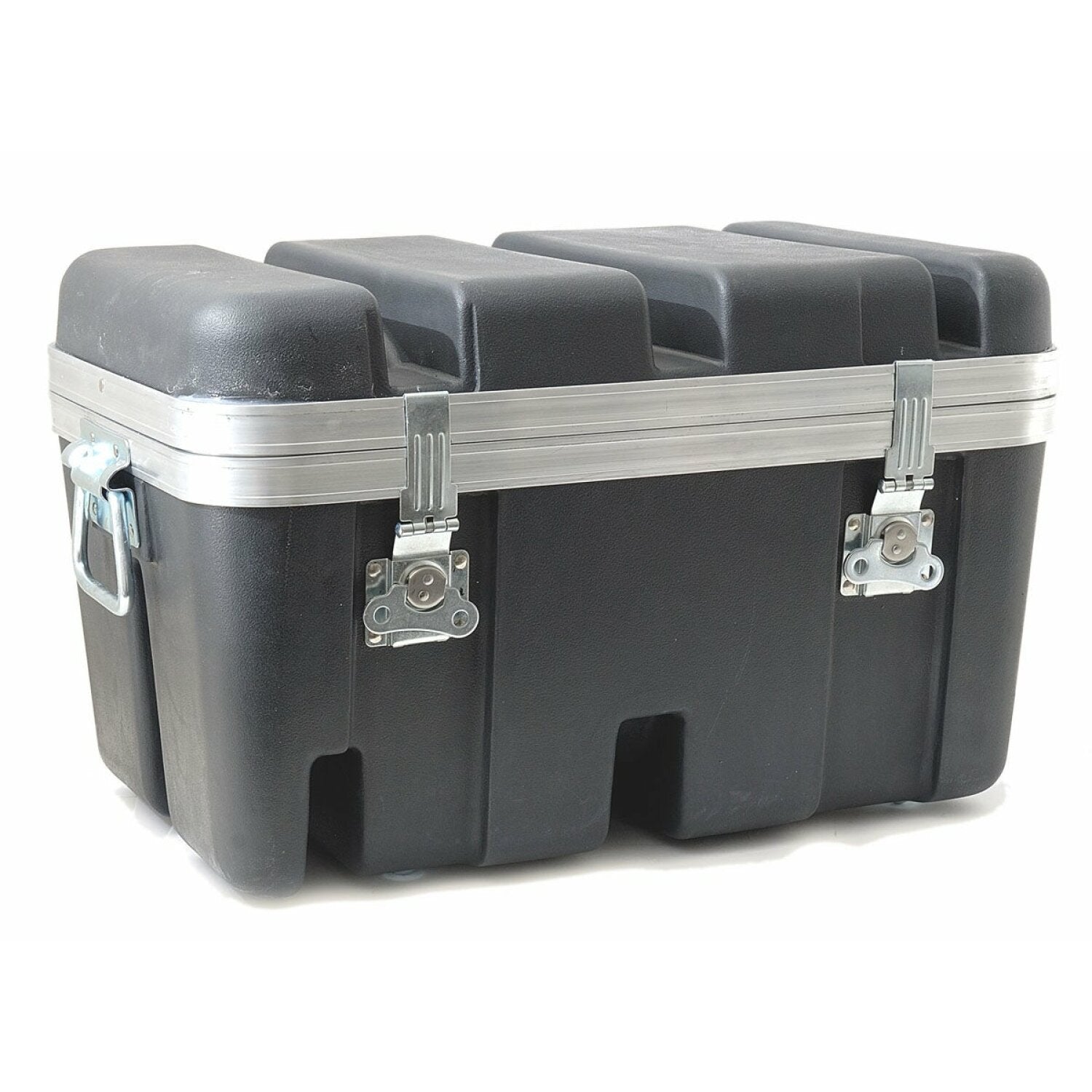

The lasher is furnished with a rugged lightweight storage chest with corrosion resistant hardware, recessed latches and a moisture-proof, tongue-in-groove design for maximum protection when not in use

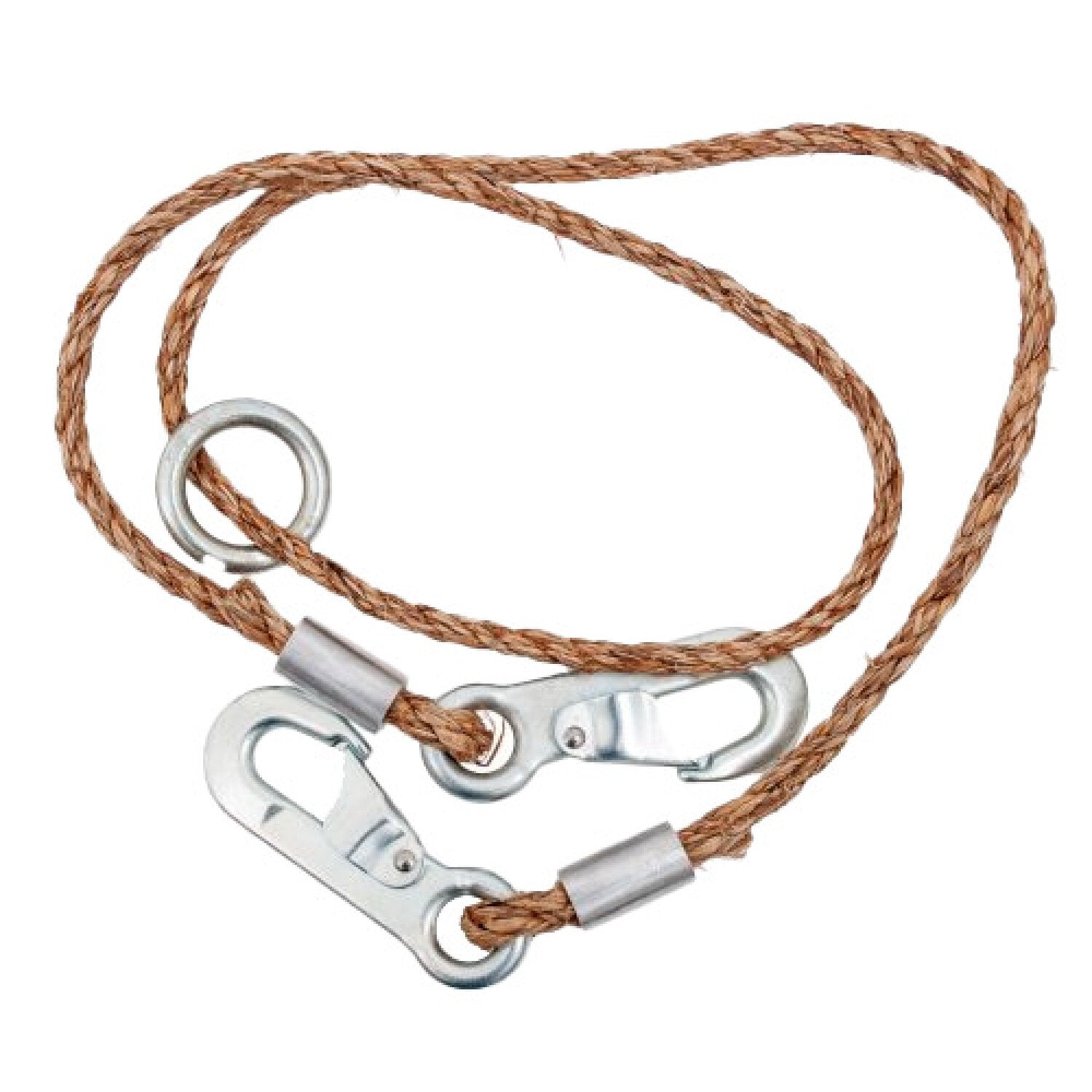

Supplied with a 6 ft. bridle rope assembly and snap hooks, and an information and operation manual
Video

Basic Field Lubrication of your GMP J2 Cable Lasher


How to properly load wire into your GMP J2 Cable Lasher


About Manufacturer
General Machine Products

Located in Suburban Philadelphia, Pennsylvania, General Machine Products (GMP) is a family-owned manufacturer that produces a diverse range of products for the telecommunications, power utility, cable television industries, and their associated contractors. GMP's offerings cover various applications, including the installation of copper conductor, coaxial, and fiber cable in both aerial and underground settings. Renowned within the industry, GMP's portfolio encompasses essential tools such as aerial cable lashing machines, fiber optic cable pullers, blowing machines, cable reels and rollers, cable cutters, as well as unique modular plug pressing tools and specially-designed equipment for the data and telecommunications market. With more than 600 distinct products, GMP remains at the forefront of the industry.
