Greenlee DVI-100T/K01 Digital Voltage Indicator w/ Test Point 100kV, OH/UG Kit 1

$1,314.38 USD & FREE Shipping.
/
%3Cp%3EEarn%20[points_amount]%20when%20you%20buy%20this%20item.%3C/p%3E
Extended Handling May Be Required
  • Measures voltage up to 99kv line-to-ground
  • Voltage readout distinguishes between nominal and induced voltages
  • Audible indication when voltage is detected
  • Test Point mode
  • Auto-shutoff and low battery indication features
Overview

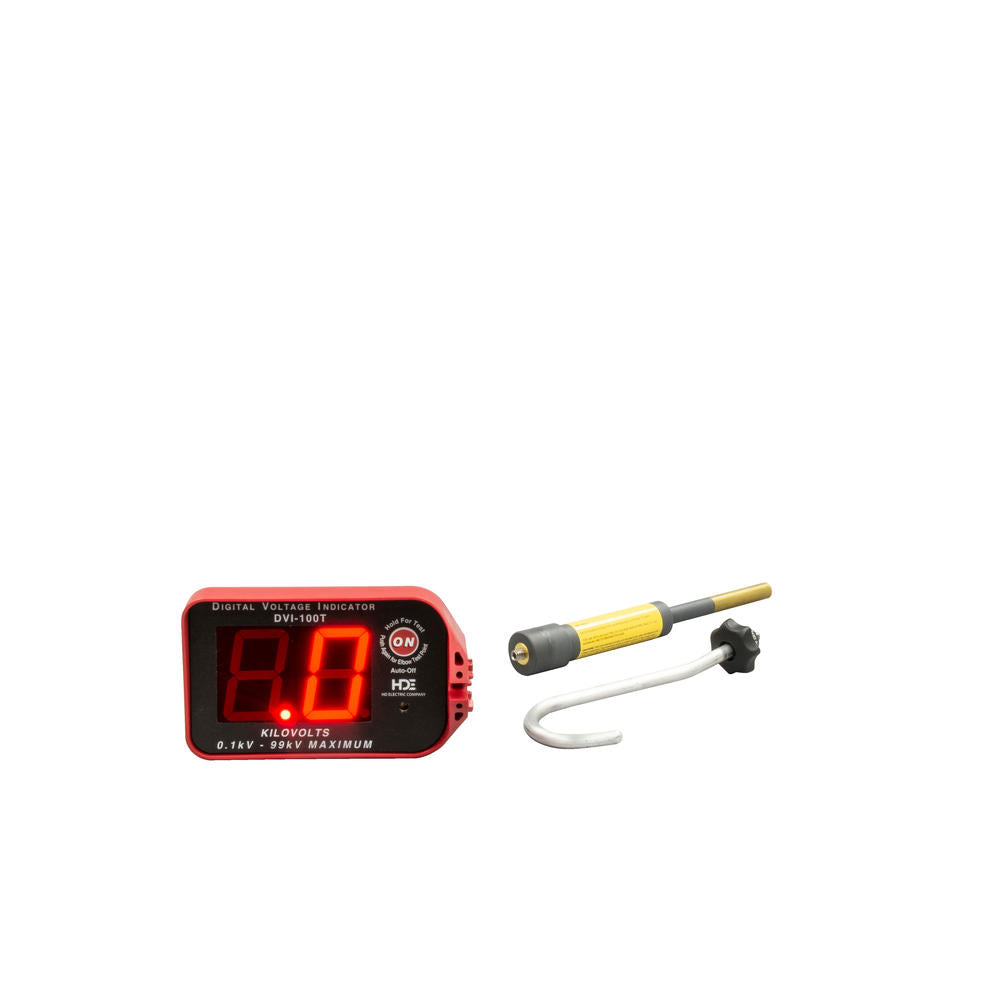

The Digital Voltage Indicator DVI-100T is a direct contact digital voltage indicators for overhead and underground power distribution systems up to 500kV line-to-ground (870kV line-to-line). The display is auto-ranging and indicates from 0.1kV (100 volts) to 9.9kV and from 10kV to 99kV for the DVI-100. An audible alarm beeps whenever the indicated voltage is 0.1kV or higher. The DVI-100T indicates voltage by directly contacting conductors on overhead and underground systems. The DVI-100T with Test Point mode also indicate voltage on elbow test points.
Brand img

Greenlee DVI-100T/K01 Digital Voltage Indicator w/ Test Point 100kV, OH/UG Kit 1

You may also like
Specifications
General Information
Brand
Greenlee
Part Number
DVI-100T/K01
Product Type
Digital Volt Indicator
What's Included

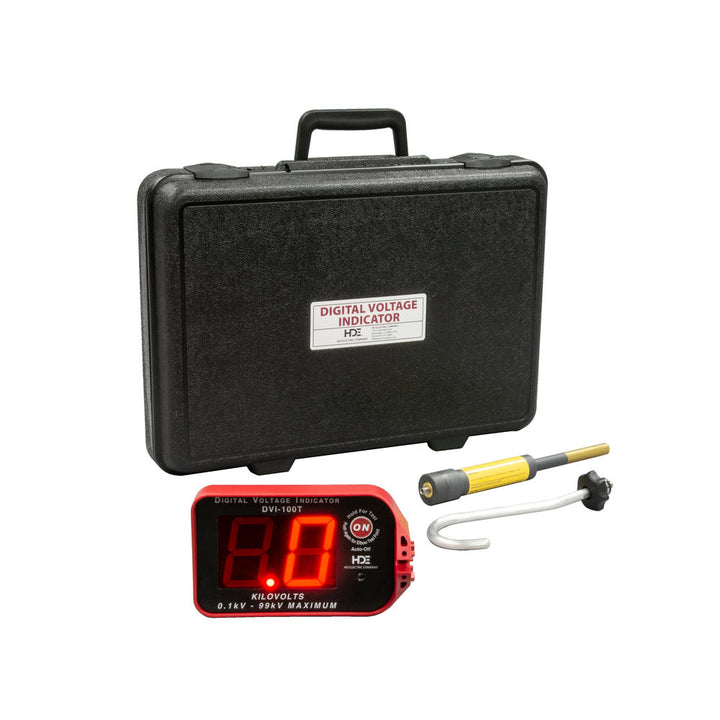

DVI-100T, HP-DVI-2 2" Overhead Hook Probe, IEP-DVI-5 underground bushing probe, CS-DVI plastic case
Packaging
Retail
Country of Origin
United States
UPC
783310054917
California Residents
Proposition 65 Warning
Physical Characteristics
Length
4.5" (11 cm)
Width
7" (18 cm)
Height
4.25" (11 cm)
Weight
0.91 kg
2.00 lb
Details
Features
Measures voltage up to 99kv line-to-ground
Voltage readout distinguishes between nominal and induced voltages
Audible indication when voltage is detected
Test Point mode
Auto-shutoff and low battery indication features
Versatile for overhead and underground applications

Accuracy: Laboratory calibrated to +/-3%. Typical overhead line in compact overhead three phase +/-10%. Other applications up to +/-25%
Voltage
100V - 99kV line-to-ground
Frequency
AC 60Hz (50Hz model available)
Display Type
LED display
Temperature Range
-20°F to +140°F (-29°C to +60°C)
