Greenlee DVI-500/K02 Digital Voltage Indicator 500kV, OH/UG Kit 2

$1,812.63 USD & FREE Shipping.
/
%3Cp%3EEarn%20[points_amount]%20when%20you%20buy%20this%20item.%3C/p%3E
Extended Handling May Be Required
  • Measures voltage up to 500kv line-to-ground
  • Voltage readout distinguishes between nominal and induced voltages
  • Audible indication when voltage is detected
  • Auto-shutoff and low battery indication features

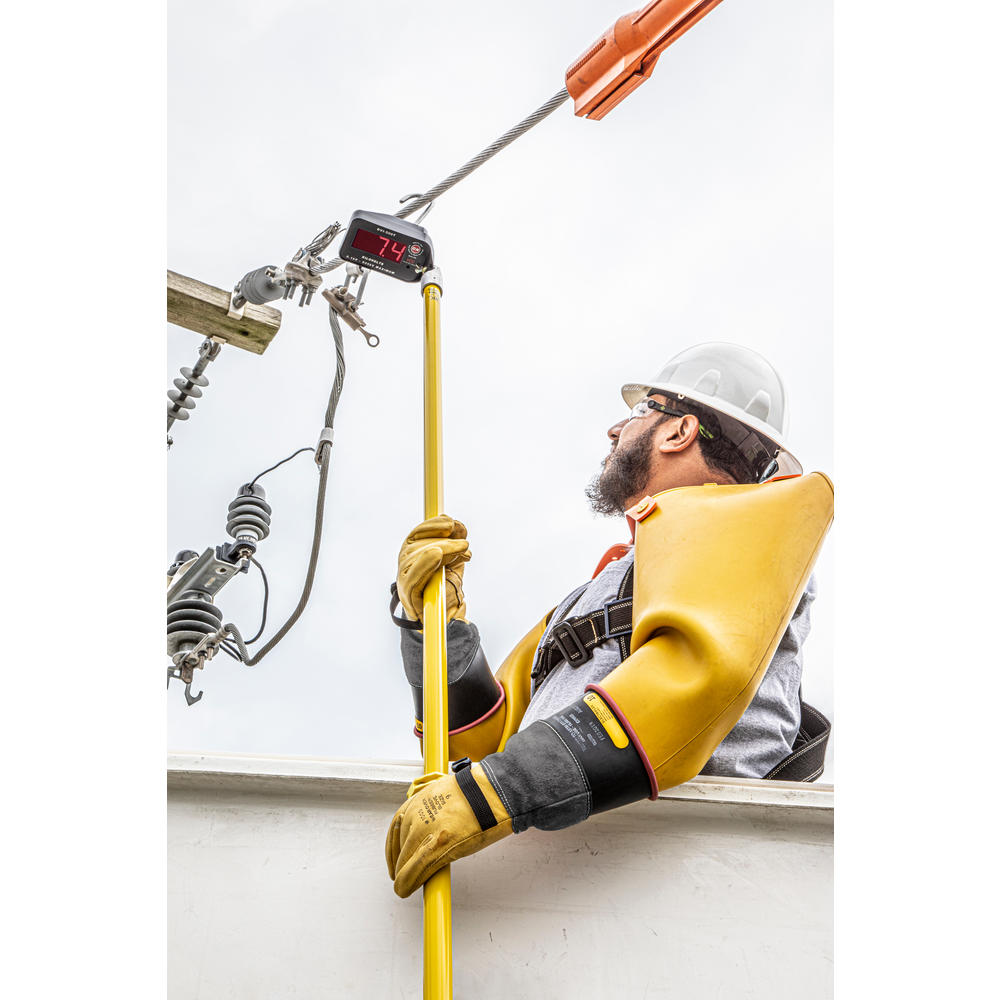

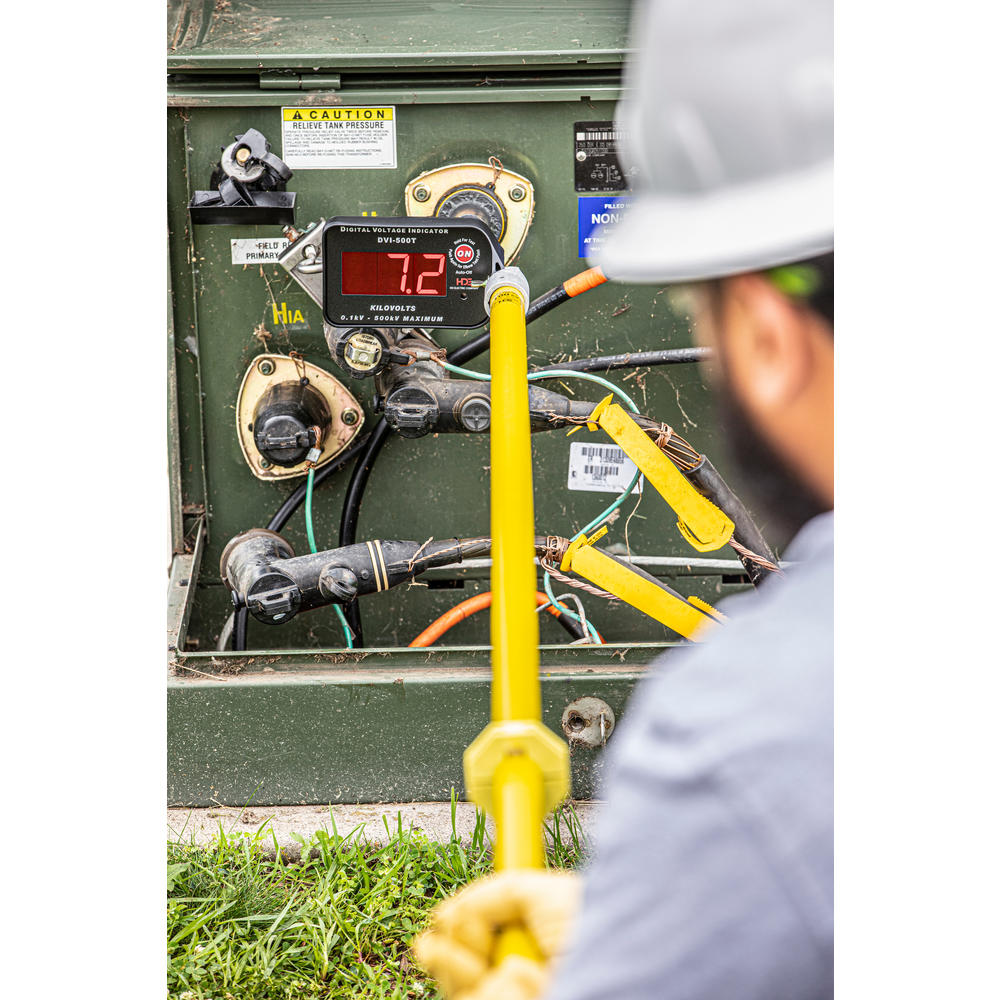

  • Versatile for overhead and underground applications
Overview
The DVI-500 is designed to be used on both transmission and distribution systems in overhead and underground applications. The DVI-500 indicates voltage from 0.1kV – 500kV and is auto-ranging with no range selector switch or settings required. Voltage is displayed on a large 1.45”LED display with a 3-digit readout. In addition, an audible alarm alerts the user to the presence of voltage above 100VAC. The DVI is auto shut-off and will turn off after 4 minutes of inactivity.
Brand img

Greenlee DVI-500/K02 Digital Voltage Indicator 500kV, OH/UG Kit 2

You may also like
Specifications
General Information
Brand
Greenlee
Part Number
DVI-500/K02
Product Type
Digital Voltage Indicator
What's Included

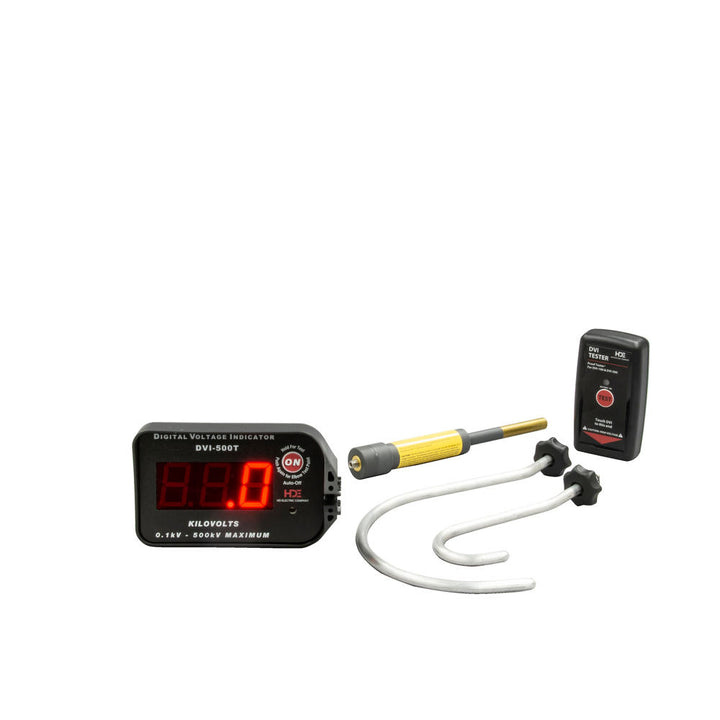

DVI-500, HP-DVI-2 2" Overhead Hook Probe, HP-DVI-6 6" Overhead Hook Probe, IEP-DVI-5 underground bushing probe, PT-DVI Proof Tester proof tester, CS-DVI plastic case
Packaging
Retail
Country of Origin
United States
UPC
783310054887
California Residents
Proposition 65 Warning
Physical Characteristics
Length
4.5" (11 cm)
Width
7" (18 cm)
Height
4.25" (11 cm)
Weight
3.64 kg
8.02 lb
Details
Features
Measures voltage up to 500kv line-to-ground
Voltage readout distinguishes between nominal and induced voltages
Audible indication when voltage is detected
Auto-shutoff and low battery indication features
Versatile for overhead and underground applications

Accuracy: Laboratory calibrated to +/-3%. Typical overhead line in compact overhead three phase +/-10%. Other applications up to +/-25%
Voltage
100V - 500kV line-to-ground
Frequency
AC 60Hz (50Hz model available)
Display Type
LED display
Temperature Range
-20°F to +140°F (-29°C to +60°C)
