Greenlee DVI-500T/K02 Digital Voltage Indicator w/ Test Point 500kV, OH/UG Kit 2
Greenlee DVI-500T/K02 Digital Voltage Indicator w/ Test Point 500kV, OH/UG Kit 2
Greenlee DVI-500T/K02 Digital Voltage Indicator w/ Test Point 500kV, OH/UG Kit 2

Greenlee DVI-500T/K02 Digital Voltage Indicator w/ Test Point 500kV, OH/UG Kit 2

Regular price
/

$1,736.21 USD & FREE Shipping.
  • Measures voltage up to 500kv line-to-ground
  • Voltage readout distinguishes between nominal and induced voltages
  • Audible indication when voltage is detected
  • Test Point mode
  • Auto-shutoff and low battery indication features
Overview

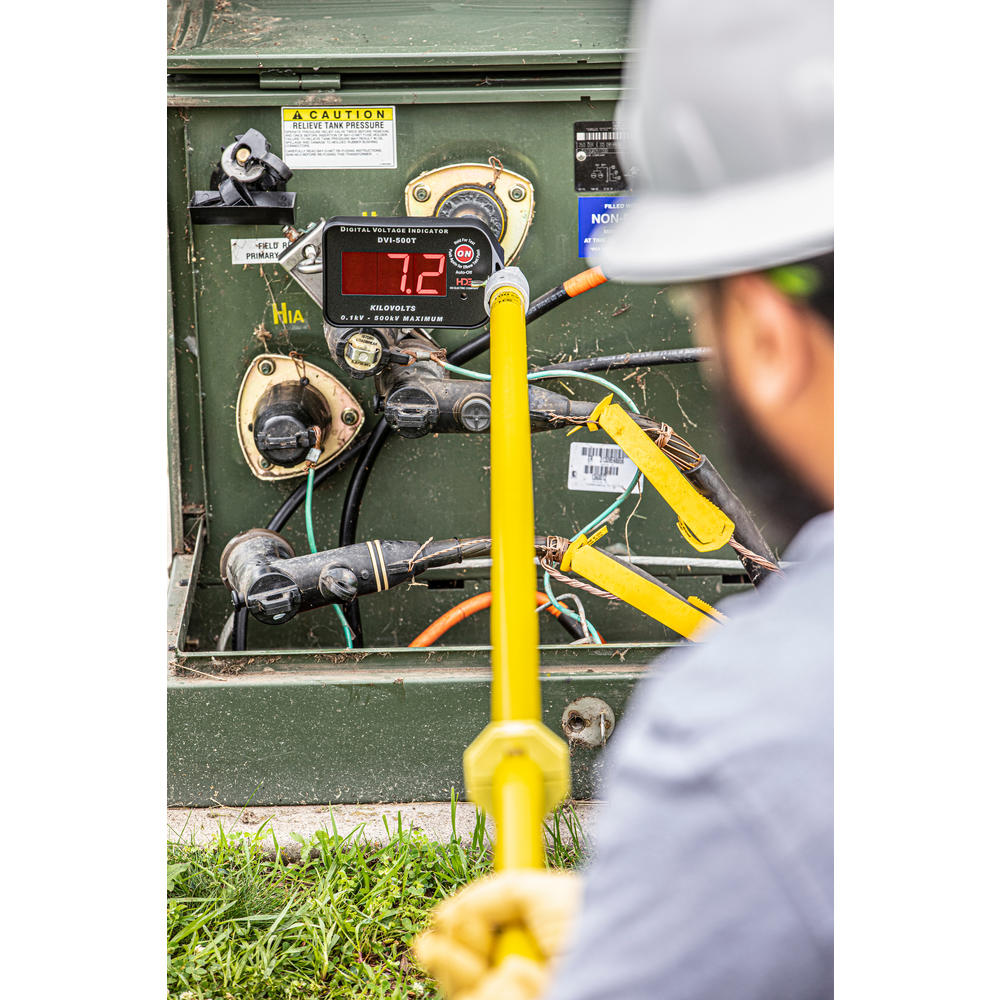

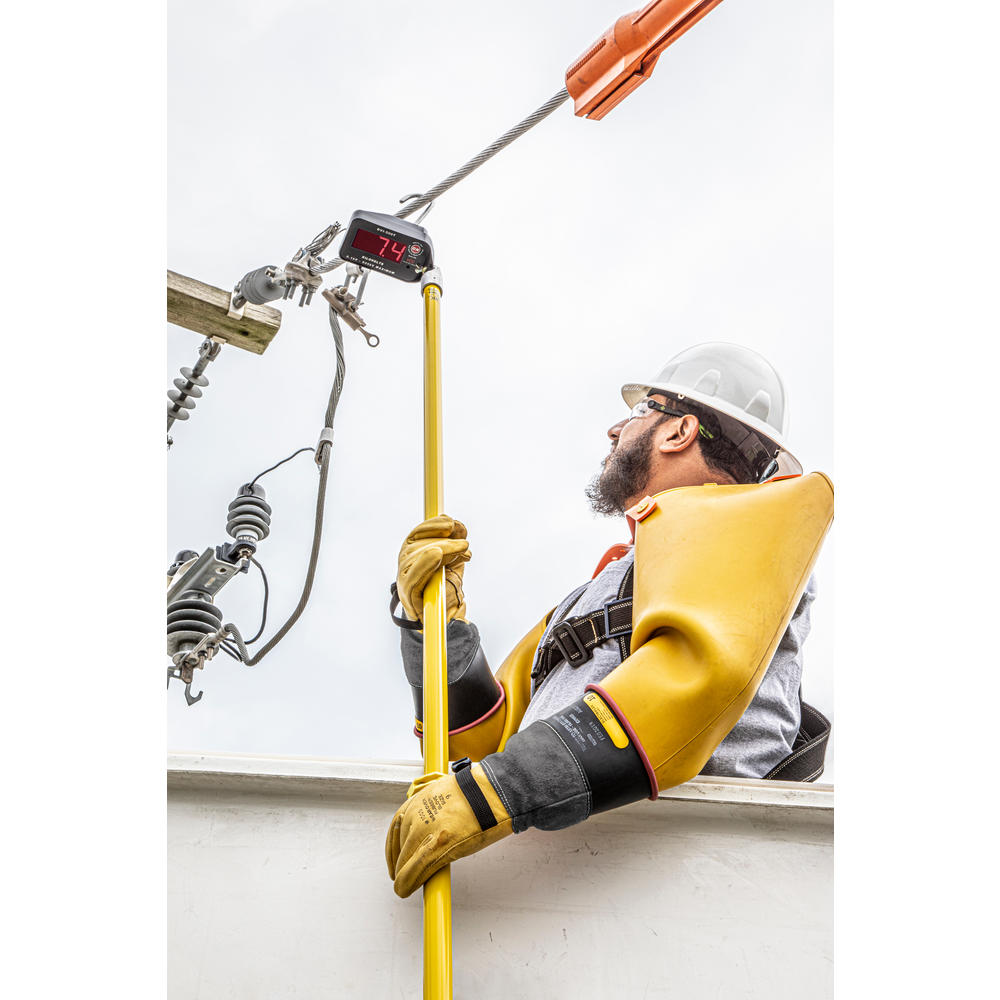

The DVI-500T is designed to be used on both transmission and distribution systems in overhead and underground applications. The DVI-500T indicates voltage from 0.1kV – 500kV and is auto-ranging with no range selector switch or settings required. Voltage is displayed on a large 1.45”LED display with a 3-digit readout. In addition, an audible alarm alerts the user to the presence of voltage above 100VAC. The DVI is auto shut-off and will turn off after 4 minutes of inactivity. The DVI-500T can be used in underground applications to measure elbow test points using the underground probe (IEP-DVI-5).

Greenlee DVI-500T/K02 Digital Voltage Indicator w/ Test Point 500kV, OH/UG Kit 2

Specifications
General Information
Brand
Greenlee
Part Number
DVI-500T/K02
Product Type
Digital Voltage Indicator
What's Included

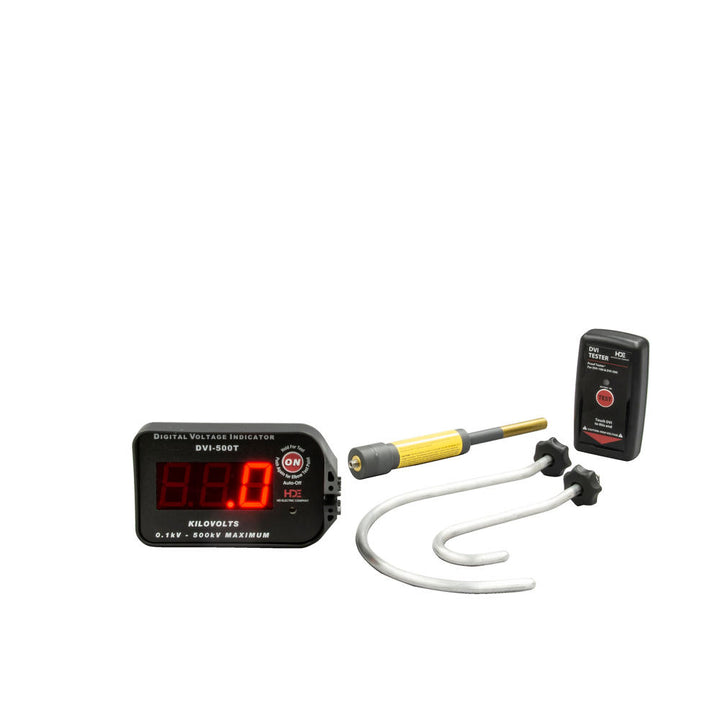

DVI-500, HP-DVI-2 2" Overhead Hook Probe, HP-DVI-6 6" Overhead Hook Probe, IEP-DVI-5 underground bushing probe, PT-DVI Proof Tester proof tester, CS-DVI plastic case
Packaging
Retail
Country of Origin
United States
UPC
783310054863
California Residents
Proposition 65 Warning
Physical Characteristics
Length
4.5" (11 cm)
Width
7" (18 cm)
Height
4.25" (11 cm)
Weight
1.77 kg
3.90 lb
Details
Features
Measures voltage up to 500kv line-to-ground
Voltage readout distinguishes between nominal and induced voltages
Audible indication when voltage is detected
Test Point mode
Auto-shutoff and low battery indication features
Versatile for overhead and underground applications

Accuracy: Laboratory calibrated to +/-3%. Typical overhead line in compact overhead three phase +/-10%. Other applications up to +/-25%
Voltage
100V - 500kV line-to-ground
Frequency
AC 60Hz (50Hz model available)
Display Type
LED display
Temperature Range
-20°F to +140°F (-29°C to +60°C)
Why would you use this tool for ?
About manufacturer
Greenlee

Founded in 1862, Greenlee Tools got its start as a toolmaker when two brothers needed to manufacture their invention (a special drill surrounded by chisels). With the success of this effort, the Greenlee brothers quickly took on making other woodworking tools and other machinery including a machine that laid track for the railroad. In the mid-80s and beyond, Greenlee added on other toolmakers and diversified the kinds of tools they make and now Greenlee manufactures tools used by tradesmen in all vocations from communications to hydraulic pumps, plumbing, telecom, test equipment and many more. Greenlee is widely recognized as an industry leader for quality hand and industrial tools.
