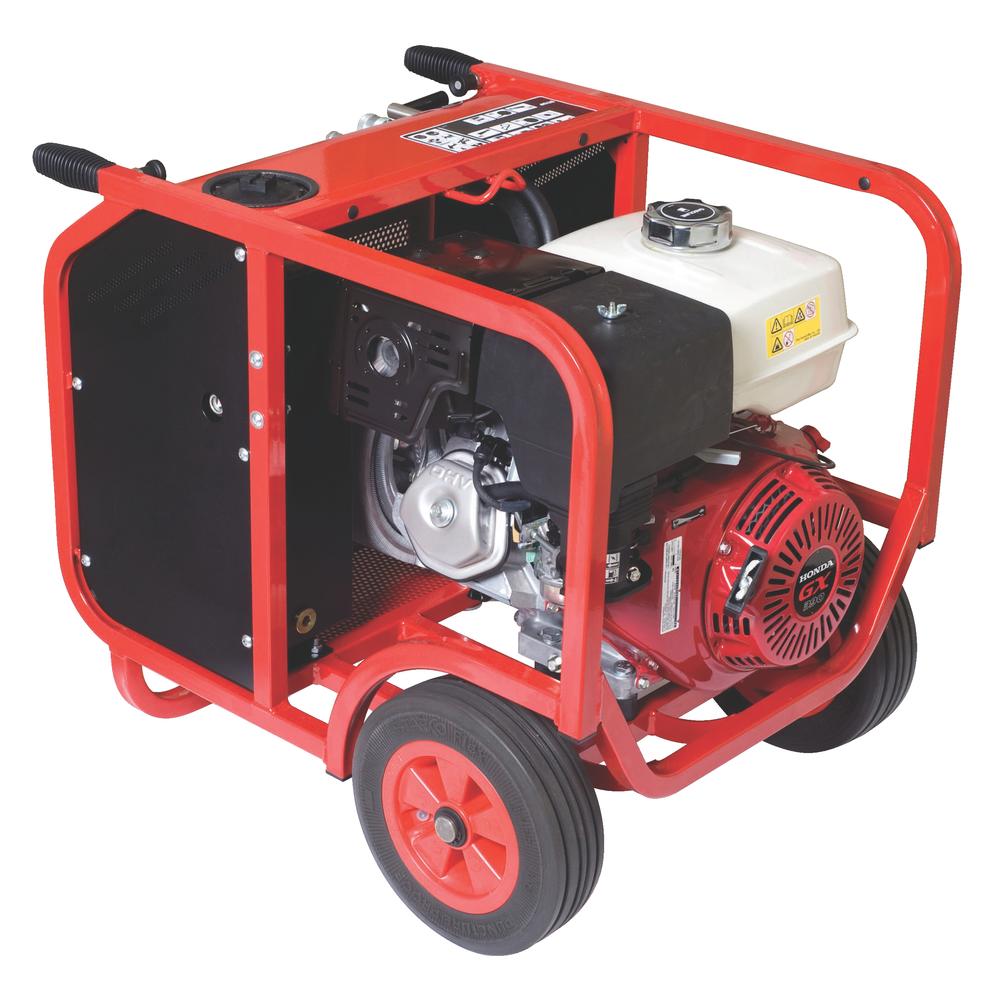

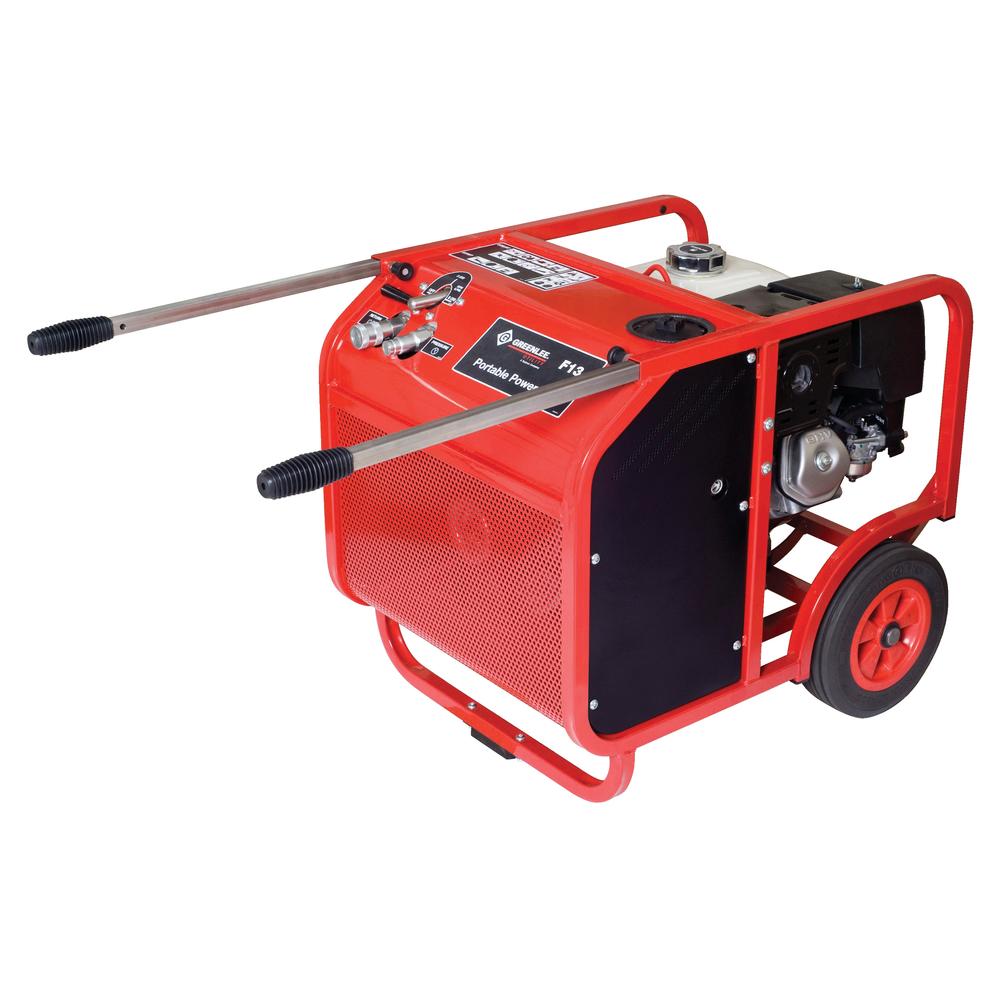

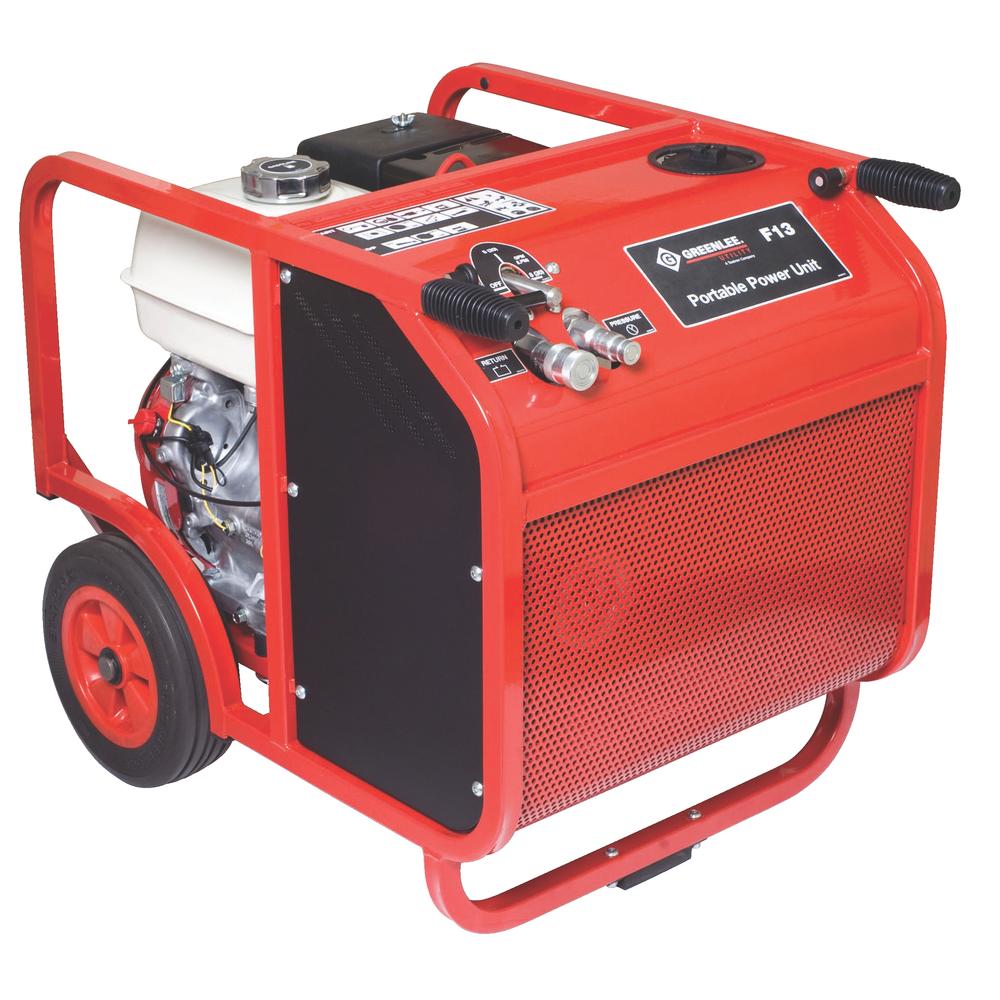

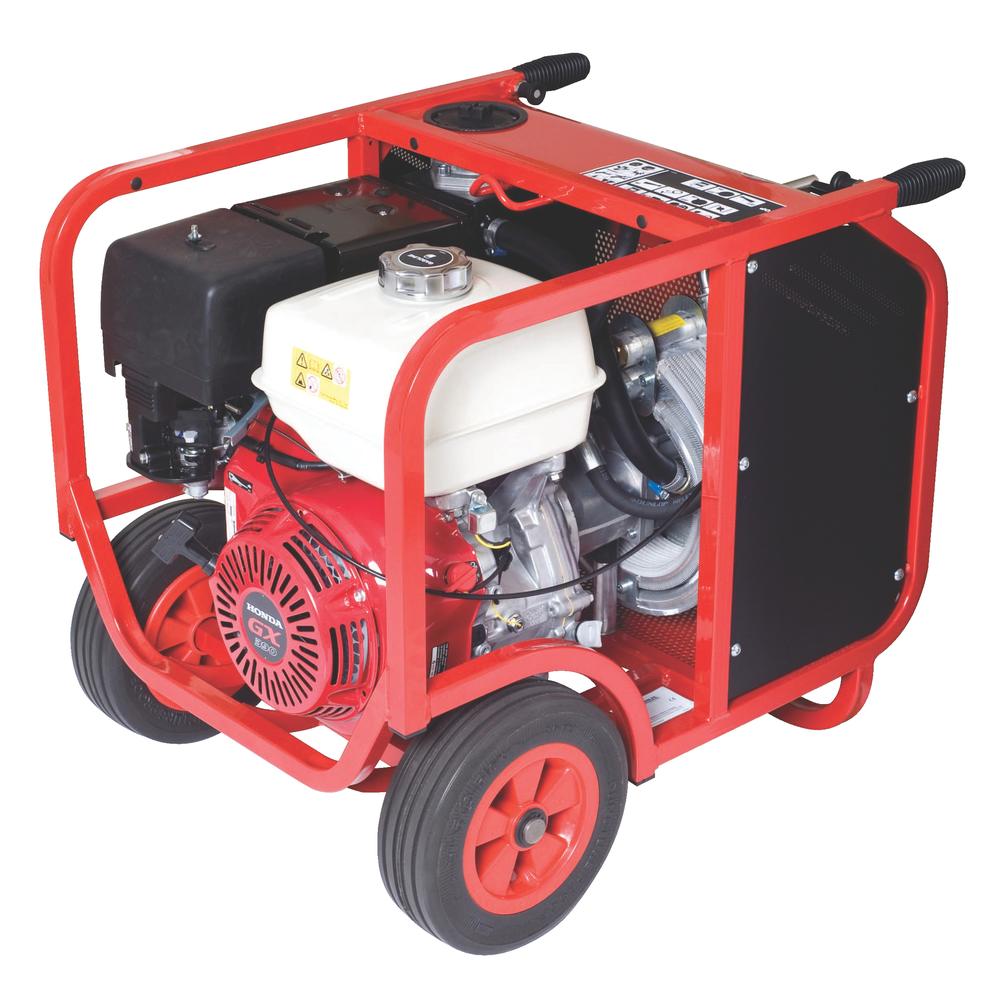

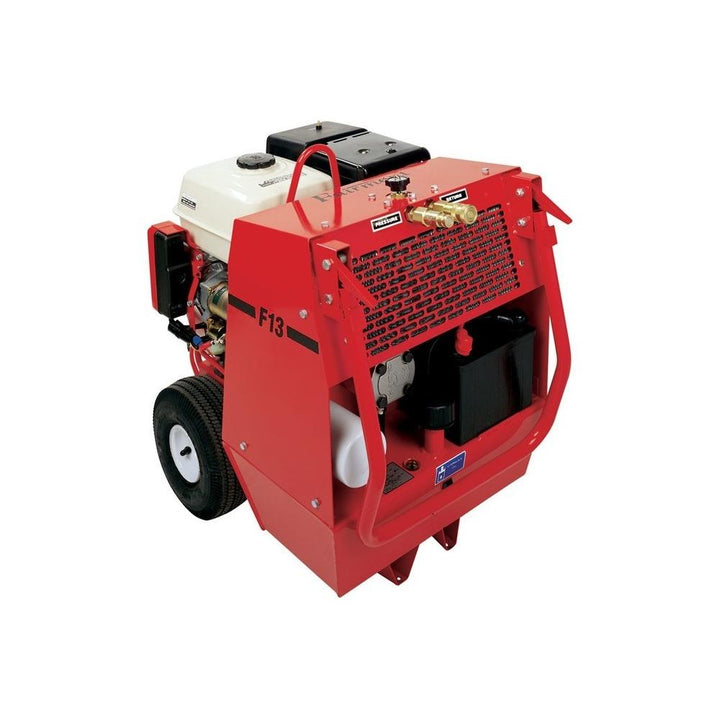

Greenlee F13 Portable Power Unit (13HP)

/
$6,374.13 USD & FREE Shipping.
Extended Handling May Be Required
  • Easy pull recoil start and dependable Honda 4-stroke OHV GX390 gasoline engine with low oil alert and shutdown protection system
  • The engine is CARB (California Air Resources Board) certified as well as compliant with upcoming 2011 EPA emissions standards
  • Powder-coated, welded steel tubular frame protects components and allows easy access to all service points
  • Oversized oil cooler and electric fan ensures cool running
  • Large 13 inch (330 mm) no-flat tires ensure easy job site handling and transport over a wide variety of surfaces and soils
Overview

The F13 Portable Power Unit is a compact unit providing a variable flow of 20 to 30 l/min (5 to 8 gpm) and a maximum pressure of 138 bar (2000 psi). It is a lightweight power source intended for use with open-center system hydraulic tools. HTMA couplers are provided for tool connection.

Its compact size and light weight allow use at remote work sites that might not be accessible by a larger power unit or hydraulic truck. The ability to get close to the work area allows the use of shorter hydraulic hoses, increasing tool efficiency.

The simple design of the hydraulic circuit and reliable Honda gasoline-powered engine ensure years of trouble-free operation, when serviced according to the recommended maintenance schedule. Other features include a large capacity hydraulic oil cooler, sight level gauge, large 330 mm (13") diameter no-flat wheels, and quick-release telescoping handles.

The Honda engine is equipped with a low oil alert and shutdown protection system.

Brand img

Greenlee F13 Portable Power Unit (13HP)

Specifications
General Information
Brand
Greenlee
Part Number
F13
Product Type
Power Unit
Packaging
Retail
Country of Origin
Denmark
UPC
783310313786
California Residents
Proposition 65 Warning
Return Policy
NCNR - Non-Cancellable / Non-Returnable
Physical Characteristics
Length
28.000" (710.000 mm)
Width
23.500" (597.000 mm)
Height
Handle Folded: 25.500" (648.000 mm)
Weight
84.82 kg
187.00 lb
Details
Measurement Standard
CARB (California Air Resources Board) Certified, 2011 EPA Emissions Standard
Features
Easy pull recoil start and dependable Honda 4-stroke OHV GX390 gasoline engine with low oil alert and shutdown protection system
The engine is CARB (California Air Resources Board) certified as well as compliant with upcoming 2011 EPA emissions standards
Powder-coated, welded steel tubular frame protects components and allows easy access to all service points
Oversized oil cooler and electric fan ensures cool running
Large 13 inch (330 mm) no-flat tires ensure easy job site handling and transport over a wide variety of surfaces and soils
Quick-release telescoping handles
Hydraulic oil-level site gauge
HTMA flat-faced couplers and a 25-micron return line filter

Cooling System: Oil Cooler, Electric Fan
Fuel: Gasoline 1.700 gal (6.500 L)
Horsepower: 13 HP At 3600 RPM (9.7 KW At 3600 RPM)
Hydraulic Oil Capacity: 1.800 gal (7.000 L)
Rated Flow: 5 - 8 GPM (19 - 30 LPM)
Rated Pressure: 2000 PSI (138 BAR)
System: Open-Center System
Tire Type: Large 13.000" (330.000 mm) No-Flat Tires
Why would you use this tool for ?
About manufacturer
Greenlee

Founded in 1862, Greenlee Tools got its start as a toolmaker when two brothers needed to manufacture their invention (a special drill surrounded by chisels). With the success of this effort, the Greenlee brothers quickly took on making other woodworking tools and other machinery including a machine that laid track for the railroad. In the mid-80s and beyond, Greenlee added on other toolmakers and diversified the kinds of tools they make and now Greenlee manufactures tools used by tradesmen in all vocations from communications to hydraulic pumps, plumbing, telecom, test equipment and many more. Greenlee is widely recognized as an industry leader for quality hand and industrial tools.
