EZ-RJ45 Pass-Through RJ45 Connectors, CAT5E/6 Shielded with External Ground — 50pcs in Jar.

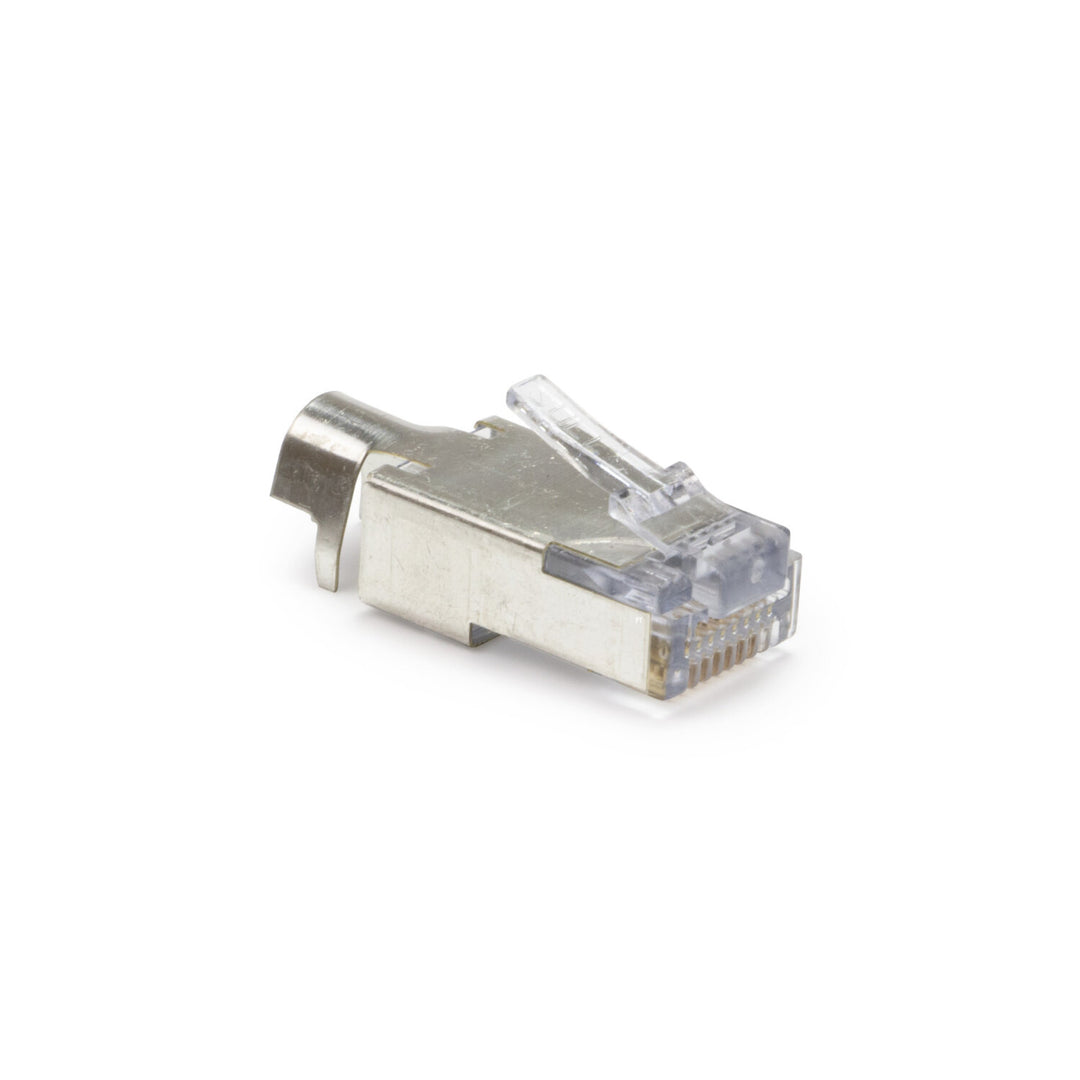

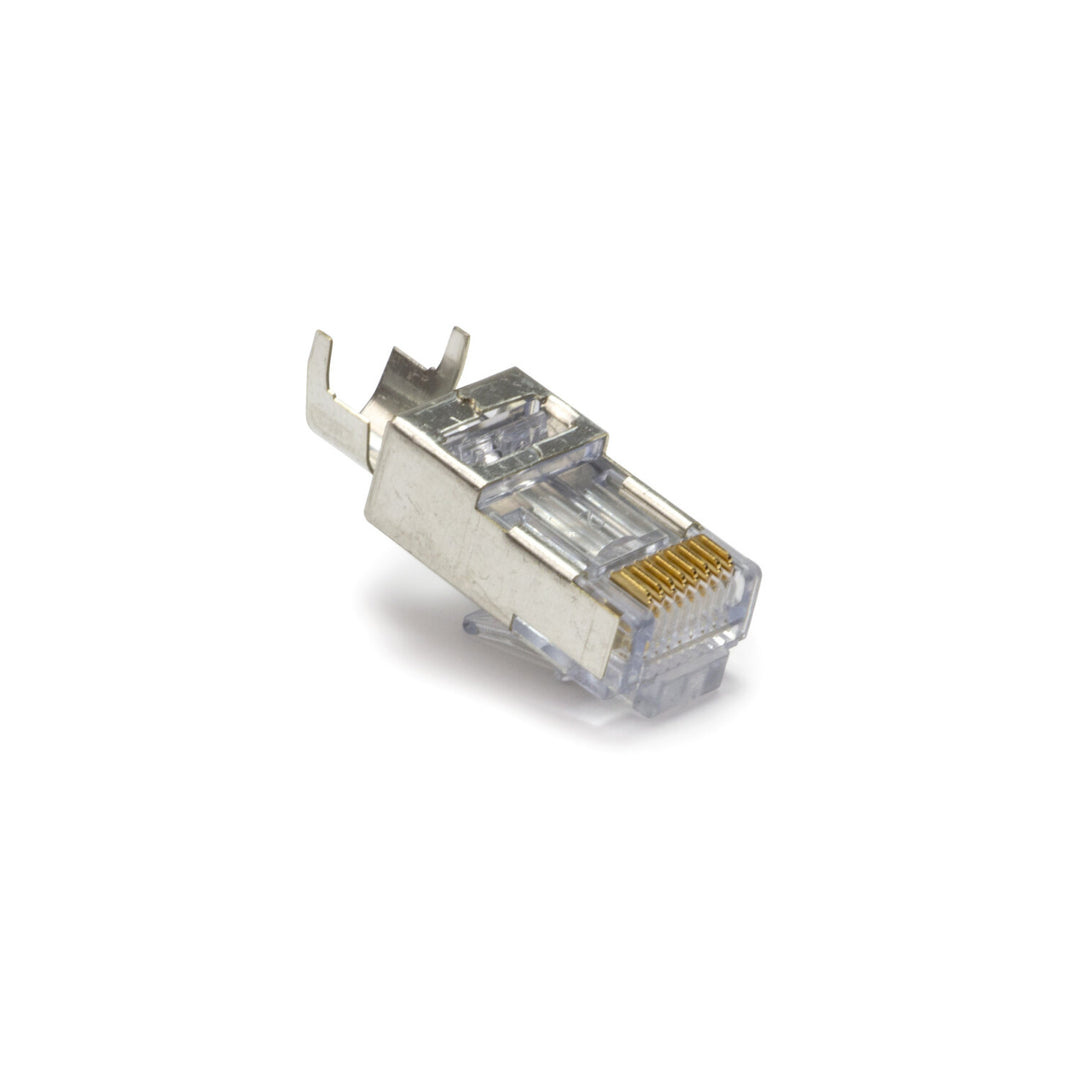

Platinum Tools 202022J EZ-RJ45 Pass-Through RJ45 Connectors, CAT5E/6 Shielded with External Ground — 50pcs in Jar
- Cable Connectors
- Platinum Tools
- 202022J
You may also like
Specifications
General Information
Brand
Platinum Tools
Number of Pieces
50
Country of Origin
United States
UPC
849160004400
California Residents
Part Number
202022J
Product Type
Cable Connector
Physical Characteristics
Weight
0.18 kg
0.40 lb
Color
Metal
Material
Polycarbonate
Details
AWG
24 - 23AWG
Features
EZ-RJ45 pass-through RJ45 connectors
Shielded with external ground
Package includes 50 pieces
Jar with screw-lid packaging
0.280" (7.11mm) max cable outer diameter
0.040” (1.016mm) max insulation diameter (conductors)
Compatible with solid or stranded 24 - 23AWG twisted pair cable
50 micron gold plated contacts
Substantially improve noise immunity at all frequencies, especially above 30 MHz when cable balance starts to significantly degrade
Fully shielded products provide reduced pair-to-pair crosstalk, alien crosstalk, and considerably improved immunity to noise at all frequencies
Maintaining the twists to the point of termination significantly decreases crosstalk and markedly increases performance

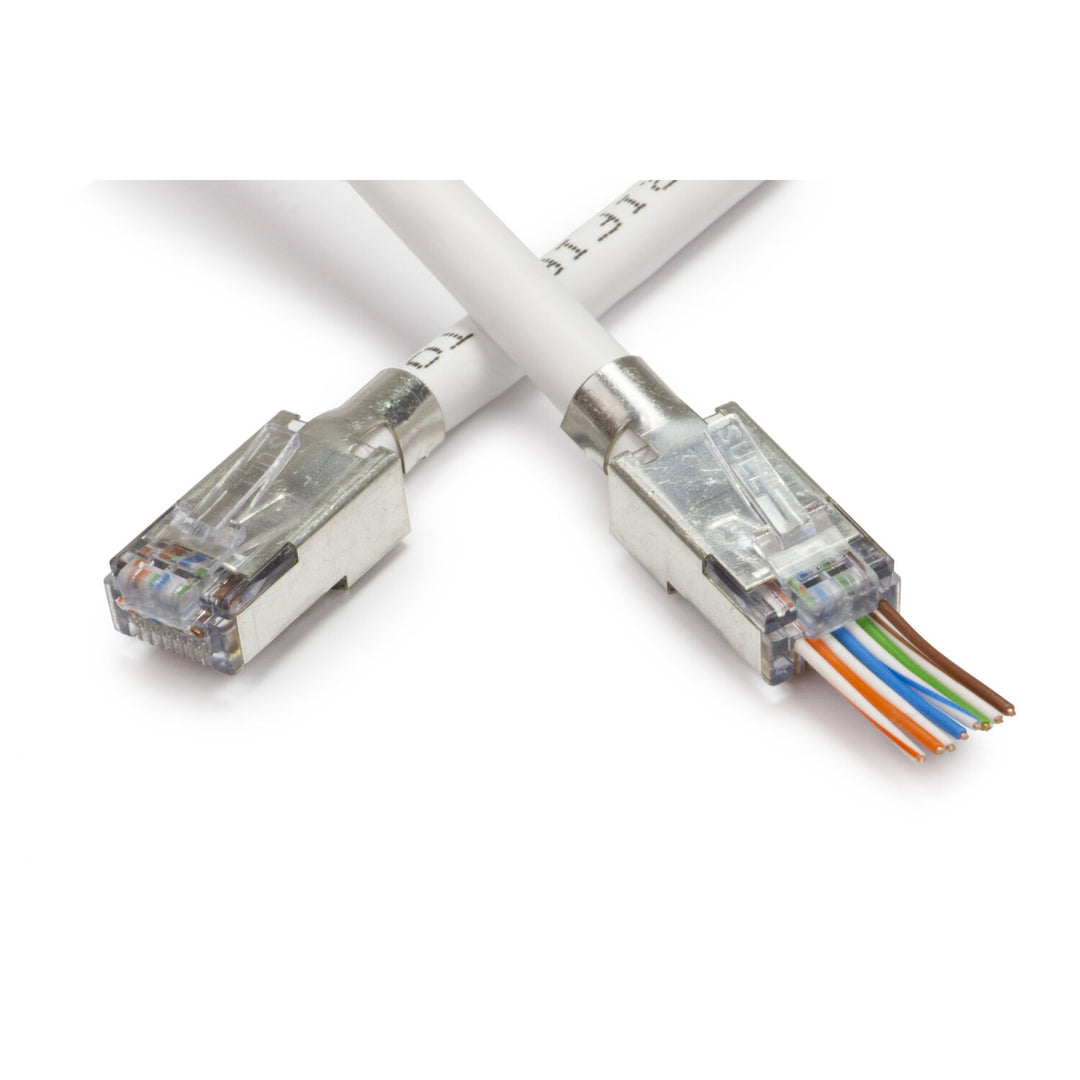

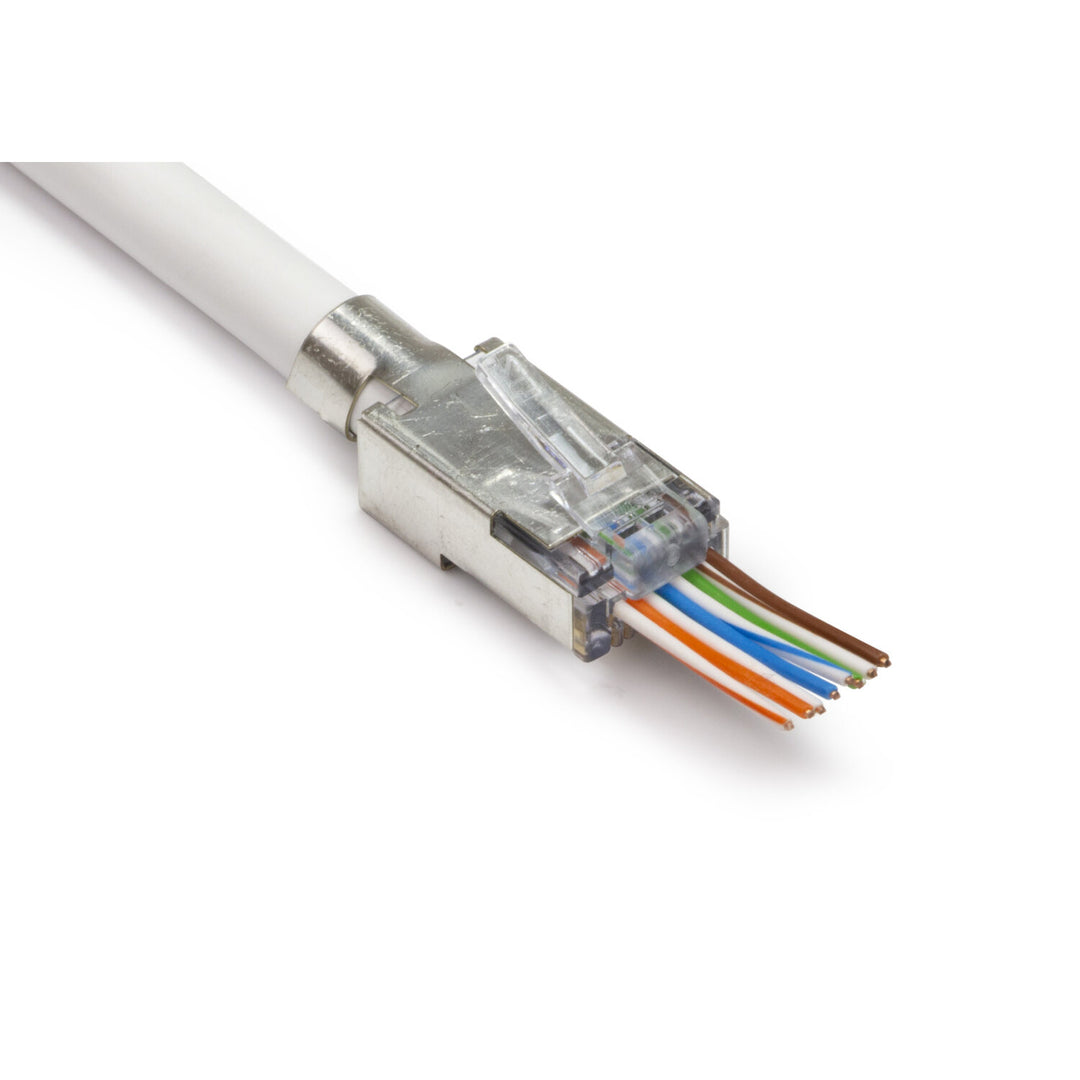

Connector design allows the wires to pass through the connector so the twists in each pair can be pulled closer to the contacts than conventional plugs
Recommended for data applications only
Not recommended for PoE applications
Rated for up to 1G bandwidth
Category 6 performance per EIA/TIA B.2. FCC compliant, UL rated. RoHS compliant
Recommended crimp tools: 100062, 100054 or 100004
Shielded with external ground
Package includes 50 pieces
Jar with screw-lid packaging
0.280" (7.11mm) max cable outer diameter
0.040” (1.016mm) max insulation diameter (conductors)
Compatible with solid or stranded 24 - 23AWG twisted pair cable
50 micron gold plated contacts
Substantially improve noise immunity at all frequencies, especially above 30 MHz when cable balance starts to significantly degrade
Fully shielded products provide reduced pair-to-pair crosstalk, alien crosstalk, and considerably improved immunity to noise at all frequencies
Maintaining the twists to the point of termination significantly decreases crosstalk and markedly increases performance
Connector design allows the wires to pass through the connector so the twists in each pair can be pulled closer to the contacts than conventional plugs
Recommended for data applications only
Not recommended for PoE applications
Rated for up to 1G bandwidth
Category 6 performance per EIA/TIA B.2. FCC compliant, UL rated. RoHS compliant
Recommended crimp tools: 100062, 100054 or 100004
