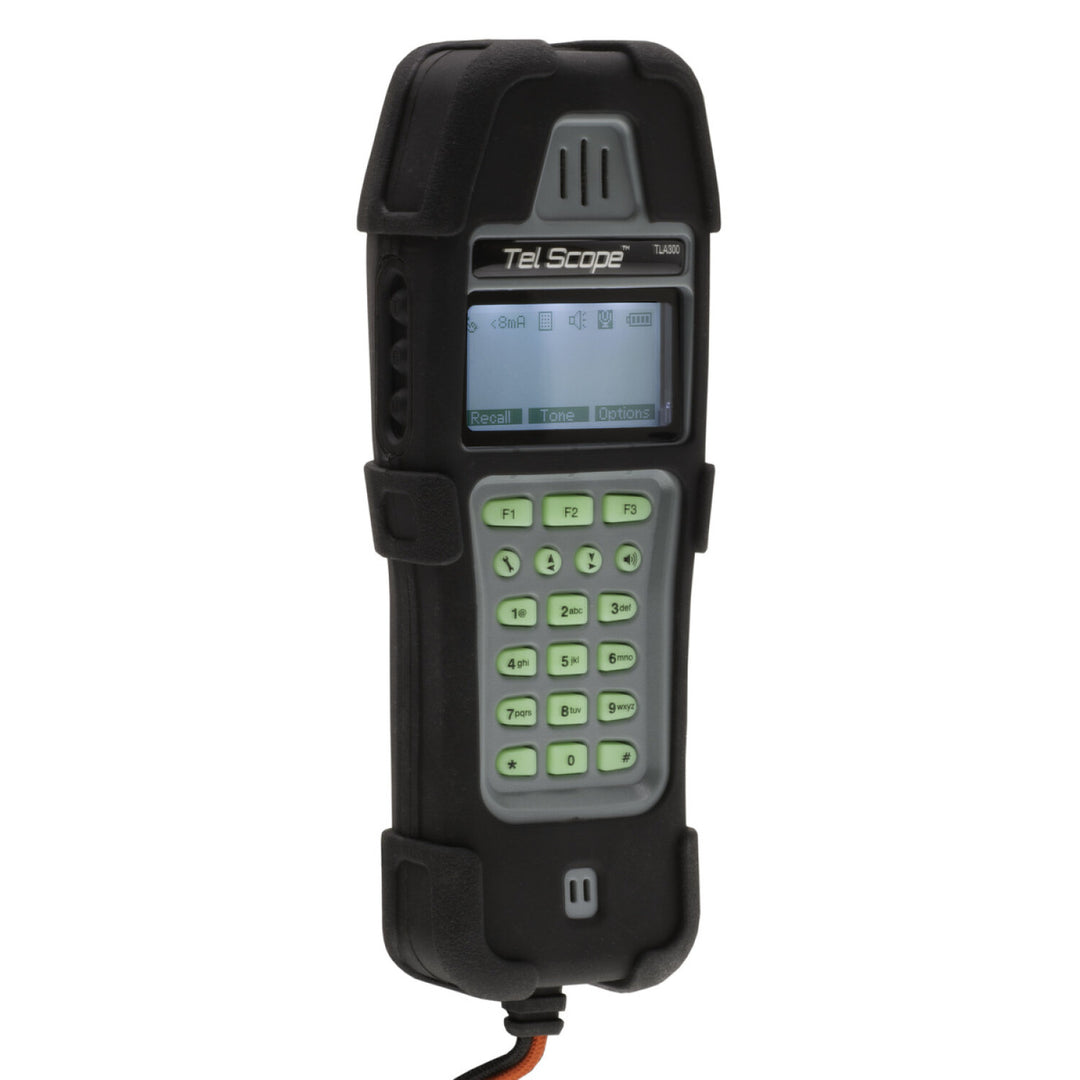

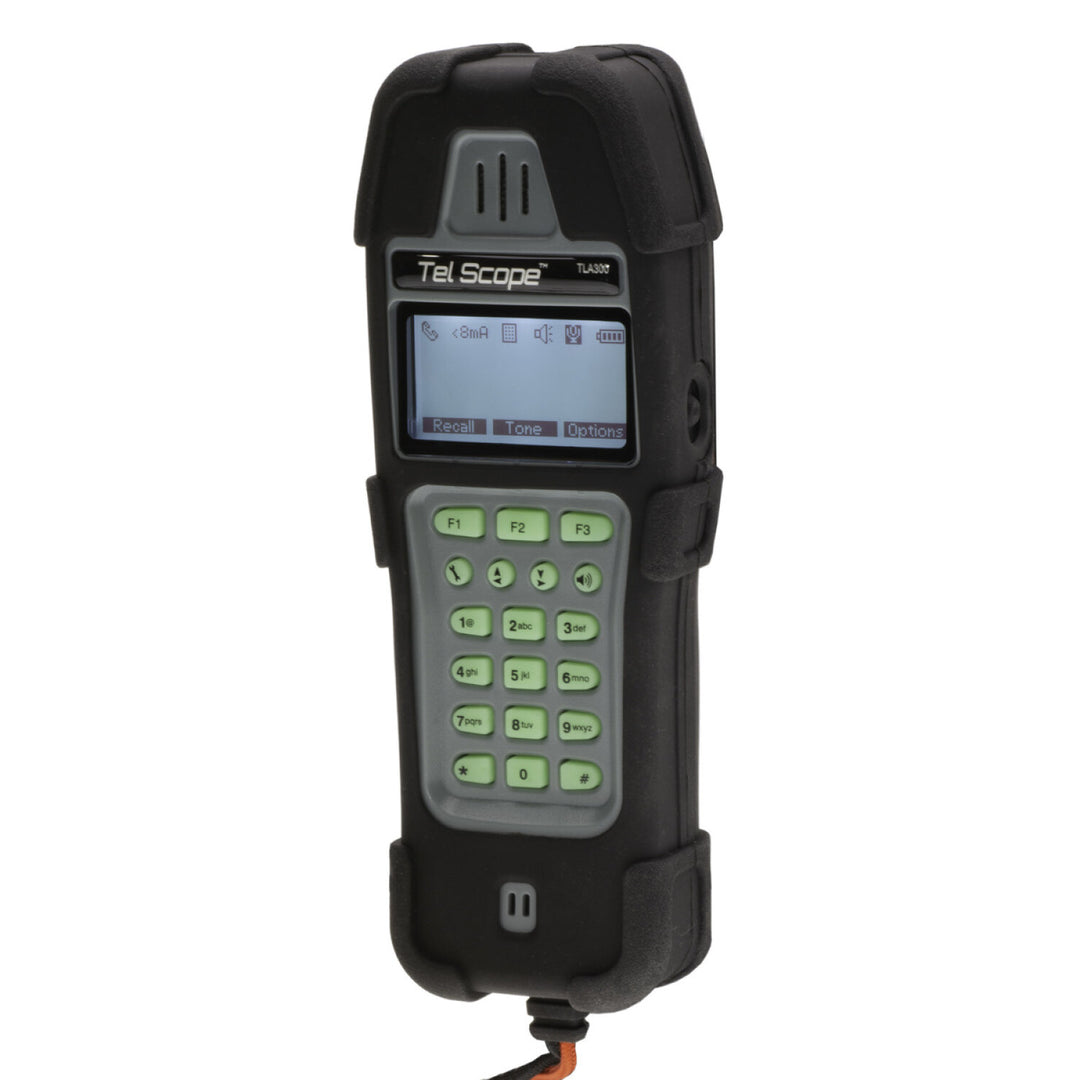

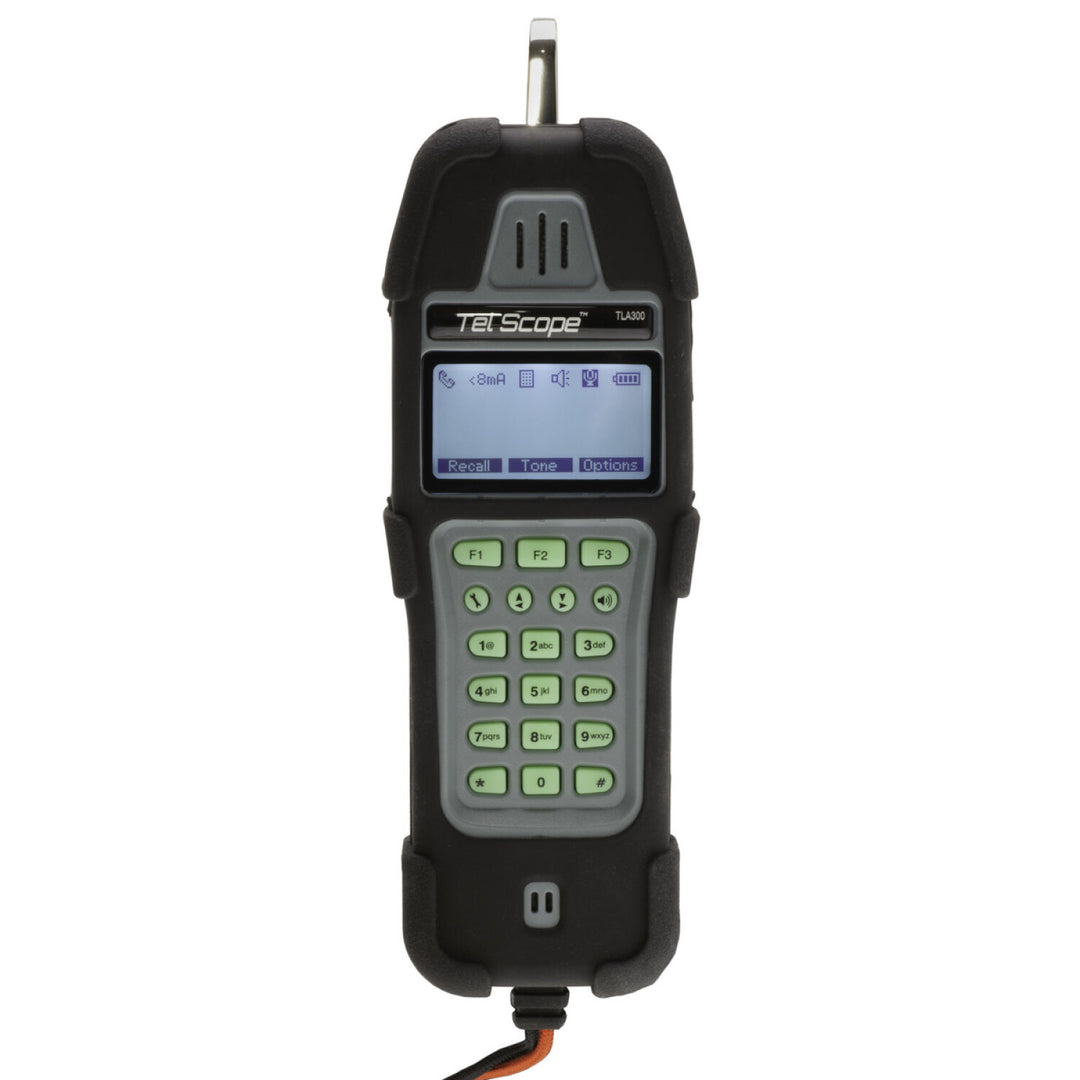

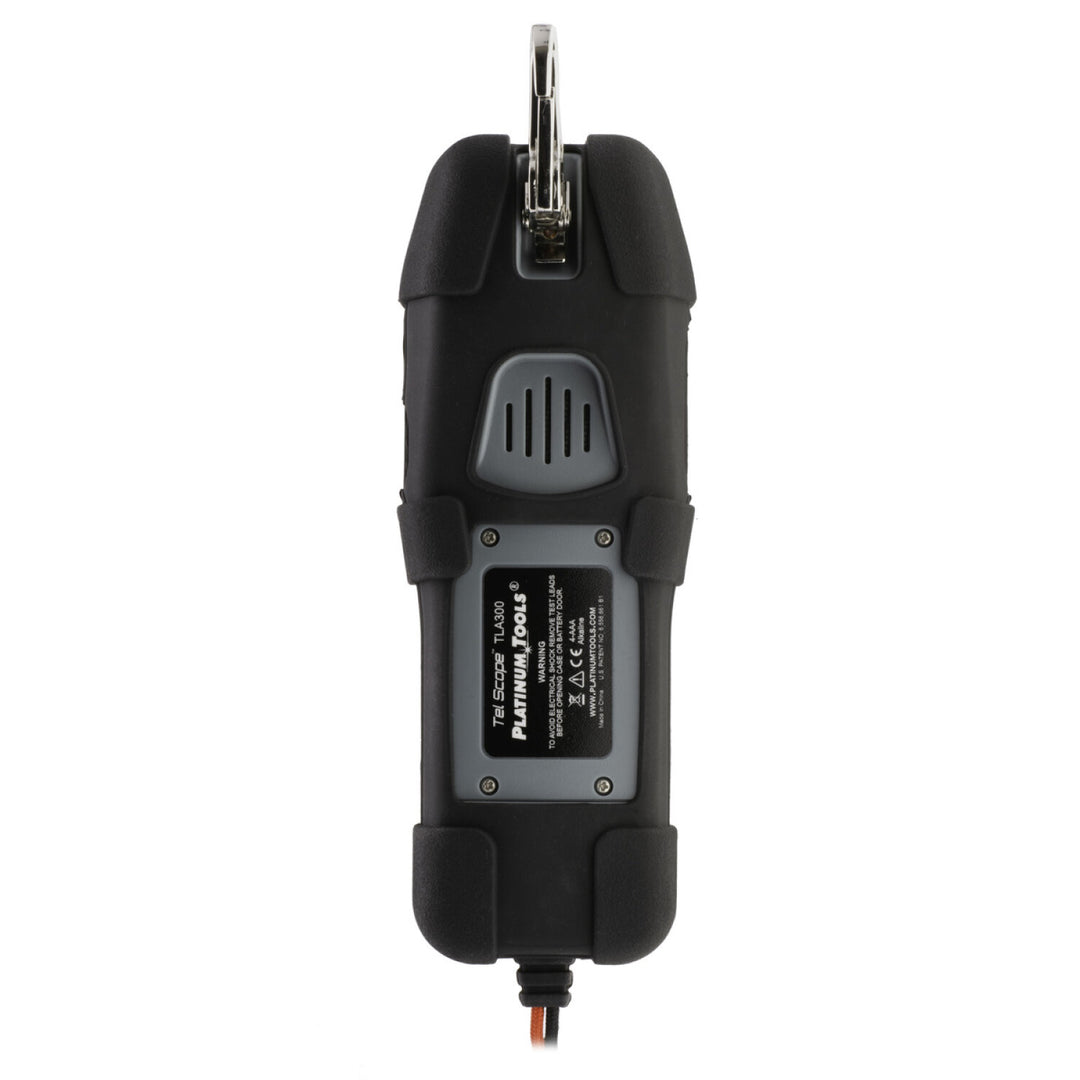

Platinum Tools TLA300-1 TelScope Telecom Line Analyzer and Butt Set
Platinum Tools TLA300-1 TelScope Telecom Line Analyzer and Butt Set
Platinum Tools TLA300-1 TelScope Telecom Line Analyzer and Butt Set
Platinum Tools TLA300-1 TelScope Telecom Line Analyzer and Butt Set
Platinum Tools TLA300-1 TelScope Telecom Line Analyzer and Butt Set
Platinum Tools TLA300-1 TelScope Telecom Line Analyzer and Butt Set
Platinum Tools TLA300-1 TelScope Telecom Line Analyzer and Butt Set
Platinum Tools TLA300-1 TelScope Telecom Line Analyzer and Butt Set
Platinum Tools TLA300-1 TelScope Telecom Line Analyzer and Butt Set

Platinum Tools TLA300-1 TelScope Telecom Line Analyzer and Butt Set

Regular price
/

$281.88 USD & FREE Shipping.
  • Large backlit display for low light environments and glow-in-the-dark keypad
  • Advanced data detection and identification -- 100% data safe
  • Rugged weatherproof case conforms to the IP54 Standard and drop tested to 20ft

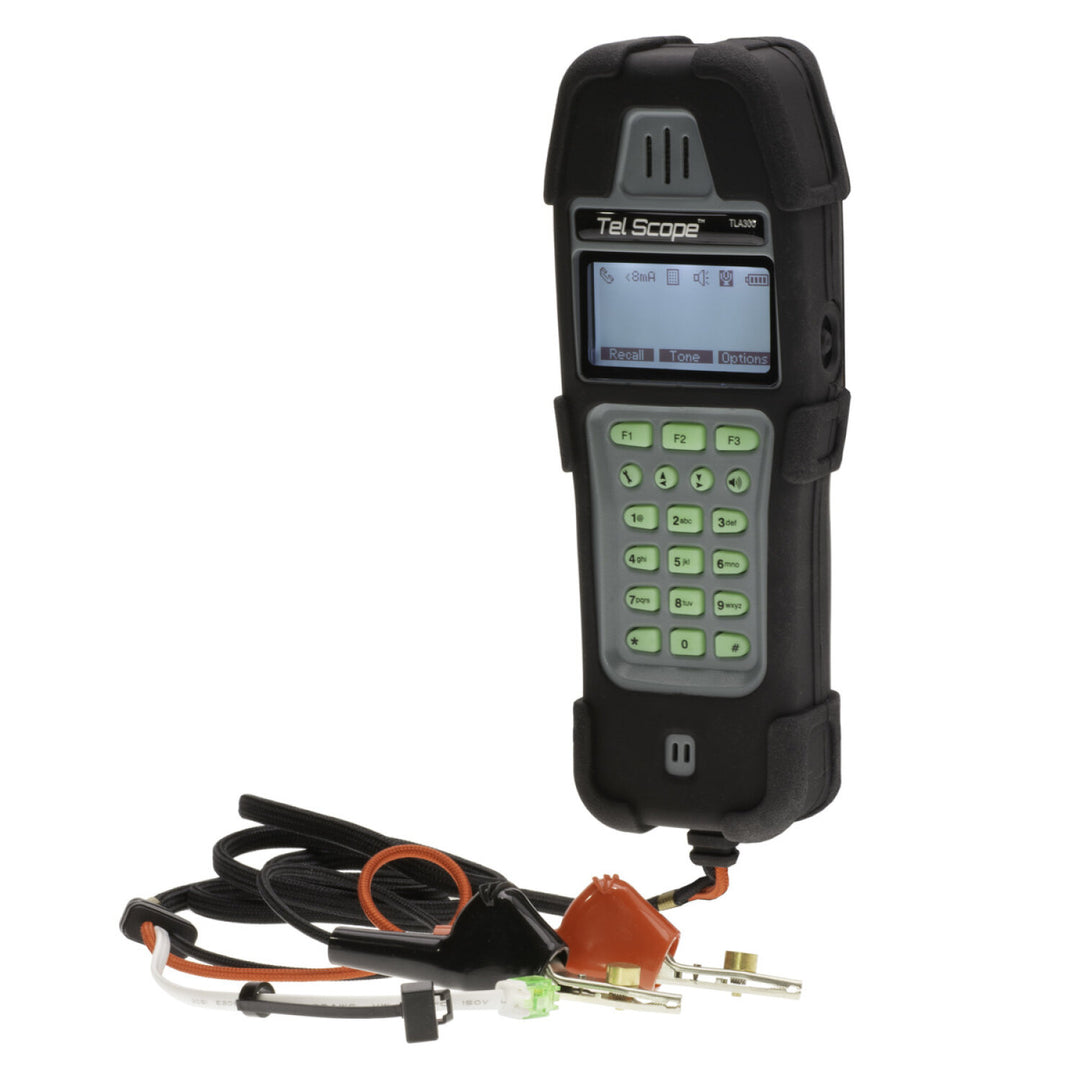

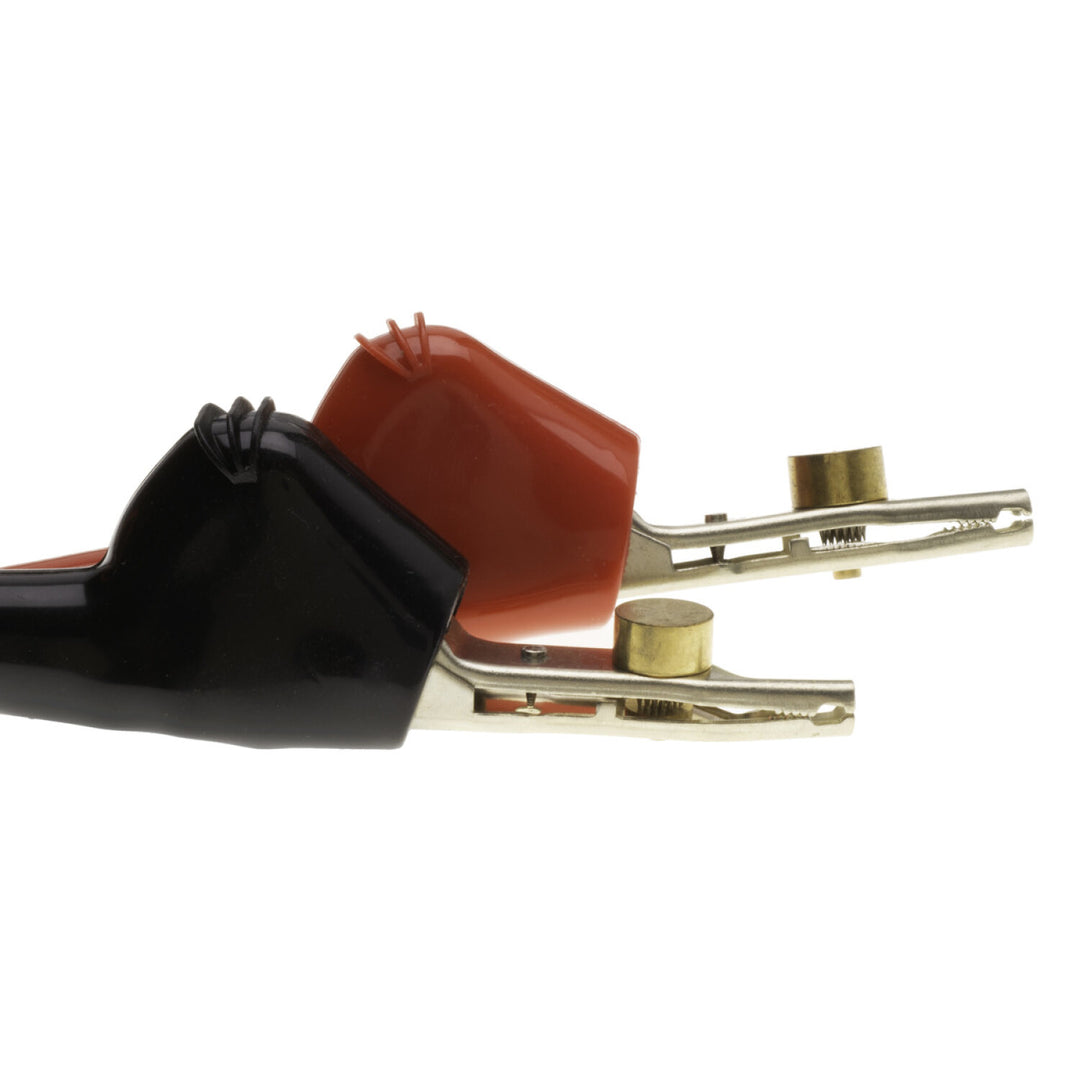

  • 60-in cord set with Alligator Clips, Angled Bed-of-Nails, Piercing Point and No-Fault RJ12 8P8C connector
  • Speaker with fine volume adjustment and noise canceling microphone
Overview

TelScope Telecom Line Analyzer and Butt Set

Platinum Tools TLA300-1 TelScope Telecom Line Analyzer and Butt Set

Specifications
Physical Characteristics
Weight
0.72 kg
1.59 lb
Details
Batteries
4 x AAA alkaline
Display Type
Transflective 128 by 64 pixel graphical liquid crystal display (LCD) with LED backlight
Features
Large backlit display for low light environments and glow-in-the-dark keypad
Advanced data detection and identification -- 100% data safe
Rugged weatherproof case conforms to the IP54 Standard and drop tested to 20ft
60-in cord set with Alligator Clips, Angled Bed-of-Nails, Piercing Point and No-Fault RJ12 8P8C connector
Speaker with fine volume adjustment and noise canceling microphone
Microphone mute with toggle on/off locking feature
Soft key menu system

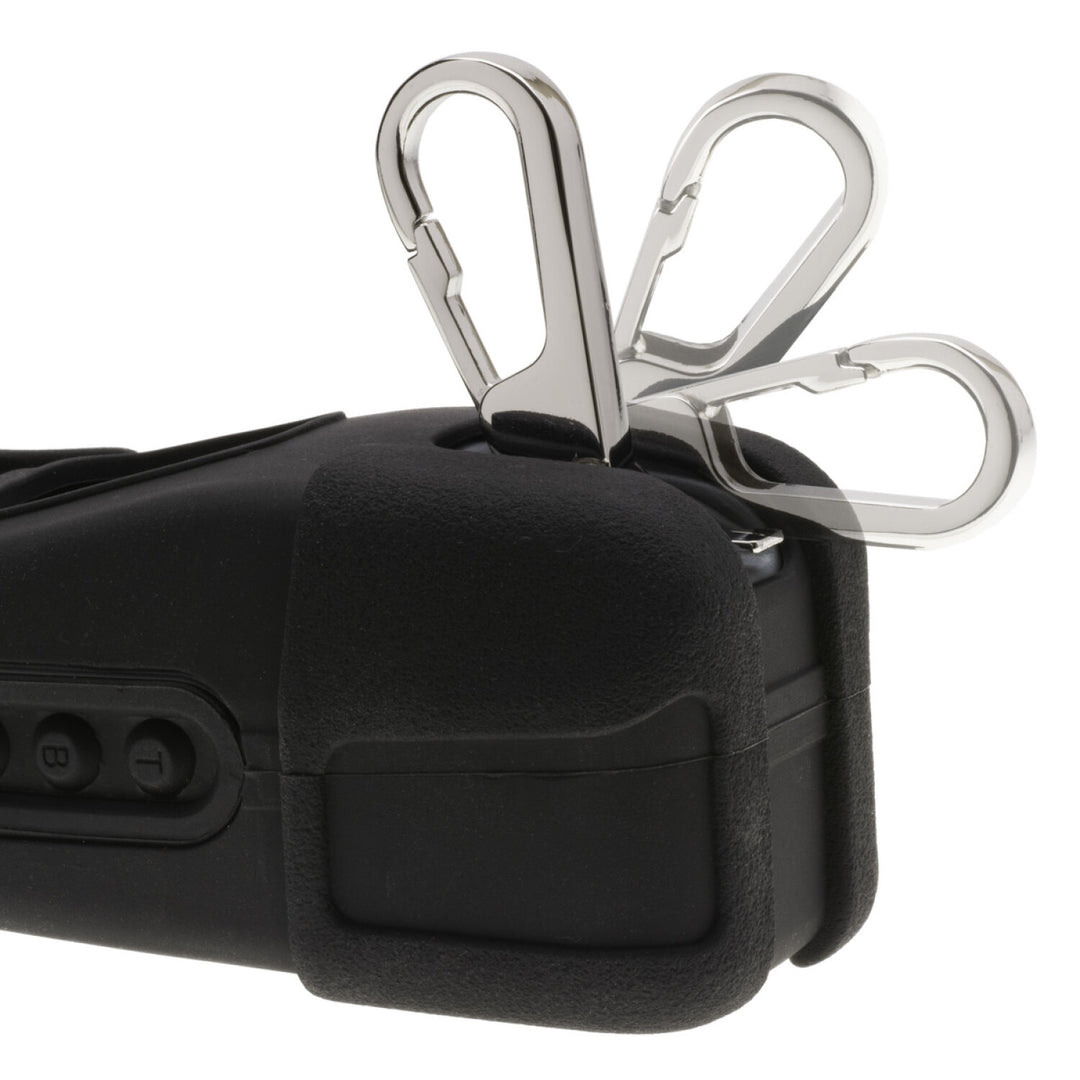

Metal spring-loaded belt clip
Cushion boot for extra protection
Off-hook current and polarity, and On-hook voltage and polarity
On-hook and call waiting Caller ID info
Amplified Line Monitor for volume levels comparable to
8 number Stored memory with Alpha/Numeric tags
Fuel Gauge Battery condition and Configurable Auto Off in all modes
Continuous Polarity Indication
Caller ID/Call Waiting and Caller ID error detection, Detects and identifies DSL and T1 lines
Tone and Pulse dialing, Last number dialed, redialed or received
Current
10 to 110 mA ±5%;
Voltage
0 to 200 VDC ±5%;
Frequency
±1.5%
Battery Life
7 to 150 Hour
General Information
Brand
Platinum Tools
Country of Origin
United States
California Residents
Part Number
TLA300-1
Product Type
TelScope Telecom Line Analyzer
UPC
849160012030
Resources
Datasheet
Why would you use this tool for ?
About manufacturer
Platinum Tools

Platinum Tools has been making test and installation equipment for telecom and internet since the early days of the internet, 1997. Having lasted this long is a testament to the quality that their tools bring to the table. Every Platinum Tools product must meet the standards of “utility of function, quality of function and economic value.” This dedication is the reason why Platinum Products make every telecom install a success, they help you get the job done right the first time. With high quality crimpers, high accuracy testers, Platinum Tools takes the headaches out of telecom work.
