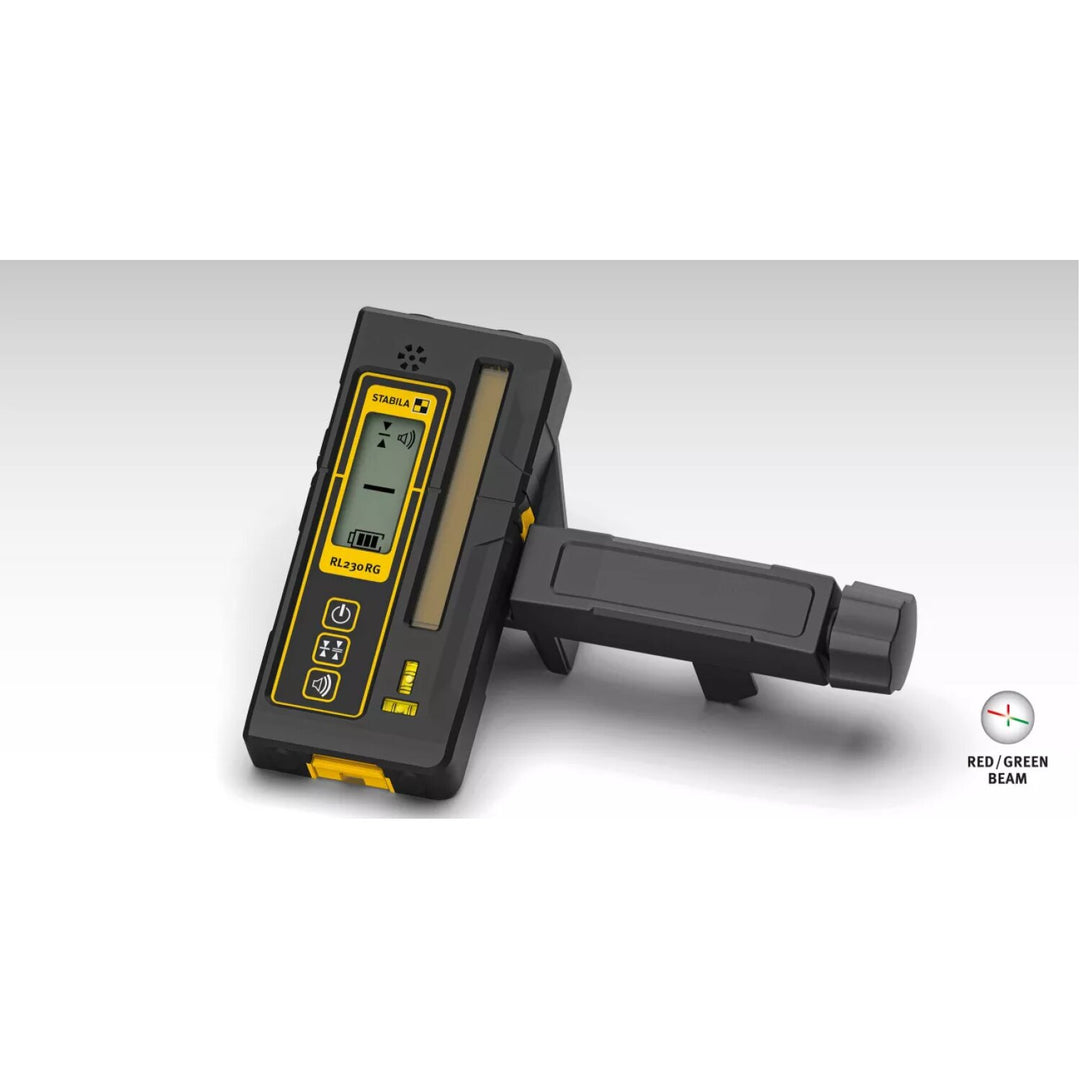

Stabila 07210 Line receiver RL 230 RG

/

$203.04 USD & FREE Shipping.
Extended Handling May Be Required
  • Laser receiver for determining the precise position of the laser beam of pulse-modulated line lasers with green or red laser diodes – even over long distances or in strong sunlight.

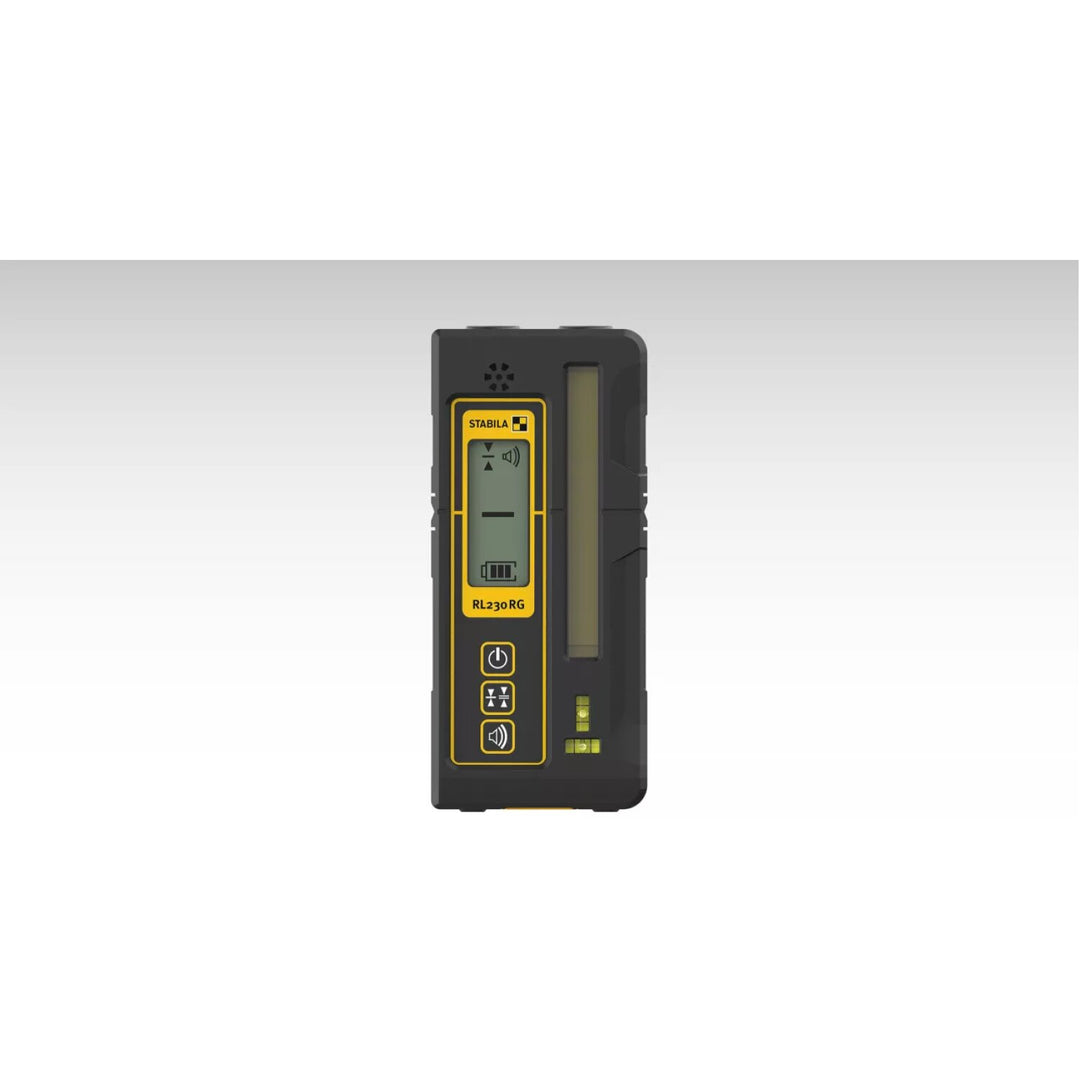

  • Digital display on both sides for fast work – lights up at the touch of a button.
  • Visual display: Arrow symbols on the display indicate the position of the receiver in relation to the reference plane of the laser.
  • Switchable acoustic guidance with adjustable beep volume (loud: 105 dB, quiet: 85 dB).
  • Two adjustable sensitivity levels to match the application – “Fine” with a sensitivity of ± 1/32 in (± 1 mm) or “Coarse” with a sensitivity of ± 1/8 in (± 3 mm) for higher ranges
Overview

Work precisely over long distances: The RL 230 RG receiver is the perfect addition for green and red line lasers. –It determines the exact position of a pulse-modulated laser line in relation to the reference plane – even over long distances and when the line is no longer visible. The illuminated digital display on both sides, acoustic signaling and two sensitivity levels give you the flexibility to master any measuring task. Waterproof and dustproof in accordance with protection rating IP 66, the receiver can be mounted in many different ways and is designed for professional use on construction sites.


Brand img

Stabila 07210 Line receiver RL 230 RG

Specifications
General Information
Brand
STABILA
Country of Origin
China
UPC
089634072102
California Residents
Proposition 65 Warning
Part Number
07210
Product Type
Line receiver
Physical Characteristics
Weight
0.54 kg
1.20 lb
Color
Black
Details
Features
Laser receiver for determining the precise position of the laser beam of pulse-modulated line lasers with green or red laser diodes – even over long distances or in strong sunlight.
Digital display on both sides for fast work – lights up at the touch of a button.
Visual display: Arrow symbols on the display indicate the position of the receiver in relation to the reference plane of the laser.
Switchable acoustic guidance with adjustable beep volume (loud: 105 dB, quiet: 85 dB).
Two adjustable sensitivity levels to match the application – “Fine” with a sensitivity of ± 1/32 in (± 1 mm) or “Coarse” with a sensitivity of ± 1/8 in (± 3 mm) for higher ranges.
Waterproof and dustproof in accordance with protection rating IP 66.

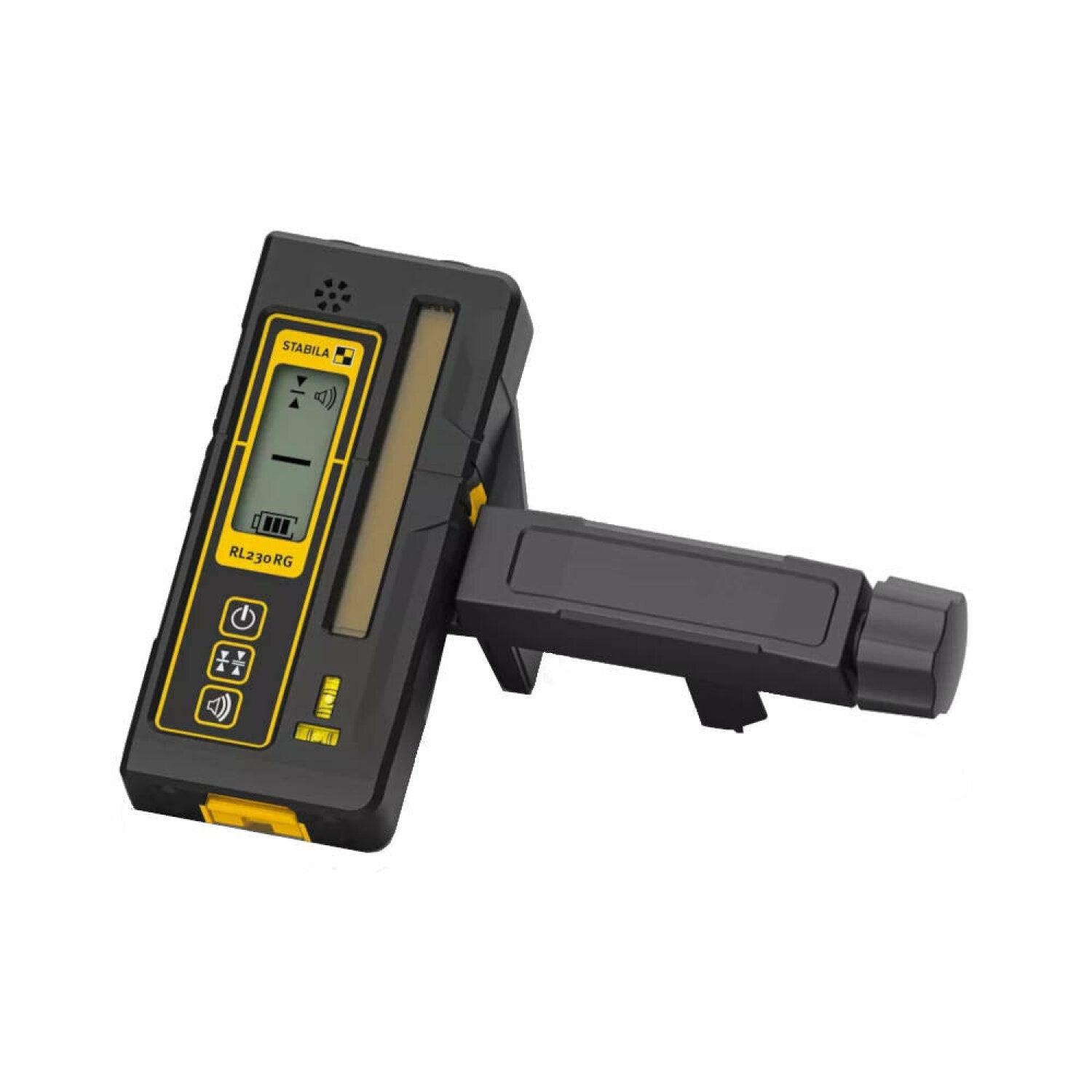

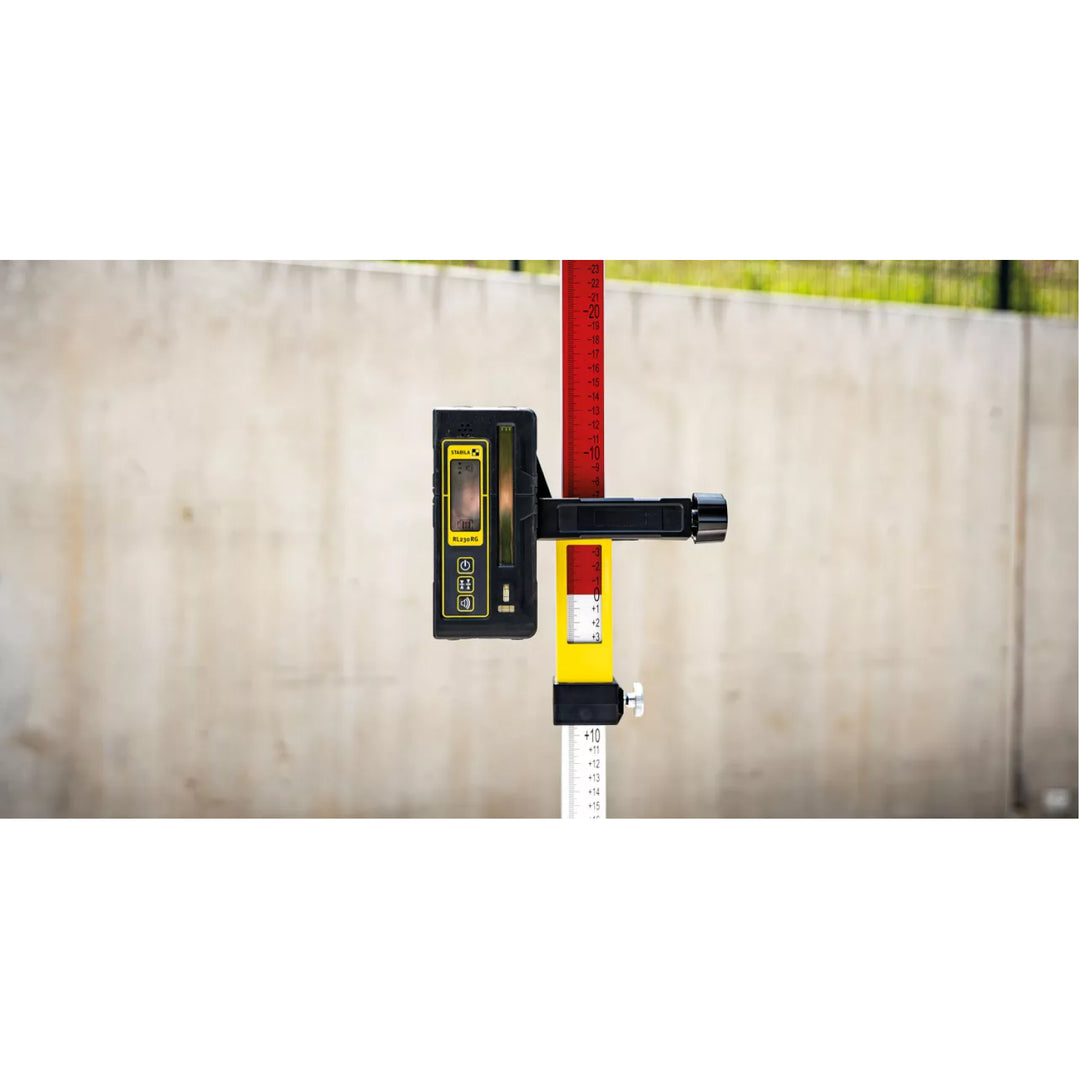

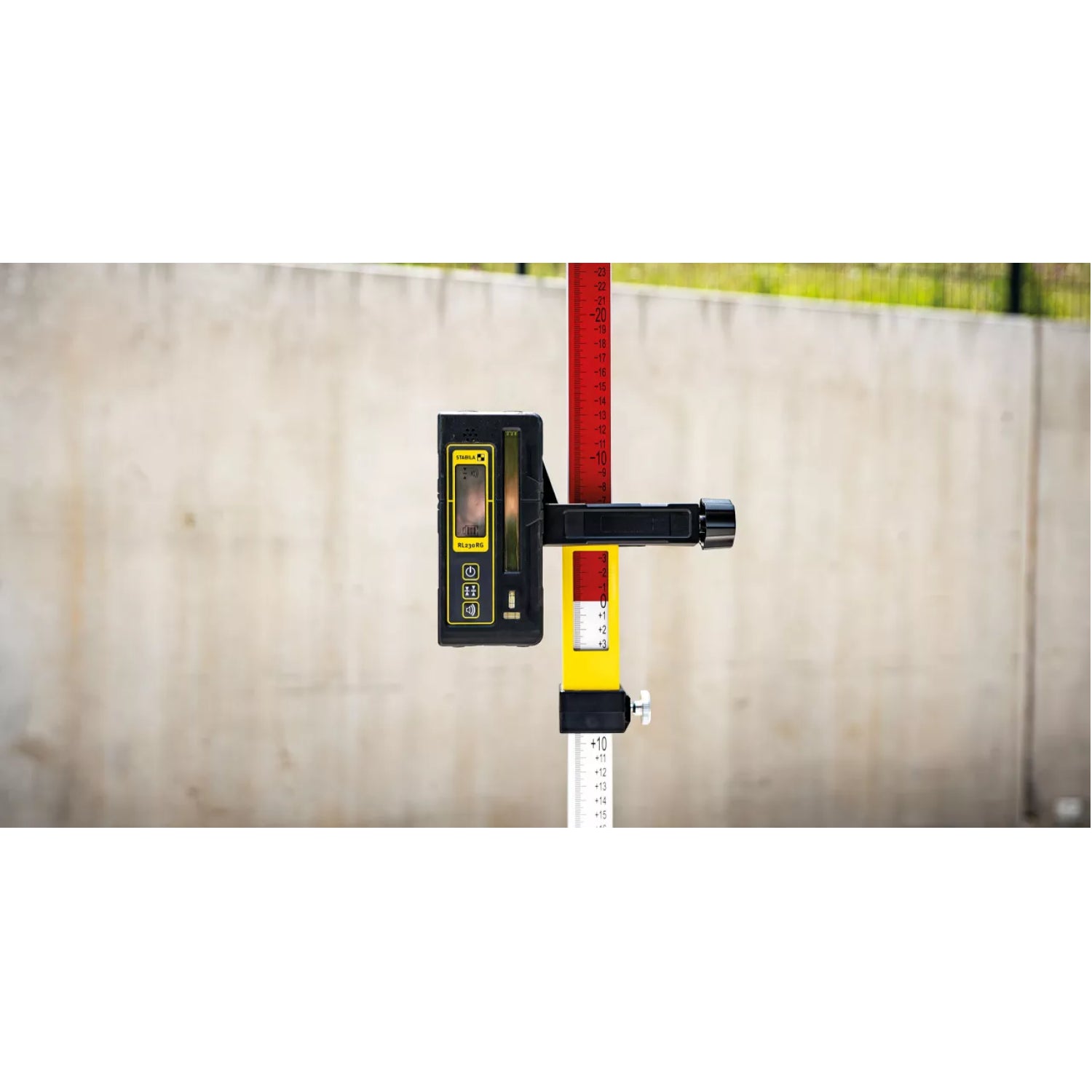

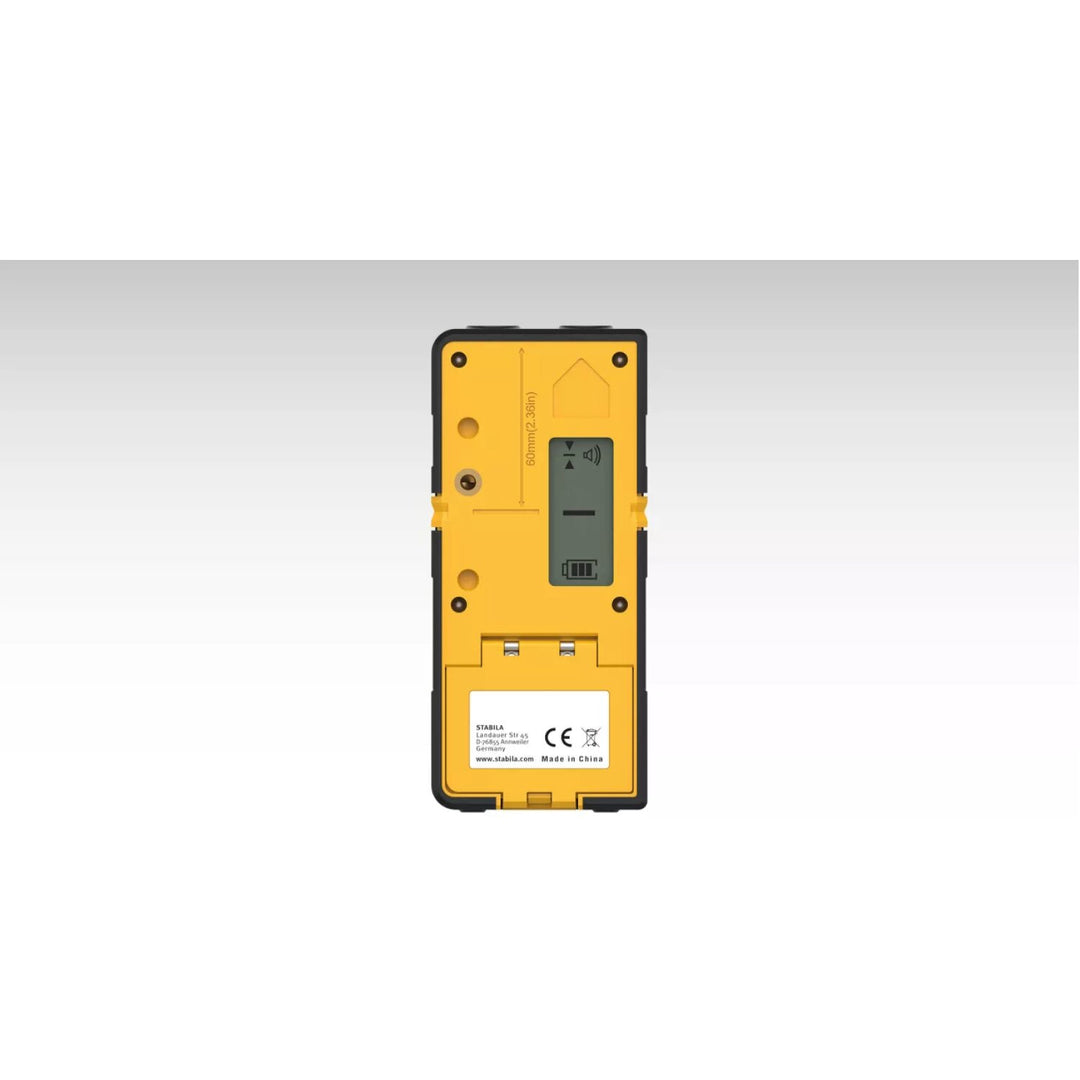

A variety of mounting options – a bracket for attaching to leveling rods and an integrated magnet system.
Battery status display.
Height of the receiver line: 3 1/2 in (90 mm).
Operating time: 45 hours
Batteries
2 x AA batteries
Resources
Datasheet
Why would you use this tool for ?
About manufacturer
STABILA

STABILA is a world-renowned German manufacturer of professional measuring tools, trusted for their exceptional precision and durability. Founded in 1889, STABILA has continually set industry standards through innovation and quality engineering. Their extensive range includes spirit levels, laser distance measurers, tape measures, and folding rulers, all designed to deliver accurate results even in the toughest job-site conditions. With over a century of experience, STABILA remains a symbol of reliability and craftsmanship for builders, engineers, and craftsmen around the globe.
