Overview
Features

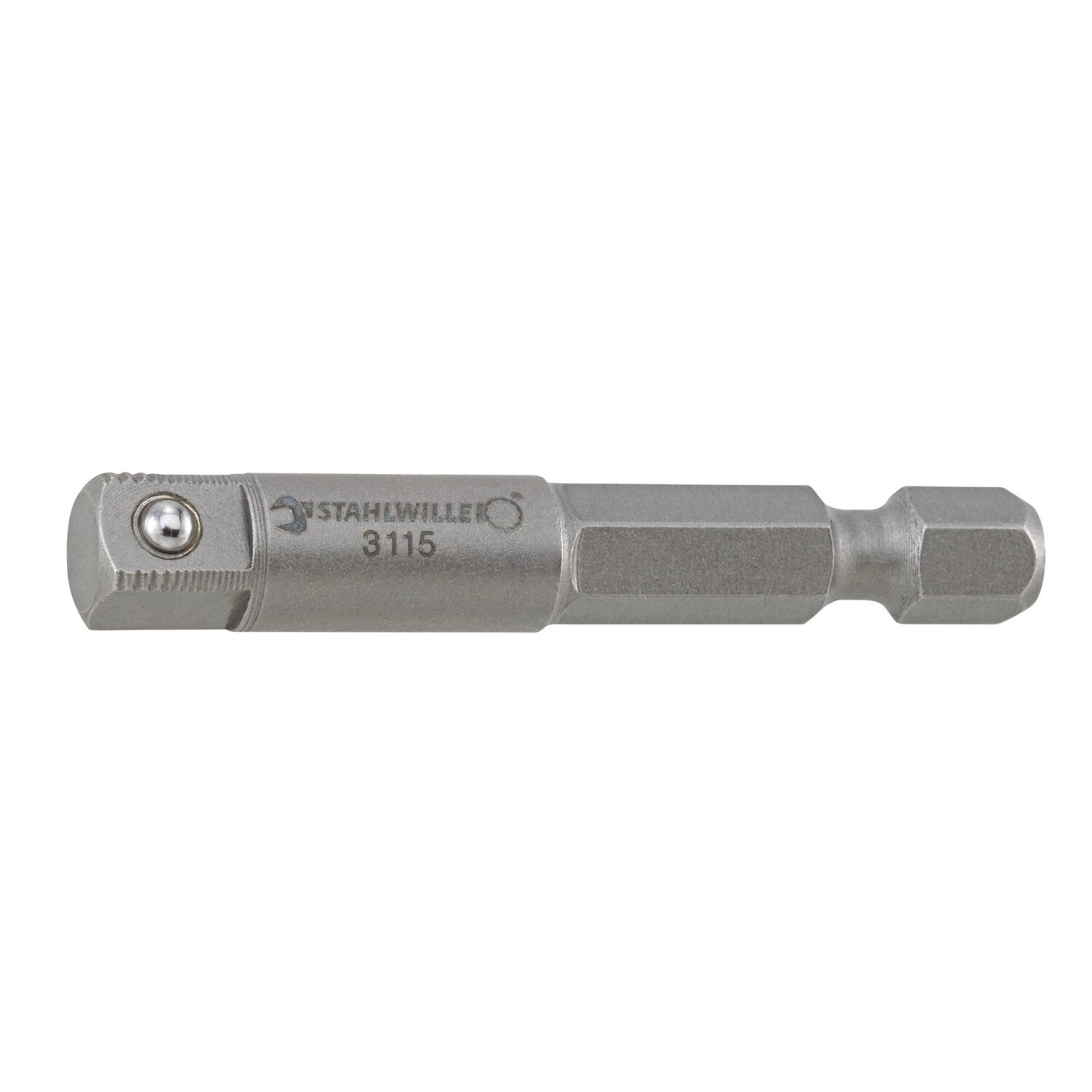

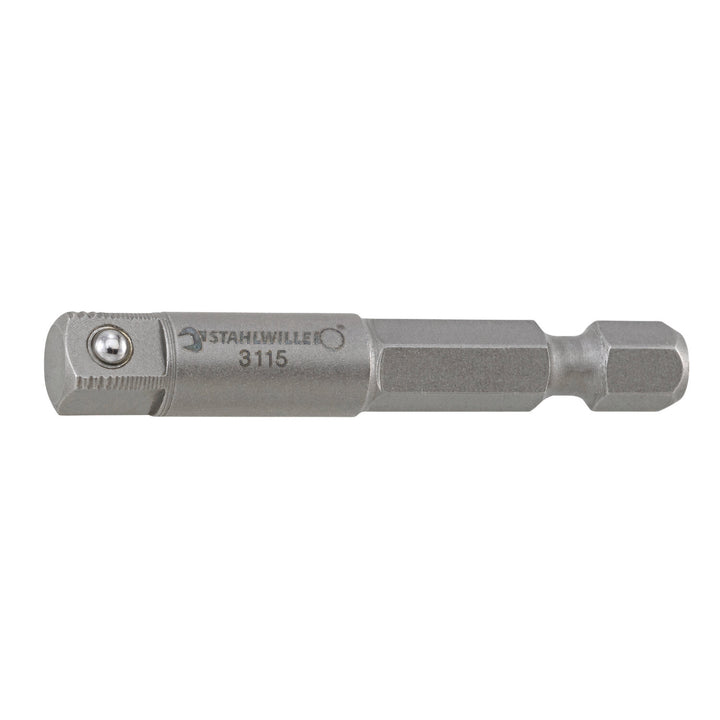

The Bit-Connector, Hand-Operated, is designed for connecting sockets to tools. It is suitable for manual sockets with an internal square drive of 6.3 mm (1/4") and features a square with a spring-loaded ball. The connector has a steel grey, oiled surface and includes an external square in accordance with DIN 3120 / ISO 1174-1 and an external hex drive according to DIN 3126 / ISO 1173.
You may also like
Specifications
General Information
Brand
Stahlwille
Packaging
Bulk
Country of Origin
Germany
UPC
4018754331895
California Residents
Proposition 65 Warning
Part Number
31150000
Product Type
Bits & Accessories
Physical Characteristics
Length
50 mm
Width
8 mm
Height
8 mm
Weight
0.01 kg
0.03 lb
Finish
Gunmetal
Material
Surface Steel
Details
Tip Type
Square , Hex
Features
For connecting sockets to tools
For torque screwdrivers No. 760 and No. 775
For manual sockets with internal square drive 6.3 (1/4")
Square with spring-loaded ball
Steel grey, oiled surface
External square DIN 3120 / ISO 1174-1
External hex drive DIN 3126 / ISO 1173
For torque screwdrivers No. 760 and No. 775
For manual sockets with internal square drive 6.3 (1/4")
Square with spring-loaded ball
Steel grey, oiled surface
External square DIN 3120 / ISO 1174-1
External hex drive DIN 3126 / ISO 1173
About Manufacturer
While there are many brands of high quality German tools, few are as recognized as Stahlwille. Stahlwille Tools is well known not just for automotive tools, but they’re a brand widely used by the aerospace industry. One of Stahlwille’s contributions to aerospace was the “Tool Control” System which uses bright colors in the storage case that show only when a tool is missing. Stahlwille has also led innovation in aerospace applications by creating tools like the Anti Slip Drive, the Spline Drive the Quick Release and many more. The quality of Stahlwille Tools is among the best, anything less would be disastrous for those in aerospace.
