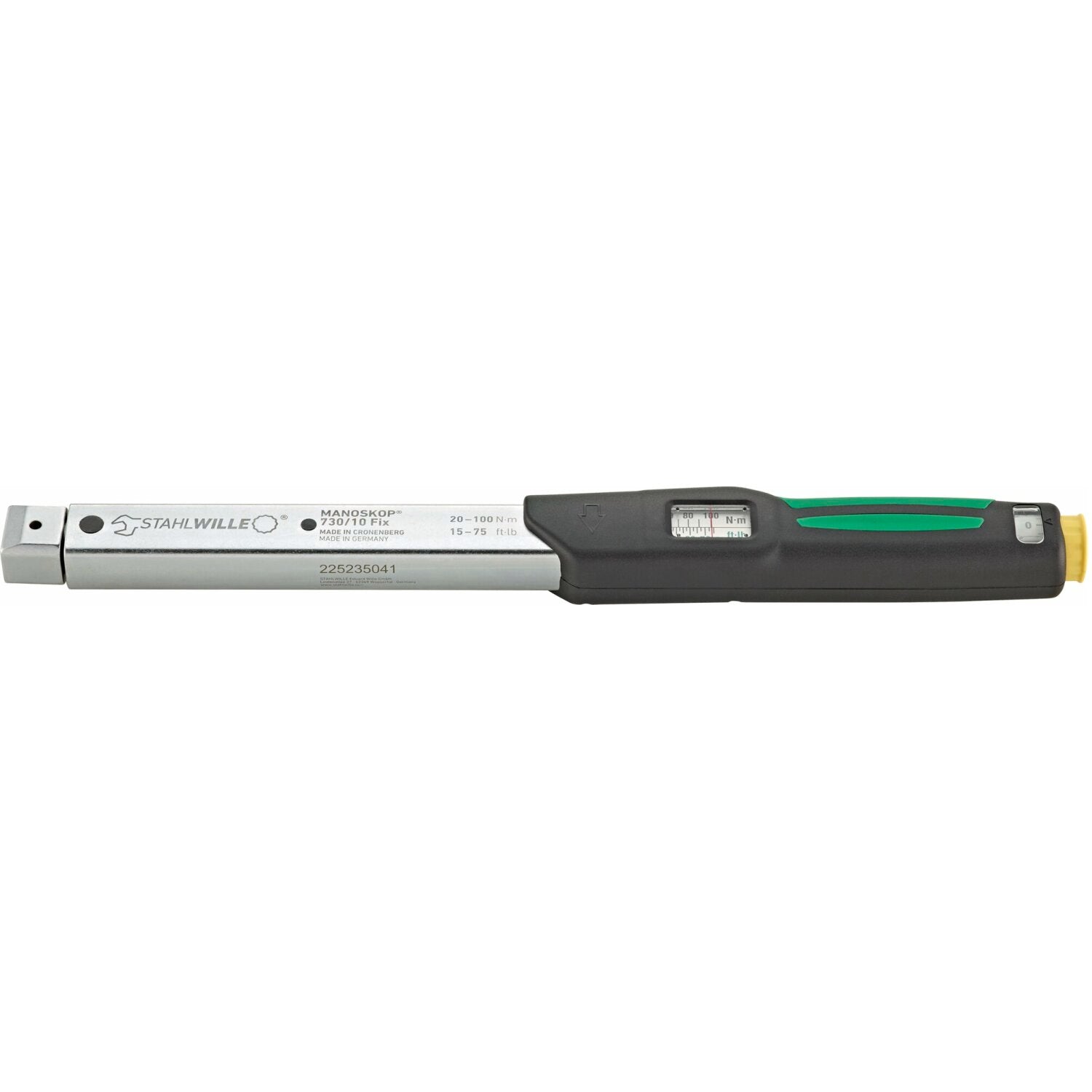

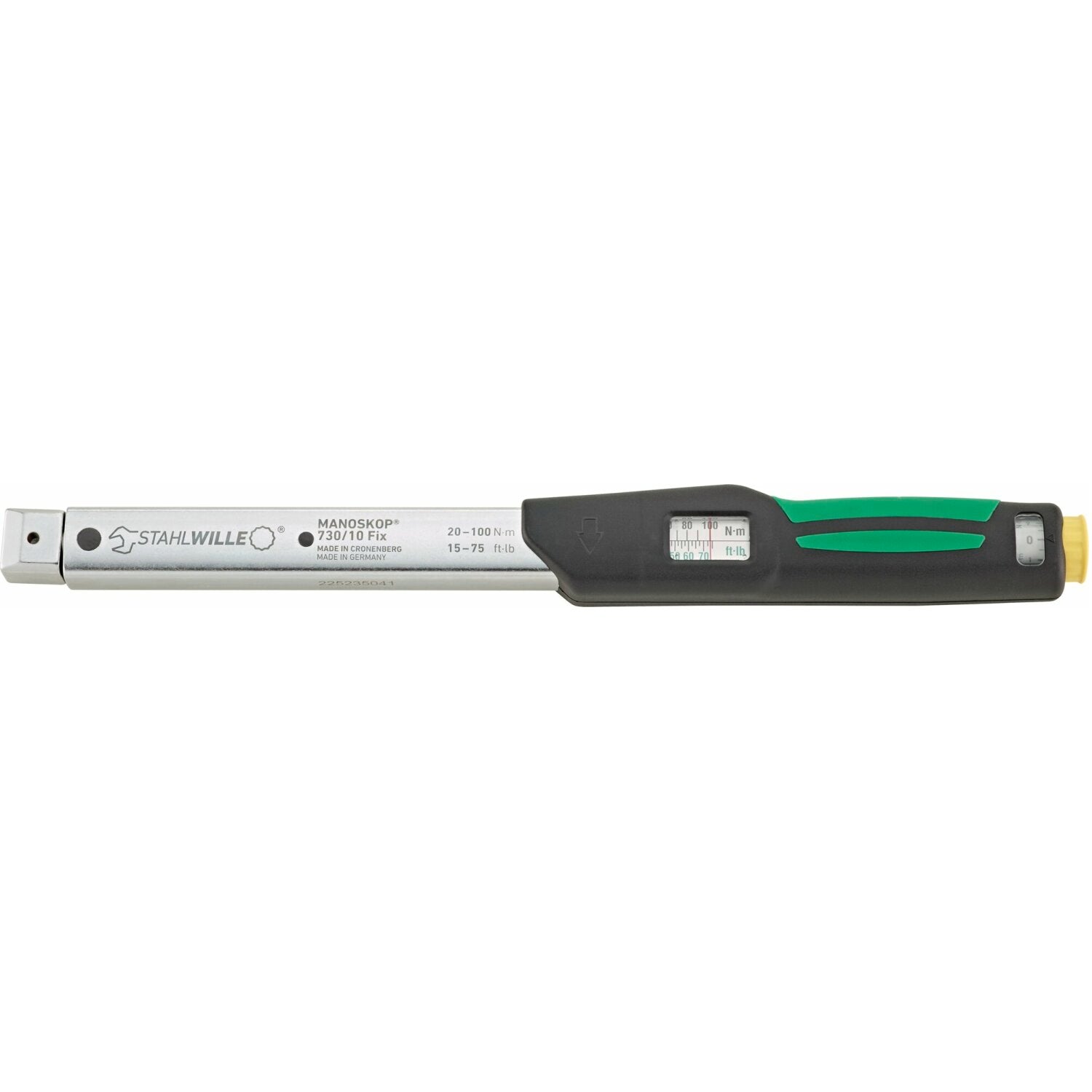

Stahlwille 96503010 730 Fix Service MANOSKOP torque wrench

$629.87 USD & FREE Shipping.
/
%3Cp%3EEarn%20[points_amount]%20when%20you%20buy%20this%20item.%3C/p%3E
Extended Handling May Be Required
  • for work on assembly lines or for repetitive production tasks
  • clicking type with dual stop signal
  • adjustment knob can be unscrewed after setting the desired torque value- subsequent changing of the setting is thus prevented
  • the included TORX® Tamper Resistant locking screw also protects against tampering, as well as the included self-adhesive seals. no adjustment is possible without breaking the seal
  • no reset to '0' required
Overview
Fix Service MANOSKOP torque wrench designed for work on assembly lines or repetitive production tasks, featuring a clicking type mechanism with dual stop signal. The adjustment knob can be unscrewed after setting the desired torque value to prevent subsequent changes, while the included TORX® Tamper Resistant locking screw and self-adhesive seals provide additional protection against tampering, with no adjustment possible without breaking the seal. No reset to “0” is required, as the measuring element is only under load when force is applied. It offers fast, precise QuickSelect adjustment, a dual scale in N·m/ft·lb, a mount for interchangeable insert tools, and a QuickRelease safety lock. The clicking mechanism is insensitive to continuous loads and counter-loads up to the maximum measurement range, and counter-clockwise tightening is achieved by turning the insert tools over. It allows optimal calibration with perfectControl® calibration systems No. 7794 or calibration systems No. 7706, 7791, and easy adjustment without disassembly via two external adjustment screws. Equipped with a 2-component handle, supplied in a sturdy plastic box (sizes 80–100 in sheet steel box), and delivered with a calibration certificate in accordance with DIN EN ISO 6789-2:2017.
Brand img

Stahlwille 96503010 730 Fix Service MANOSKOP torque wrench

You may also like
Specifications
General Information
Brand
Stahlwille
Product Type
Torque Wrenches
Packaging
Bulk
Country of Origin
Germany
UPC
4018754269440
California Residents
Proposition 65 Warning
Part Number
96503010

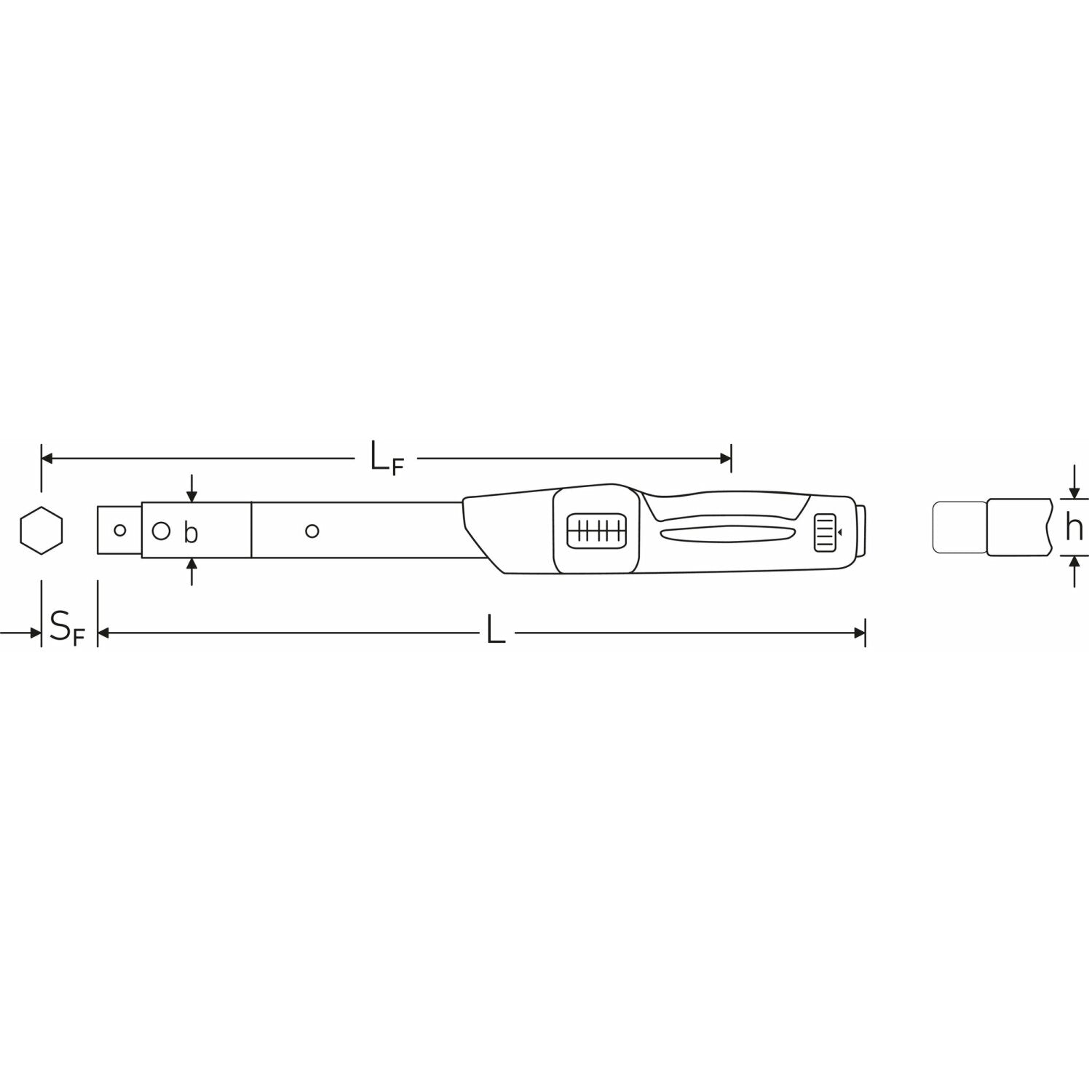

Physical Characteristics
Length
386 mm
Width
92 mm
Height
71 mm
Weight
7.00 kg
15.43 lb
Details
Wrench Type
Torque
Torque Range ft lbs
15-75 ft lb
Torque Range Nm
20-100 Nm
Size
10, 9x12 mm
Features
for work on assembly lines or for repetitive production tasks
clicking type with dual stop signal
adjustment knob can be unscrewed after setting the desired torque value- subsequent changing of the setting is thus prevented
the included TORX® Tamper Resistant locking screw also protects against tampering, as well as the included self-adhesive seals. no adjustment is possible without breaking the seal
no reset to '0' required
the measuring element is only under load when a force is applied
fast, precise adjustment with QuickSelect quick adjustment
dual scale N·m/ft·lb
mount for interchangeable insert tools
with QuickRelease safety lock
clicking mechanism insensitive to continuous loads and counter-loads (up to the max. measurement range of the torque wrench)
counter-clockwise tightening by turning the insert tools over
optimal calibration with perfectControl® calibration systems No. 7794 or calibration systems No. 7706, 7791

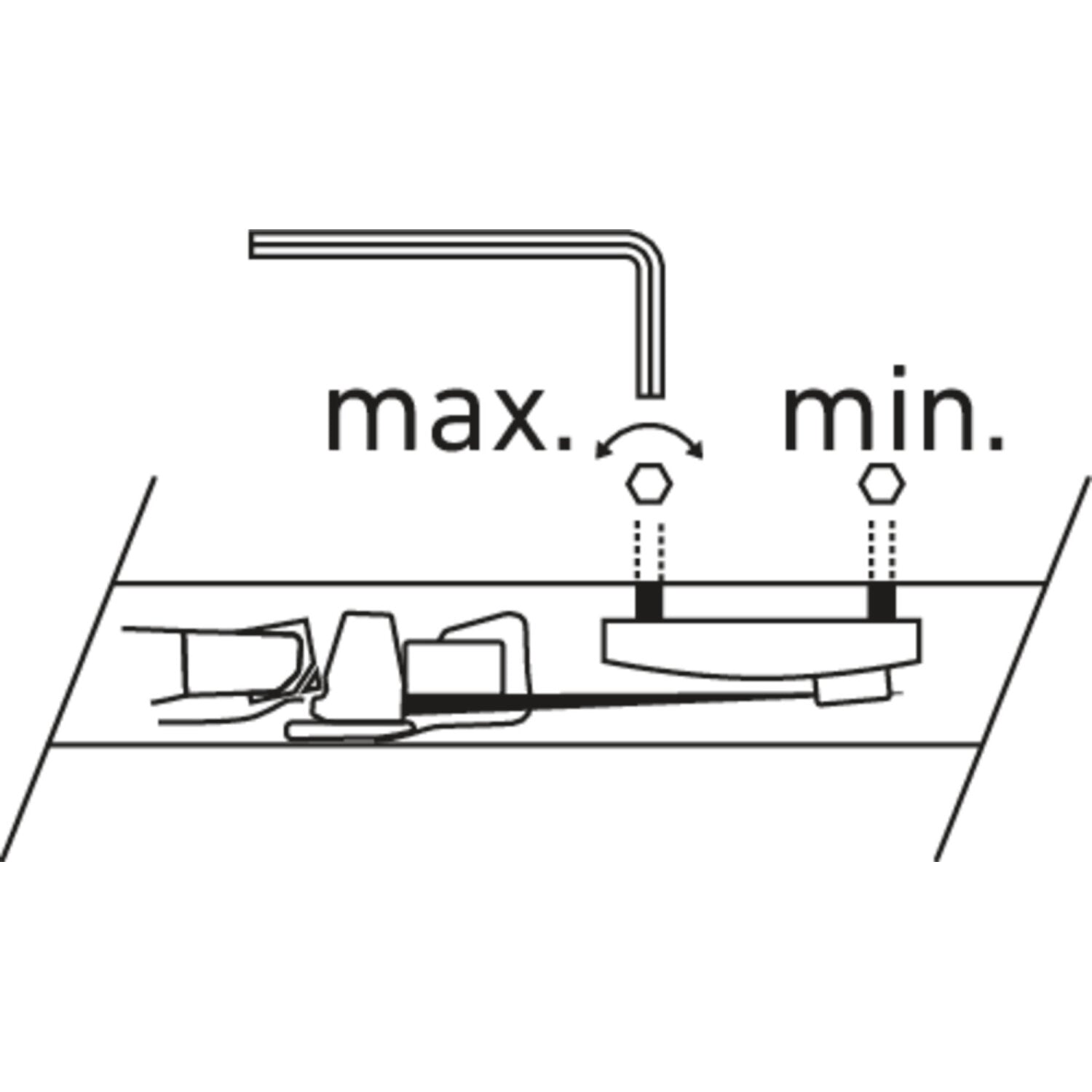

easy adjustment without disassembly via 2 external adjustment screws
with 2-component handle
in sturdy plastic box (sizes 80-100 in sheet steel box)
calibration certificate in accordance with DIN EN ISO 6789-2:2017
About Manufacturer
Stahlwille

While there are many brands of high quality German tools, few are as recognized as Stahlwille. Stahlwille Tools is well known not just for automotive tools, but they’re a brand widely used by the aerospace industry. One of Stahlwille’s contributions to aerospace was the “Tool Control” System which uses bright colors in the storage case that show only when a tool is missing. Stahlwille has also led innovation in aerospace applications by creating tools like the Anti Slip Drive, the Spline Drive the Quick Release and many more. The quality of Stahlwille Tools is among the best, anything less would be disastrous for those in aerospace.
