Stahlwille 96504002 730R/2 Quick torque wrench 4-20Nm

$519.52 USD & FREE Shipping.
/
%3Cp%3EEarn%20[points_amount]%20when%20you%20buy%20this%20item.%3C/p%3E
Extended Handling May Be Required
  • clicking type with dual stop signal
  • no reset to “0' required, as the measuring element is only under load when a force is applied
  • mount for interchangeable insert tools
  • with QuickRelease safety lock
  • Quick adjustment thanks to easy-to-operate locking lever in handle
Overview
730R/2 Quick torque wrench, 4–20 Nm, clicking type with dual stop signal. Does not require reset to “0” as the measuring element is only under load during use. Features a mount for interchangeable insert tools, QuickRelease safety lock, and quick adjustment via an easy-to-operate locking lever with a non-slip adjuster and thumb recess. Includes a double scale (N·m/ft·lb or N·m/in·lb), with an option for N·m only version. Supports counter-clockwise tightening by reversing insert tools. The clicking mechanism is resistant to continuous and counter-loads. Compatible with perfectControl® calibration systems No. 7794, 7706, and 7791, and allows easy adjustment via two external screws without disassembly. Equipped with a 2-component handle and supplied with a calibration certificate according to DIN EN ISO 6789-2:2017.
Brand img

Stahlwille 96504002 730R/2 Quick torque wrench 4-20Nm

You may also like
Specifications
General Information
Brand
Stahlwille
Product Type
Torque Wrenches
Packaging
Bulk
Country of Origin
Germany
UPC
4018754311354
California Residents
Proposition 65 Warning
Part Number
96504002

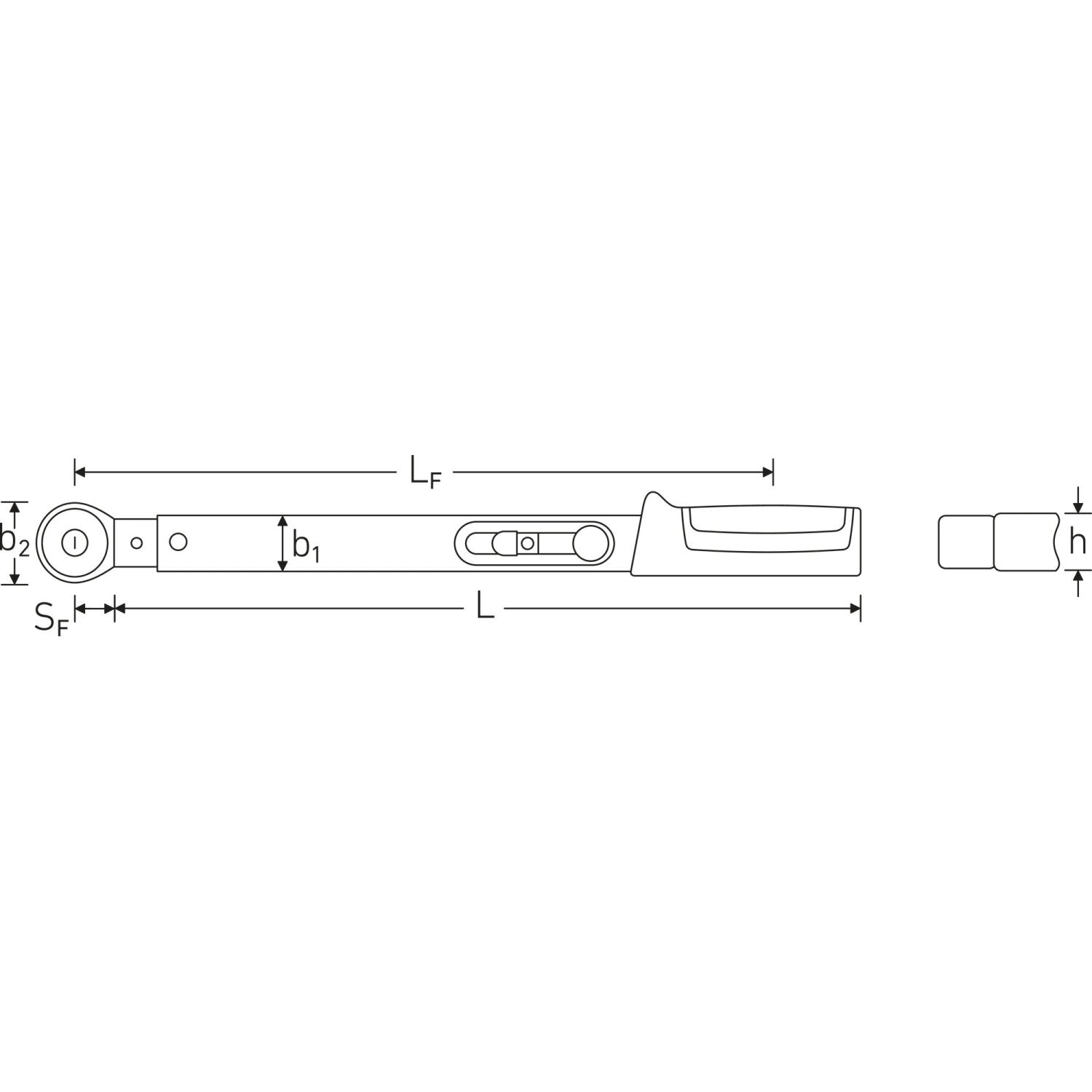

Physical Characteristics
Length
255 mm
Width
55 mm
Height
55 mm
Weight
2.19 kg
4.82 lb
Details
Wrench Type
Torque
Torque Range Nm
4-20 Nm
Features
clicking type with dual stop signal
no reset to “0' required, as the measuring element is only under load when a force is applied
mount for interchangeable insert tools
with QuickRelease safety lock
Quick adjustment thanks to easy-to-operate locking lever in handle
non-slip adjuster with thumb recess for quick torque adjustment
double scale N·m/ft·lb or N·m/in·lb
also available on request as a N·m only version without dual scale
counter-clockwise tightening by turning the insert tools over
clicking mechanism insensitive to continuous loads and counter-loads (up to the max. measurement range of the torque wrench)
optimal calibration with perfectControl® calibration systems No. 7794 or calibration systems No. 7706, 7791

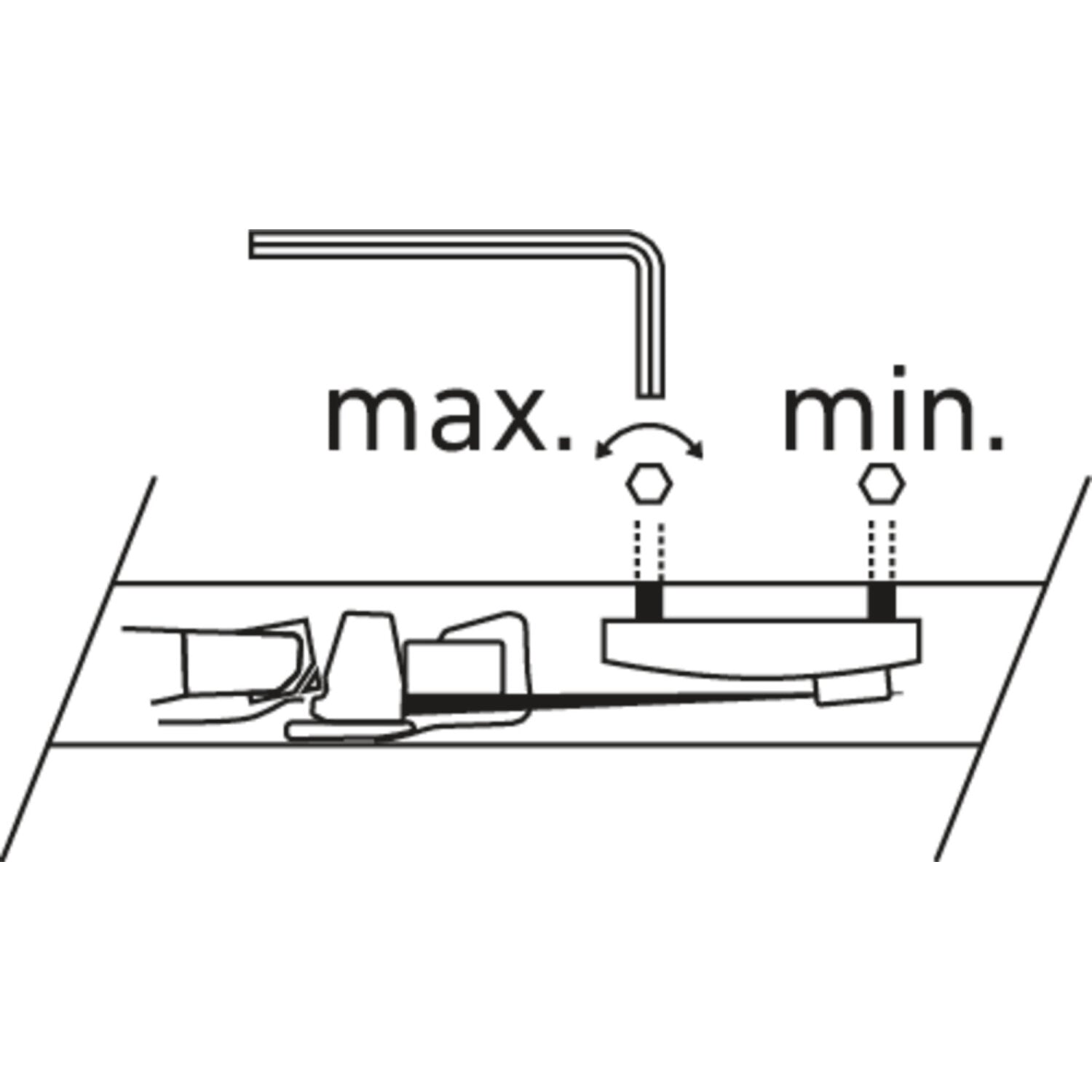

easy adjustment without disassembly via 2 external adjustment screws
with 2-component handle
calibration certificate in accordance with DIN EN ISO 6789-2:2017
Drive Connector Size
3/8 Inches
About Manufacturer
Stahlwille

While there are many brands of high quality German tools, few are as recognized as Stahlwille. Stahlwille Tools is well known not just for automotive tools, but they’re a brand widely used by the aerospace industry. One of Stahlwille’s contributions to aerospace was the “Tool Control” System which uses bright colors in the storage case that show only when a tool is missing. Stahlwille has also led innovation in aerospace applications by creating tools like the Anti Slip Drive, the Spline Drive the Quick Release and many more. The quality of Stahlwille Tools is among the best, anything less would be disastrous for those in aerospace.
