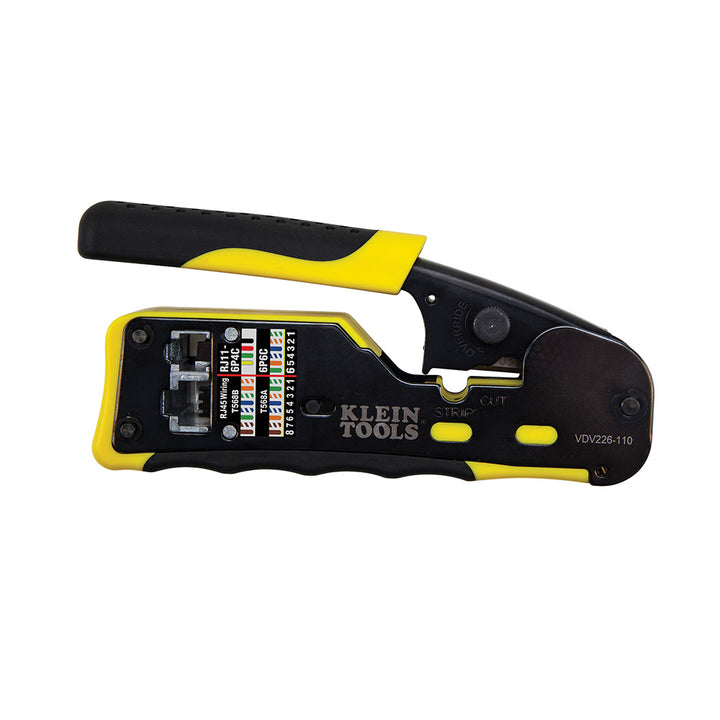

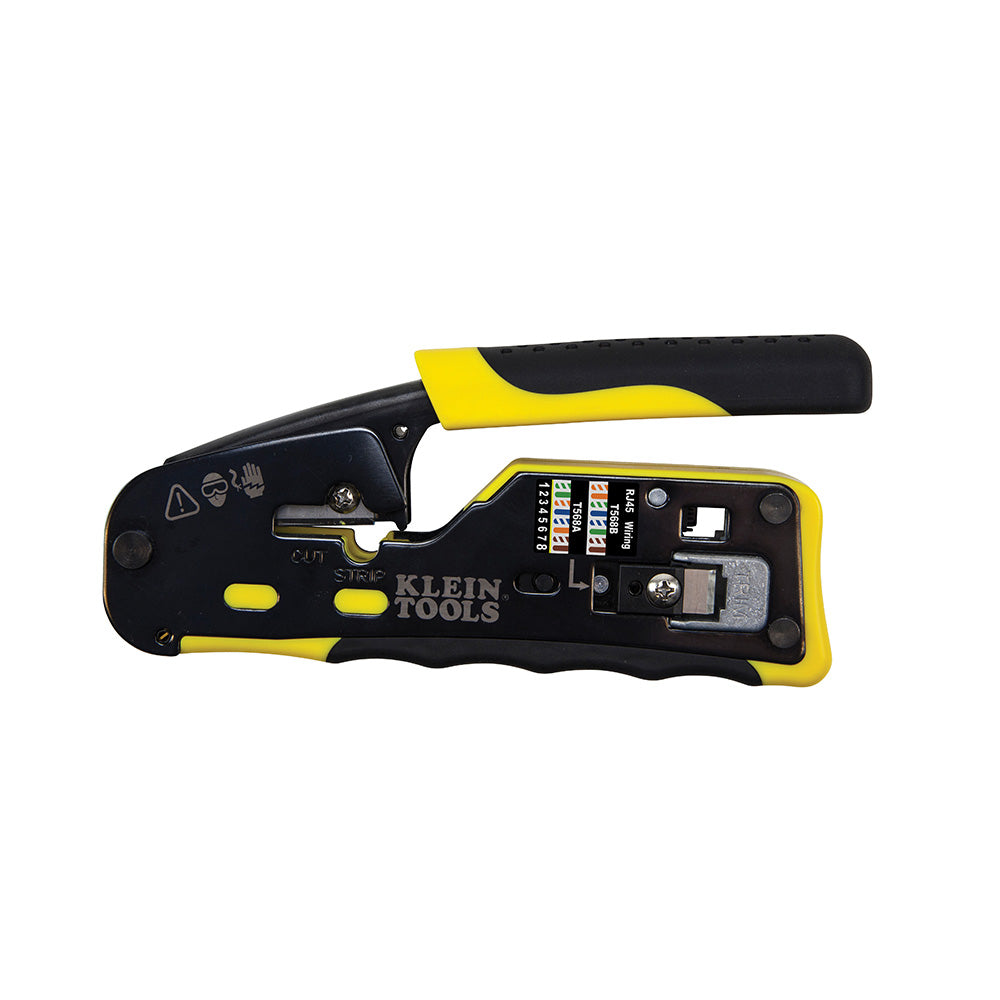

Klein Tools VDV226-110 Ratcheting Pass-Thru Modular Crimper

Klein Tools VDV226-110 Ratcheting Pass-Thru Modular Crimper

Quantity

$49.97 USD & FREE Shipping.

Fast, reliable modular crimp-connector install tool for voice and data applications with Pass-Thru RJ45 connector plugs
All-in-one tool cuts, strips and crimps paired-conductor data cables

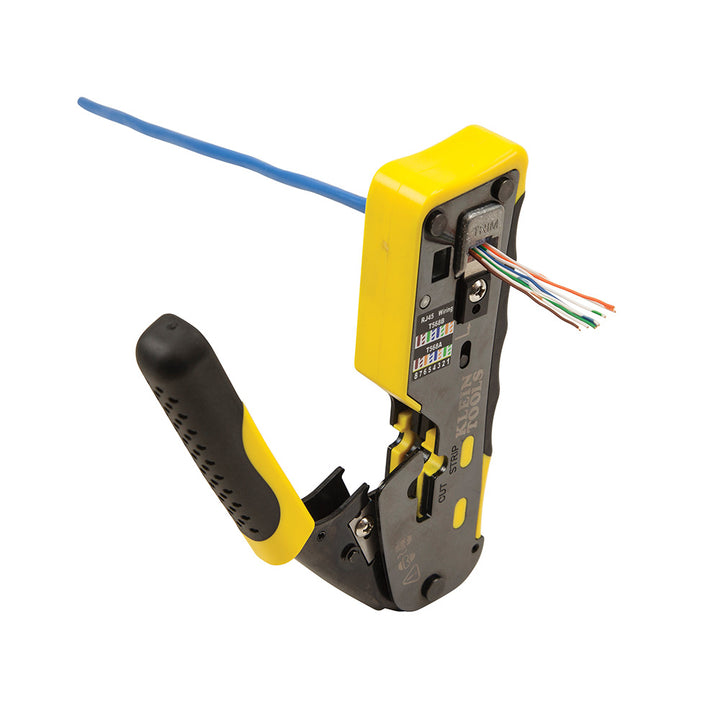

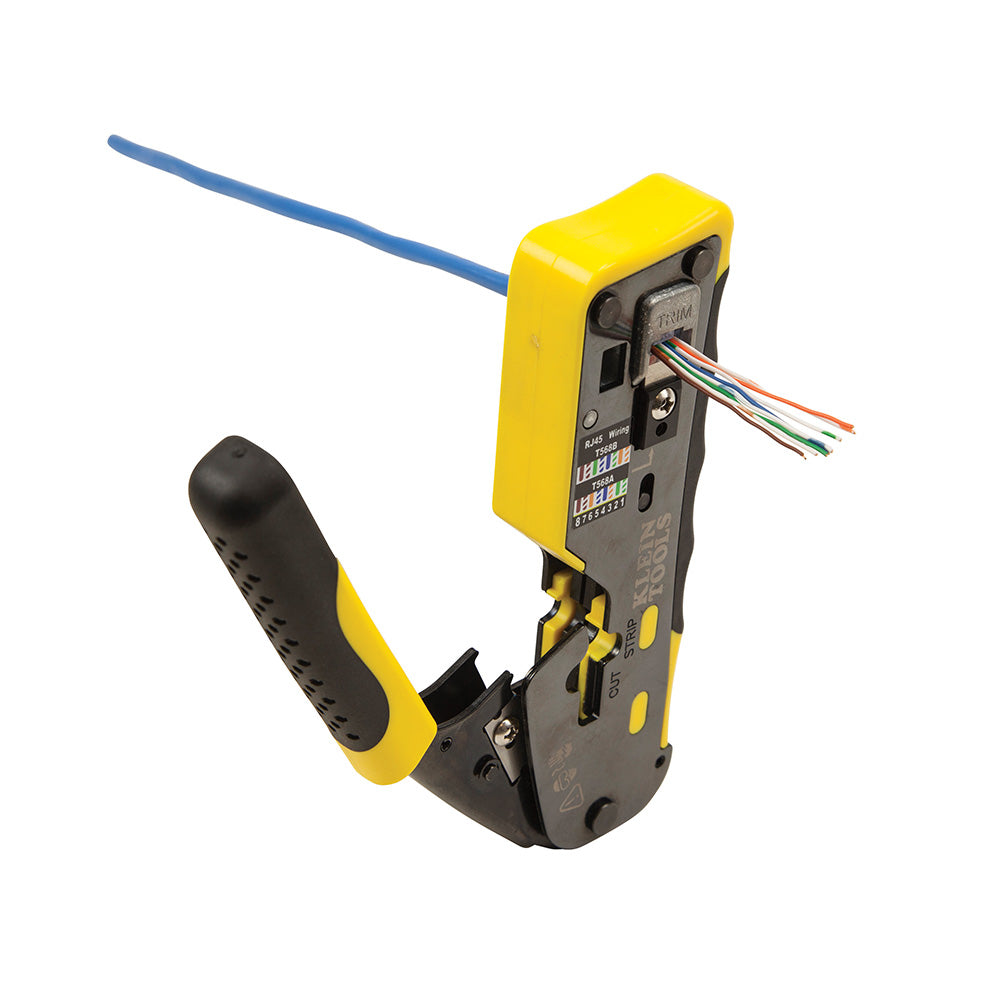

Trims flush to end face of connector eliminating unintended contact between conductors
Crimps and trims Klein Tools RJ45 Pass-Thru Connectors
Crimps 4, 6 and 8 position modular connectors (RJ11/RJ12 standard and RJ45 Klein Tools Pass-Thru)

Overview

Features

Premium, long lasting tool cuts, strips and crimps CAT3, CAT5e and CAT6/6A cable using RJ11/RJ12 standard and RJ45 Pass-Thru connectors. Pass-Thru technology significantly reduces prep work time; wiring diagram on the tool helps eliminate rework and wasted materials. Compact, non-slip comfort grip reduces hand strain and stores easily. For use with Klein Pass-Thru Connectors (in packs of 10, 50 or 200).

Klein Tools VDV226-110 Ratcheting Pass-Thru Modular Crimper

Category Crimpers
Brand Klein Tools
Part # VDV226-110

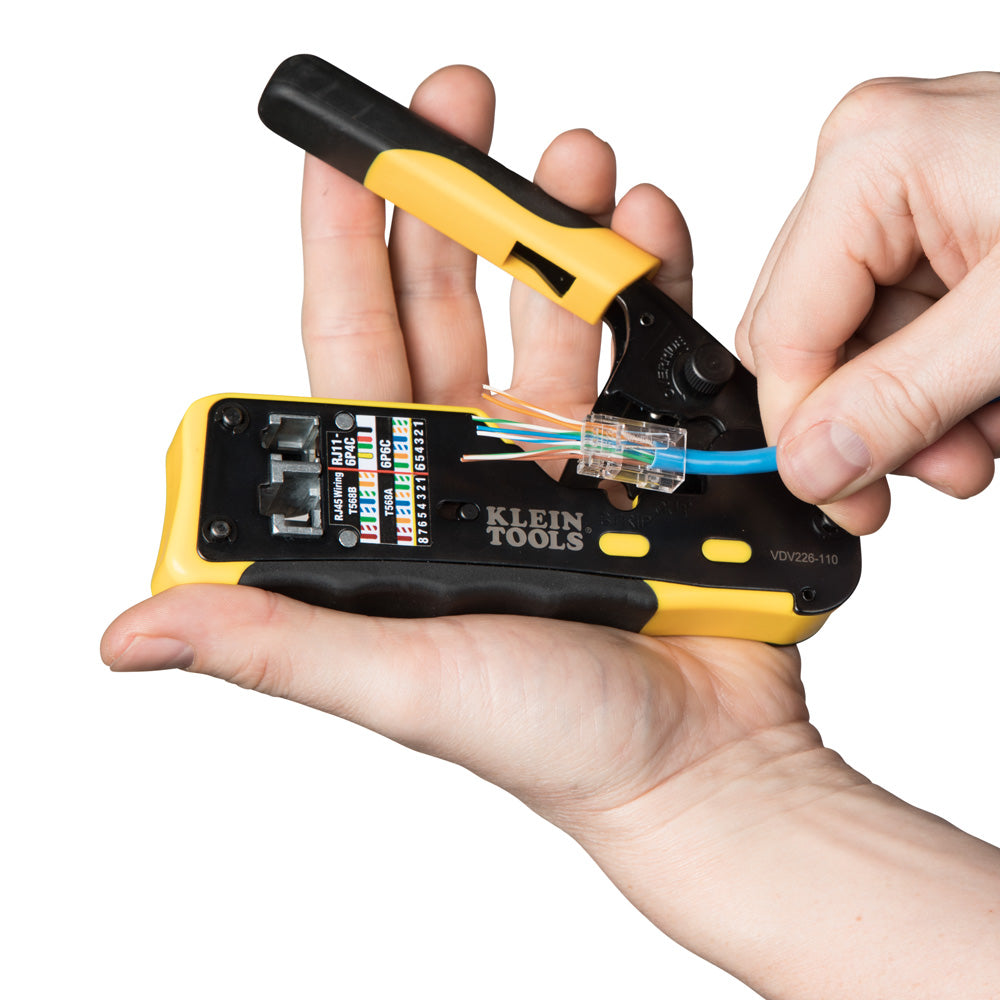

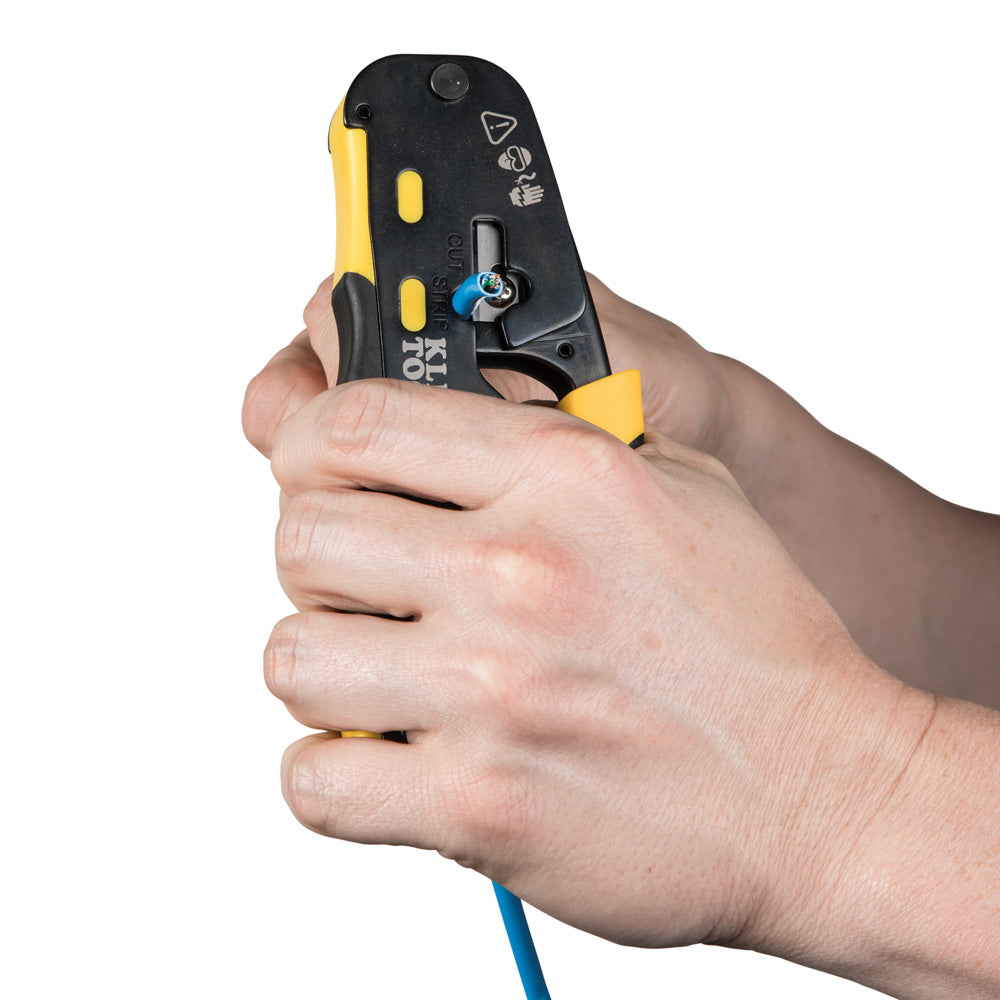

Crimp multiple types of connectors (RJ11, RJ12, Klein’s Pass-Thru Connectors and standard RJ45) with Klein’s VDV226-110. It also cuts and strips data cables giving you one tool that does everything you would need to terminate cable.

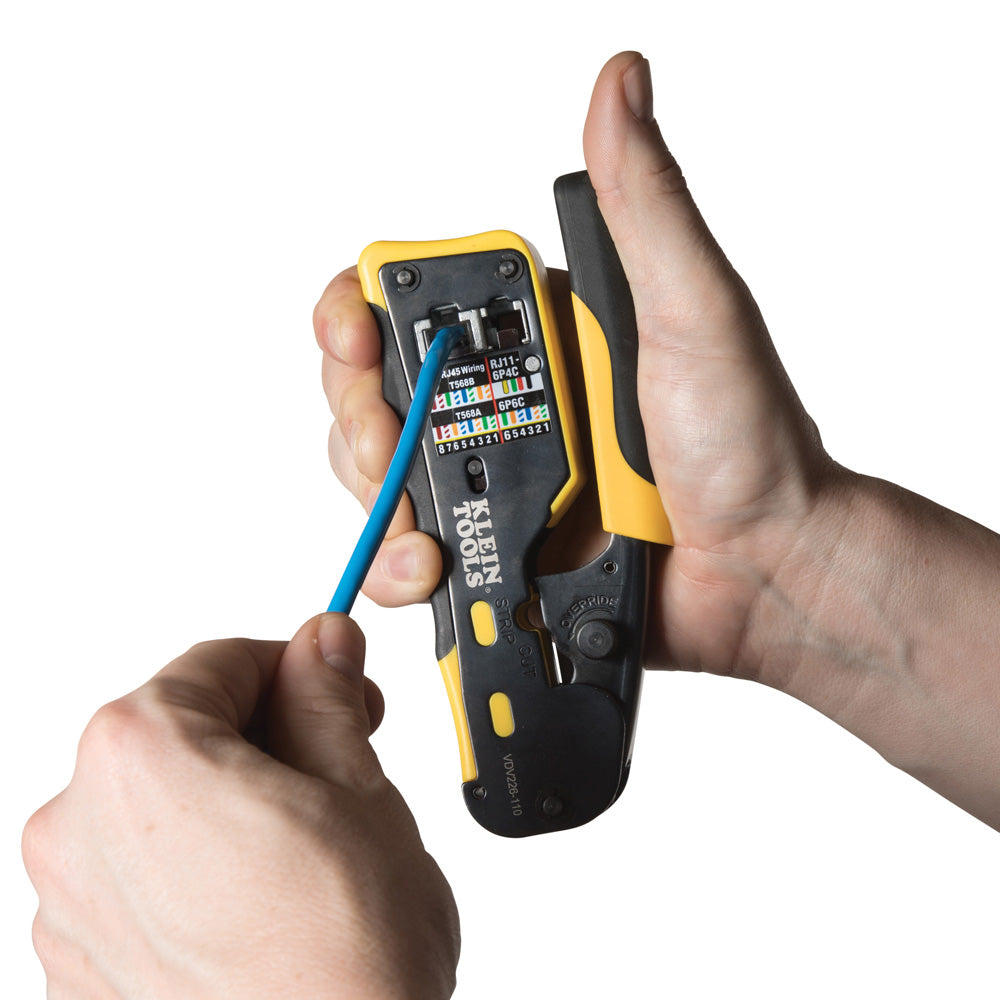

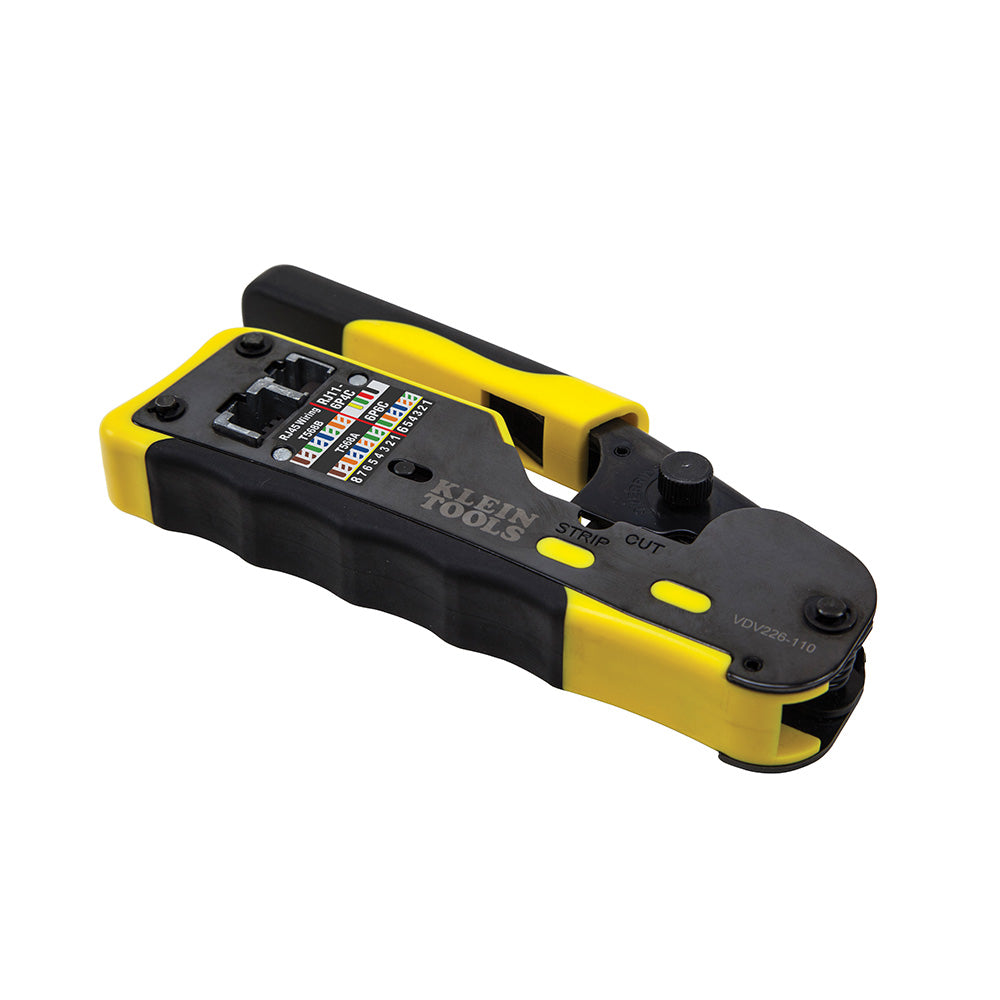

“Cheat Sheet” for proper position of wires is clearly displayed on the tool.

Designed to prevent contact between conductors which ensures proper connection.

You may also like

Specifications

General Information

Brand

Klein Tools

Part Number

VDV226-110

Product Type

Crimper

Application

Cable Connection

Packaging

Retail

UPC

092644690945

California Residents

Proposition 65 Warning

Physical Characteristics

Length

6.094'' (154.8 mm)

Weight

0.41 kg

0.90 lb

Color

Yellow / Black

Material

Steel with Black Oxide

Details

Features

Fast, reliable modular crimp-connector install tool for voice and data applications with Pass-Thru RJ45 connector plugs
All-in-one tool cuts, strips and crimps paired-conductor data cables
Trims flush to end face of connector eliminating unintended contact between conductors
Crimps and trims Klein Tools RJ45 Pass-Thru™ Connectors
Crimps 4, 6 and 8 position modular connectors (RJ11/RJ12 standard and RJ45 Klein Tools Pass-Thru™)
Full-cycle ratchet mechanism ensures complete connector termination

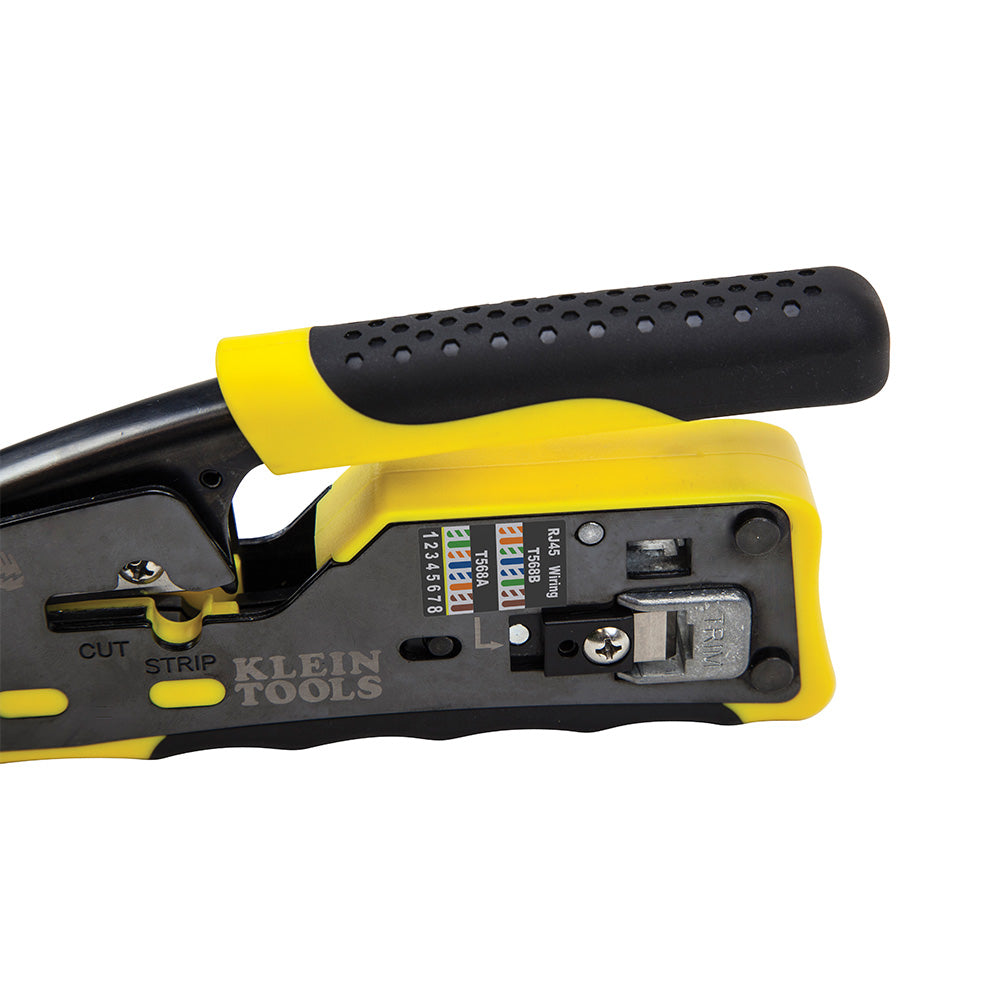

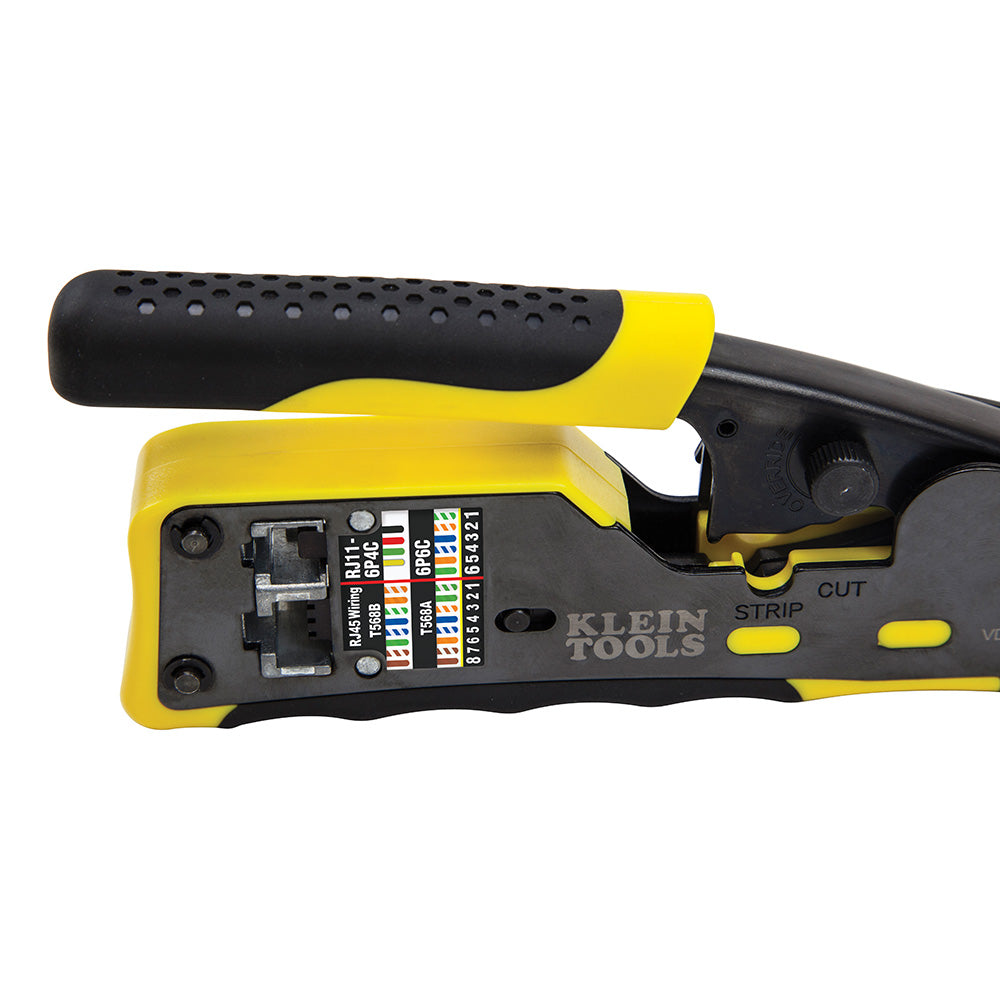

On-tool wiring guide helps minimize wiring errors
Cable parameters: 28-22 AWG flat or round; solid or stranded telephone and data
Rubber grip for added comfort
Ratcheting locking mechanism
Use with Klein Tools Pass-Thru™ Connectors
Not for use with standard (non Pass-Thru™) connectors
Replacement blade set available (VDV999-076)

Resources

96523_PassThroughCrimperConnector_SellSheet_WebReady.pdf

Video

Our Pass-Thru Modular Crimper is a premium, long lasting tool that cuts, strips and crimps! Pass-Thru™ technology significantly reduces prep work time; tool wiring diagram on tool helps eliminate rework and wasted materials. Compact, non-slip comfort grip reduces hand strain and stores easily. For use with Klein Pass-Thru™ Connectors (VDV826-728, VDV826-729, VDV826-702, VDV826-703, VDV826-763).

This short instructional video gives you a quick overview of how to use Klein’s Pass-ThruTM Modular Crimper (VDV226-110) using Klein’s Pass-ThruTM connectors.
