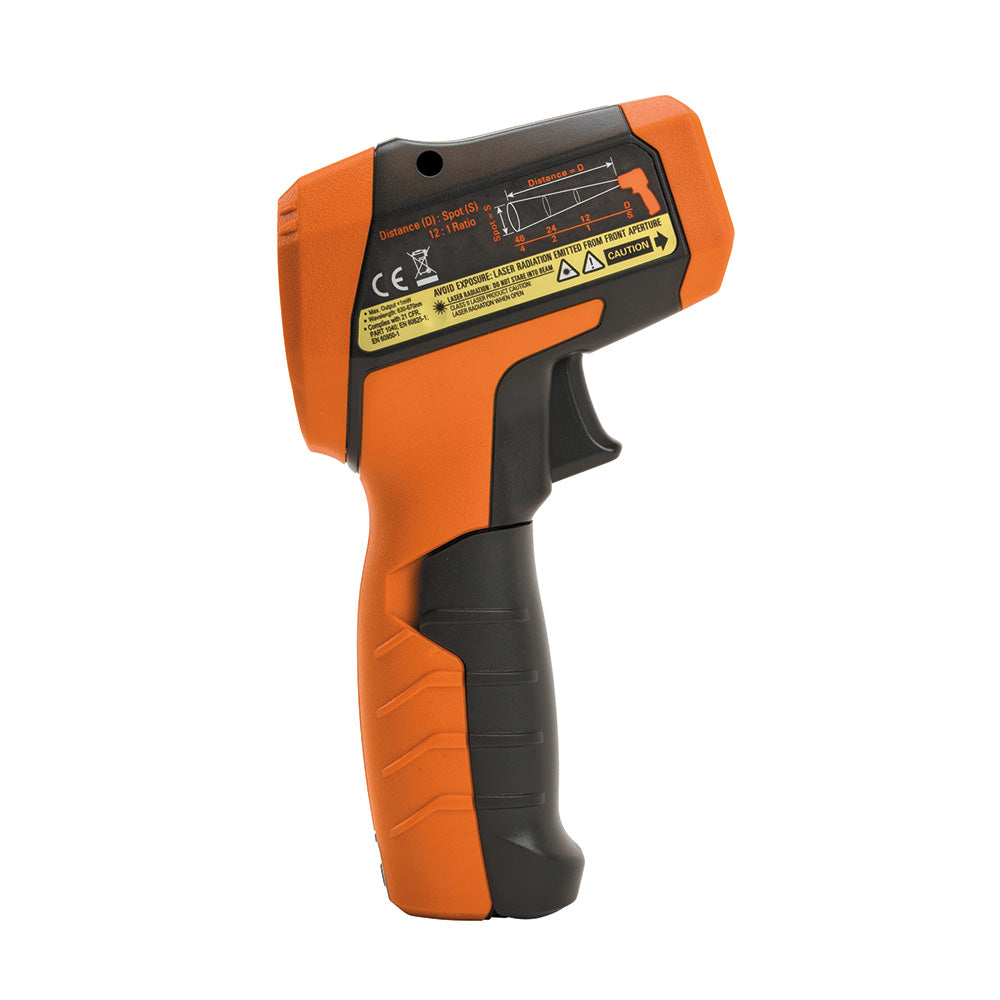

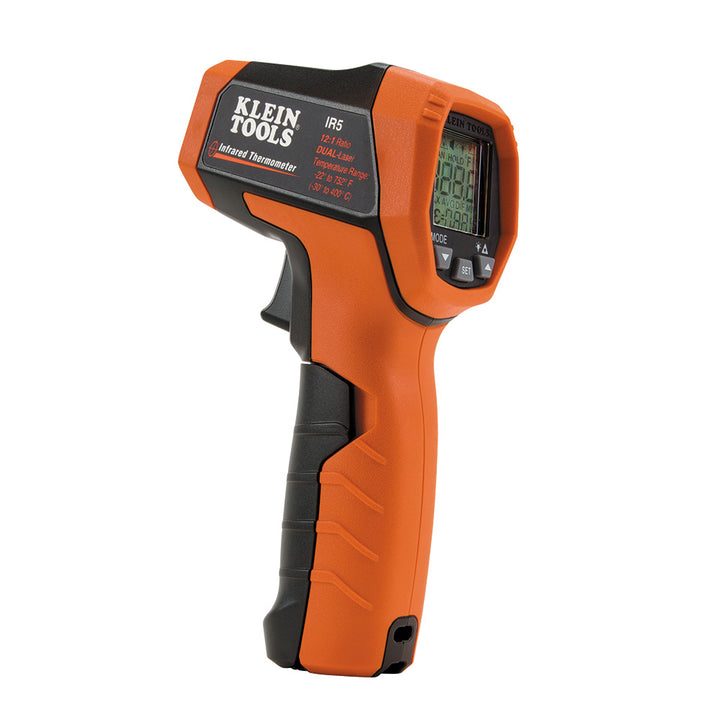

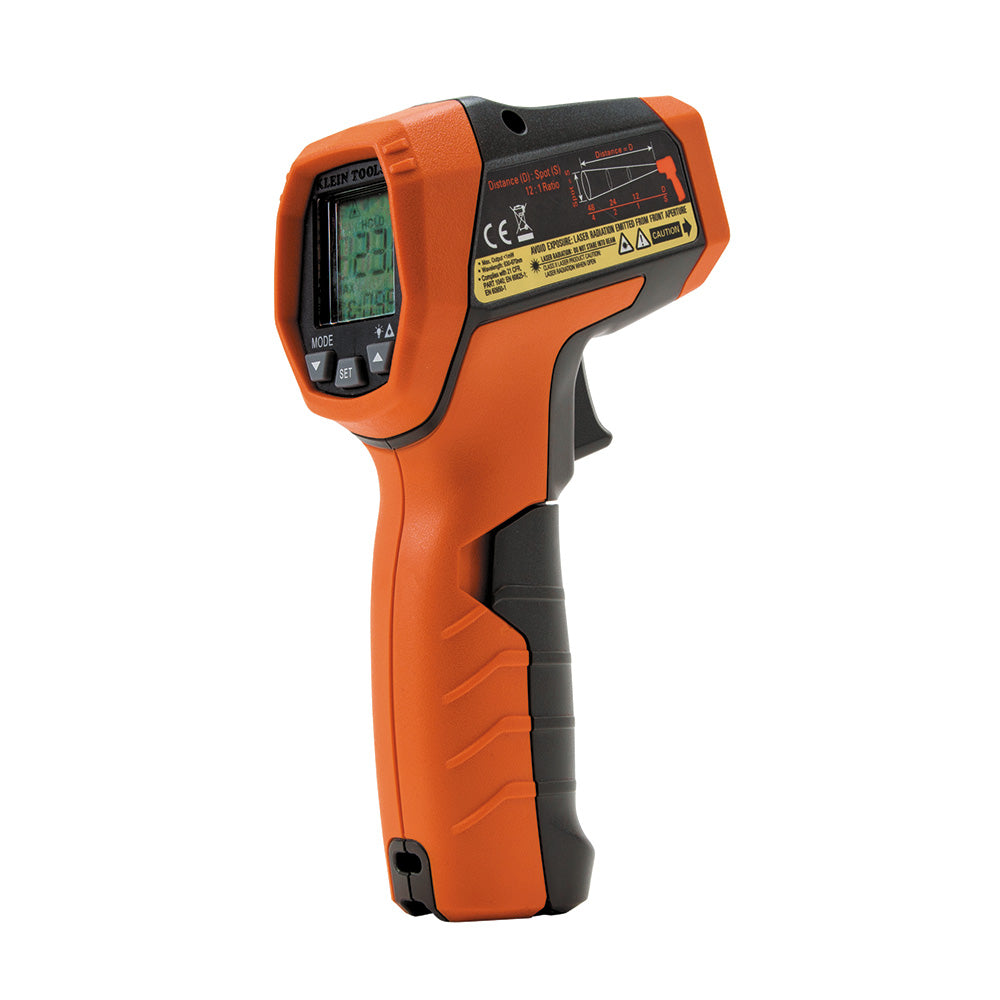

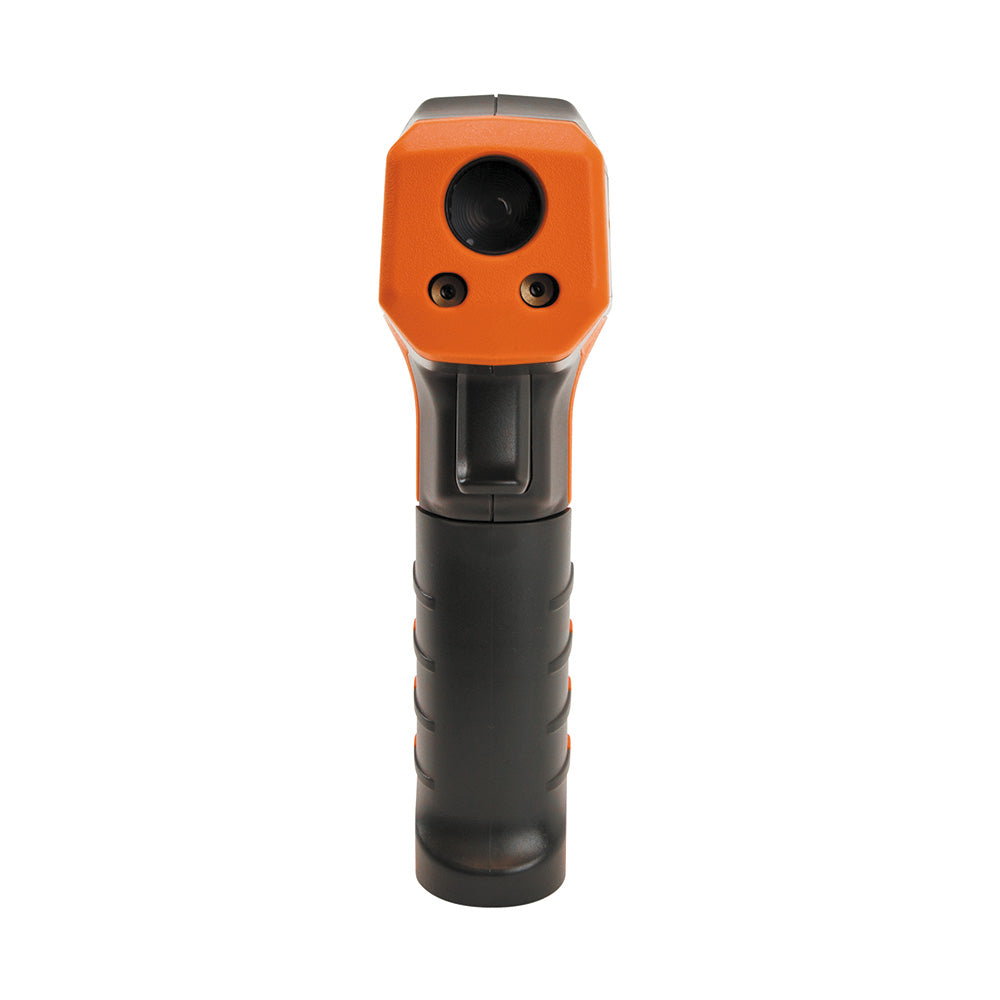

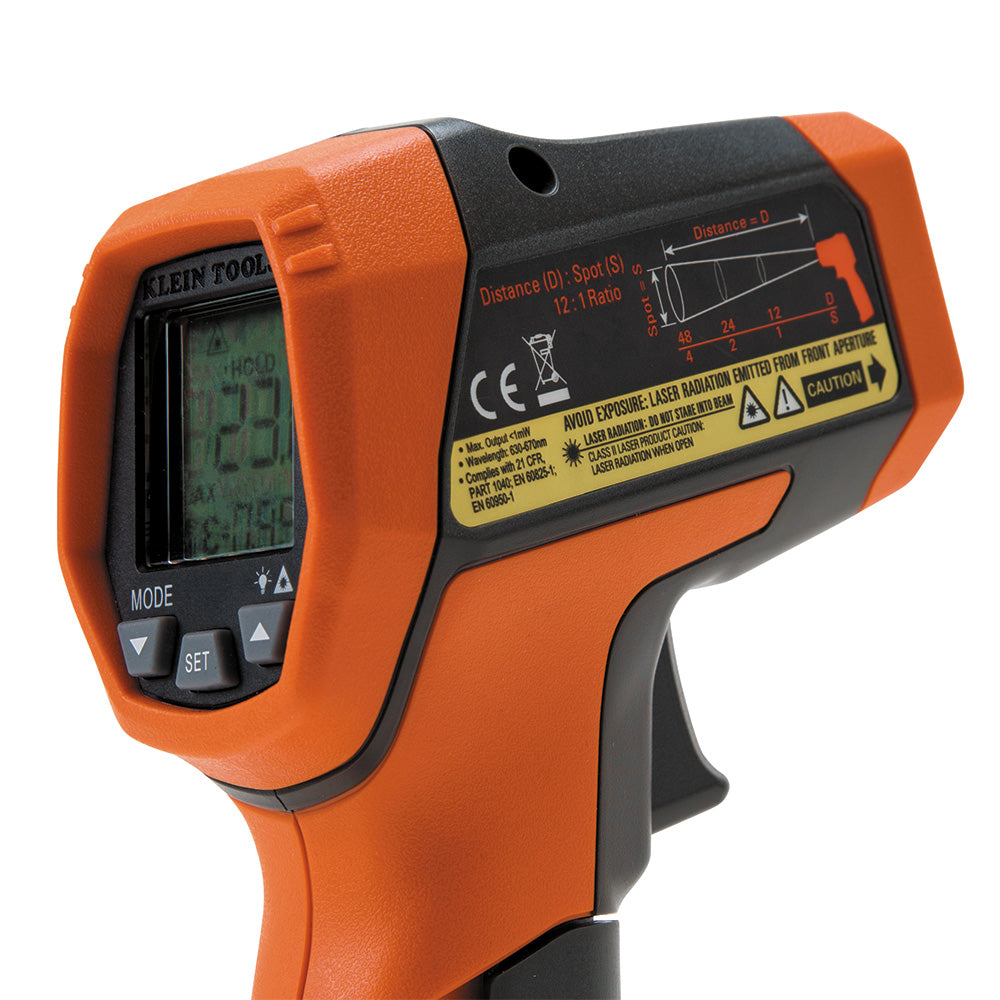

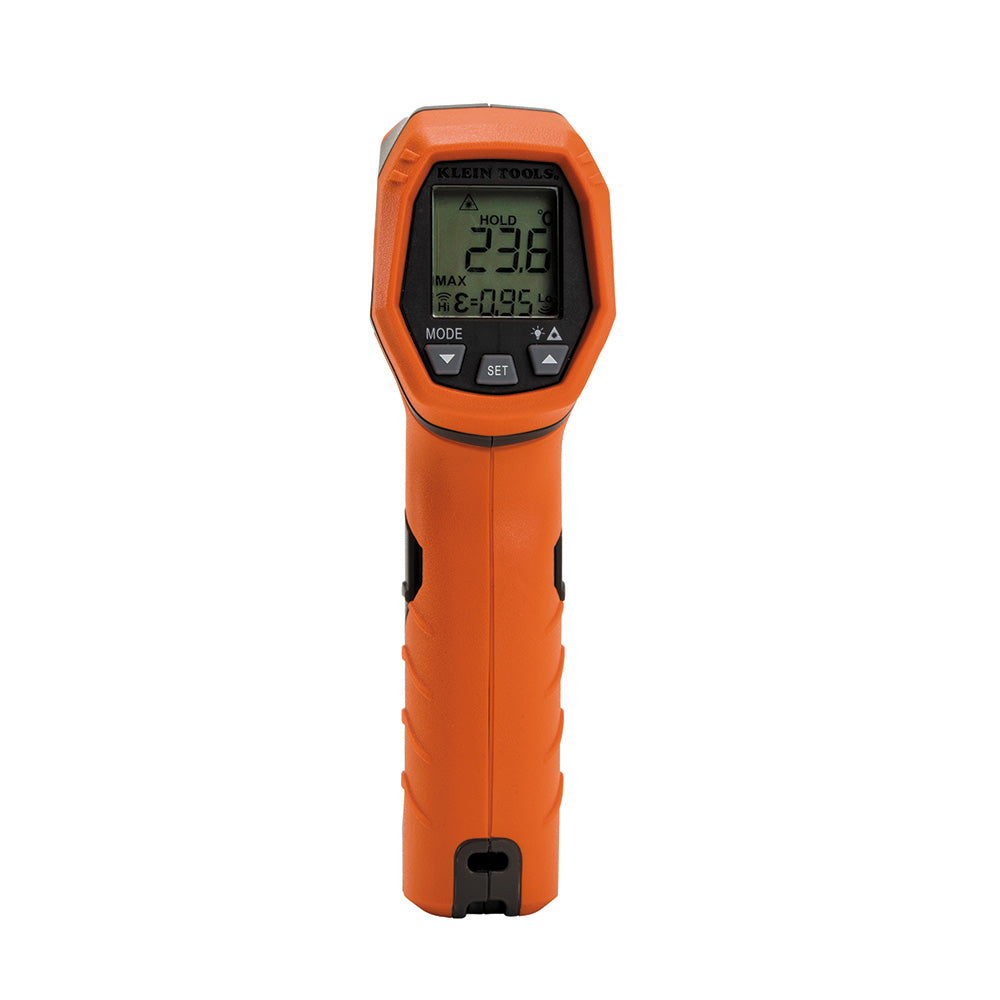

Klein Tools IR5 Dual Laser Infrared Thermometer

Klein Tools IR5 Dual Laser Infrared Thermometer

Optical Resolution (Distance-to-spot) is 12:1
Features include dual-laser targeting; auto-scan; max/min/avg/diff; high/low alarm; backlit display; auto power-off
Drop protection to 6.6-feet (2 m)
Measurement Range: -22-degrees to 752-degrees F (-30-degrees to 400-degrees C)
Uses one 9-volt battery, with battery life expectancy at 10 hours of continuous use with laser and backlight on

Overview

Features

Klein Tools IR5 is a professional dual-laser targeting infrared thermometer, offering a wide measurement range, a tight 12:1 distance-to-spot ratio, dual targeting lasers, and several calculation modes to facilitate different temperature measurement applications. The dual lasers assist in targeting the measurement area. The distance between the two laser spots on the surface of the object being measured approximates the diamater of the circular measurement area from which the infrared sensor is collecting data.

Klein Tools IR5 Dual Laser Infrared Thermometer

Category Specialty Testers
Brand Klein Tools
Part # IR5

You may also like

Specifications

General Information

Brand

Klein Tools

Part Number

IR5

Product Type

Infrared Thermometer

Application

Accurate Targeting and Temperature Measurement

What's Included

Custom Pouch and Batteries

Packaging

Retail

UPC

092644690303

California Residents

Proposition 65 Warning

Physical Characteristics

Color

Orange / Black

Material

ABS Plastic

Length

6.82'' (17.3 cm)

Width

1.84'' (4.7 cm)

Height

4.53'' (11.5 cm)

Weight

0.28 kg

0.62 lb

Details

Functions

Accuracy: +/- 4° F or +/- 2%; Accuracy Below Freezing is +/- 4° F Plus 0.2 Degrees Per Degree Below 32° F

Features

Optical Resolution (Distance-to-spot) is 12:1
Features include dual-laser targeting; auto-scan; max/min/avg/diff; high/low alarm; backlit display; auto power-off
Drop protection to 6.6-feet (2 m)
Measurement Range: -22-degrees to 752-degrees F (-30-degrees to 400-degrees C)
Uses one 9-volt battery, with battery life expectancy at 10 hours of continuous use with laser and backlight on
Includes custom pouch and batteries
Adjustable emissivity
Soft-touch, over-mold housing
For ambient temperatures above freezing, the accuracy is +/- 4-degrees F or +/- 2-percent; Accuracy below freezing is +/- 4-degrees F plus 0.2 degrees per degree below 32-degrees F
Certified to IEC EN 61326-1.2006, EN608251.1994+A2.2001+A1.2002

Batteries

1 x 9V

Display Type

Digital Backlit

Test & Measure Types

Dual Laser Infrared Thermometer

Temperature Range

-22-degrees to 752-degrees F (-30-degrees to 400-degrees C)

Trade

Shop all Electrician

Shop all HVAC

Resources

EmissivityChart.pdf

IR5DualLaserThermometerSellSheet_96445.pdf

Video

Our IR5 is a professional dual-laser targeting infrared thermometer, offering a wide measurement range, a tight distance-to-spot ratio, dual targeting lasers, and several calculation modes to facilitate different temperature measurement applications.

Why would you use this tool for ?

About manufacturer

Klein Tools is the result of one of those “happy accidents” that turn out to be revolutionary. Klein Tools famously got their start in 1857 when a linesman came to founder Matthias Klein to repair his broken pliers. Klein replaced the broken half and when the old half of the tool broke too, Klein forged a replacement for that, thus making the first Klein Linesman pliers. Since these humble beginnings, Klein Tools has grown and become one of the largest American made toolmakers and they’re a brand used by tradesmen, linesman and electricians all across America.
