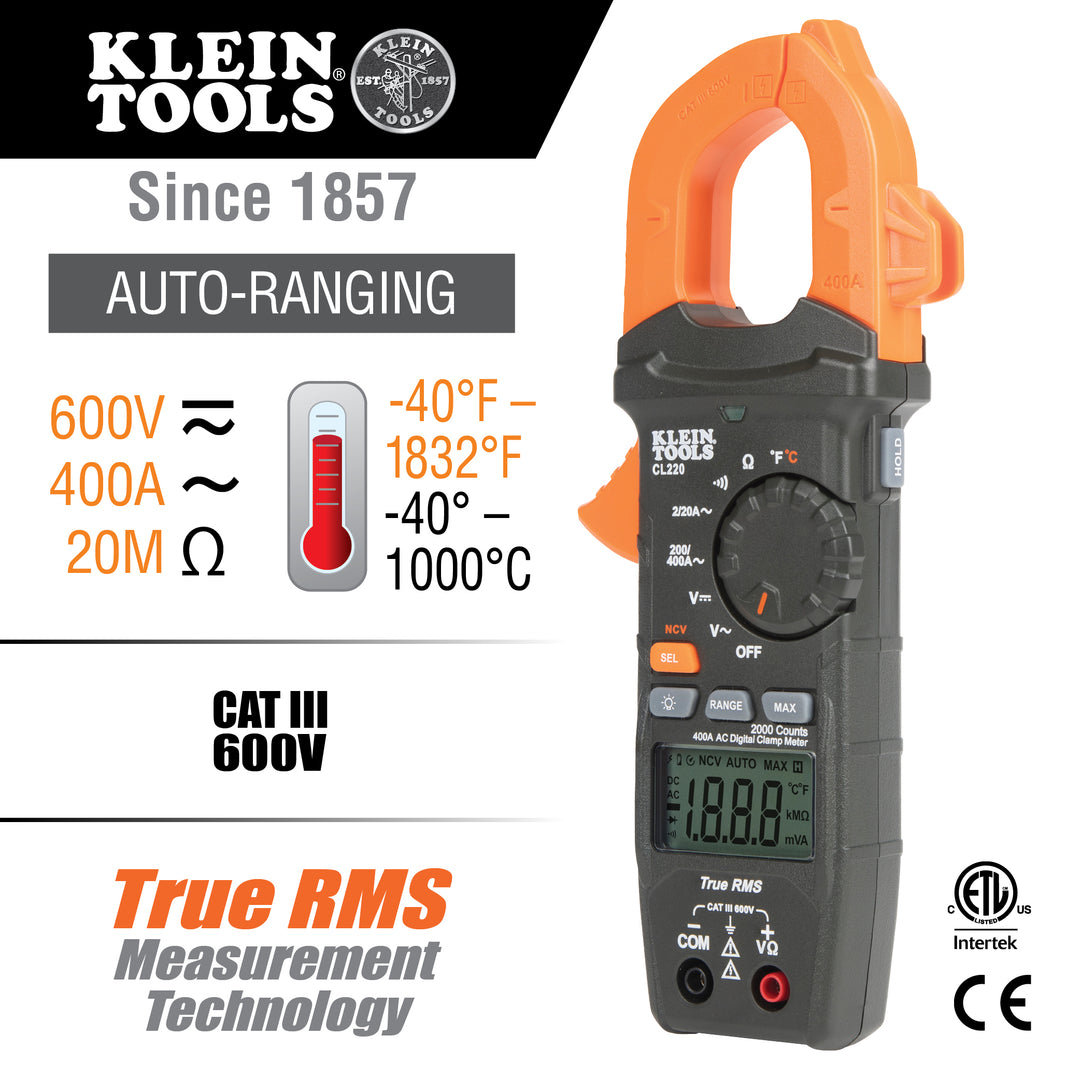

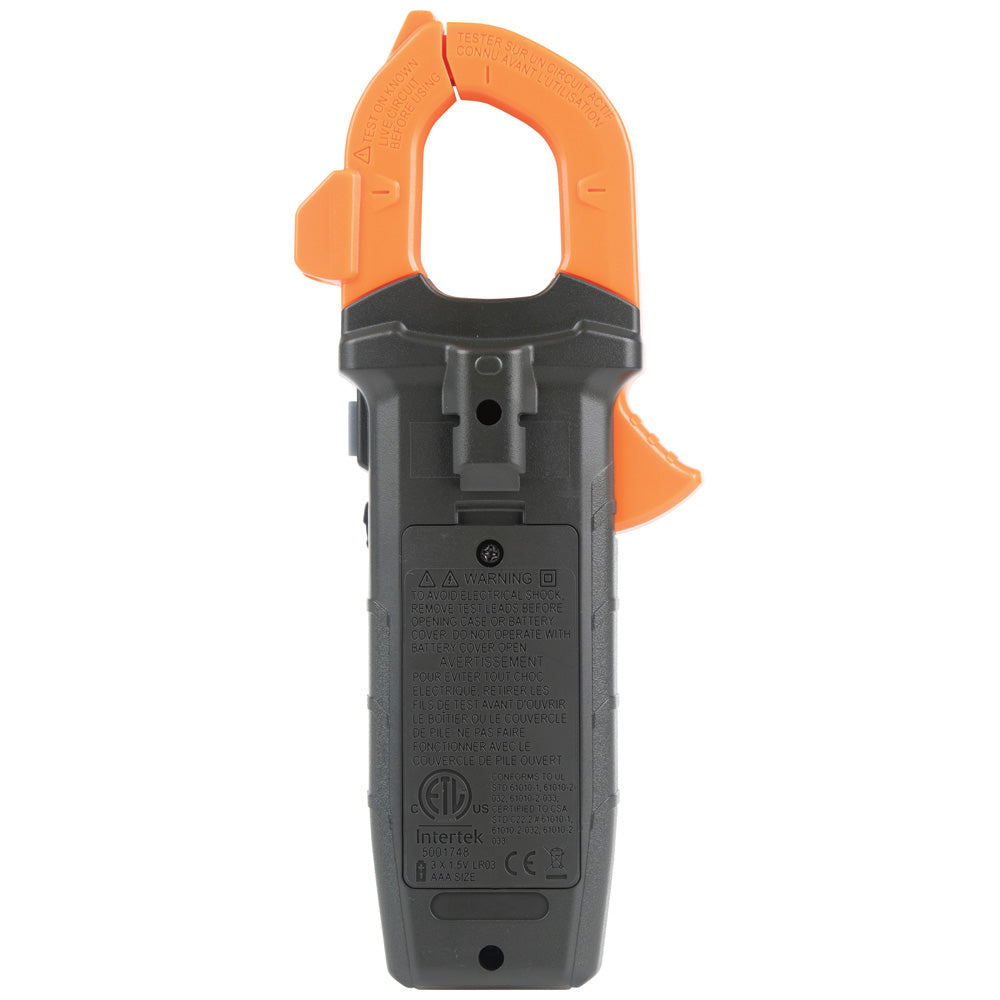

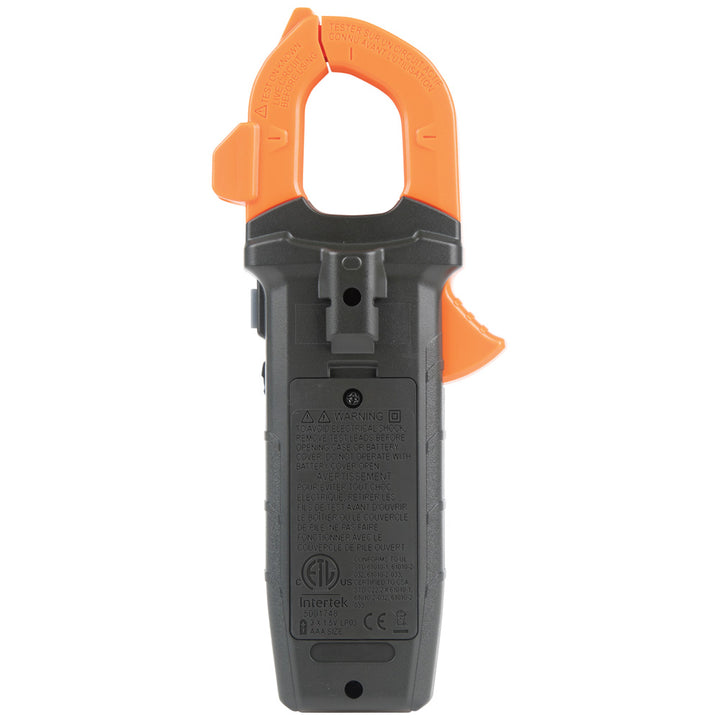

Klein Tools CL220 Digital Clamp Meter, AC Auto-Ranging 400 Amp with Temp
Klein Tools CL220 Digital Clamp Meter, AC Auto-Ranging 400 Amp with Temp
Klein Tools CL220 Digital Clamp Meter, AC Auto-Ranging 400 Amp with Temp
Klein Tools CL220 Digital Clamp Meter, AC Auto-Ranging 400 Amp with Temp
Klein Tools CL220 Digital Clamp Meter, AC Auto-Ranging 400 Amp with Temp
Klein Tools CL220 Digital Clamp Meter, AC Auto-Ranging 400 Amp with Temp
Klein Tools CL220 Digital Clamp Meter, AC Auto-Ranging 400 Amp with Temp
Klein Tools CL220 Digital Clamp Meter, AC Auto-Ranging 400 Amp with Temp
Klein Tools CL220 Digital Clamp Meter, AC Auto-Ranging 400 Amp with Temp

Klein Tools CL220 Digital Clamp Meter, AC Auto-Ranging 400 Amp with Temp

Regular price
/

$65.97 USD & FREE Shipping.
  • Measures AC current and NCVT via clamp and AC/DC voltage, resistance, and continuity via test-leads, and temperature with thermocouple
  • Non-contact voltage tester integrated into the clamp jaw
  • Backlit LCD for ease of viewing in low light
  • Automatically ranging True Root Mean Squared (TRMS) measurement technology for accuracy
  • Test lead holder on side of clamp and optional magnetic hanger for meter (Cat. Nos. 69445 or 69417) for hands free operation
Overview

Klein Tools CL220 Clamp Meter is an automatically ranging true root mean square (TRMS) digital clamp meter that measures AC current and NCVT via the clamp, AC/DC voltage, resistance and continuity via test-leads, and temperature via a thermocouple probe. Exclusively designed from the ground up by electricians for electricians. Years of field research, combined with extensive input from electricians across America, inspired the development of meters loaded with innovative, time-saving features.


Brand img

Klein Tools CL220 Digital Clamp Meter, AC Auto-Ranging 400 Amp with Temp

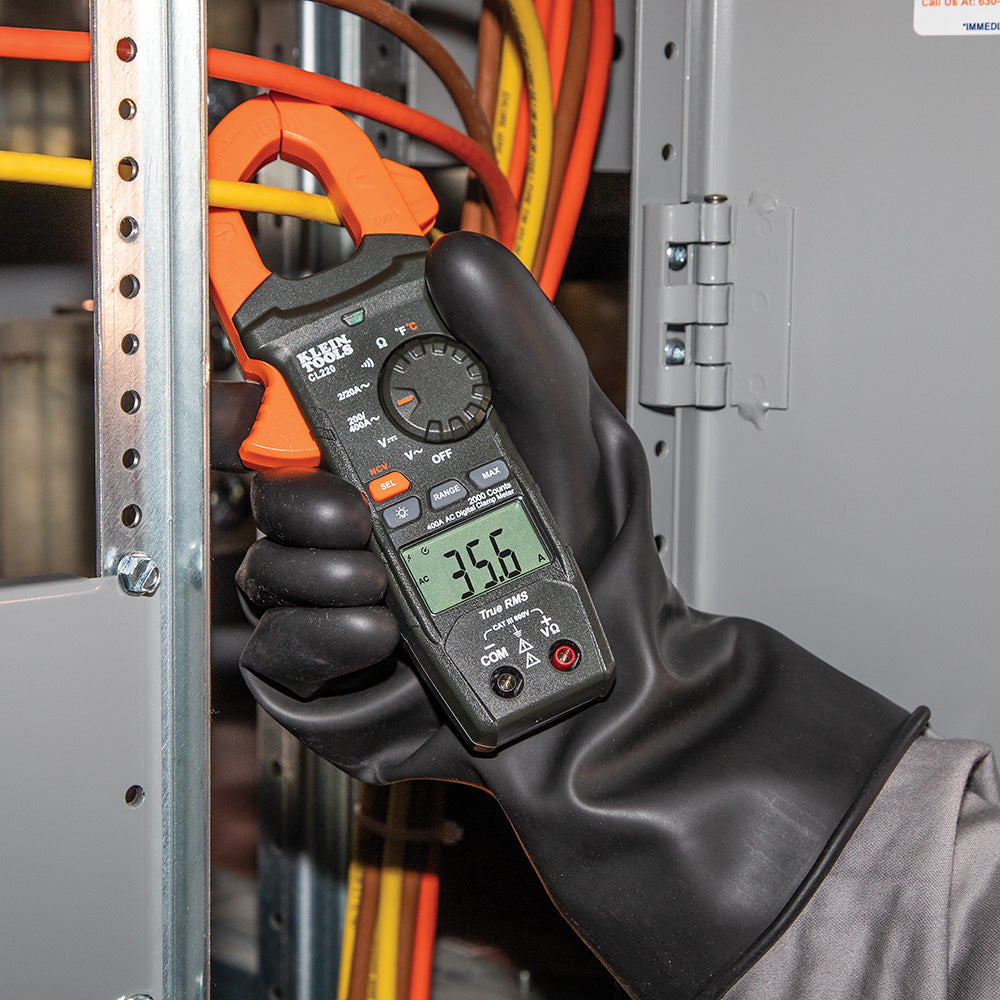

Non-invasive testing with clamp meter capable of measuring AC current, NCVT. Test leads measure AC/DC voltage, resistance and continuity. Thermocouple measures temperature

Hands free operation with test lead

Backlit display makes it easy to read test results

Automatic TRMS for increased accuracy

Specifications
General Information
Brand
Klein Tools
Part Number
CL220
Product Type
Digital Clamp Meter
Application
Measures AC Current and NCVT via Clamp and AC/DC Voltage, Resistance, and Continuity via Test-leads, and Temperature with Thermocouple
What's Included
Carrying Case, Instructions, Test Leads, Thermocouple, and Batteries
Packaging
Retail
UPC
092644692857
California Residents
Proposition 65 Warning
Physical Characteristics
Color
Black and Orange
Material
ABS/Electronics
Length
8.45'' (21.5 cm)
Width
3.51'' (8.9 cm)
Height
1.51'' (3.8 cm)
Weight
0.31185 kg
0.6875121254343111 lb
Details
Functions
TRMS, AC Current, NCVT, AC/DC Voltage, Resistance, Continuity and Temperature
Features
Measures AC current and NCVT via clamp and AC/DC voltage, resistance, and continuity via test-leads, and temperature with thermocouple
Non-contact voltage tester integrated into the clamp jaw
Backlit LCD for ease of viewing in low light
Automatically ranging True Root Mean Squared (TRMS) measurement technology for accuracy
Test lead holder on side of clamp and optional magnetic hanger for meter (Cat. Nos. 69445 or 69417) for hands free operation
Measures temperature with a K-Type thermocouple probe
Auto-Range, Hold, Data Hold, and Max value
Auto-power off after 10 minutes to conserve battery life
Includes a carrying case, test leads with CAT III/CAT IV safety caps, thermocouple, instructions, and 3 x AAA batteries
Low battery indicator and easily accessible battery compartment
Built to withstand a 6.6-Foot (2 m) drop
CAT III 600V, Class 2, Double insulation safety rating
Meets requirements for use in basic and controlled electromagnetic environments like residential, office and light-industrial locations
AC Voltage
600 V
DC Voltage
600 V
Current
400 A AC
Voltage
600 V AC/DC
Resistance (Ohms)
20 MΩ
Batteries
3 x AAA
Display Type
2000 Count Backlit LCD
Temperature Range
-40° - 1832°F (-40° - 1000°C)
Why would you use this tool for ?
About manufacturer
Brand img

Klein Tools is the result of one of those “happy accidents” that turn out to be revolutionary. Klein Tools famously got their start in 1857 when a linesman came to founder Matthias Klein to repair his broken pliers. Klein replaced the broken half and when the old half of the tool broke too, Klein forged a replacement for that, thus making the first Klein Linesman pliers. Since these humble beginnings, Klein Tools has grown and become one of the largest American made toolmakers and they’re a brand used by tradesmen, linesman and electricians all across America.
