Regular price
/

$109.97 USD & FREE Shipping.
  • Automatically ranging true mean squared (TRMS) technology for increased accuracy
  • Clamp measures AC current and thermocouple probe measures temperature
  • Test leads measure AC/DC voltage, resistance, continuity, frequency and capacitance and tests diodes
  • Low Impedance (LoZ) mode for identifying and eliminating ghost or stray voltages
  • CAT IV 600V, CAT III 1000V, Class 2, Double insulation safety rating
Overview

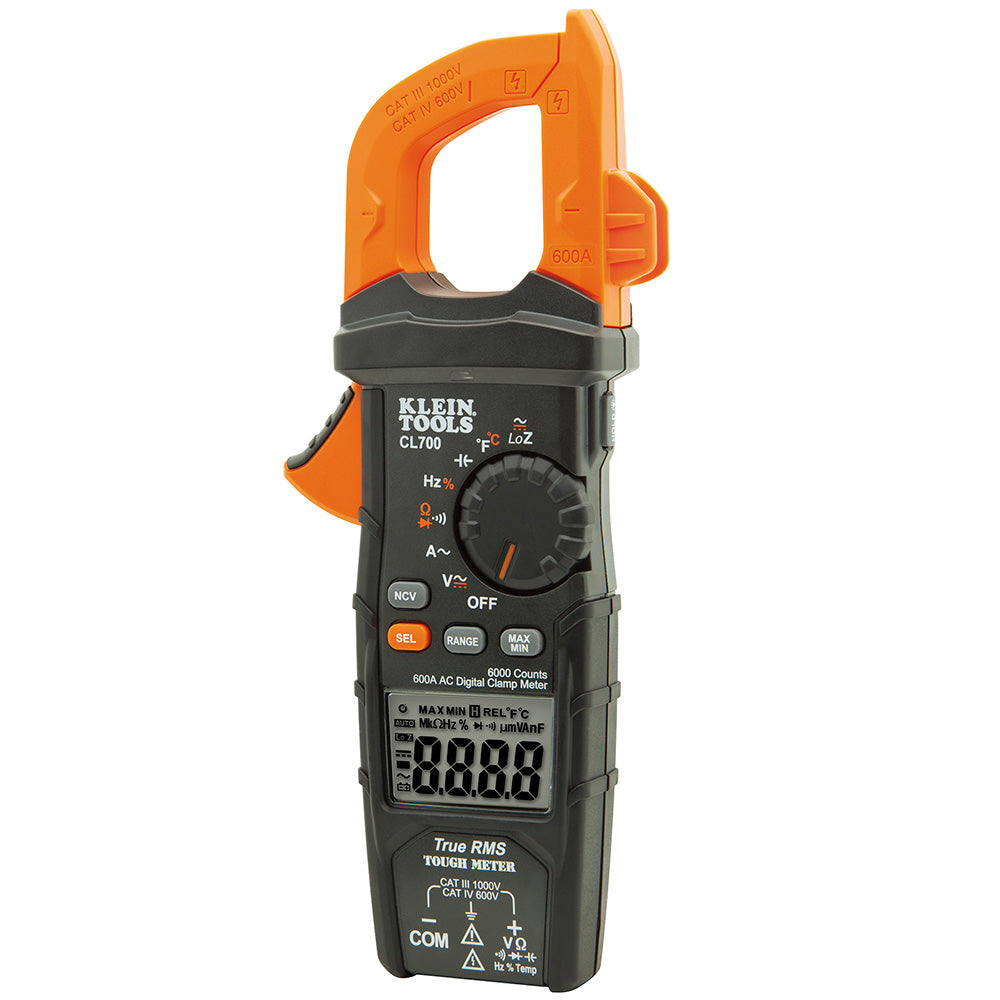

Klein Tools CL700 is an automatically ranging true root mean squared (TRMS) digital clamp meter that measures AC current via the clamp, and measures AC/DC voltage, resistance, continuity, frequency, capacitance, and tests diodes via test-leads, and temperature via a thermocouple probe. It also features a Low Impedance (LoZ) mode for identifying and eliminating ghost or stray voltages. Klein Tools’ Test and Measurement product line was exclusively designed from the ground up by electricians for electricians. Years of field research, combined with extensive input from electricians across America, inspired the development of meters loaded with innovative, time-saving features.
Brand img

Klein Tools CL700 Digital Clamp Meter AC Auto-Ranging LoZ

TRMS technology ensures enhanced accuracy

Safety rated for CAT IV 600V, CAT III 1000V, Class 2 double insulation

Measure AC current with the clamp meter

Built to withstand a 2-meter drop (6.6 ft) and IP 40 rated.

Specifications
General Information
Brand
Klein Tools
Part Number
CL700
Product Type
Digital Clamp Meter
Application
Measures AC Current
What's Included
Carrying Case, Test Leads, Thermocouple with Adapter, and Batteries
Packaging
Retail
UPC
092644690150
California Residents
Proposition 65 Warning
Physical Characteristics
Color
Black / Orange
Material
ABS
Length
9.09'' (23.1 cm)
Width
3.81'' (9.7 cm)
Height
1.55'' (3.9 cm)
Weight
0.33 kg
0.74 lb
Details
Functions
Clamp measures AC current and thermocouple probe measures temperature. Test leads measure AC/DC voltage, resistance, continuity, frequency and capacitance and tests diodes
Features
Automatically ranging true mean squared (TRMS) technology for increased accuracy
Clamp measures AC current and thermocouple probe measures temperature
Test leads measure AC/DC voltage, resistance, continuity, frequency and capacitance and tests diodes
Low Impedance (LoZ) mode for identifying and eliminating ghost or stray voltages
CAT IV 600V, CAT III 1000V, Class 2, Double insulation safety rating
Built to withstand a 6.6-Foot (2 m) drop
Low battery indicator and easily accessible battery compartment
Includes a carrying pouch, test leads, thermocouple with adapter and batteries
Meets requirements for use in basic and controlled electromagnetic environments like residential, office and light-industrial locations
Operating Temperature: 32-degrees F to 104-degrees F (0-degrees C to 40-degrees C)
Operating altitude to 6562-Foot (2000 m)
Jaw Size
1.38'' (3.5 cm)
Current
600A
Voltage
1000V AC; 1000V DC
Capacitance
6000µF
Resistance (Ohms)
60MO
Frequency
1Hz - 500 KHz
Batteries
2 x AAA
Display Type
6000 Count LCD
Temperature Range
-14° - 1000°F (-26° - 538°C)
Video
Our next generation of test and measurement tools were designed to meet the expanding jobsite needs and expectations of today’s professional tradesman. Tested tough. Trusted safe.
