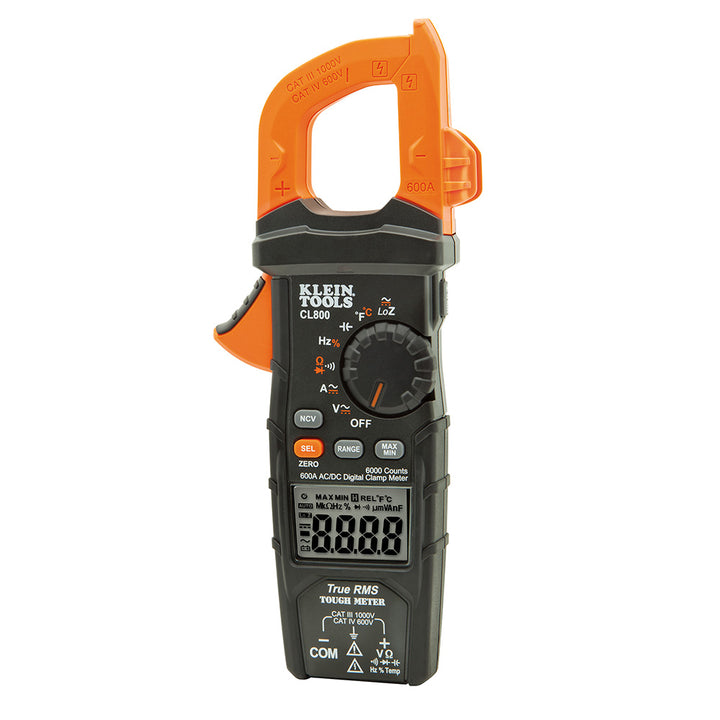

Klein Tools CL800 Digital Clamp Meter AC/DC Auto-Ranging
Klein Tools CL800 Digital Clamp Meter AC/DC Auto-Ranging
Klein Tools CL800 Digital Clamp Meter AC/DC Auto-Ranging
Klein Tools CL800 Digital Clamp Meter AC/DC Auto-Ranging
Klein Tools CL800 Digital Clamp Meter AC/DC Auto-Ranging
Klein Tools CL800 Digital Clamp Meter AC/DC Auto-Ranging
Klein Tools CL800 Digital Clamp Meter AC/DC Auto-Ranging
Klein Tools CL800 Digital Clamp Meter AC/DC Auto-Ranging

Klein Tools CL800 Digital Clamp Meter AC/DC Auto-Ranging

Regular price
/

$139.97 USD & FREE Shipping.
  • Automatically ranging true mean squared (TRMS) technology for increased accuracy
  • Test leads measure AC/DC voltage, resistance, continuity, frequency and capacitance and tests diodes
  • Thermocouple probe measures temperature
  • Low Impedance (LoZ) mode for identifying and eliminating ghost or stray voltages
  • CAT IV 600V, CAT III 1000V, Class 2, Double insulation safety rating
Overview

Klein Tools CL800 is an automatically ranging true root mean squared (TRMS) digital clamp-meter that measures AC/DC voltage, resistance, continuity, frequency, capacitance, and tests diodes via test-leads, and temperature via a thermocouple probe. It also features a Low Impedance (LoZ) mode for identifying and eliminating ghost or stray voltages. Klein Tools’ Test and Measurement product line was exclusively designed from the ground up by electricians for electricians. Years of field research, combined with extensive input from electricians across America, inspired the development of meters and electrical testers loaded with innovative, time-saving features.

Klein Tools CL800 Digital Clamp Meter AC/DC Auto-Ranging

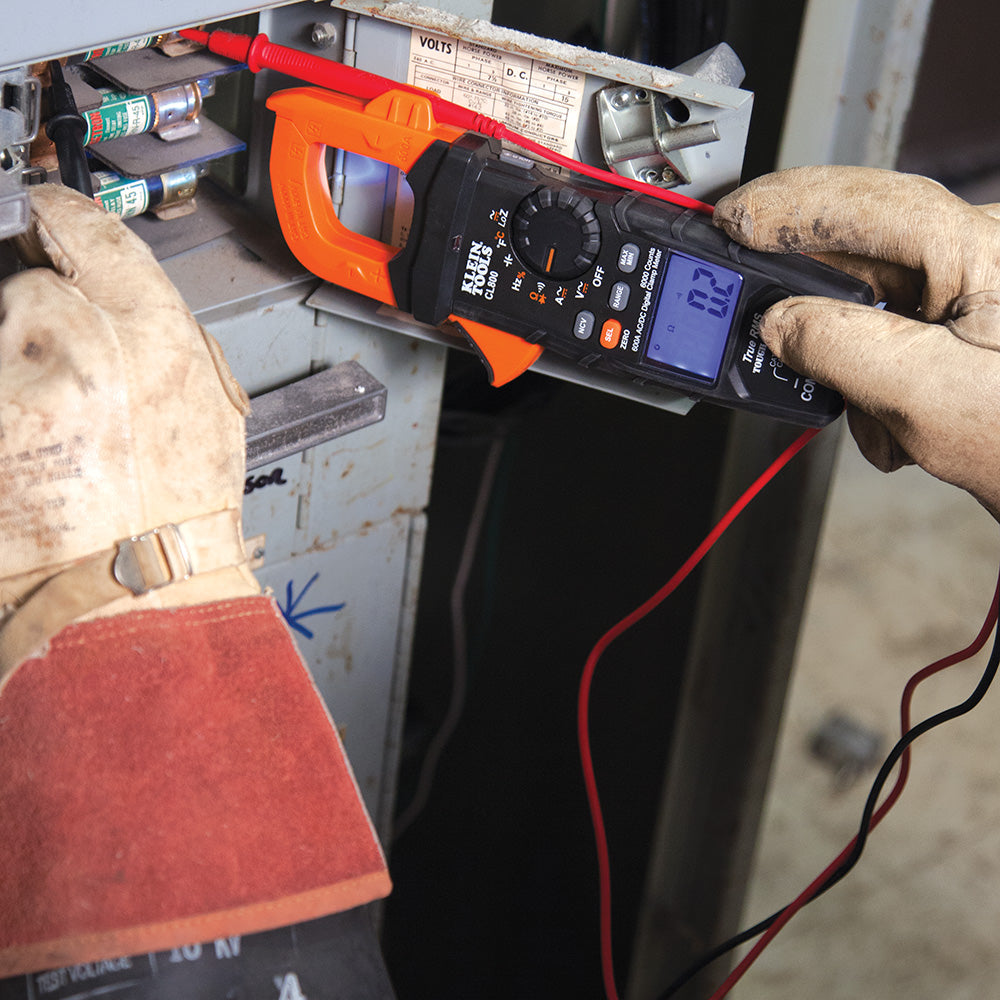

Clamp meter allows non-invasive diagnosis and measurement of cables and wires

Durable construction – made to withstand 2 meter drop while certified IP40 (ingress protection) will keep out moisture and contaminants. Built to withstand temperatures of -14F(-26C) to 1000F(-26C)

Automatically finds true mean squared for improved accuracy.

Test up to 1,000 volts/600 Amps/60M

Specifications
General Information
Brand
Klein Tools
Part Number
CL800
Product Type
Meter
Application
Measures Current
What's Included

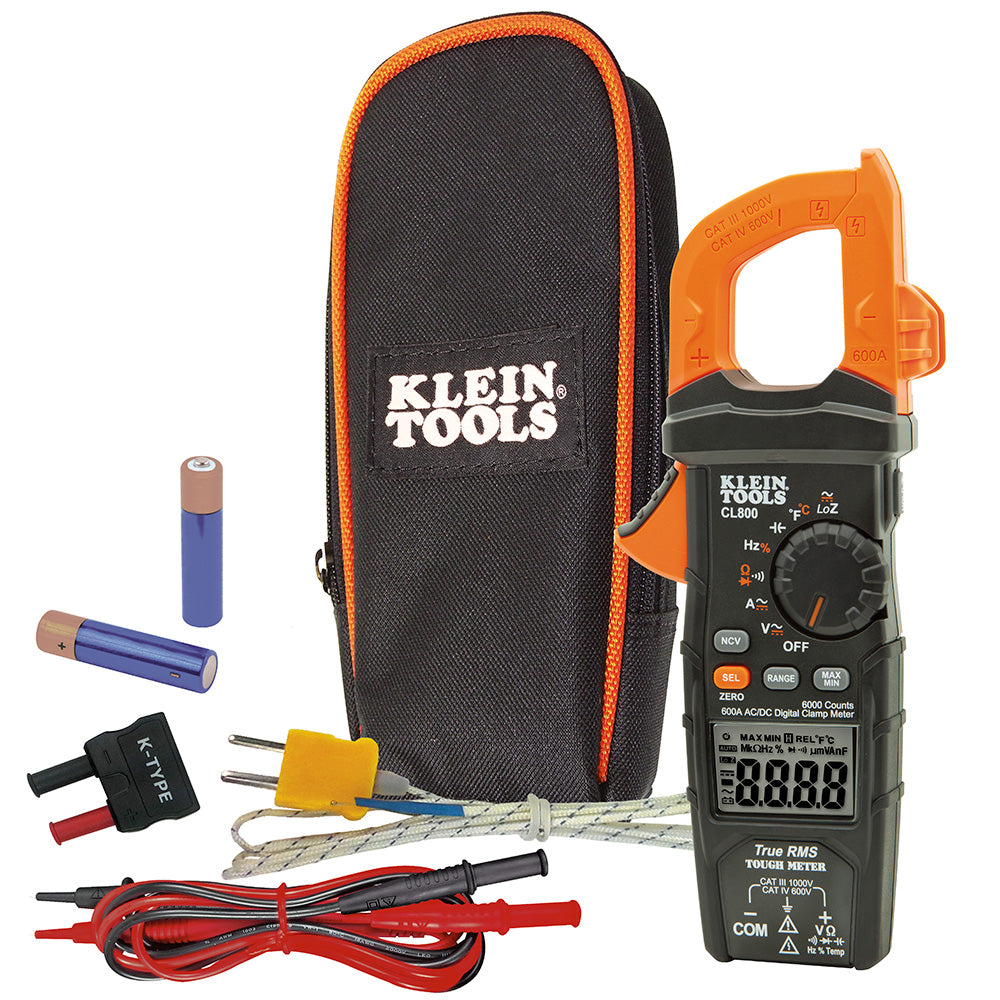

Carrying Case, 41'' (1041.4 mm) Test Leads, Thermocouple with Adapter, and Batteries
Packaging
Retail
UPC
092644690167
California Residents
Proposition 65 Warning
Physical Characteristics
Color
Orange / Black
Length
9.09'' (231.0 mm)
Width
3.81'' (96.9 mm)
Height
1.55'' (39.3 mm)
Weight
0.35 kg
0.78 lb
Details
Functions
Test leads measure AC/DC voltage, resistance, continuity, frequency and capacitance and tests diodes. Thermocouple probe measures temperature.
Features
Automatically ranging true mean squared (TRMS) technology for increased accuracy
Test leads measure AC/DC voltage, resistance, continuity, frequency and capacitance and tests diodes
Thermocouple probe measures temperature
Low Impedance (LoZ) mode for identifying and eliminating ghost or stray voltages
CAT IV 600V, CAT III 1000V, Class 2, Double insulation safety rating
Built to withstand a 6.6-Foot (2m) drop
Low battery indicator and easily accessible battery compartment
Operating temp: 32-degree F to 104-degree F (0-degree C to 40-degree C)
Operating altitude to 6562-Foot (2000m)
Includes carrying pouch, test leads, thermocouple with adapter and batteries
Meets requirements for use in basic and controlled electromagnetic environments like residential, office and light-industrial locations
AC Voltage
1000V
DC Voltage
1000V
Current
600A AC; 600A DC
Voltage
1000V AC; 1000V DC
Capacitance
6000µF
Resistance (Ohms)
60MO
Frequency
1Hz - 500 KHz
Batteries
2 x AAA
Display Type
6000 Count LCD
Temperature Range
-14° - 1000°F (-26° - 538°C)
Video

Our next generation of test and measurement tools were designed to meet the expanding jobsite needs and expectations of today’s professional tradesman. Tested tough. Trusted safe.

Why would you use this tool for ?
About manufacturer
Klein Tools

Klein Tools is the result of one of those “happy accidents” that turn out to be revolutionary. Klein Tools famously got their start in 1857 when a linesman came to founder Matthias Klein to repair his broken pliers. Klein replaced the broken half and when the old half of the tool broke too, Klein forged a replacement for that, thus making the first Klein Linesman pliers. Since these humble beginnings, Klein Tools has grown and become one of the largest American made toolmakers and they’re a brand used by tradesmen, linesman and electricians all across America.
